Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Discontinued
    Discontinued date: 2021-10-31
    Supply note: An engineered replacement is required; verify I/O, communications, program conversion, mounting, and application approvals.

1762-L24BXBR

/ 4.9
1001 reviews | Need a Specific Revision?

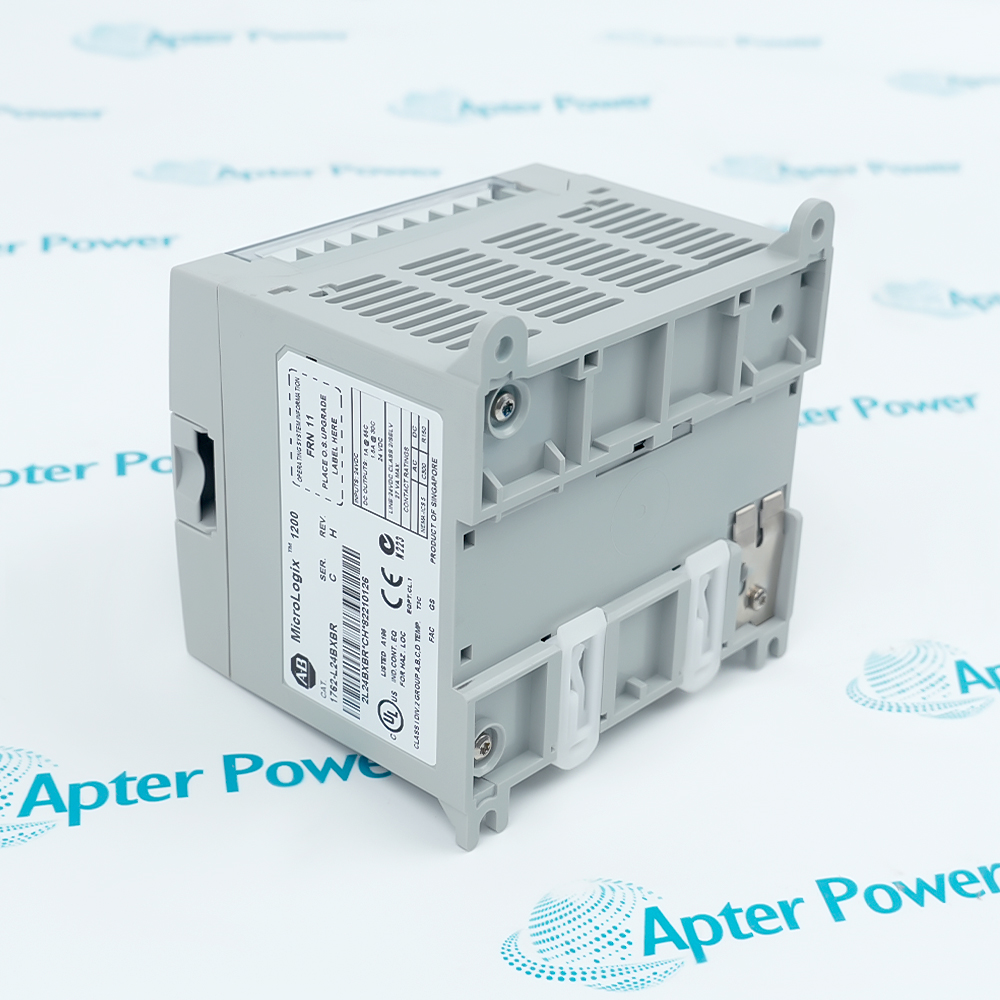

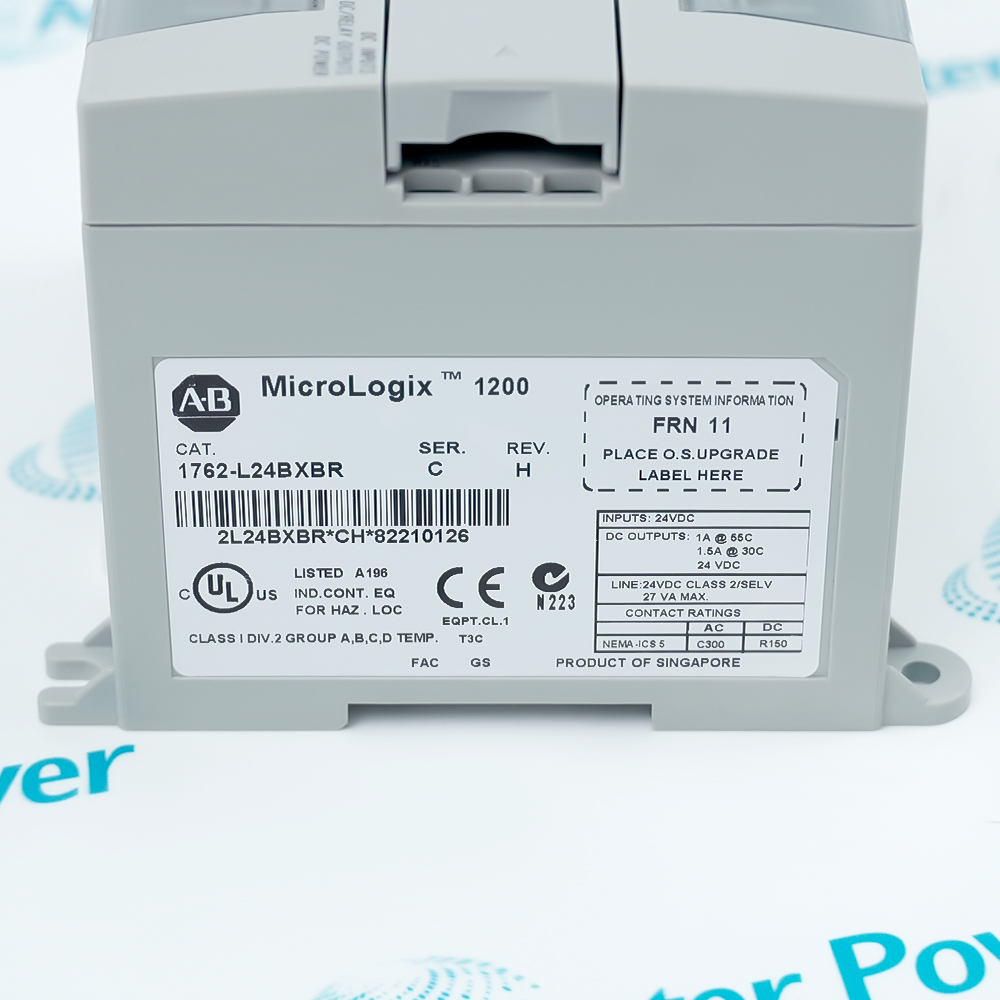

Allen-Bradley 1762-L24BXBR is a 24 V DC MicroLogix 1200 controller with 14 inputs, 10 mixed relay/FET outputs, and two serial communication ports.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1762-L24BXBR
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1762-L24BXBR

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1762-L24BXBR
  • Product Family:
    MicroLogix
  • Product Type:
    MicroLogix 1200 24-Point Controller
  • Stock:
    1
  • Controller Family:
    MicroLogix 1200
  • Embedded I/O Count:
    24 points
  • Power Supply:
    24 V DC Class 2 or SELV
  • Inputs:
    14 total, including 10 standard and 4 fast 24 V DC inputs
  • Outputs:
    10 total, including 5 relay and 5 24 V DC FET outputs
  • FET Output Mix:
    4 standard outputs and 1 fast output
  • User Memory:
    6 KB
  • Communication Channels:
    Two serial ports
  • Channel 0 Protocols:
    DF1, DH-485, Modbus RTU, and ASCII
  • Channel 1 Function:
    Programming and HMI port using DF1 full-duplex or respond-only operation
  • Maximum Power Consumption:
    27 W
  • Maximum Heat Dissipation:
    17 W
  • Dimensions:
    11 × 9 × 8.7 cm
  • Weight:
    0.9 kg
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals I/O Architecture Communications Installation Application
  • MicroLogix 1200 controller with twenty-four embedded I/O points.
  • Fourteen 24 V DC inputs and ten mixed relay/FET outputs.
  • Two serial ports support programming, HMI, and industrial communications.

1762-L24BXBR is an Allen-Bradley MicroLogix 1200 controller powered from a 24 V DC Class 2 or SELV source.

The embedded I/O combines standard and fast inputs with relay and FET outputs, including a fast output for the documented high-speed control functions.

Verify supply, commons, load types, high-speed I/O, serial protocols, expansion modules, program backup, mounting, and the engineering-replacement plan before service.

Availability, condition, price, and shipping time for 1762-L24BXBR are confirmed during quotation.

Allen-Bradley 1762-L24BXBR MicroLogix 1200 Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Fourteen embedded inputs include ten standard and four fast 24 V DC points.
  • Five relay outputs serve loads that match the documented contact ratings.
  • Five 24 V DC FET outputs include four standard points and one fast point.
  • Channel 0 supports DF1, DH-485, Modbus RTU, and ASCII operation.
  • Channel 1 is the programming/HMI port for DF1 full-duplex or respond-only use.
  • Record node addresses, baud rates, framing, and cable assignments before replacement.
  • Use a 24 V DC Class 2 or SELV source and preserve the documented field-power commons.
  • Maintain enclosure clearance, grounding, wiring separation, and conductor protection.
  • Match DIN-rail or panel mounting and confirm expansion-bus alignment before power-up.
  • Compact machine control using fourteen embedded digital inputs and ten mixed outputs.
  • High-speed input monitoring and fast FET-output control in MicroLogix 1200 systems.
  • Serial integration with programming terminals, HMIs, DF1, DH-485, Modbus RTU, or ASCII devices.
Description
1762-L24BXBR is an Allen-Bradley MicroLogix 1200 24-point controller powered from a 24 V DC Class 2 or SELV source.

Its embedded I/O combines fourteen 24 V DC inputs with five relay outputs and five 24 V DC FET outputs, while the controller provides a general serial channel and a separate programming/HMI port.

Before replacement, verify the input common arrangement, relay and FET load assignments, high-speed I/O usage, serial protocol settings, expansion I/O, program backup, and discontinued-product migration plan.
Revisions

Revision Part #

Also known as

1762-L24BXBR Ser C
1762-L24BXBR/C, Series C, Rev C
Alternative Names
1762-L24BXBR Allen-Bradley 1762-L24BXBR AB 1762-L24BXBR Rockwell Automation 1762-L24BXBR MicroLogix 1200 1762-L24BXBR 1762 L24BXBR
Technical notes
1762-L24BXBR mixes relay and fast FET outputs; preserve field-power commons, high-speed functions, serial settings, and the verified MicroLogix 1200 program.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What must be checked before replacing Allen-Bradley 1762-L24BXBR with another MicroLogix 1200 controller?
Match the 24 V DC supply, fourteen-input and ten-output mix, relay/FET load assignments, high-speed I/O use, serial-port configuration, expansion modules, firmware needs, and complete catalog number.
Which outputs on Allen-Bradley 1762-L24BXBR require special attention during migration?
The controller mixes five relay outputs with five 24 V DC FET outputs, including one fast output. Preserve load type, common wiring, current limits, suppression, and any pulse-train or PWM function.
Can both serial ports on Allen-Bradley 1762-L24BXBR be treated as identical communication channels?
No. Channel 0 supports DF1, DH-485, Modbus RTU, and ASCII, while Channel 1 is the programming/HMI port with DF1 full-duplex or respond-only operation.
What backup should be collected before removing Allen-Bradley 1762-L24BXBR?
Save the verified controller program, data-table values, communication settings, expansion-I/O configuration, high-speed counter and output settings, passwords, and the machine's approved restart procedure.
What installation checks are important for Allen-Bradley 1762-L24BXBR?
Confirm enclosure clearances, DIN-rail or panel mounting, grounding, Class 2 or SELV supply, input commons, relay and FET field power, conductor routing, and separation from electrical noise sources.
How should Allen-Bradley 1762-L24BXBR be commissioned after replacement?
Restore the approved project, confirm the controller mode and communications, test each input and output safely, verify high-speed functions, check expansion I/O, and complete controlled machine operation tests.
Which application functions require dedicated testing after replacing Allen-Bradley 1762-L24BXBR?
Test the four fast inputs, high-speed counter configuration, fast FET output, pulse-train or PWM functions, serial communications, and expansion I/O against the approved program before returning the machine to production.
