1762-MM1

/ 4.9
1001 reviews | Need a Specific Revision?

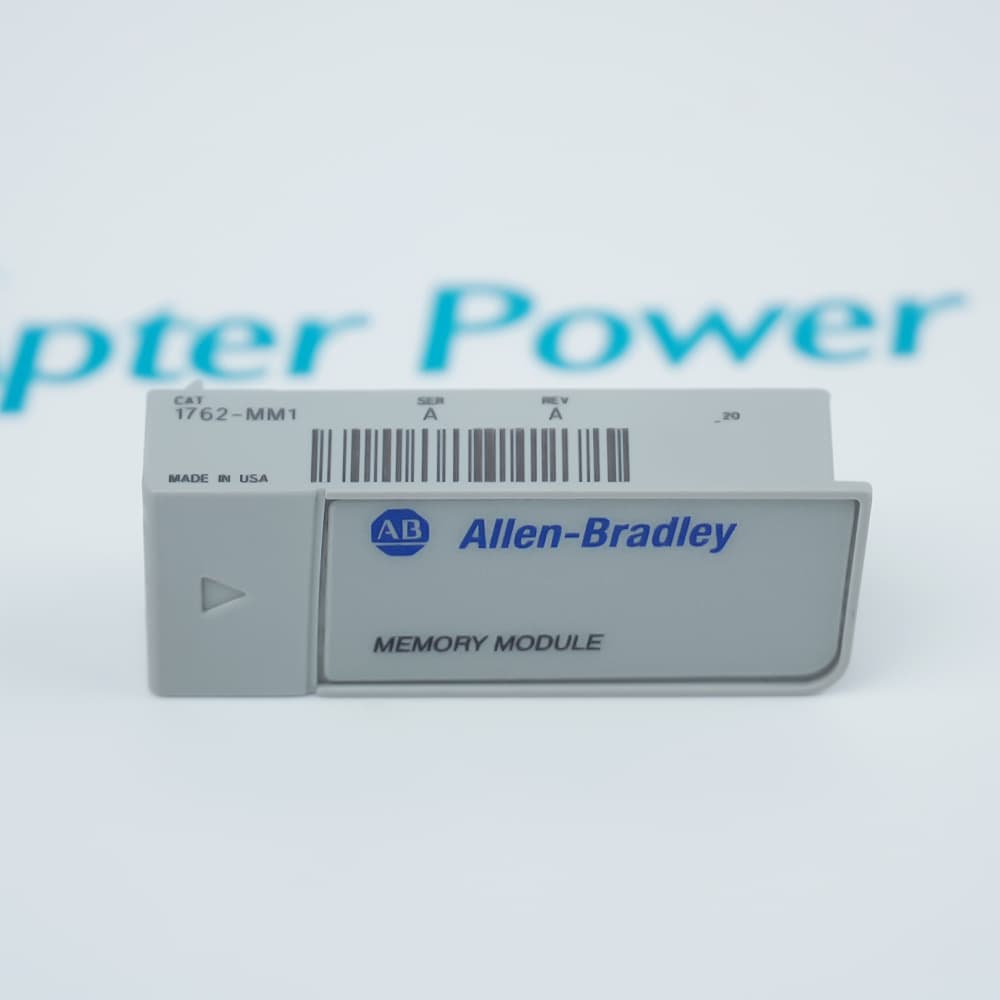

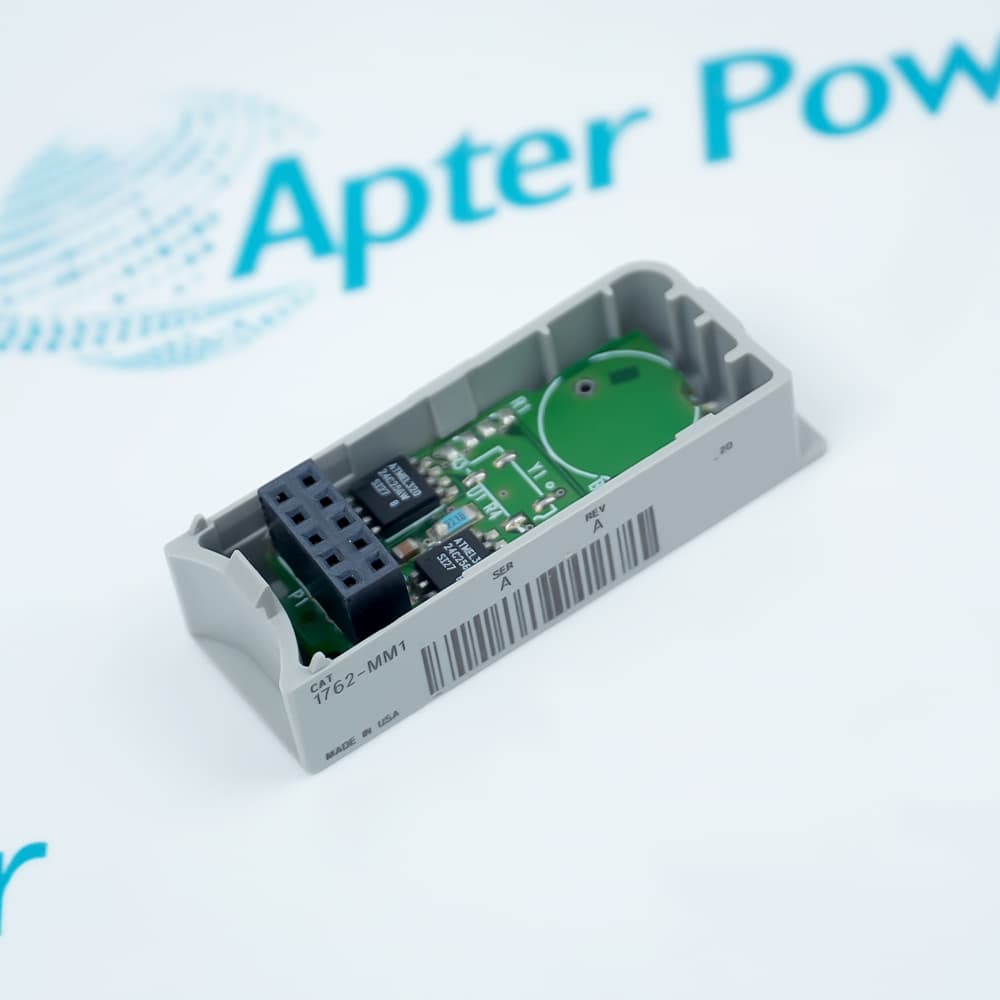

Allen-Bradley 1762-MM1 is a 6 KB memory module used to back up and transfer supported MicroLogix 1200 controller programs and data.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1762-MM1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1762-MM1

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1762-MM1
  • Product Family:
    MicroLogix
  • Product Type:
    MicroLogix 1200 Memory Module
  • Stock:
    1
  • Module configuration:
    Memory module only
  • Memory capacity:
    6 KB
  • Backup contents:
    User program and data
  • Program comparison:
    Supported
  • Data file protection:
    Supported
  • User manual:
    1762-UM001
  • Compatible controller family:
    MicroLogix 1200 (1762)
  • Operating temperature:
    0 to 55°C
  • Conformity:
    EMC, RoHS
  • Memory module write protection:
    Write-once/read-many; cannot be removed once enabled
  • Removal/insertion under power:
    Supported, except during a data transaction
  • Tariff Code:
    8538900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Backup Use Installation Compatibility Application
  • Stores a 6 KB MicroLogix 1200 controller image
  • Supports controlled backup, restore and program transfer
  • Requires controller and image compatibility verification

Allen-Bradley 1762-MM1 is the removable memory module for the MicroLogix 1200 controller family.

Its value is controlled application recovery: the stored image must match the intended controller, firmware and machine revision.

Before insertion or restoration, isolate the process, verify the current controller backup and confirm the configured load behavior for the memory module.

Availability, condition, price, and shipping time for 1762-MM1 are confirmed during quotation.

Allen-Bradley 1762-MM1 MicroLogix 1200 Memory Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Save a verified MicroLogix 1200 application image
  • Label the module with the controller and machine revision
  • Keep an external project backup in addition to the module
  • De-energize and secure the controlled machine before handling
  • Seat the module without forcing the connector
  • Follow the controller manual for memory-module load behavior
  • Use with supported MicroLogix 1200 controllers
  • Match the application and firmware requirements
  • Do not assume compatibility with other MicroLogix families
  • MicroLogix 1200 application backup
  • Controlled restoration of a replacement MicroLogix 1200 controller
  • Transfer of a validated machine program between matched MicroLogix 1200 controllers
Description
Allen-Bradley 1762-MM1 is a removable memory module for supported MicroLogix 1200 controllers.

It stores a 6 KB controller image so a validated program can be backed up, restored or transferred under the memory-module rules configured in the controller.

It is used for controlled recovery and maintenance where the module image, controller catalog number and application revision are verified before loading.
Revisions

Revision Part #

Also known as

1762-MM1 Ser A
1762-MM1/A, Series A, Rev A
Alternative Names
1762-MM1 1762 MM1 1762MM1 Allen-Bradley 1762-MM1 Allen Bradley 1762-MM1 Allen-Bradley 1762 MM1 Rockwell Automation 1762-MM1 MicroLogix 1200 1762-MM1
Technical notes
Allen-Bradley 1762-MM1 stores a MicroLogix 1200 application image; it is not a universal MicroLogix accessory. Confirm controller compatibility and the configured load behavior before insertion.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can Allen-Bradley 1762-MM1 be used with any MicroLogix controller?
No. It is designed for the MicroLogix 1200 family. Confirm the exact controller catalog number and application compatibility before use.
Will Allen-Bradley 1762-MM1 automatically overwrite the controller program at power-up?
Not necessarily. Loading depends on the controller’s configured memory-module behavior. Verify the stored program and loading configuration before restarting the controller.
Can Allen-Bradley 1762-MM1 replace a software project backup?
No. Keep the editable project, controller configuration and machine documentation separately. The memory module stores one user program and its data but is not a complete engineering record.
Why is Allen-Bradley 1762-MM1 not recognized after being installed while the controller is running?
A module inserted while the MicroLogix 1200 is executing is not recognized until the controller is power-cycled or placed in a non-executing mode, such as Program, Suspend or Fault mode.
Can a write-protected Allen-Bradley 1762-MM1 be erased and reused?
No. Once memory-module write protection is enabled, it cannot be removed. Use another memory module if the stored control program must be changed.
Can Allen-Bradley 1762-MM1 be inserted or removed while power is applied?
Yes, but not during a data transaction. Removing the module while data is being transferred can corrupt the stored program or data.
How should Allen-Bradley 1762-MM1 be validated after restoring an application?
Confirm the restored program matches the approved project, verify protected data files and communications, and test the affected I/O, interlocks and machine sequence under controlled conditions.
