    Apter Power maintains a reliable stock of legacy, fully tested Allen-Bradley 1784 network interfaces, ensuring your vintage ControlNet architectures stay connected without costly upgrades.

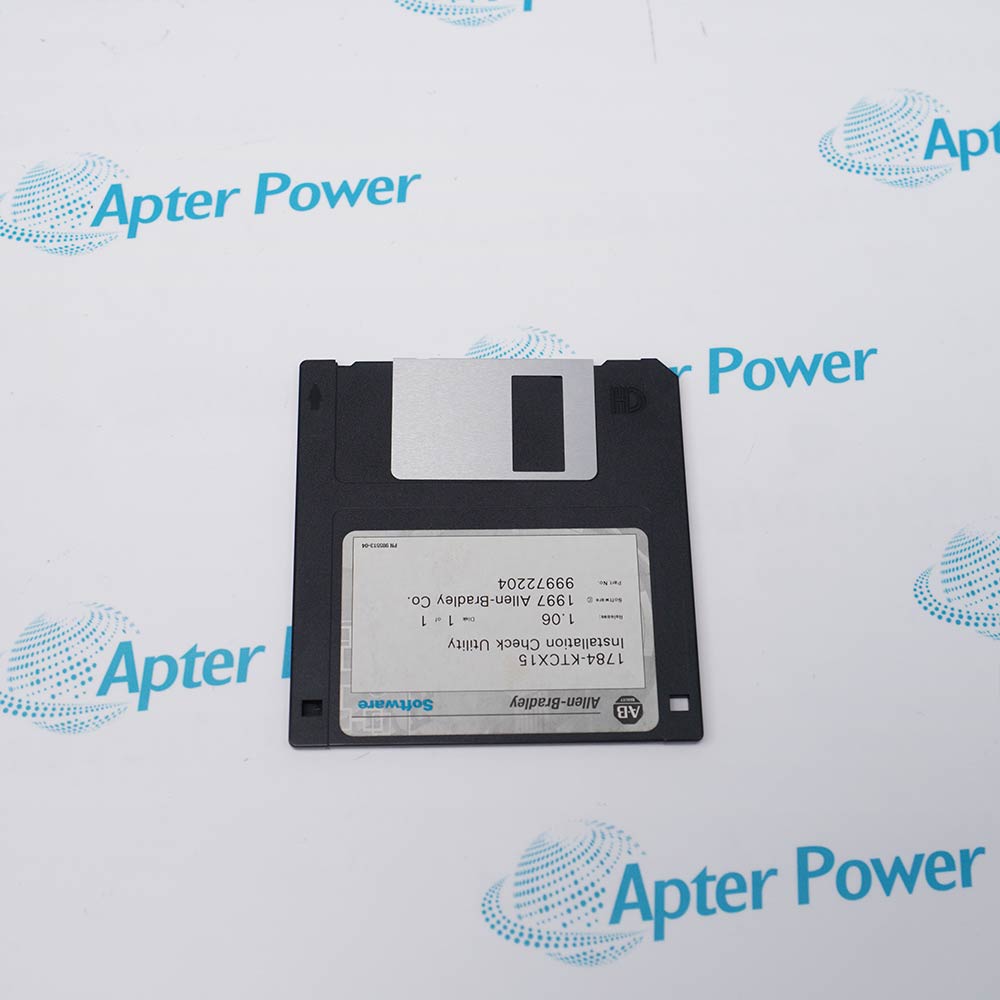

1784-KTCX15

/ 4.9
1001 reviews | Need a Specific Revision?
Allen-Bradley 1784-KTCX15 is a ControlNet interface card for direct communication between a compatible ISA/EISA host computer and ControlNet products.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1784-KTCX15
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1784-KTCX15

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1784-KTCX15
  • Product Family:
    PLC-5
  • Product Type:
    ControlNet Communication Interface Card
  • Stock:
    1
  • Network Interface:
    ControlNet
  • Host Compatibility:
    16-bit ISA or 32-bit EISA computer
  • Direct Network Connection:
    Supported through ControlNet taps and BNC connectors
  • Portable Connection:
    Supported through a ControlNet network access port and 1786-CP cable
  • Dual-Port Memory Window:
    16 Kbytes
  • Configured Resources:
    Base memory and base I/O space
  • Power Requirement:
    5 V DC, 640 mA maximum
  • Media Support:
    Redundant or non-redundant ControlNet according to switch and cabling configuration
  • Dimensions:
    2.2 × 18 × 12.6 cm
  • Weight:
    0.14 kg
  • Tariff Code:
    8517623990
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Host Resources Network Connection Commissioning Application
  • Provides the host-computer communication path for data exchange across a ControlNet network
  • Requires an available ISA or EISA slot together with the documented memory window and a unique base-I/O address
  • Replacement depends on restoring the original node address, switch settings, driver, tap, and BNC cabling

1784-KTCX15 is an Allen-Bradley controlnet communication interface card designed for the documented supported ControlNet host-computer environment.

Install the card only in a compatible 16-bit ISA or 32-bit EISA slot. Reserve the documented 16-Kbyte base-memory window and a unique base-I/O address.

Before installation or replacement, record and restore the node address and all switch-selected host resources. Verify the driver sees the card before connecting it to an operating network.

Availability, condition, price, and shipping time for 1784-KTCX15 are confirmed during quotation.

Allen-Bradley 1784-KTCX15 ControlNet Communication Interface Card Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Install the card only in a compatible 16-bit ISA or 32-bit EISA slot.
  • Reserve the documented 16-Kbyte base-memory window and a unique base-I/O address.
  • Disable conflicting cache or shadow-memory use for the selected memory range.
  • Use a ControlNet tap and BNC connection for direct network attachment.
  • Use a compatible device NAP and 1786-CP cable for the documented portable-host method.
  • Match channel A/B wiring to the redundant or non-redundant media design.
  • Record and restore the node address and all switch-selected host resources.
  • Verify the driver sees the card before connecting it to an operating network.
  • Confirm ControlNet status indications and network participation after connection.
  • Direct host-computer access to a ControlNet network through a compatible tap.
  • Portable programming access through a ControlNet network access port.
  • ControlNet configuration, monitoring, and communication from a supported ISA/EISA computer.
Description
Allen-Bradley 1784-KTCX15 is a ControlNet interface card for direct communication between a compatible ISA/EISA host computer and ControlNet products.

The card operates in a 16-bit ISA or 32-bit EISA environment and uses configured base-memory, base-I/O, node-address, and network-media settings for direct or NAP-based ControlNet access.

Before installation, identify an available compatible slot, reserve unique resources, match redundant or non-redundant media, record all switch settings, and disable conflicting cache or shadow-memory use.
Alternative Names
1784-KTCX15 1784KTCX15 1784 KTCX15 Allen-Bradley 1784-KTCX15 Allen Bradley 1784-KTCX15 AB 1784-KTCX15
Technical notes
1784-KTCX15 installation requires a compatible 16-bit ISA or 32-bit EISA slot, unique memory and I/O resources, matching node and media switches, ControlNet cabling, and supported drivers; PCI substitutes are not drop-in.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What host computer slot is required for Allen-Bradley 1784-KTCX15?
Use a compatible 16-bit ISA or 32-bit EISA slot; the official instructions state that the card functions only in those ISA/EISA slot types.
What computer resources must be reserved before installing Allen-Bradley 1784-KTCX15?
Record and reserve a unique 16-Kbyte base-memory window and base-I/O address, and check the host for conflicts with adapters, cache, or shadow memory.
How should a buyer choose between direct and NAP connection for Allen-Bradley 1784-KTCX15?
Match the existing architecture: direct network connection requires the documented tap and BNC cabling, while portable access can use a compatible device NAP and 1786-CP cable.
What should be recorded before replacing Allen-Bradley 1784-KTCX15?
Record the node address, base memory, base I/O space, interrupt or host resources, media switches, redundant-media choice, cabling, driver, and software configuration.
Why might Allen-Bradley 1784-KTCX15 fail to start in a replacement PC?
An incompatible slot, occupied memory or I/O range, enabled shadowing or caching, incorrect card switches, or an unsupported driver environment can block operation.
What cable-system checks apply to Allen-Bradley 1784-KTCX15?
Confirm the ControlNet tap, trunk and dropline arrangement, termination, channel A/B use, redundant-media configuration, node address, and connector condition against the network design.
Is Allen-Bradley 1784-KTCX15 a drop-in replacement for a modern PCI or USB ControlNet interface?
No. Its ISA/EISA resources, driver model, connectors, and routing behavior differ, so the host platform and complete ControlNet access method must be reviewed.
