1771-NIS

/ 4.9
1001 reviews | Need a Specific Revision?

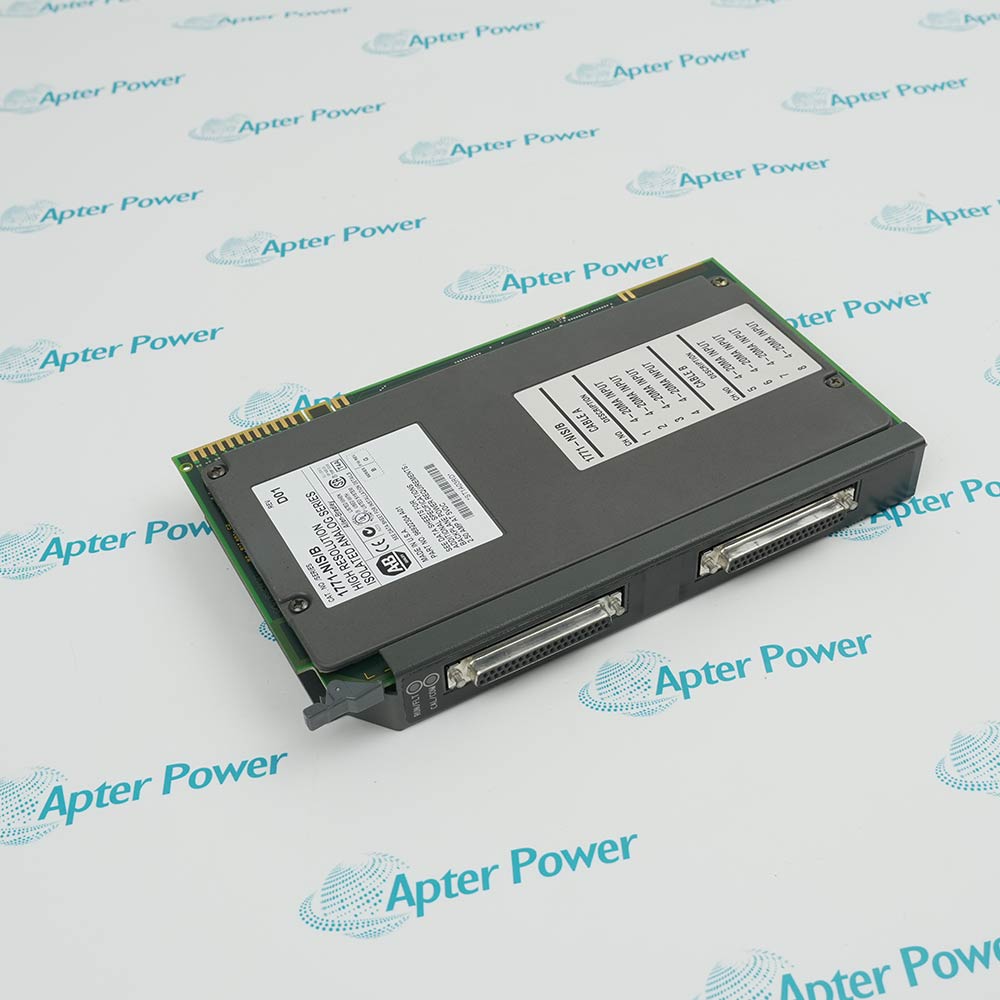

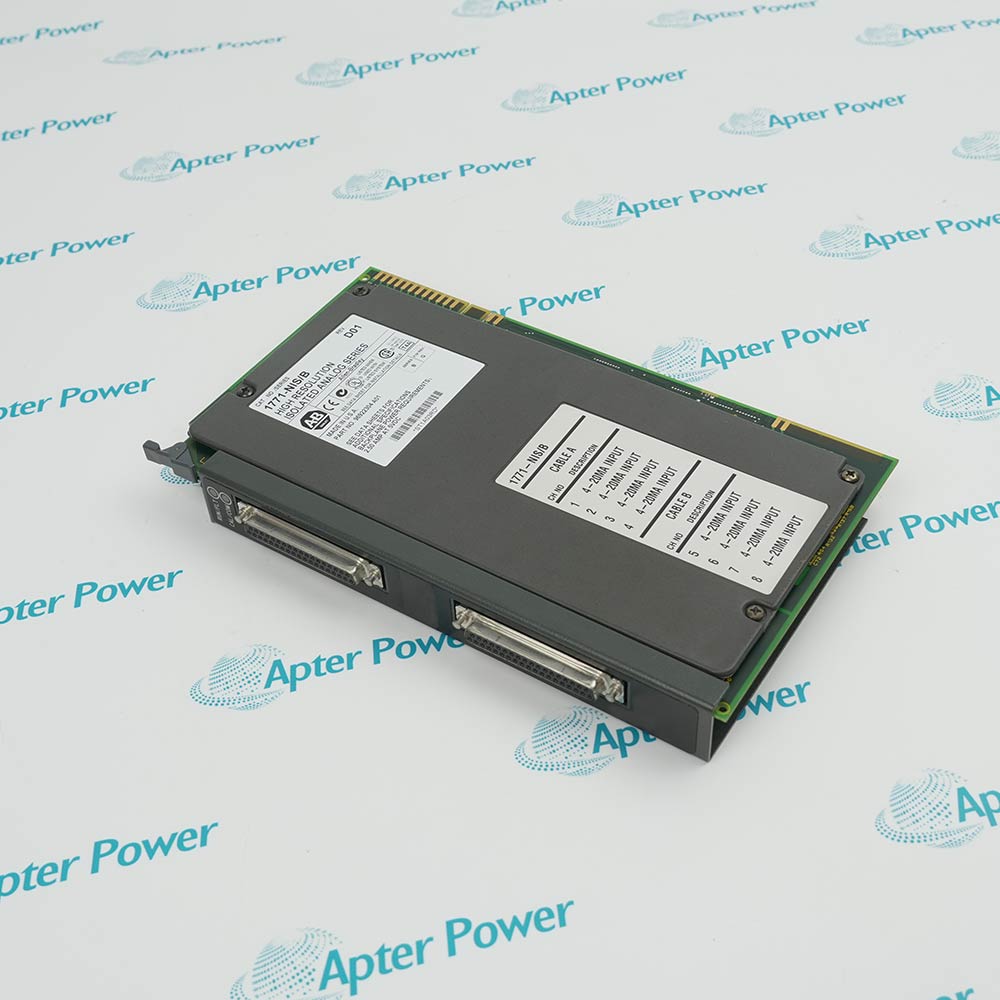

Allen-Bradley 1771-NIS is an eight-channel high-resolution isolated 4–20 mA analog input module for PLC-5 and 1771 I/O systems.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1771-NIS
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1771-NIS

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1771-NIS
  • Product Family:
    PLC-5
  • Product Type:
    8-Channel High-Resolution Isolated Analog Input Module
  • Stock:
    1
  • Input Channels:
    8 current inputs
  • Nominal Input Range:
    4 to 20 mA
  • Supported Input Arrangements:
    Sourcing or sinking
  • Two-Wire Transmitter Support:
    Module-supplied loop power
  • External-Power Conversion Span:
    0 to 20 mA
  • Conversion Resolution with External Power:
    16-bit, 65,535 counts over 0 to 20 mA
  • Input Resolution:
    0.34 µA per bit
  • Isolation:
    Each channel isolated from every other channel and from the backplane
  • Configuration Functions:
    Engineering-unit scaling and configurable channel alarms
  • Diagnostics:
    Self-diagnostics and open-circuit detection
  • Calibration Method:
    Self-calibration using an external reference
  • Backplane Current:
    2.4 A
  • Remote Termination Panel:
    1771-RTP4
  • Compatible Chassis:
    1771-A1B, A2B, A3B, A3B1, A4B, later universal chassis, 1771-AM1, and 1771-AM2
  • Dimensions:
    3 × 15.2 × 25.8 cm
  • Weight:
    0.75 kg
  • Tariff Code:
    8538900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Loop Interface Termination Diagnostics Application
  • Receives eight isolated 4–20 mA process inputs
  • Provides documented loop power for compatible two-wire transmitters
  • Supports remote termination through the specified 1771-RTP4 arrangement

1771-NIS is an Allen-Bradley high-resolution sourcing analog input module for current-loop instrumentation.

Unlike a passive current-input module, it can supply the documented loop power used by compatible two-wire field transmitters.

Confirm transmitter polarity, loop ownership, isolation, remote termination and block-transfer configuration before reconnecting field circuits.

Availability, condition, price, and shipping time for 1771-NIS are confirmed during quotation.

Allen-Bradley 1771-NIS 8-Channel High-Resolution Isolated Analog Input Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Configure each channel for the documented sourcing or sinking arrangement
  • Module-supplied loop power is available for compatible two-wire transmitters
  • Externally powered transmitters require the alternate official connection and correct polarity
  • Use the documented remote termination panel and interconnect cable
  • Verify terminal assignments, fuses, shields, and loop returns before startup
  • Preserve the channel-to-terminal mapping during replacement
  • Channel diagnostics include open-circuit detection
  • Programmable scaling and alarms are transferred through the module configuration
  • Use the official external-reference procedure when self-calibration is required
  • Isolated 4–20 mA process-transmitter acquisition
  • Loop-powered two-wire transmitter systems
  • High-resolution multi-loop process monitoring with remote termination
Description
Designed around eight isolated 4–20 mA inputs, the 1771-NIS brings field-transmitter current loops into a compatible PLC-5 system through the high-resolution 1771 N-Series analog architecture.

Its channels can operate as sourcing or sinking inputs. In a sourcing arrangement, loop power for compatible two-wire transmitters is supplied by the module; in a sinking arrangement, loop power is furnished externally.

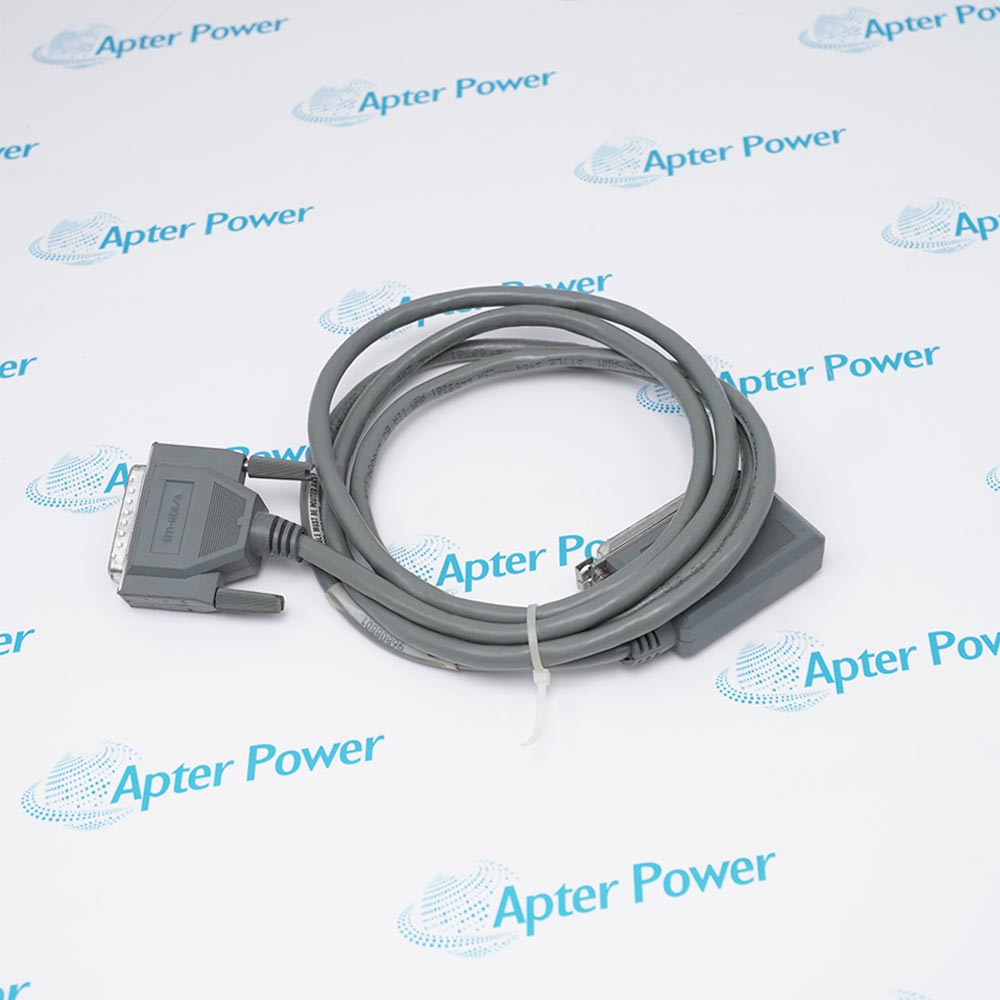

Field signals do not connect directly to the module face. The documented installation uses a compatible remote termination panel connected by a 1771-NC6 cable for a 1.83 m route or a 1771-NC15 cable for a 4.57 m route.

A complete 1771-NIS channel arrangement is determined by the termination panel, cable, transmitter polarity, selected loop-power source, grounding, scaling and alarm entries, chassis location, and controller block-transfer configuration.
Alternative Names
1771-NIS 1771 NIS 1771NIS Allen-Bradley 1771-NIS Allen Bradley 1771-NIS Rockwell Automation 1771-NIS PLC-5 1771-NIS
Technical notes
1771-NIS operates through its remote termination panel and cable; preserve loop-power polarity, channel scaling, alarm limits, and block-transfer configuration to prevent open-circuit diagnostics.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can 1771-NIS replace a standard 1771 analog input module without changing field termination?
Do not assume direct interchangeability. Verify the remote termination panel, interconnect cable, loop-power method, channel polarity, isolation needs, addressing, scaling, alarms, and block-transfer layout before selection.
Are the 1771-RTP4 panel and interconnect cable included with 1771-NIS?
Treat the module, remote termination panel, and interconnect cable as separate system components unless the quoted stock description explicitly includes them; verify all three catalog identities before ordering.
Which remote termination panel is used with 1771-NIS?
The official documentation identifies the 1771-RTP4 remote termination panel. Confirm the panel, interconnect cable, fuse arrangement, terminal assignments, and loop-power configuration before replacement.
How should a buyer choose between module-powered and externally powered transmitters for 1771-NIS?
Follow the installed loop design and transmitter requirements. The chosen sourcing or sinking arrangement, polarity, remote-panel terminals, loop supply, and programmed channel setup must agree.
What configuration should be preserved before replacing 1771-NIS?
Save channel enables, scaling, alarm thresholds, loop-power arrangement, diagnostics, block-transfer words, chassis location, remote-panel wiring, and any external calibration-reference procedure.
How is 1771-NIS calibrated?
The module supports self-calibration using an external reference. Follow the official calibration connections and sequence and verify all affected channels before returning the loop to service.
Why might 1771-NIS show an open circuit after replacement?
Check the remote termination panel and cable, transmitter supply, sourcing-versus-sinking wiring, polarity, fuses, channel enable state, loop continuity, and restored block-transfer configuration.
