1784-PCMK

/ 4.9
1001 reviews | Need a Specific Revision?

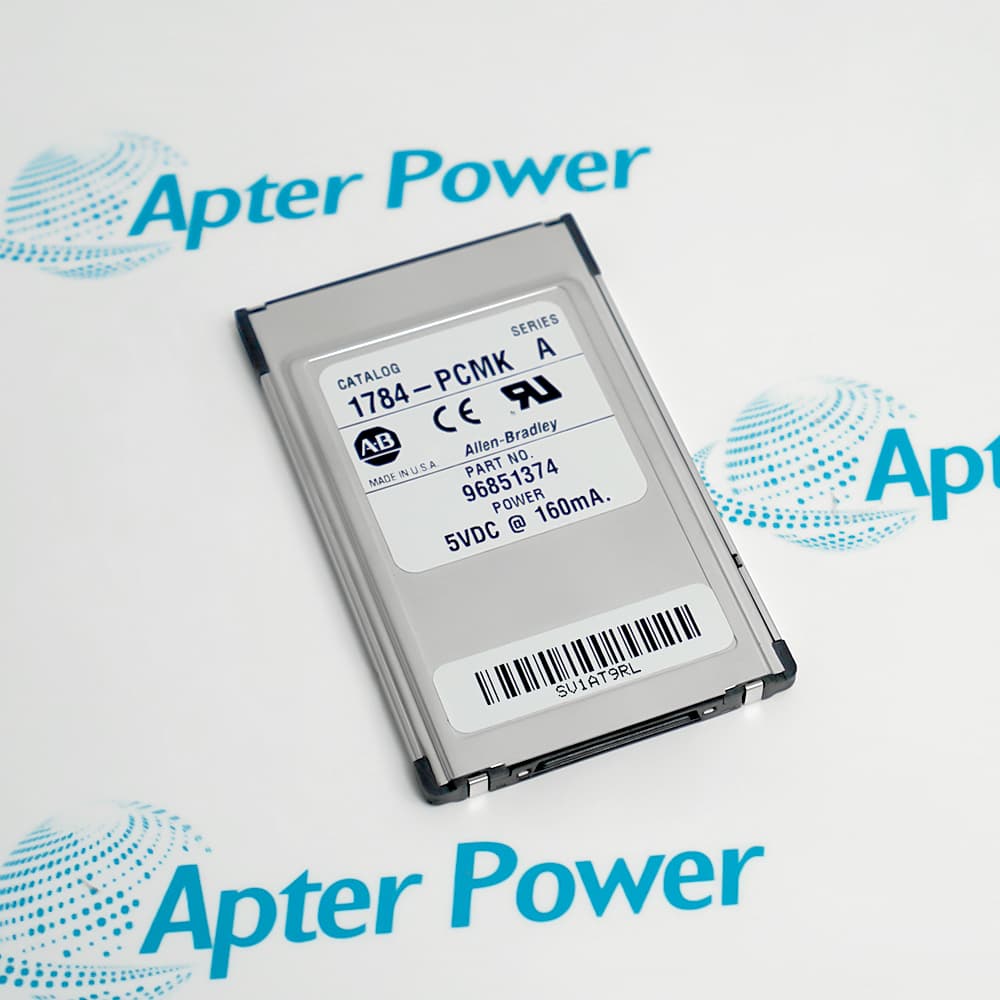

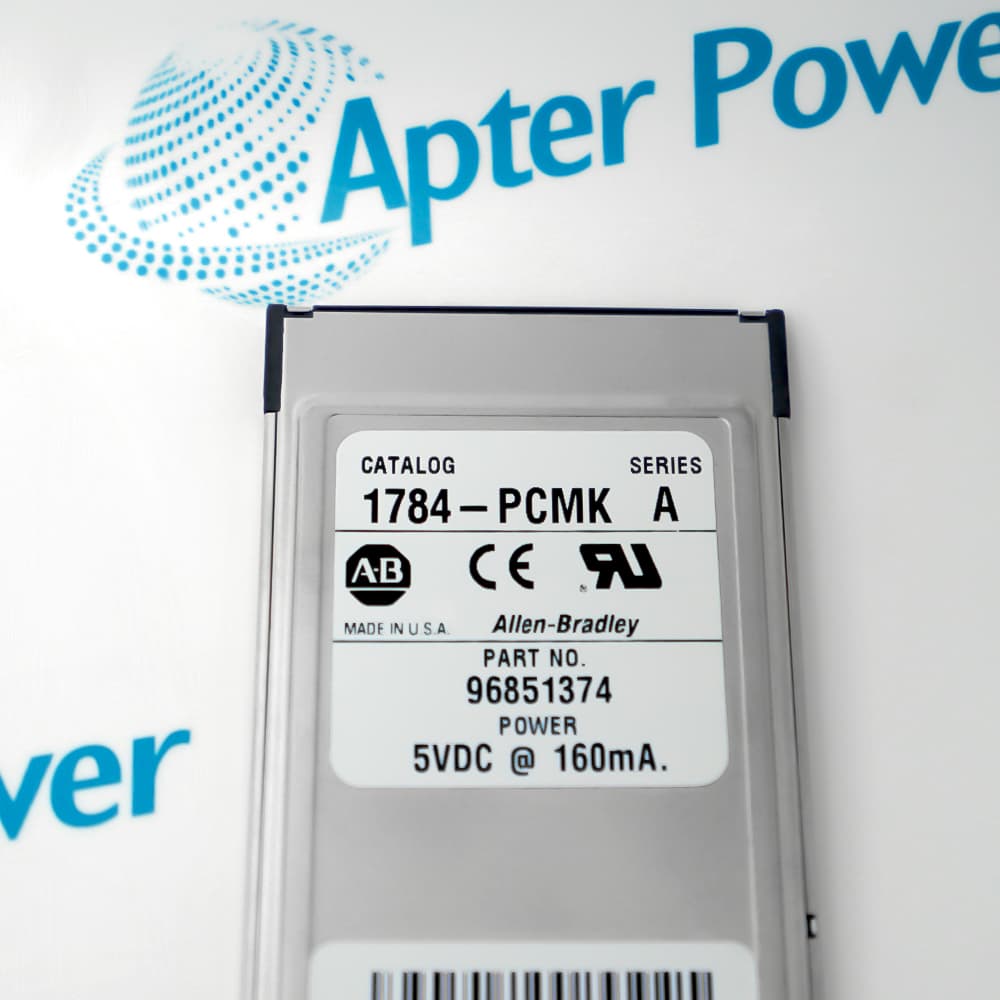

Allen-Bradley 1784-PCMK is a Type II PCMCIA communication card for supported DH+, DH-485, and remote I/O access from a compatible notebook computer.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1784-PCMK
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1784-PCMK

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1784-PCMK
  • Product Family:
    PLC-5
  • Product Type:
    PCMCIA Communication Card
  • Stock:
    1
  • Form Factor:
    PCMCIA Type II network adapter card
  • PC Card Standard:
    February 1995
  • Card and Socket Services:
    Version 2.1
  • Series B Card Width:
    16-bit
  • Series B Enhancements:
    Locking cables, updated drivers, and newer PCI-bus notebook support
  • Network Functions:
    DH+, DH-485, and remote I/O scanner according to cable and driver
  • DH+ Series B Rate:
    Up to 230 kbit/s
  • Card Power:
    160 mA at 5 V DC
  • Operating Temperature:
    0 to 55 °C
  • Dimensions:
    6.3 × 9.3 × 1 cm
  • Weight:
    0.06 kg
  • Tariff Code:
    8517623990
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Series Match Computer Setup Card Handling Application
  • Match the PCMK/A or PCMK/B series to the correct cable family and driver before installation
  • Confirm the host provides a compatible PCMCIA Type II slot with supported Card and Socket Services
  • Stop active communication and complete the operating-system safe-eject procedure before removing the card

1784-PCMK is an Allen-Bradley pcmcia communication card designed for the documented supported industrial-computer and Allen-Bradley network environment.

Identify the PCMK/A or PCMK/B marking before selecting cables or drivers. PCMK/B is a 16-bit card and uses the newer locking cable family.

Before installation or replacement, stop communication before using the operating system eject procedure. Remove the card only after the operating system reports that removal is safe.

Availability, condition, price, and shipping time for 1784-PCMK are confirmed during quotation.

Allen-Bradley 1784-PCMK PCMCIA Communication Card Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Identify the PCMK/A or PCMK/B marking before selecting cables or drivers.
  • PCMK/B is a 16-bit card and uses the newer locking cable family.
  • Series A cables do not connect to the Series B card.
  • Use a compatible PCMCIA Type II slot and supported operating system.
  • Install the correct driver and verify that an interrupt and memory range are assigned.
  • Check notebook power-management and dynamic-removal limitations for the operating system.
  • Stop communication before using the operating system eject procedure.
  • Remove the card only after the operating system reports that removal is safe.
  • Inspect the locking connector, cable, and PCMCIA socket before reinsertion.
  • Notebook programming and communication on Data Highway Plus networks.
  • Notebook communication with supported controllers on Data Highway-485 networks.
  • Portable remote I/O scanner operation with a compatible Series B card, cable, and driver.
Description
Allen-Bradley 1784-PCMK is a Type II PCMCIA communication card for supported DH+, DH-485, and remote I/O access from a compatible notebook computer.

Series B is a 16-bit card with locking Series B cables, updated drivers, newer PCI-bus notebook support, DH+ operation at 230 kbit/s, and remote I/O scanner capability.

Before replacement, verify the card series, cable series, PCMCIA slot, driver and operating system, interrupt and memory resources, network mode, station settings, and safe card-removal procedure.
Revisions

Revision Part #

Also known as

1784-PCMK Ser B
1784-PCMK/B, Series B, Rev B
Alternative Names
1784-PCMK 1784PCMK 1784 PCMK Allen-Bradley 1784-PCMK Allen Bradley 1784-PCMK AB 1784-PCMK
Technical notes
1784-PCMK replacement requires the exact A/B series, matching cable family, Type II PCMCIA slot, supported operating system and driver, free interrupt and memory resources, and saved network settings; Series A cables do not fit PCMK/B.
