1734-OB4E

/ 4.9
1001 reviews | Need a Specific Revision?

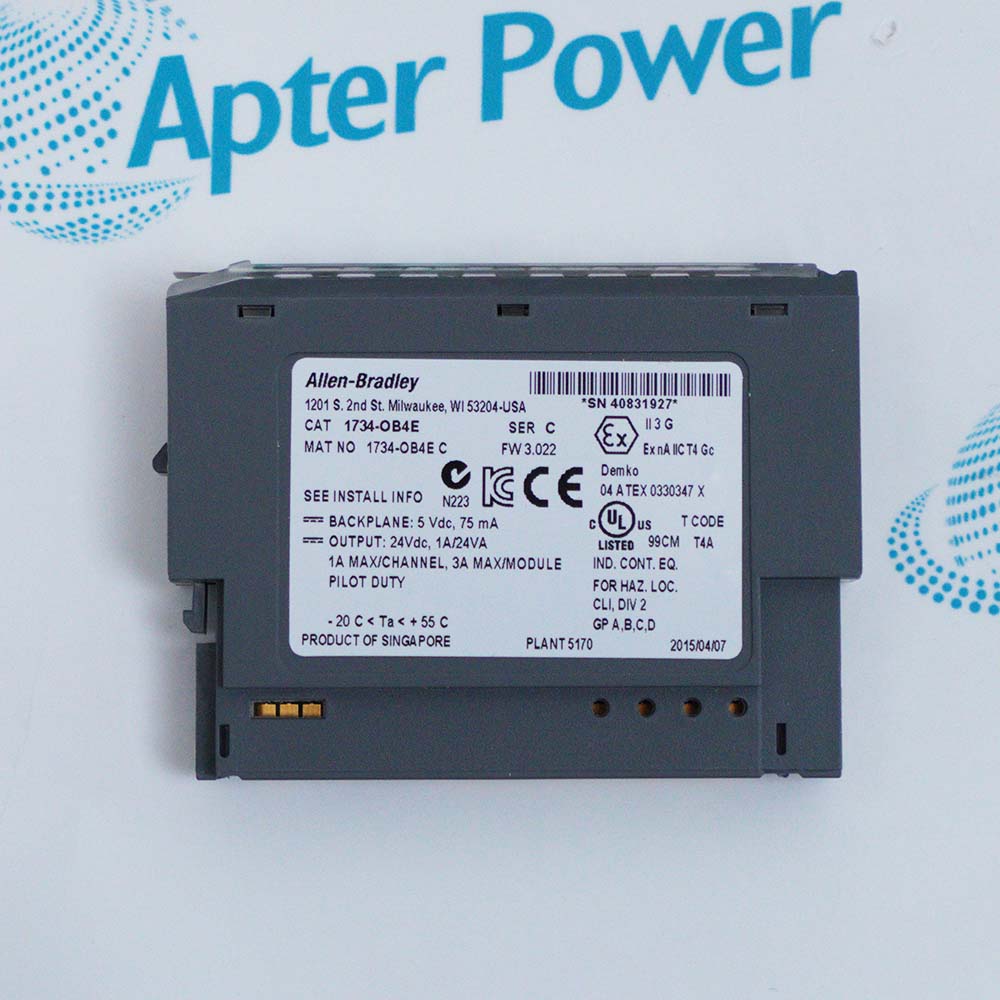

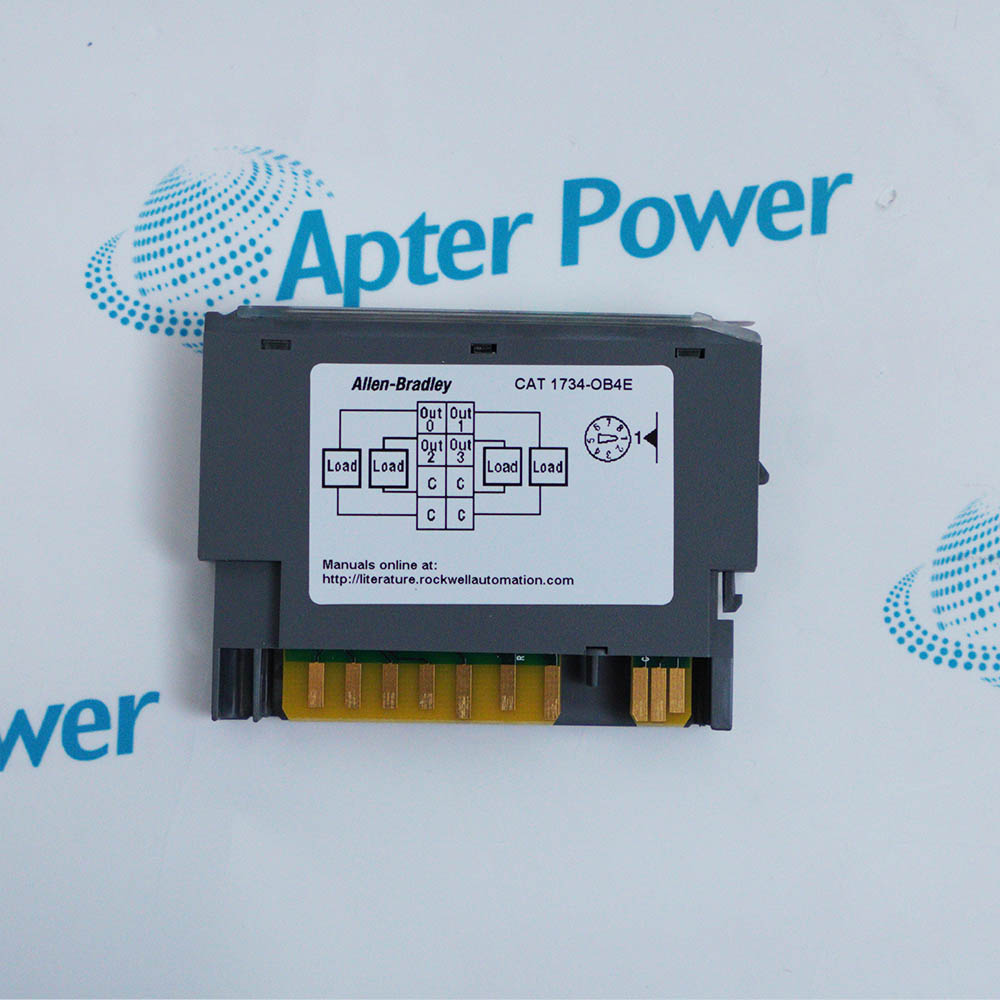

The 1734-OB4E is an Allen-Bradley 1734 POINT I/O Protected Output Module designed to deliver reliable digital output control within compact, distributed I/O architectures.
Get a quick price for 1734-OB4E
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1734-OB4E

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1734-OB4E
  • Product Family:
    Point I/O 1734
  • Product Type:
    Protected Output Module
  • On-state voltage, min:
    10V DC
  • On-state voltage, nom:
    24V DC
  • On-state voltage, max:
    28.8V DC
  • On-state voltage drop, max:
    0.2V DC
  • On-state current, min, per channel:
    1.0 mA
  • Off-state voltage, max:
    28.8V DC
  • Off-state leakage, max:
    0.5 mA
  • Weight:
    0.04 kg
  • Estimated shipping dimensions:
    8x6x1.8cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Temperature & Humidity Range Performance & Efficiency

Features:

  • Interface Between the Digital Control System and Field Output Devices via POINT I/O™ Rack Backplane
  • Combines Capability of Protected Output Switching with Real-Time Status Indication
  • Operates in Conjunction with DeviceNet, PROFIBUS, ControlNet, and Ethernet Adapters
The 1734-OB4E Allen-Bradley 1734 POINT I/O Protected Output Module operates as a discrete digital output module within a 1734 POINT I/O™ rack, providing reliable protected switching for up to four output channels. It continuously drives field loads while incorporating built-in output protection that safeguards each channel against electrical faults such as short circuits and overloads. Seamless integration is standard with the 1734-OB4E, and using compatible adapters allows flexible deployment across multiple communication networks including DeviceNet, PROFIBUS, ControlNet, and Ethernet. The 1734-OB4E incorporates universal adapter compatibility within the POINT I/O™ system and has made improvements in diagnostic visibility over previous output module designs through dedicated status LED indicators.

The 1734-OB4E provides essential output functions common to discrete control applications, and is a critical component of the control path, directly affecting the proper, normal operation of field devices connected to the overall automation system. One or more 1734-OB4E modules are required per POINT I/O™ rack depending on the desired number of output channels. The 1734-OB4E occupies a compact single slot in the rack and can be located in any standard I/O slot position alongside other POINT I/O™ modules.

For comprehensive system monitoring, the 1734-OB4E module provides dedicated status indication for each output channel and module/network health. In addition to standard output operation, the 1734-OB4E also performs real-time fault detection. The 1734-OB4E output protection mechanism executes fault isolation using internal circuitry specified in the module specifications. Using this method, the 1734-OB4E continually monitors the health of each output. If the system detects that an output channel is experiencing a fault condition (outside configured protection thresholds), it will automatically indicate the fault via the red output fault LED and report the status to the connected network adapter for system-level diagnostics.

The 1734-OB4E Allen-Bradley Protected Output Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1734-OB4E Protected Output Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Allen-Bradley 1734-OB4E Protected Output Module Specs

General

  • Manufacturer Allen-Bradley
  • Model 1734-OB4E
  • Condition New Original ready stock
  • Product Family 1734-OB8E,1734-OB2E
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Target Devices: Controls 24V DC discrete field devices such as solenoids, small DC motors, pilot lights, and indicators.
  • Protection Criticality: Specifically used in systems where individual point-level short-circuit and overload protection are required to prevent total system failure.
  • Architecture: Designed for the POINT I/O platform, fitting high-density remote I/O layouts across EtherNet/IP, DeviceNet, and ControlNet networks.
  • Industry Use: Common in automotive assembly, water/wastewater management, and chemical processing.
  • Operating Temperature: -20 °C to 55 °C (-4 °F to 131 °F).
  • Storage/Transport Temperature: -40 °C to 85 °C (-40 °F to 185 °F).
  • Relative Humidity: 5% to 95% (non-condensing) Operating Altitude: Up to 2,000 m (6,562 ft).
  • Environmental Rating: Open-style (requires an enclosure with a minimum IP54 rating for industrial environments).
  • Outputs: 4 current-sourcing channels (10–28.8V DC range).
  • Capacity: Maximum 1.0 A per point and 3.0 A per module.
  • Response Time: 0.1 ms (OFF-ON) / 0.1 ms (ON-OFF).
  • Power/Thermal: 1.2 W (max) dissipation at 28.8V DC; 75 mA (max) at 5V DC via POINTBus.
  • Diagnostics: Integrated electronic fusing for point-level, short-circuit, and overload protection.
  • Indicators: 4 yellow (status), 4 red (fault), and 2 network/module LEDs.
  • Isolation: 50V continuous, 2500V DC (field-to-system) dielectric test.
Description
The Allen-Bradley 1734-OB4E is a 1734 POINT I/O Protected Output Module that provides four channels of 24V DC sourced outputs. As a Series C module, the 1734-OB4E is highly versatile, supporting integration with DeviceNet and PROFIBUS adapters. For systems utilizing RSLogix 5000 software (version 11 or higher), the 1734-OB4E also offers expanded compatibility with ControlNet and EtherNet/IP adapters, allowing it to fit seamlessly into diverse industrial network architectures.

This 1734-OB4E module is specifically designed to handle high-risk electrical environments where field-side wiring errors or component failures could potentially damage the control system. By providing built-in electronic protection, the 1734-OB4E solves the problem of costly downtime caused by short circuits or overcurrent conditions. In a real-world application, such as controlling small DC solenoids or actuators on a high-speed packaging line, the 1734-OB4E acts as a safeguard; if a solenoid fails and shorts out, the 1734-OB4E protects the rest of the I/O rack from the fault, ensuring that only the affected channel is disabled.

Monitoring the 1734-OB4E is straightforward due to its comprehensive diagnostic indicators located on the front panel. The 1734-OB4E features four yellow LEDs to indicate the status of each output, four red LEDs to signal specific output faults, and two bicolor green/red LEDs for overall module and network status. These visual cues on the 1734-OB4E allow maintenance teams to quickly identify whether a problem is a simple wiring fault or a broader communication issue, significantly reducing troubleshooting time in complex automated systems.
Revisions

Revision Part #

Also known as

1734-OB4E Ser A
1734-OB4E/A, Series A, Rev A
1734-OB4E Ser B
1734-OB4E/B, Series B, Rev B
1734-OB4E Ser C
1734-OB4E/C, Series C, Rev C
Alternative Names
1734-0B4E 1734-O84E 1734-OBAE 17340B4E 1734O84E 1734OB4E 1734OBAE 173A-OB4E 173A-OBAE 173AOB4E 173AOBAE I734-OB4E I734OB4E I73A-08AE I73A08AE
Technical notes
The 1734-OB4E is compatible with DeviceNet and PROFIBUS adapters, offering flexible integration into established automation networks. For users running RSLogix 5000 software, version 11 or higher, the 1734-OB4E can also be deployed seamlessly with ControlNet and Ethernet adapters, expanding its connectivity options across Rockwell Automation control systems.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why is the 1734-OB4E considered versatile in industrial automation systems?
The module supports multiple communication protocols across Rockwell Automation platforms, making it suitable for facilities that standardize on POINT I/O™ architectures. Its compatibility with DeviceNet, PROFIBUS, ControlNet, and Ethernet networks allows engineers to deploy it across a wide range of control systems.
What status indicators are included on the 1734-OB4E?
The 1734-OB4E features several diagnostic LEDs for easy monitoring and troubleshooting. It includes 4 yellow LEDs for output status indication, 4 red LEDs for output fault indication, and 2 green/red LEDs for module and network status monitoring.
How do the LED indicators help maintenance personnel?
The visible LED indicators allow technicians to quickly identify output conditions, fault status, and network communication issues. This simplifies diagnostics, reduces troubleshooting time, and helps improve overall system uptime.
What type of protection does the 1734-OB4E provide?
The module is designed with protected output functionality that helps prevent damage caused by short circuits and overload conditions. This built-in protection reduces the need for additional external protective devices.
