    Apter Power checks adapter prerequisites, port configuration, device identity, and module condition for application-specific sourcing.

1734-4IOL

/ 4.9
1001 reviews | Need a Specific Revision?

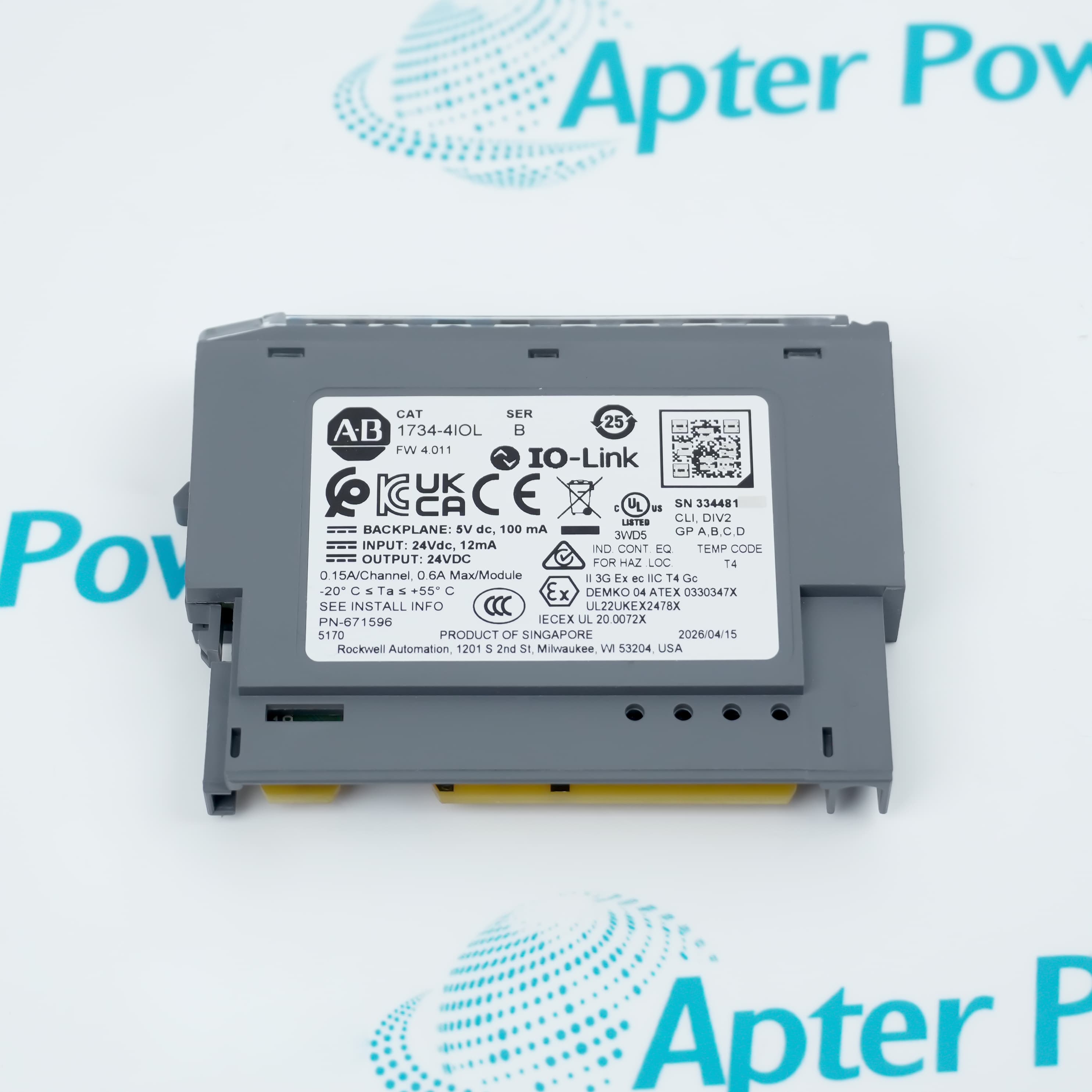

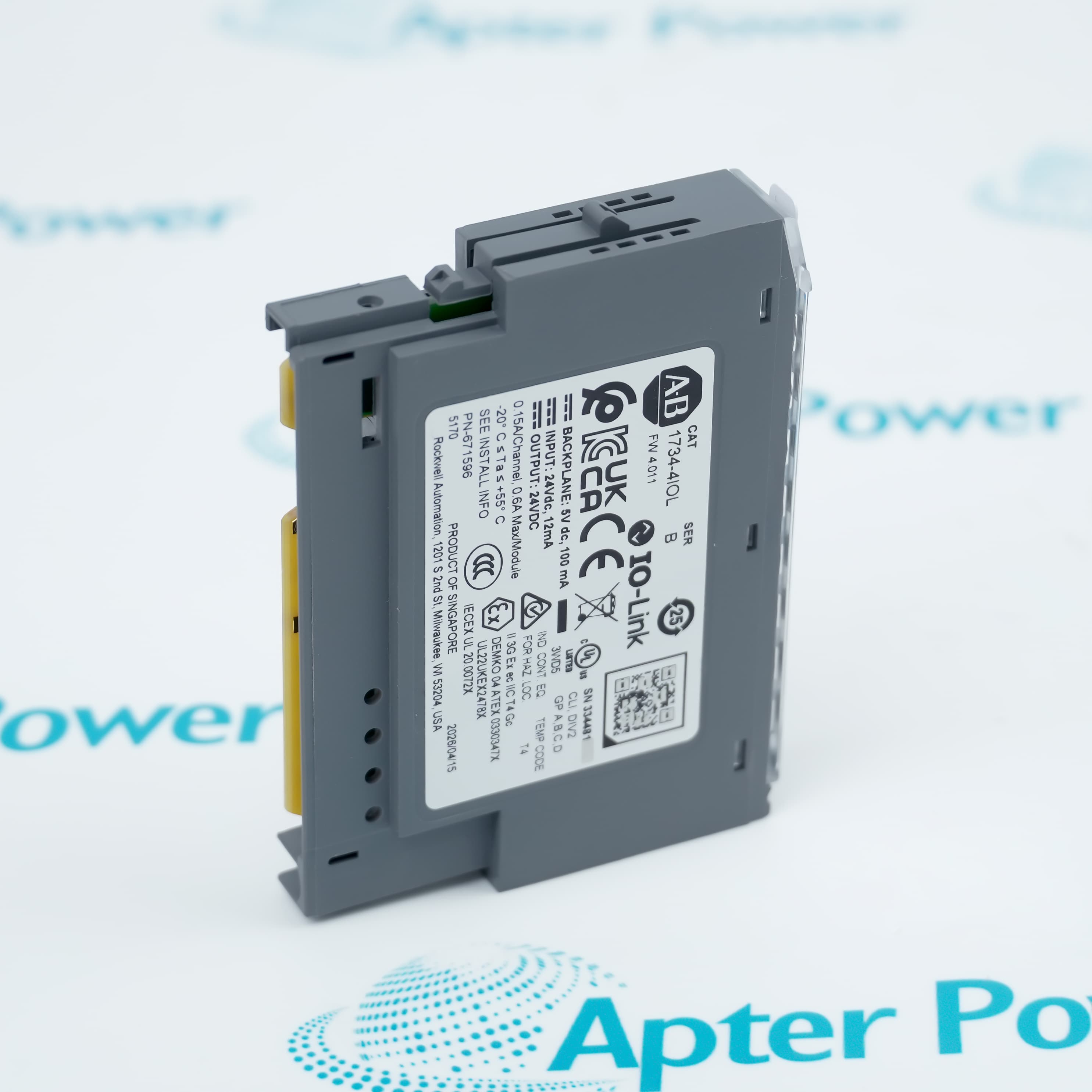

Allen-Bradley 1734-4IOL is a four-channel POINT I/O IO-Link master that also supports standard digital input or output modes.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1734-4IOL
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1734-4IOL

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1734-4IOL
  • Product Family:
    Point I/O 1734
  • Product Type:
    Four-Channel IO-Link Master Module
  • Stock:
    1
  • Channels:
    4 individually configurable channels
  • Channel modes:
    IO-Link master, standard digital input, standard digital output, or disabled
  • Standard input type:
    IEC 61131-2 Type 1
  • IO-Link communication rates:
    4.8, 38.4, or 230.4 kbit/s
  • Maximum IO-Link cable length:
    20 m
  • Field-power bus:
    19.2–28.8 V DC; 24 V DC nominal
  • POINTBus current:
    100 mA at 5 V DC maximum
  • Output rating:
    0.15 A per channel; 0.6 A per module maximum at 24 V DC
  • Isolation:
    50 V continuous, field side to system; no isolation between channels
  • Compatible wiring bases:
    1734-TB, -TBS, -TB3, -TB3S, -TOP, -TOPS, -TOP3, or -TOP3S
  • Dimensions:
    5.6 × 1.2 × 7.55 cm
  • Weight:
    0.036 kg
  • Tariff Code:
    8517699000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Channel Modes IO-Link Network Power and Compatibility Application
  • Four channels can be configured independently for IO-Link or standard digital I/O
  • IO-Link operates at 4.8, 38.4, or 230.4 kilobits per second with a 20-metre maximum device cable
  • The module uses 19.2 to 28.8 V DC field power and 100 mA at 5 V DC from POINTBus

1734-4IOL is an Allen-Bradley POINT I/O four-channel IO-Link master module for EtherNet/IP-based POINT I/O stations.

Each channel can operate as an IO-Link master, a standard IEC 61131-2 Type 1 digital input, a standard digital output, or a disabled point, letting one module combine smart devices and conventional signals.

Before installation or replacement, verify the hardware Series, adapter Series and firmware, Logix Designer release, field-power budget, wiring base, port mode, IODD, process-data size, and saved controller project.

Availability, condition, price, and shipping time for 1734-4IOL are confirmed during quotation.

Allen-Bradley 1734-4IOL Four-Channel IO-Link Master Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • All four channels can be configured independently as IO-Link master or standard digital I/O
  • Standard digital input channels support IEC 61131-2 Type 1 input behavior
  • Unused channels can be disabled in the module configuration
  • Supported IO-Link data rates are 4.8, 38.4, and 230.4 kilobits per second
  • The maximum documented IO-Link device-cable length is 20 metres
  • The user manual places 1734-4IOL operation only in EtherNet/IP POINT I/O systems
  • Field-power bus input is 19.2 to 28.8 volts DC with 24 volts DC nominal
  • POINTBus consumption is 100 milliamperes at 5 volts DC maximum
  • Use Series B adapters at firmware 5.012 or later, or Series C adapters at firmware 6.011 or later
  • Smart-sensor and actuator integration through IO-Link in POINT I/O stations
  • Mixed IO-Link and conventional 24 V DC channel operation in compact machine control
  • Device identity, parameter, process-data, and diagnostic exchange through EtherNet/IP
Description
1734-4IOL is an Allen-Bradley POINT I/O four-channel IO-Link master module for EtherNet/IP distributed-I/O stations.

Each port can be configured for IO-Link master, standard digital input, standard digital output, or disabled operation, with three IO-Link data rates and up to 20 metres of device cable.

Before installation or replacement, confirm the module Series, adapter Series and firmware, Logix Designer version, field power, wiring base, port modes, IODD files, process-data layout, and approved project archive.
Revisions

Revision Part #

Also known as

1734-4IOL Ser A
1734-4IOL/A, Series A, Rev A
1734-4IOL Ser B
1734-4IOL/B, Series B, Rev B
Alternative Names
1734-4IOL 17344IOL 1734 4IOL Allen-Bradley 1734-4IOL Rockwell Automation 1734-4IOL AB 1734-4IOL POINT I/O 1734-4IOL
Technical notes
1734-4IOL requires a supported 1734-AENT or 1734-AENTR adapter and Logix Designer environment. Preserve every port mode, device identity, IODD revision, process-data size, validation policy, and field-power calculation before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which IO-Link device revisions are compatible with Allen-Bradley 1734-4IOL?
Allen-Bradley 1734-4IOL operates as an IO-Link Revision 1.1 master and can communicate with both IO-Link V1.0 and V1.1 devices. The master itself cannot be configured to operate as an IO-Link Revision 1.0 master.
Can Allen-Bradley 1734-4IOL store parameters for a replacement IO-Link device?
Yes. When Data Storage is enabled, Allen-Bradley 1734-4IOL stores supported device parameters and can restore them to a replacement device. Data Storage requires an IO-Link V1.1 device that supports this function.
What does Fallback mode do on Allen-Bradley 1734-4IOL?
Fallback mode lets Allen-Bradley 1734-4IOL configure an IO-Link device and then return that device to standard digital-input operation. The controller receives one input bit for the channel while the device is operating in Fallback mode.
How does Implicit Protection Mode affect Allen-Bradley 1734-4IOL?
Allen-Bradley 1734-4IOL enters Implicit Protection Mode when an I/O connection is established. Firmware updates, module resets, channel-mode changes, and IO-Link sensor-configuration changes are rejected until the I/O connection is stopped.
Can Allen-Bradley 1734-4IOL use an IO-Link device without a registered IODD file?
Yes. The device can be added with a generic IO-Link profile. However, Automatic Device Configuration and parameter correlation are unavailable, and device parameters must be accessed through message instructions.
What happens when Exact Match keying fails on Allen-Bradley 1734-4IOL?
Exact Match compares the connected device’s Vendor ID and Device ID with the values configured for the channel. If they do not match, IO-Link communication is not established and Allen-Bradley 1734-4IOL sets the channel’s Keying Fault status bit.
What should be checked before installing Allen-Bradley 1734-4IOL?
Confirm Series, adapter firmware, Logix Designer support, field power, base, channel modes, IODDs, process-data sizes, and the approved project.
