    Lifecycle status: Discontinued

    Rockwell Automation publishes a discontinuation date of March 6, 2025 and states that no planned Rockwell Automation replacement is available.

1746-HT

/ 4.9
1001 reviews | Need a Specific Revision?

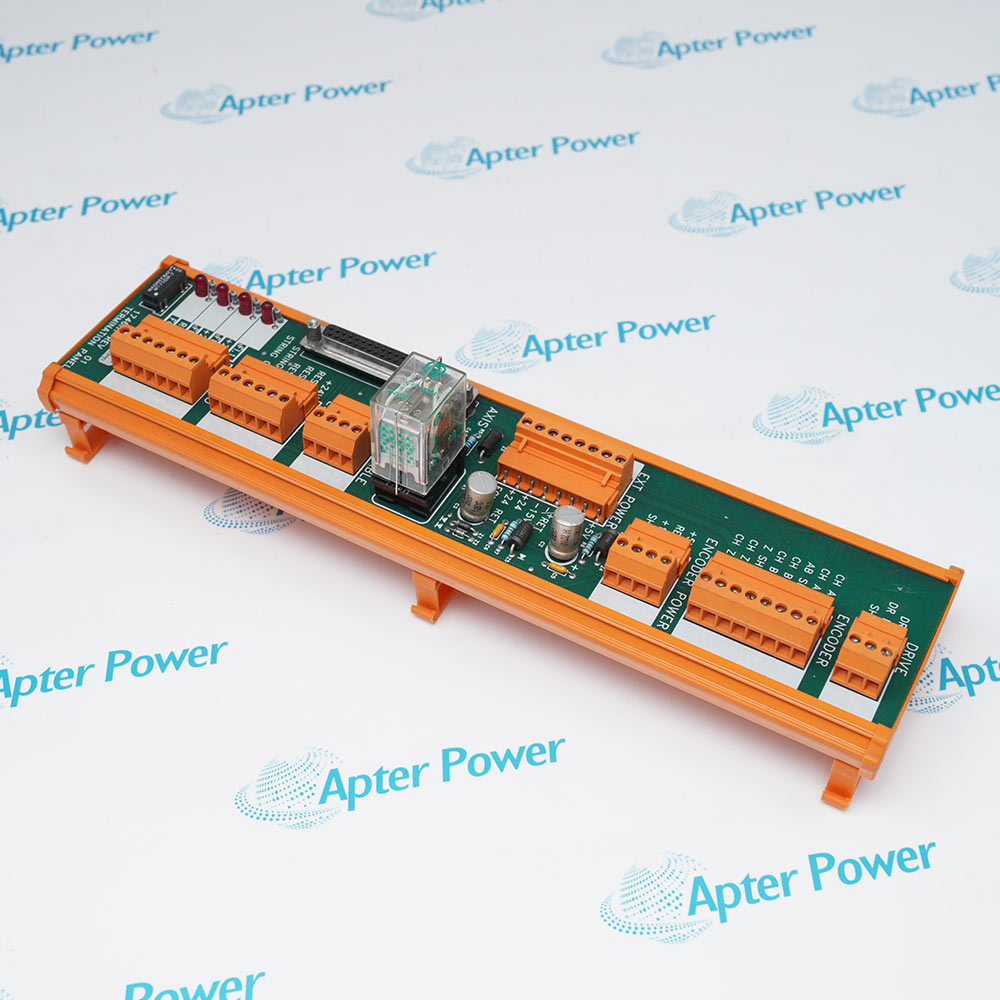

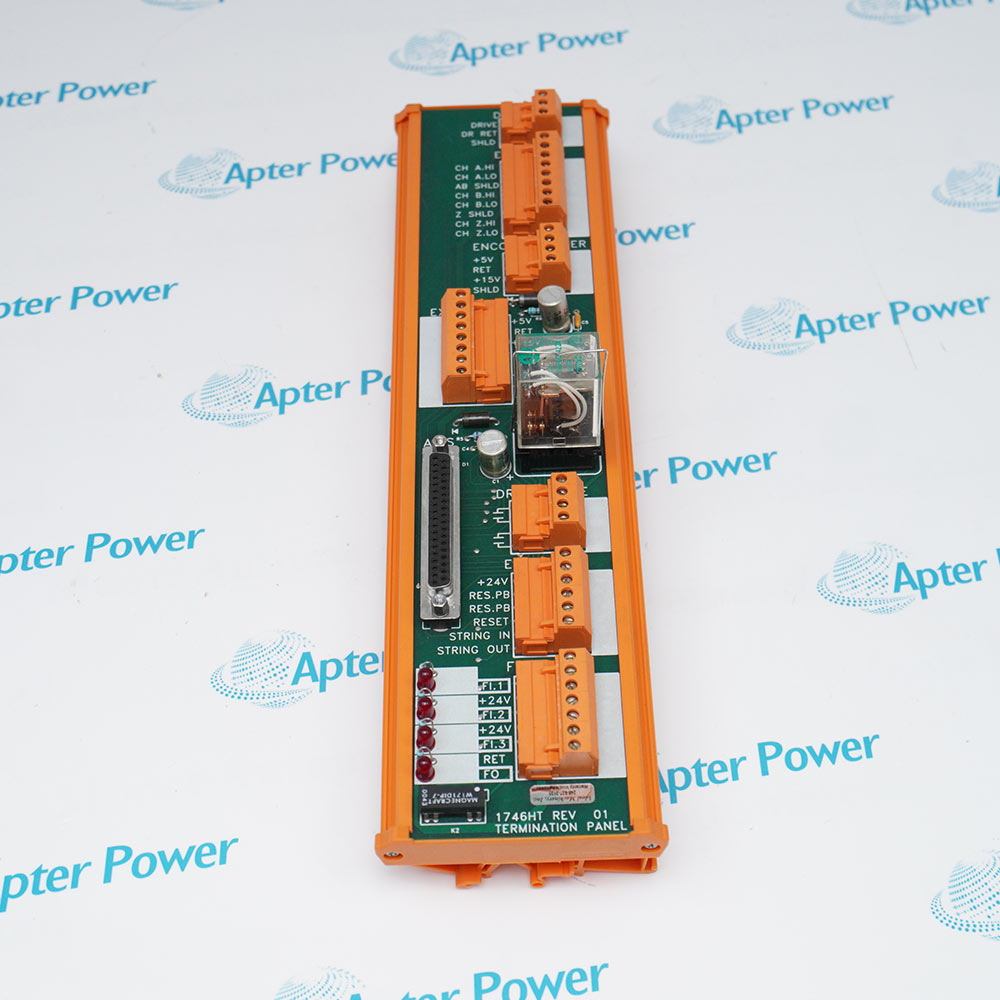

Allen-Bradley 1746-HT is the field termination panel for compatible 1746 servo modules, drive, encoder, fast I/O, and emergency-stop wiring.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1746-HT
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1746-HT

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1746-HT
  • Product Family:
    SLC 500
  • Product Type:
    IMC 110 / SLC Servo Termination Panel
  • Stock:
    1
  • Component Type:
    Servo termination panel
  • Compatible Interface:
    1746-HCA interconnect cable
  • Host Module:
    1746-HSRV SLC Servo Module / IMC 110 system
  • Field Connections:
    Drive, encoder, fast I/O, power and emergency-stop circuit
  • Dimensions:
    7.00 × 29.20 × 8.90 cm
  • Mounting Method:
    DIN-type rail mounting
  • Compatible DIN Rail:
    1492-DR2
  • Interconnect Cable:
    1746-HCA
  • Fast Inputs:
    3, FI.1 through FI.3
  • Fast Outputs:
    1, FO.1
  • Fast I/O Voltage:
    +24 V DC with return
  • Recommended Fast I/O Wire Size:
    18 AWG
  • Encoder Channels:
    Differential A, B, and Z channels
  • Encoder Power Connections:
    +5 V, +15 V, return, and shield
  • External Power Connections:
    +5 V, ±15 V, +24 V, returns, and EGND
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Connections Installation & Wiring Inspection & Testing Application
  • Field termination interface for compatible 1746 servo-control modules
  • Connects drive, encoder, fast I/O, power and emergency-stop wiring
  • Interfaces to the servo module through the documented 1746-HCA cable

1746-HT centralizes field wiring for a compatible Allen-Bradley 1746 servo-control installation.

Correct selection depends on the host module, 1746-HCA cable, drive, motor, encoder, fast I/O, field-power and machine-safety configuration.

Replacement work should preserve exact terminal identification and drawings, followed by electrical, safety and guarded-motion verification before service.

Availability: Rockwell Automation lists 1746-HT as Discontinued with no planned Rockwell Automation replacement; sourcing is confirmed during quotation.

Allen-Bradley 1746-HT Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Drive command and feedback termination
  • Encoder and fast-I/O field connections
  • Power-supply and emergency-stop circuit connections
  • Use the documented 1746-HCA cable between the panel and servo module
  • Photograph and label every terminal, shield and ground before removal
  • Follow the approved machine drawing and safety design for all reconnection work
  • Inspect connectors, terminals, insulation, corrosion and mechanical damage
  • Perform point-to-point continuity and grounding verification
  • Prove feedback, I/O, emergency stop, limits, faults and guarded motion
  • Field termination for 1746-HSRV servo systems
  • Encoder, drive and fast-I/O wiring consolidation
  • Legacy SLC motion-panel maintenance and controlled replacement
Description
1746-HT is an Allen-Bradley termination panel used with compatible 1746 servo-control modules. It provides the field-wiring interface for drive command and feedback, encoder signals, fast inputs and output, power supplies, and the emergency-stop circuit.

The official servo-module manual shows connection to the controller module through a 1746-HCA cable. The panel is part of a complete motion architecture and must be checked with the installed servo module, drive, encoder, motor, field power, cable, and safety design.

Before replacement, photograph and label every conductor, record the complete panel and cable catalog numbers, verify the wiring drawing revision, inspect shields and grounding, and perform point-to-point and functional safety tests before enabling motion.
Alternative Names
1746-HT 1746 HT 1746HT AB 1746-HT Allen-Bradley 1746-HT Rockwell Automation 1746-HT
Technical notes
1746-HT replacement requires verified host module and 1746-HCA cable, photographed terminal mapping, shield and ground records, safety review, continuity checks, and guarded motion testing.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Does Allen-Bradley 1746-HT store any servo configuration or motion parameters?
No. It is a termination panel used for field wiring and signal connections. Motion configuration, scaling, tuning, and profiles remain in the associated controller, servo module, or drive.
Can Allen-Bradley 1746-HT be selected without identifying the servo module?
No. Confirm the host servo module, interconnect cable, drive, encoder, motor, field power, I/O use, and wiring-drawing revision before ordering.
What should be recorded before moving wiring to a replacement Allen-Bradley 1746-HT?
Capture clear photographs, wire numbers, terminal positions, shield and ground points, jumper positions, cable catalogs, safety-chain details, and drawing references.
Why might the servo module lose feedback after replacing Allen-Bradley 1746-HT?
Check encoder supply, signal pairs, polarity, shield, grounding, connector seating, interconnect cable, terminal continuity, feedback selection, and accidental conductor interchange.
How should emergency-stop wiring connected through Allen-Bradley 1746-HT be handled?
Follow the approved machine safety design and current risk assessment. Never infer a safety function from terminal position or an undocumented legacy circuit.
Can a visibly undamaged Allen-Bradley 1746-HT be reused?
Inspect terminals, connector latches, insulation, contamination, heat damage, corrosion, shield bonds, labeling, and continuity, then prove every circuit before reuse.
What tests are required after replacing Allen-Bradley 1746-HT?
Perform point-to-point continuity, insulation, and grounding checks, then verify feedback, fast I/O, drive commands, emergency stops, limits, faults, recovery, and guarded motion.
