1746-OG16

/ 4.9
1001 reviews | Need a Specific Revision?

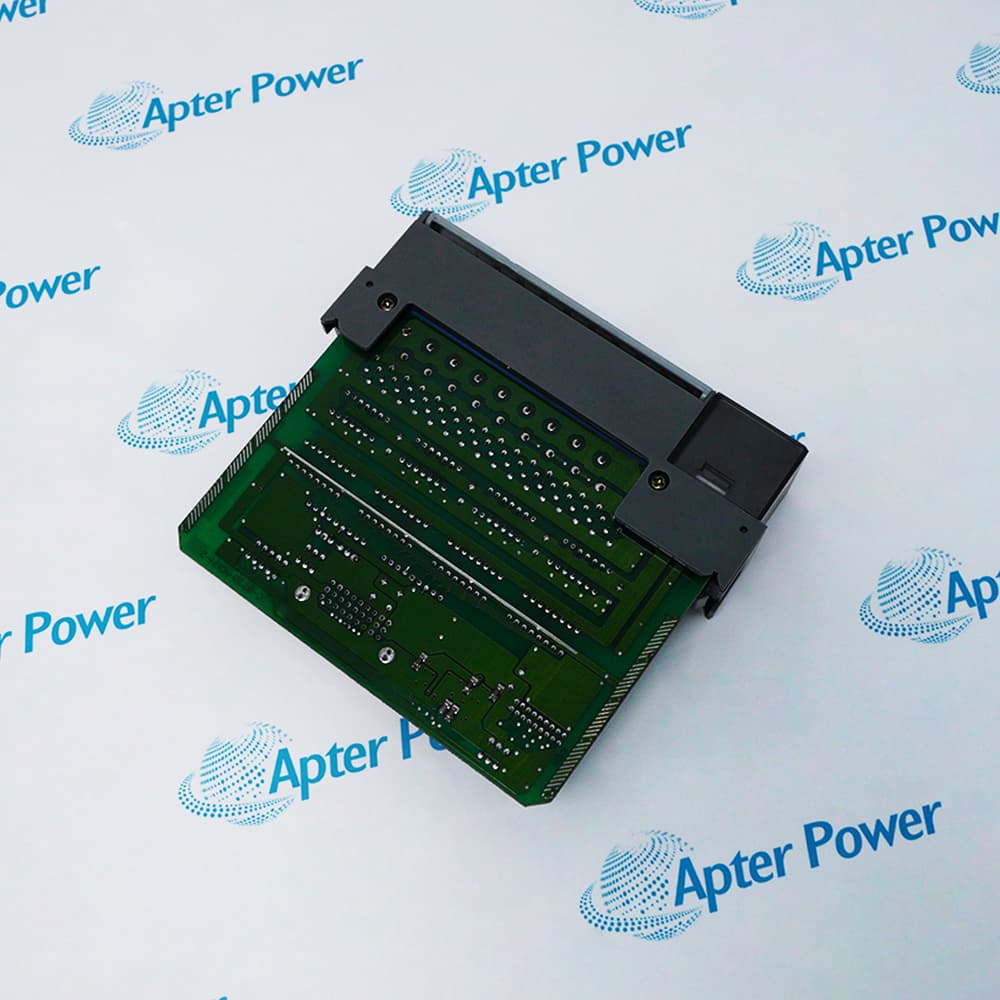

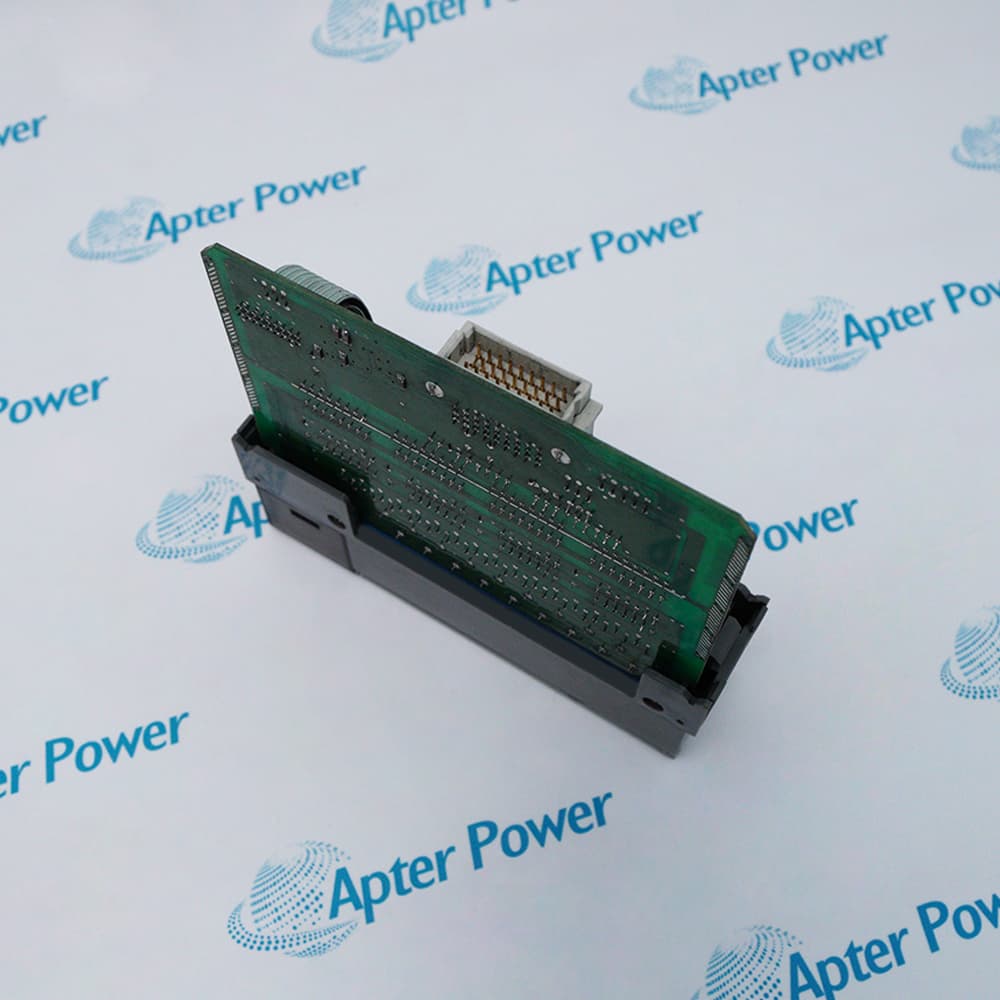

Allen-Bradley 1746-OG16 provides sixteen low-true 5 V TTL sinking outputs for compatible logic interfaces in SLC 500 systems.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1746-OG16
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1746-OG16

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1746-OG16
  • Product Family:
    SLC 500
  • Product Type:
    Sixteen-Point TTL Sinking Output Module
  • Stock:
    1
  • Outputs:
    16 TTL sinking; one common
  • Operating Voltage:
    4.5–5.5 V DC
  • Supply Ripple:
    50 mV peak-to-peak maximum
  • Field-Supply Current:
    495 mA maximum at 5 V DC
  • Backplane Current:
    180 mA at 5 V DC; 0 mA at 24 V DC
  • Signal Delay:
    0.25 ms on; 0.5 ms off, maximum
  • Off-State Leakage:
    0.1 mA maximum
  • Minimum Load Current:
    0.15 mA
  • Continuous Current per Point:
    24 mA
  • Logic Convention:
    Low output state represents logical true
  • Tariff Code:
    8471609000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Logic Polarity Supply Quality Signal Integrity Application
  • Sixteen low-true TTL sinking outputs on a common 5 V reference
  • Fast switching for compatible low-current logic inputs
  • Published ripple and current limits for the external TTL supply

1746-OG16 is an Allen-Bradley sixteen-point ttl sinking output module for SLC 500 chassis.

The module interfaces SLC 500 output data with compatible 5 V logic by pulling selected signals low against the external TTL common.

Before installation or replacement, verify supply regulation, ripple, common grounding, low-true program logic, receiving-input thresholds, wiring length, and noise separation.

Availability, condition, price, and shipping time for 1746-OG16 are confirmed during quotation.

Allen-Bradley 1746-OG16 Sixteen-Point TTL Sinking Output Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Treat the sinking low state as the active or true output condition
  • Use NOT logic only when required by the application’s signal convention
  • Document receiving-device polarity so maintenance does not reverse the control meaning
  • Provide a regulated 4.5–5.5 V DC field supply
  • Keep ripple at or below the published 50 mV peak-to-peak limit
  • Use a low-impedance common and verify voltage at the load under switching conditions
  • Separate TTL wiring from motor, contactor, and variable-frequency drive conductors
  • Keep cable length and capacitance compatible with the required response time
  • Confirm pull-up, leakage, and threshold behavior at every receiving device
  • Low-true TTL command signals for compatible industrial interfaces
  • SLC 500 connection to 5 V logic equipment through sinking outputs
  • Fast, low-current discrete signaling inside controlled industrial panels
Description
1746-OG16 is a sixteen-point ttl sinking output module for the SLC 500 control platform.

The module interfaces SLC 500 output data with compatible 5 V logic by pulling selected signals low against the external TTL common.

Before installation or replacement, verify supply regulation, ripple, common grounding, low-true program logic, receiving-input thresholds, wiring length, and noise separation.
Revisions

Revision Part #

Also known as

1746-OG16 Ser A
1746-OG16/A, Series A, Rev A
1746-OG16 Ser B
1746-OG16/B, Series B, Rev B
1746-OG16 Ser C
1746-OG16/C, Series C, Rev C
Alternative Names
1746-OG16 1746OG16 AB 1746-OG16 Allen-Bradley 1746-OG16 Rockwell Automation 1746-OG16
Technical notes
1746-OG16 is a low-true 5 V TTL sinking module; verify regulated field power, common integrity, load thresholds, and program polarity before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why does 1746-OG16 appear to invert the program command?
The TTL outputs are low-true: an active output sinks the signal low. Use the program logic and documentation convention intended for this module.
Can 1746-OG16 drive a 24 V DC relay coil?
No. It is a 5 V TTL interface with milliampere-level output capability; use a compatible interface or a different output module for 24 V loads.
What power-quality issue commonly disrupts 1746-OG16?
Excessive ripple, voltage drop, or a poor common on the external 5 V supply can shift TTL thresholds and create intermittent logic operation.
Why might a connected logic input stay active when 1746-OG16 is off?
Check the receiving device’s pull-up network, shared common, leakage sensitivity, cable coupling, and whether the logic convention is being interpreted correctly.
Can 1746-OG16 share a common with unrelated equipment?
Only when the grounding arrangement and common reference meet both devices’ requirements. Avoid ground loops and keep the TTL return low impedance.
What should be checked before substituting another TTL module for 1746-OG16?
Compare low-true behavior, voltage tolerance, source or sink direction, point current, common arrangement, response time, connector, and the controller output image.
How should long cable runs from 1746-OG16 be handled?
Keep TTL wiring short and separated from noise sources. Verify voltage at the receiving input, common integrity, shielding practice, and the official capacitance or timing limits.
