1747-L552

/ 4.9
1001 reviews | Need a Specific Revision?
Allen-Bradley 1747-L552 is a discontinued SLC 5/05 32K controller with Ethernet and RS-232 communication.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1747-L552
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1747-L552

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1747-L552
  • Product Family:
    SLC 500
  • Product Type:
    SLC 5/05 32K Controller
  • Stock:
    1
  • Memory:
    32K words
  • Communication:
    Ethernet and RS-232
  • Maximum I/O:
    4096 inputs and 4096 outputs
  • Maximum Chassis / Slots:
    3 chassis / 30 slots
  • Typical Program Scan:
    0.9 ms/K
  • Firmware Reference:
    FRN 13
  • Weight:
    0.28 kg
  • Estimated shipping dimensions:
    3.46x13.02x14.45cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Networking Expansion Firmware Application
  • SLC 5/05 processor for an installed SLC 500 control architecture
  • Ethernet and RS-232 channels support the documented controller communications
  • Program, network, and chassis records must be preserved before migration

1747-L552 provides the processor function for an SLC 500 system and coordinates the installed local and remote I/O.

Communication capability depends on the hardware Series, configured firmware, Ethernet requirements, and Channel 0 protocol used by the application.

Before replacement, archive the project and document the chassis, slot assignments, specialty modules, network nodes, serial devices, and acceptance requirements.

Availability, condition, price, and shipping time for 1747-L552 are confirmed during quotation.

Allen-Bradley 1747-L552 SLC 5/05 Controller Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Series C hardware supports 10/100 Mbps Ethernet operation
  • Series C supports up to 48 Ethernet connections for the documented controller
  • Channel 0 can be configured for the documented DF1, ASCII, or DH-485 protocol
  • An SLC 500 controller system can use up to three chassis
  • The documented chassis arrangement supports up to 30 slots
  • Expansion cables, power-supply loading, and slot addressing must match the installed layout
  • Rockwell Automation lists FRN 13 as the current product firmware reference
  • The project file and hardware Series must be checked before a firmware change
  • Communication behavior and module compatibility must be retested after migration
  • Control of an installed SLC 500 machine or process application
  • Systems requiring Ethernet messaging and an RS-232 communication channel
  • Migration projects where the original program, I/O map, and network behavior must be preserved
Description

1747-L552 is an Allen-Bradley SLC 5/05 controller with 32K words of memory for an SLC 500 control system.

It provides Ethernet and RS-232 communications, supports up to 4096 inputs and 4096 outputs, and can be used in a system with up to three chassis and 30 slots.

The catalog number is discontinued. Before migration or replacement, preserve the program and communication settings, then verify the installed hardware Series, firmware, chassis layout, I/O, and network architecture.

Revisions

Revision Part #

Also known as

1747-L552 Series A
1747-L552/A, Series A
1747-L552 Series B
1747-L552/B, Series B

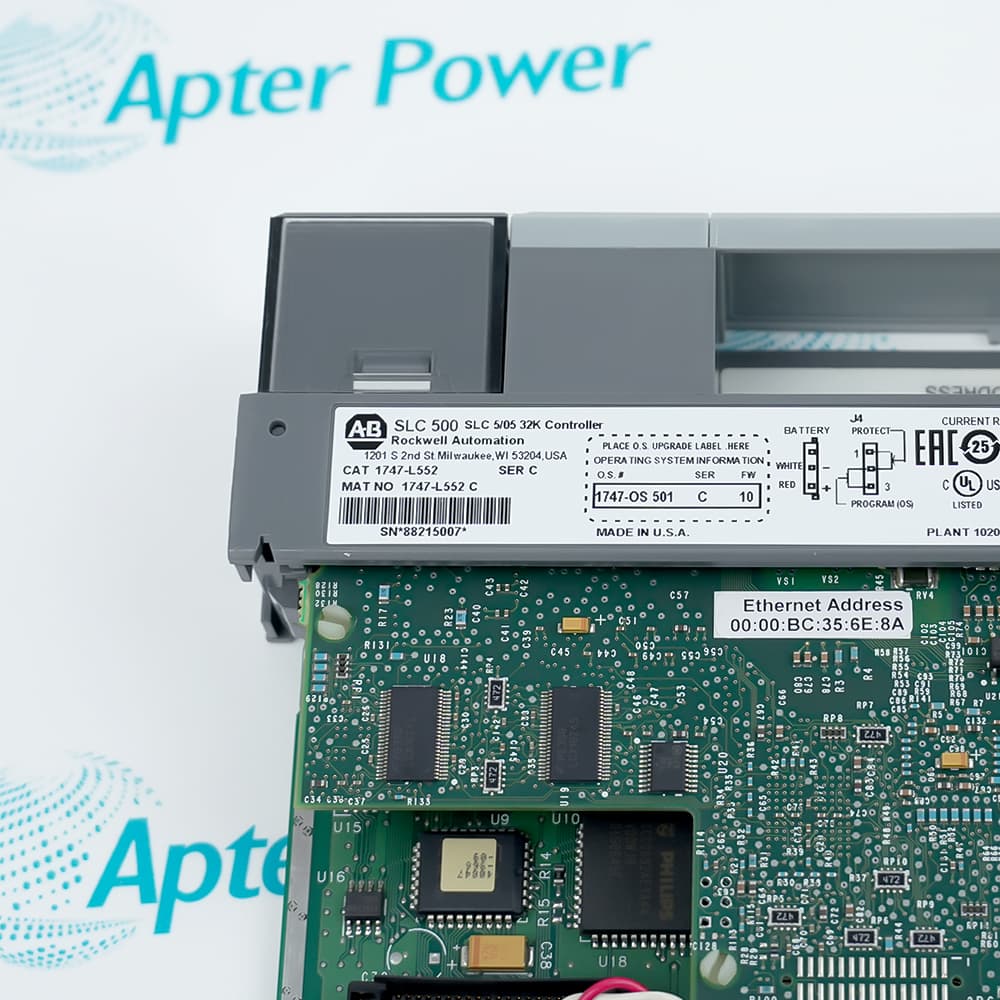

1747-L552 Series C
1747-L552/C, Series C
1747-L552 Series D
1747-L552/D, Series D
Alternative Names
1747-L552 1747 L552 1747L552 Allen-Bradley 1747-L552 Allen Bradley 1747-L552 AB 1747-L552 SLC 5/05 1747-L552 Allen-Bradley SLC 500 1747-L552
Technical notes
Allen-Bradley 1747-L552 migration requires the program, hardware Series, firmware, chassis layout, I/O addressing, Ethernet settings, Channel 0 configuration, and installed communication paths to be recorded and verified.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Does Allen-Bradley 1747-L552 support 100 Mbps Ethernet?
Series C hardware introduced 10/100 Mbps Ethernet and supports up to 48 connections; earlier Series A and B units use 10 Mbps half-duplex Ethernet.
What should be backed up before replacing Allen-Bradley 1747-L552?
Back up the controller program, data files, channel settings, IP configuration, messaging paths, and the firmware/Series record before removing the processor.
Can Allen-Bradley 1747-L552 communicate through Channel 0?
Yes. The RS-232 channel supports documented DF1, ASCII, and DH-485 configurations; the configured protocol must be preserved during replacement.
How should chassis expansion be checked for Allen-Bradley 1747-L552?
Verify the installed SLC 500 chassis arrangement, expansion cables, slot addresses, power-supply loading, and the documented limit of three chassis and 30 slots.
Why does the hardware Series matter when replacing Allen-Bradley 1747-L552?
Ethernet capability and firmware compatibility vary by Series, so the nameplate Series, firmware revision, communication requirements, and project file must be matched.
What migration information is needed for Allen-Bradley 1747-L552?
Record local and remote I/O, specialty modules, messaging, HMI/SCADA links, Ethernet nodes, serial devices, and the machine acceptance requirements before choosing a replacement architecture.
Which official documents should be reviewed for Allen-Bradley 1747-L552 replacement?
Use the Rockwell Automation product lifecycle page, SLC 500 selection information, SLC 5/05 installation instructions, and the documentation for the installed modules and network.
