IS230SNRTH2A IS200SRTDH2ACB

/ 4.9
1001 reviews | Need a Specific Revision?
The IS230SNRTH2A IS200SRTDH2ACB PRTD Resistance Temperature Device Input Module is a compact RTD terminal board manufactured by General Electric as part of the Mark VIe Series control system.
Get a quick price for IS230SNRTH2A IS200SRTDH2ACB
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IS230SNRTH2A IS200SRTDH2ACB

  • Manufacturer:
    General Electric
  • Part Number:
    IS230SNRTH2A IS200SRTDH2ACB
  • Product Family:
    GE Mark VI Gas Turbine Control
  • Product Type:
    PRTD Resistance Temperature Device Input Module
  • Series:
    Mark Vle
  • Number of channels:
    8
  • Span:
    0.3532 to 4.054 V
  • Mounting:
    DIN-rail or flat surface
  • Interface Type:
    High-density Euro-block terminal blocks
  • System Support:
    Simplex systems (unidirectional communication)
  • Special Features:
    On-board identification chip
  • Weight:
    0.6 kg
  • Estimated shipping dimensions:
    16.7x14.8x5.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Operating Environment Monitoring & Control

Features:

  • Supports Direct RTD Signal Acquisition for the Mark VIe Turbine Control Platform
  • Processes Multiple Resistance Temperature Inputs Through the Dedicated PRTD I/O Pack Architecture
  • Designed for Accurate Thermal Monitoring in Turbine and Auxiliary Industrial Systems
The GE IS230SNRTH2A IS200SRTDH2ACB PRTD Resistance Temperature Device Input Module is a dedicated RTD input assembly used in the GE Mark VIe distributed control system. It consists of the IS230SNRTH2A assembly paired with the IS200SRTDH2ACB terminal board, serving as a field interface for resistance temperature detector (RTD) inputs. The module accepts multiple RTD sensor signals from process equipment and routes them to the associated PRTD processor pack, where temperature data is digitized and transmitted to the control network for real-time supervision.

This module is intended for applications where precise temperature measurement is essential, such as turbine exhaust systems, bearing monitoring, lube oil skids, and generator winding protection. The IS200SRTDH2ACB terminal board provides termination points for RTD wiring and ensures stable signal conditioning before data reaches the Mark VIe I/O controller. Its design supports direct cabinet installation and integration into the standard GE turbine control architecture.

Within the Mark VIe platform, the IS230SNRTH2A acts as a critical temperature input path for process safety and machine health diagnostics. The assembly works with the PRTD I/O pack, which performs sensor excitation, signal conversion, and controller communication. The module supports up to 8 RTD input channels, allowing simultaneous monitoring of multiple thermal points across a machine train or process package.The terminal assembly continuously transmits measured temperature values to the turbine controller, enabling alarm generation, shutdown logic, and condition monitoring. Diagnostic functions are built into the system to detect sensor open-circuit conditions, out-of-range values, and communication faults, ensuring dependable operation in demanding industrial environments.

The IS230SNRTH2A IS200SRTDH2ACB General Electric Resistance Temperature Device Input Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IS230SNRTH2A IS200SRTDH2ACB PRTD Resistance Temperature Device Input Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric IS230SNRTH2A IS200SRTDH2ACB PRTD Resistance Temperature Device Input Module Specs

General

  • Manufacturer General Electric
  • Model IS230SNRTH2A IS200SRTDH2ACB
  • Condition New Original ready stock
  • Product Family IS230JPDMG1B IS200JPDMG1ADC,IS230SNRLH2A IS200SRLYH2AAA
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Turbine Control: Tracks critical bearing temperatures, exhaust lines, and stator windings to protect high-speed machinery from structural warping.
  • Process Regulation: Deployed in automated chemical reactors, smelting operations, and refining pipelines requiring noise-isolated thermal tracking.
  • Safety Interlocking: Initiates instant emergency trip sequences or warning alarms when preset thermal safe zones are breached.

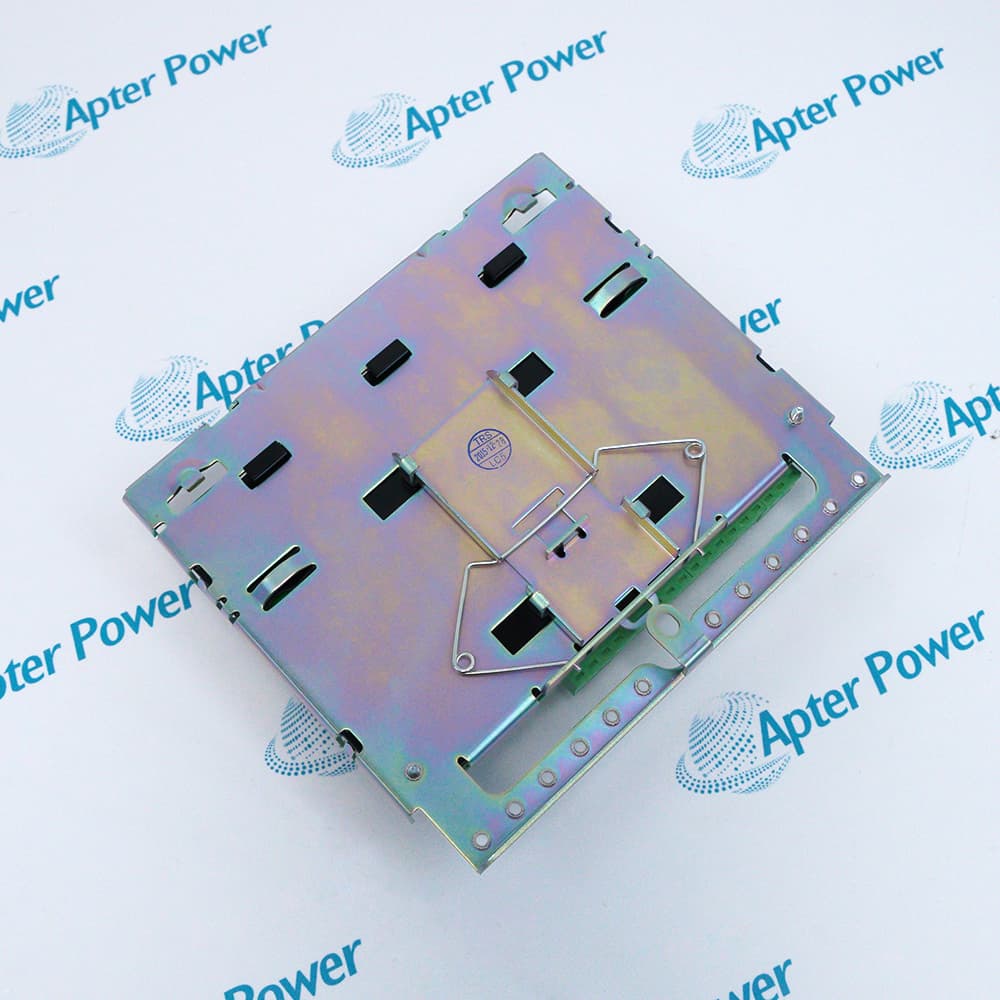

  • Physical Framework: Built around a ruggedized, space-saving DIN-rail sheet metal carrier incorporating an integrated plastic safety insulator layer.
  • Noise Defenses: Features built-in surge suppression networks and high-frequency filter circuitry to block harsh industrial electromagnetic interference (EMI).
  • Signal Stabilization: Utilizes multiplexed 10 mA DC excitation current routines deployed sequentially to block sensor self-heating and maintain accuracy over long paths.
  • Wiring Limits: Engineered to support field installations carrying up to a maximum 15-ohm two-way cable loop resistance.
  • DCS Communication Link: Streams data directly over dedicated, high-speed inner-system IONet Ethernet protocols to the main Mark VIe CPU.
  • Real-Time Diagnostics: Works with centralized management software to deliver instant fault mapping, loop-health verification, and predictive thermal trends.
  • Precision Conversion: Accepts inputs from traditional three-wire RTD sensor arrays (such as Pt100 standard configurations), instantly standardizing and converting raw ohmic feedback.
Description
The IS230SNRTH2A IS200SRTDH2ACB PRTD Resistance Temperature Device Input Module is a compact RTD terminal board manufactured by General Electric as part of the Mark VIe Series control system. This module is designed to be mounted on either a DIN-rail or a flat surface, providing a reliable and space-efficient solution for temperature measurement and control. The board features eight RTD inputs, allowing multiple temperature sensors to be connected simultaneously for accurate monitoring.

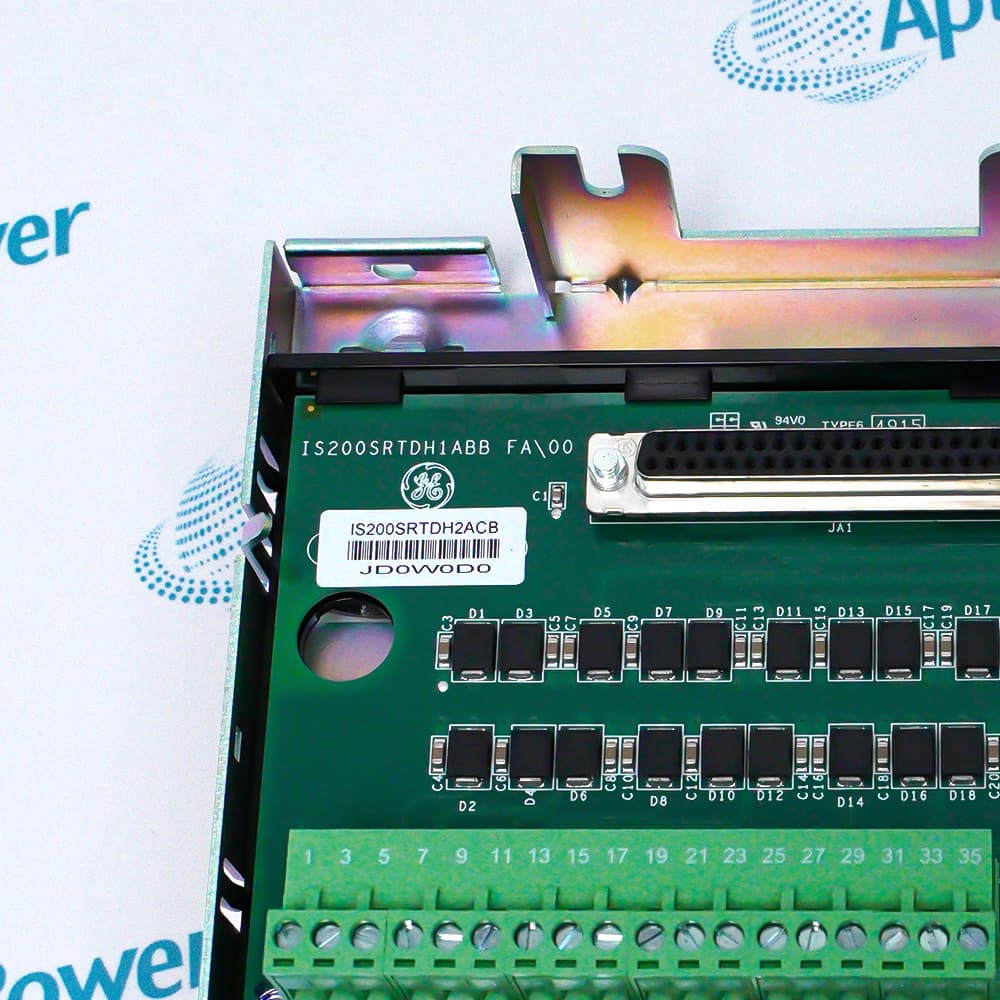

The IS200SRTDH2ACBIS230SNRTH2A IS200SRTDH2ACB interfaces with the PRTD (Proportional RTD) or VRTD (Voltage RTD) I/O processor through high-density Euro-block terminal blocks. An on-board identification chip enables the I/O processor to recognize the module, facilitating system diagnostics and efficient management. The module communicates with the controller via Ethernet when connected to the PRTD I/O pack, which connects through a DC-37 pin connector. This setup ensures the transmission of vital temperature data from the RTD inputs while maintaining system reliability.

Specifically designed for simplex systems, the IS230SNRTH2A IS200SRTDH2ACB PRTD Resistance Temperature Device Input Module supports unidirectional communication, simplifying integration and ensuring consistent performance within GE Mark VIe systems. It serves as a critical component in industrial temperature sensing and control applications, offering seamless compatibility with designated I/O processors and precise temperature measurement capabilities.
Revisions

Revision Part #

Also known as

IS200SRTDH2ACB
IS200SRTDH2ACB, Series -CB, Rev -CB
IS230SNRTH2A
IS230SNRTH2A, Series -A, Rev -A
Alternative Names
IS200 SRTDH2ACB IS200STCIH6ADD IS200STCIH1ADD IS200STAIH2ADC IS200STAIH2ABA IS230SNRTH2A
Technical notes
The static IS200SRTDH2ACB terminal board features high-density Euro-block connectors to accommodate diverse sensor types—including Platinum, Nickel, Nickel-Iron, and Copper elements—while the active IS230SNRTH2A processor pack delivers required excitation currents, linearizes data, and broadcasts digitized metrics via dual RJ45 Ethernet ports over the system's redundant IONet fabric.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the primary purpose of this IS230SNRTH2A IS200SRTDH2ACB board?
It provides multiple RTD inputs to connect temperature sensors (RTDs) to the system for accurate temperature measurement and management.
How does the IS230SNRTH2A IS200SRTDH2ACB board connect to the I/O processor?
It connects to the PRTD or VRTD I/O processor via high-density Euro-block terminal blocks.
What special features does the IS230SNRTH2A IS200SRTDH2ACB board have?
The board has an on-board identification chip that allows the I/O processor to recognize the board for system diagnostics.
Which control systems is IS230SNRTH2A IS200SRTDH2ACB compatible with?
It is compatible with GE Mark VIe systems, especially when used with the PRTD I/O pack.
Are there any limitations in system communication?
Yes, it only supports simplex systems, meaning unidirectional data flow.
