BS207

/ 4.9
1001 reviews | Need a Specific Revision?

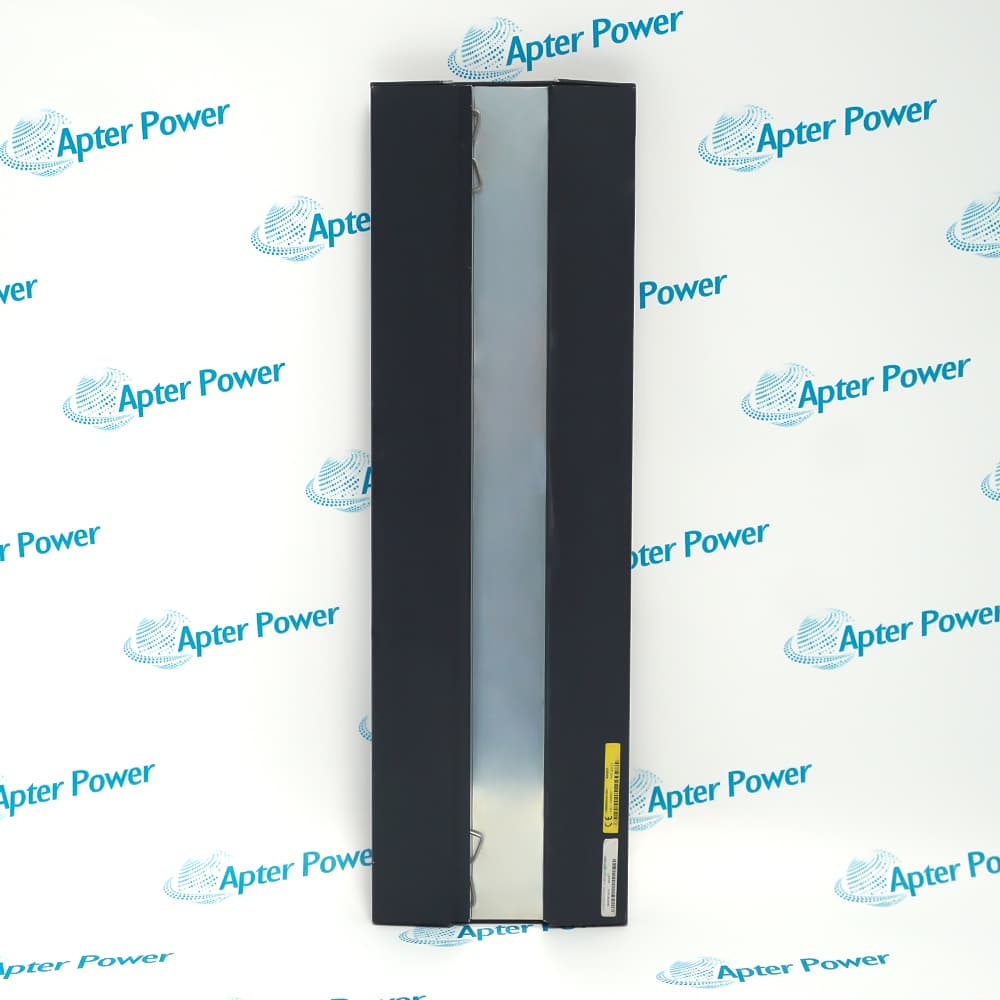

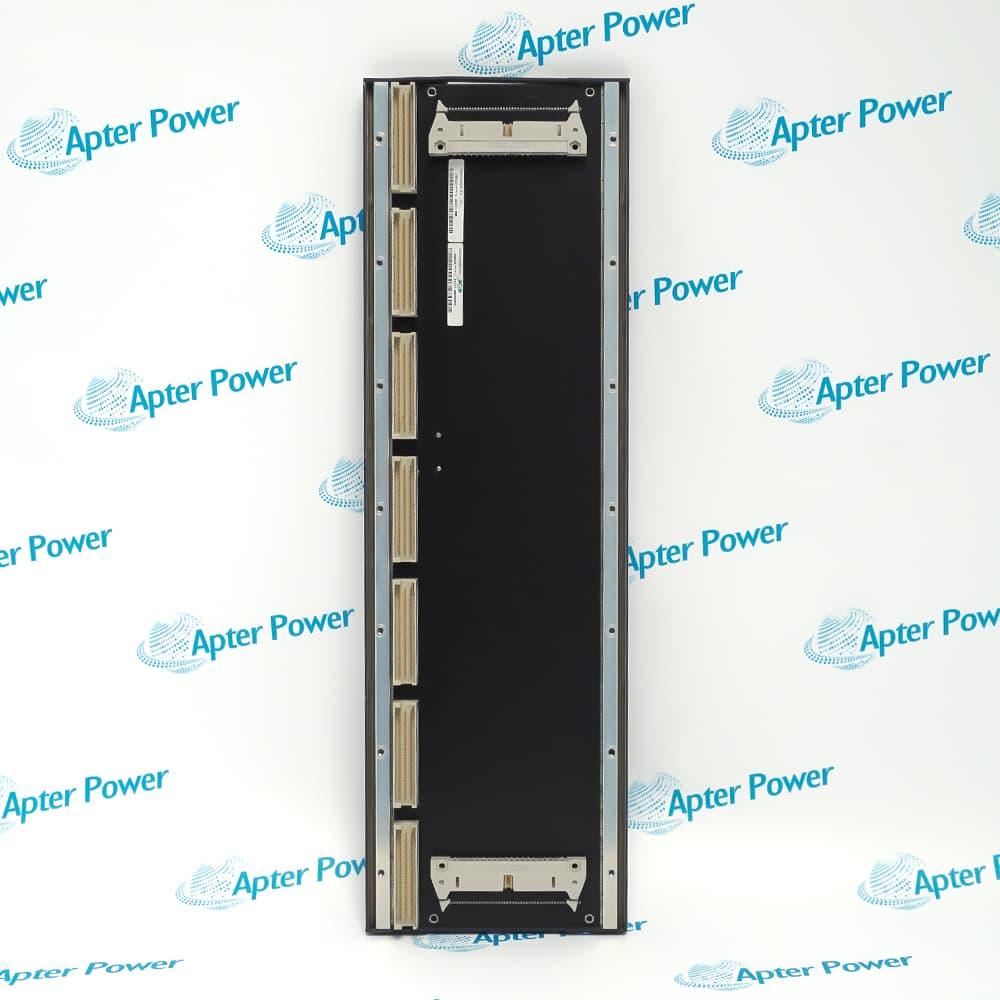

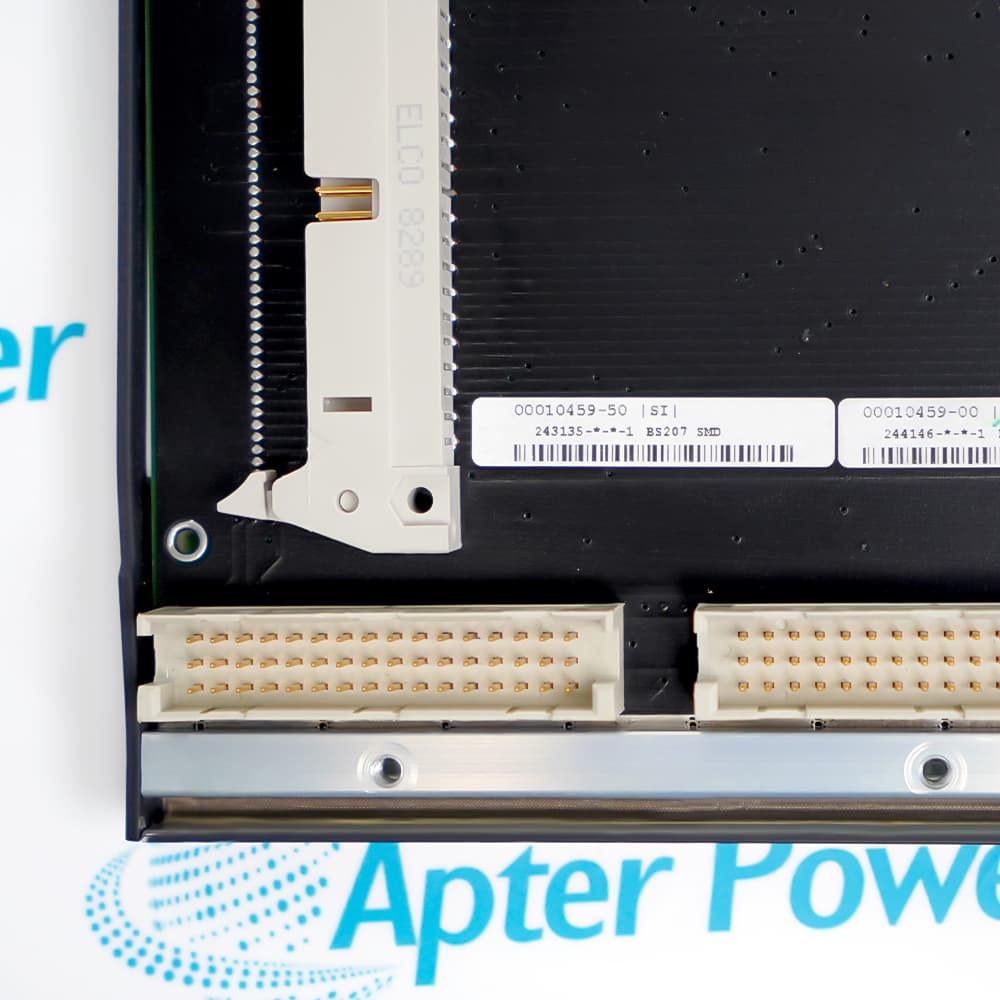

Bachmann BS207 is a seven-slot backplane that mechanically and electrically connects M200 controller hardware modules in one DIN-rail assembly.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for BS207
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for BS207

  • Manufacturer:
    Bachmann
  • Part Number:
    BS207
  • Product Family:
    Bachmann
  • Product Type:
    Seven-Slot M200 Backplane
  • Stock:
    1
  • Bachmann part number:
    00009207-00
  • Module positions:
    7
  • Backplane series:
    BS200
  • Control system:
    M200
  • Mounting method:
    Snap-on EN 60715 DIN rail
  • Weight:
    0.62 kg
  • Estimated shipping dimensions:
    38.5x11.9x2.3cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    Austria
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Station Layout Rail Installation Module Foundation Product Applications

Features:

  • Seven-position station: the backplane defines the available M200 module layout
  • Mechanical and electrical base: one assembly supports modules and their internal connection path
  • DIN-rail integration: the BS200 design snaps onto an EN 60715 rail
Bachmann BS207 establishes the physical and electrical foundation for a seven-module-position M200 controller station.

The backplane keeps the chosen hardware together as one ordered assembly instead of treating each module as an isolated panel component.

Selection depends on the required slot count, approved module sequence, rail footprint, enclosure clearance, and matching manufacturer order identity.

Apter Power supports document review, quotation, and procurement for the Bachmann BS207 Seven-Slot M200 Backplane.
Bachmann BS207 Seven-Slot M200 Backplane Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Seven positions: the backplane fixes the maximum module layout for the controller station.
  • Sequence planning: power, CPU, communication, and I/O locations should follow the approved hardware design.
  • Expansion boundary: a larger module count requires a different documented backplane rather than improvised extension.
  • Service access: the final arrangement should leave room for module removal and wiring work.
  • EN 60715 mounting: the backplane snaps onto the standardized DIN rail identified by Bachmann.
  • Panel footprint: the full seven-slot width must be reserved before drilling and wiring.
  • Mechanical seating: the rail and backplane should be checked for secure engagement before modules are fitted.
  • Cabinet clearance: wiring and ventilation space belong in the installation layout, not only the product outline.
  • Shared structure: the backplane mechanically supports every installed M200 hardware module.
  • Internal connection: its electrical path links the station modules as one controller assembly.
  • Connector care: damaged backplane interfaces can affect more than one module and should stop release.
  • Receiving check: reconcile the seven-slot form and Bachmann part number before station build.
  • M200 controller assembly: build a seven-position station for documented automation hardware.
  • Panel modernization: reproduce an existing BS207 layout while preserving module order and rail space.
  • Maintenance replacement: renew a damaged backplane after connector and module evidence is recorded.
  • Training or test systems: assemble an M200 station with the same documented slot foundation used in service.
Description
Seven module positions give BS207 its specific role in a Bachmann M200 station. The backplane provides the mechanical foundation and internal connections that let the power supply, controller, communications, and I/O operate as one assembly.

Panel layout changes with the selected backplane length, so BS207 should be chosen by required station capacity rather than by the BS200 family name alone. Its snap-on EN 60715 DIN-rail installation also fixes how the assembled station occupies the enclosure.

A useful installation record for BS207 shows module order, free positions, rail space, and service clearance. With that layout preserved, technicians can rebuild the station deliberately instead of discovering placement conflicts after wiring has started.
Alternative Names
Bachmann BS 207 Bachmann BS-207 Bachmann 00009207-00 Bachmann 0000920700 Bachmann 0000 9207-00 M200 BS207 backplane Bachmann seven-slot backplane M200 seven-slot backplane BS200 series seven-slot rack
Technical notes
For BS207 installation, confirm the seven-position station layout, Bachmann order number, DIN-rail space, module sequence, connector condition, grounding arrangement, and cabinet clearances before assembly. The backplane forms both the mechanical and electrical foundation of the M200 station, so a slot-count or rail-layout error affects every installed controller module.
