MX213

/ 4.9
1001 reviews | Need a Specific Revision?

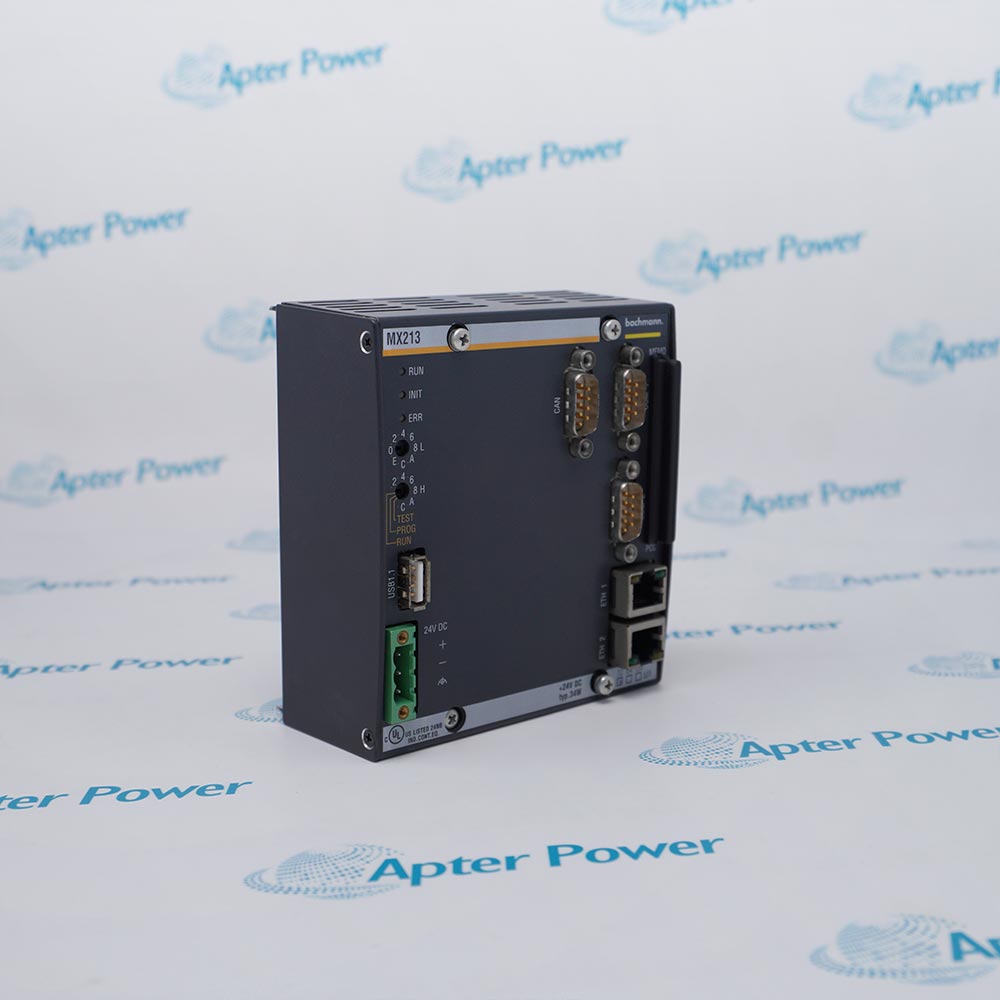

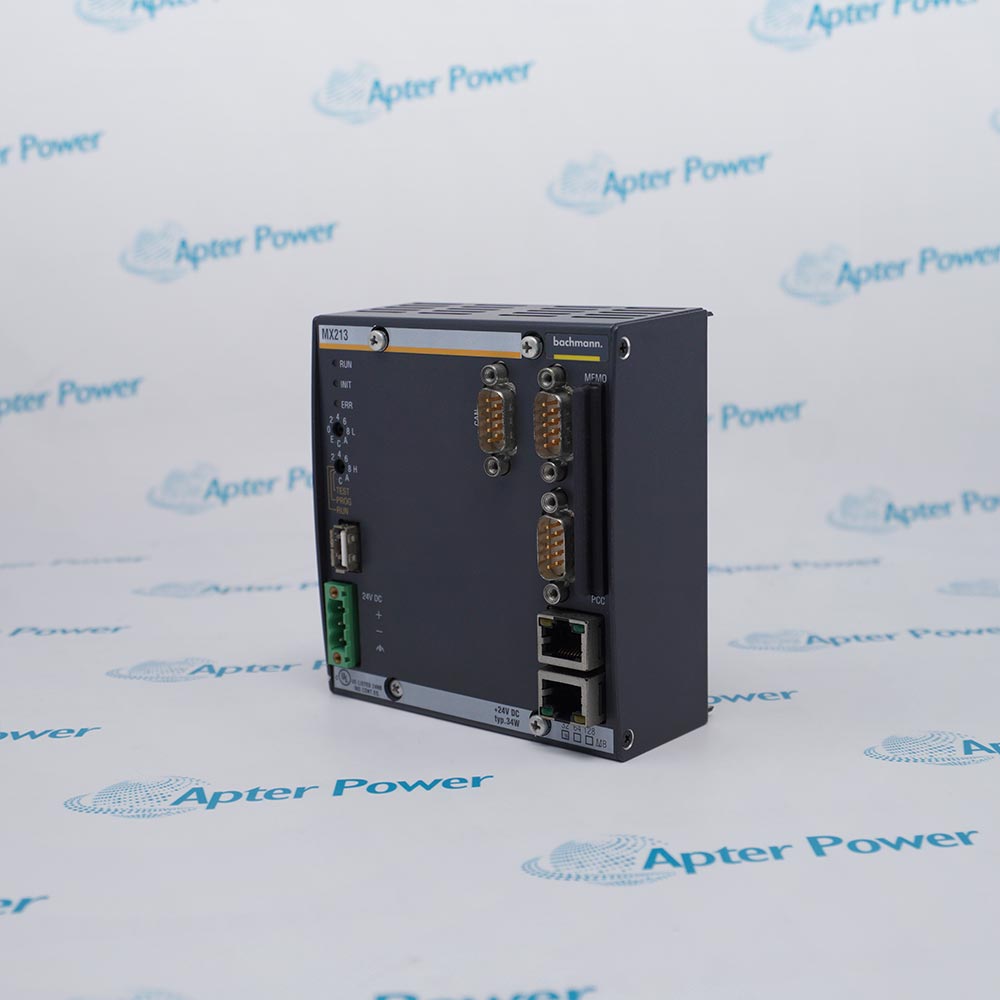

Bachmann MX213 is a compact 266 MHz CPU module for M200 automation systems, combining processor, communication, and I/O power-supply functions in two module widths.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for MX213
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for MX213

  • Manufacturer:
    Bachmann
  • Part Number:
    MX213
  • Product Family:
    Bachmann
  • Product Type:
    CPU Module
  • Stock:
    1
  • Clock Frequency:
    266 MHz
  • Processor Cores:
    1
  • Working Memory / Partitions:
    256 MB / Yes
  • Retentive Data Memory:
    512 kB NVRAM
  • Integrated Mass Storage:
    64 MB; 16 MB for hardware revisions ≤ KR15x.000
  • I/O Subsystem:
    Bachmann M200 backplane interface with integrated Process Image Controller
  • Ethernet:
    2 × 10/100 Base-TX RJ45; AutoNegotiation and AutoCrossing
  • Serial Interfaces:
    1 × RS-232 and 1 × RS-232/RS-422/RS-485; D-sub 9 male
  • USB:
    1 × USB 2.0 Type-A female
  • CAN:
    1 × galvanically isolated CAN/CANopen/J1939; up to 1 Mbit/s
  • CAN Operating Modes:
    CAN Master and CAN I/O Device
  • Supply Voltage:
    24 V DC (18 to 34 V)
  • Nominal Power Consumption without I/O:
    9.5 W
  • Nominal Power Consumption with I/O:
    33.6 W
  • Nominal Power Output for I/O:
    16.75 W
  • Degree of Protection:
    IP20 according to IEC 60529
  • Operating Temperature:
    -30 to +60 °C, fanless
  • Operating Humidity:
    5 to 95%, noncondensing for standard MX213
  • Storage Temperature:
    -40 to +85 °C
  • Dimensions:
    11.0 × 11.9 × 6.1 cm
  • Weight:
    0.66 kg
  • Tariff Code:
    8537101190
  • Country of origin:
    Austria
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Interfaces Monitoring Installation Application
  • Runs M200 control applications on a 266 MHz single-core industrial processor with 256 MB working memory
  • Combines dual Ethernet, serial, USB, and isolated CAN/CANopen/J1939 communication in a two-width module
  • Integrates the M200 backplane interface, Process Image Controller, and power supply for connected I/O modules

Bachmann MX213 is a compact CPU module designed for the MX200 series within the Bachmann M200 automation platform.

Order number 00031491-00 provides real-time multitasking, retentive memory, removable CompactFlash support, integrated communications, monitoring, and battery-backed timekeeping.

Before installation or replacement, verify the hardware revision, BS2xx backplane, M-Base version, removable-media configuration, power terminal, and saved application.

Availability, condition, price, and shipping time for Bachmann MX213 are confirmed during quotation.

Bachmann MX213 CPU Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Two 10/100 Base-TX RJ45 ports support AutoNegotiation and AutoCrossing
  • Two D-sub 9 serial ports provide RS-232 plus configurable RS-232, RS-422, or RS-485 communication
  • The isolated CAN port supports CAN, CANopen, and J1939 at rates up to 1 Mbit/s
  • Runtime monitoring includes cycle supervision and a watchdog
  • Processor load, network load, processor temperature, and partition-level memory protection are monitored
  • The power supply provides an interrupt signal, while RUN, INIT, and ERR LEDs report CPU state
  • The standard MX213 occupies two module widths on BS2xx, BS2xx/S, or BS2xx/E backplanes
  • The 24 V DC supply accepts 18 to 34 V through the KZ 51/03 RM 5.08 three-pole terminal block
  • Fanless operation is specified from -30 to +60 °C with noncondensing humidity for the standard module
  • Machine control in compact M200 automation systems
  • Simple motion-control applications using Bachmann function modules
  • Condition-monitoring systems requiring local processing and industrial communications
Description
Bachmann MX213 is a compact CPU module for the MX200 series within the Bachmann M200 control system.

The module combines a 266 MHz single-core processor, 256 MB working memory, 512 kB retentive NVRAM, integrated I/O power, Ethernet, serial, USB, and galvanically isolated CAN/CANopen/J1939 interfaces.

Before installation or replacement, confirm order number 00031491-00, hardware revision, BS2xx backplane compatibility, M-Base version, removable-media configuration, terminal block, and saved application.
Alternative Names
MX213 Bachmann MX213 Bachmann electronic MX213 MX213 00031491-00 Bachmann MX213 00031491-00 Bachmann electronic MX213 00031491-00
Technical notes
Bachmann MX213 is order number 00031491-00; verify hardware revision, backplane, M-Base version, removable-media configuration, and terminal block before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which order number identifies the base Bachmann MX213, and is a CompactFlash card included?
The base Bachmann MX213 is order number 00031491-00. A removable storage medium is included only when it is explicitly stated in the order text; the dedicated 2 GB and 4 GB CompactFlash configurations use different order numbers.
Which hardware-revision differences matter when sourcing a Bachmann MX213 replacement?
Bachmann documents 16 MB internal storage for MX213 hardware revisions up to KR15x.000 instead of the later 64 MB value. A front PC-Card connector applies only through KR182.000, while order number 00039022-00 is specifically designed without that connector.
Which backplanes and software versions should be checked before installing Bachmann MX213?
Bachmann MX213 is documented for BS2xx, BS2xx/S, and BS2xx/E backplanes. The minimum software is MxCCore V3.80 from M-Base V3.80; Bachmann recommends MxCCore V4.30 because access to the 64 MB internal storage is slower with older versions.
Can Bachmann MX213 be substituted directly for MX213 CC or MX213/CF variants?
No automatic substitution should be assumed. MX213 CC is a separate ColdClimate order, while MX213/CF 2 GB and 4 GB versions include specified CompactFlash media and have different order numbers. Match the complete order code and installed environmental requirements.
What communication connections must be matched when replacing Bachmann MX213?
Confirm two 10/100 Base-TX Ethernet ports, one RS-232 port, one configurable RS-232/RS-422/RS-485 port, one USB 2.0 port, and one isolated CAN/CANopen/J1939 port. Existing connector pinouts, network settings, and application configuration must also be preserved.
What power-supply details should be verified for Bachmann MX213 and its attached I/O?
Bachmann MX213 uses a 24 V DC supply with an 18 to 34 V range and the KZ 51/03 three-pole terminal block. Check the 33.6 W nominal consumption with I/O and the 16.75 W nominal I/O power output before reconnecting the rack load.
Which Bachmann MX213 indicators and diagnostics help isolate startup faults?
Bachmann MX213 provides RUN, INIT, and ERR CPU LEDs plus two status/speed LEDs per Ethernet socket. Diagnostic data also covers cycle/watchdog behavior, processor and network load, temperature, memory protection, and power-supply interruption, helping distinguish configuration, network, and supply faults.
