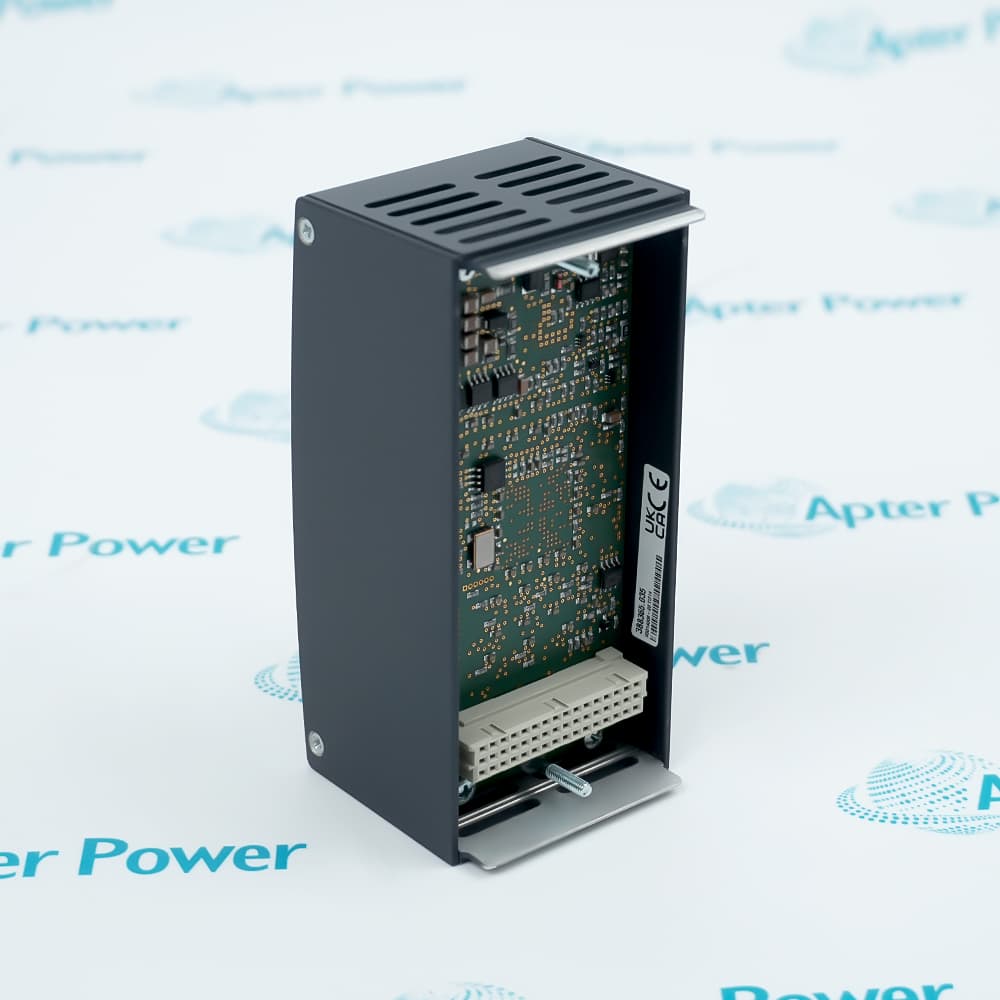

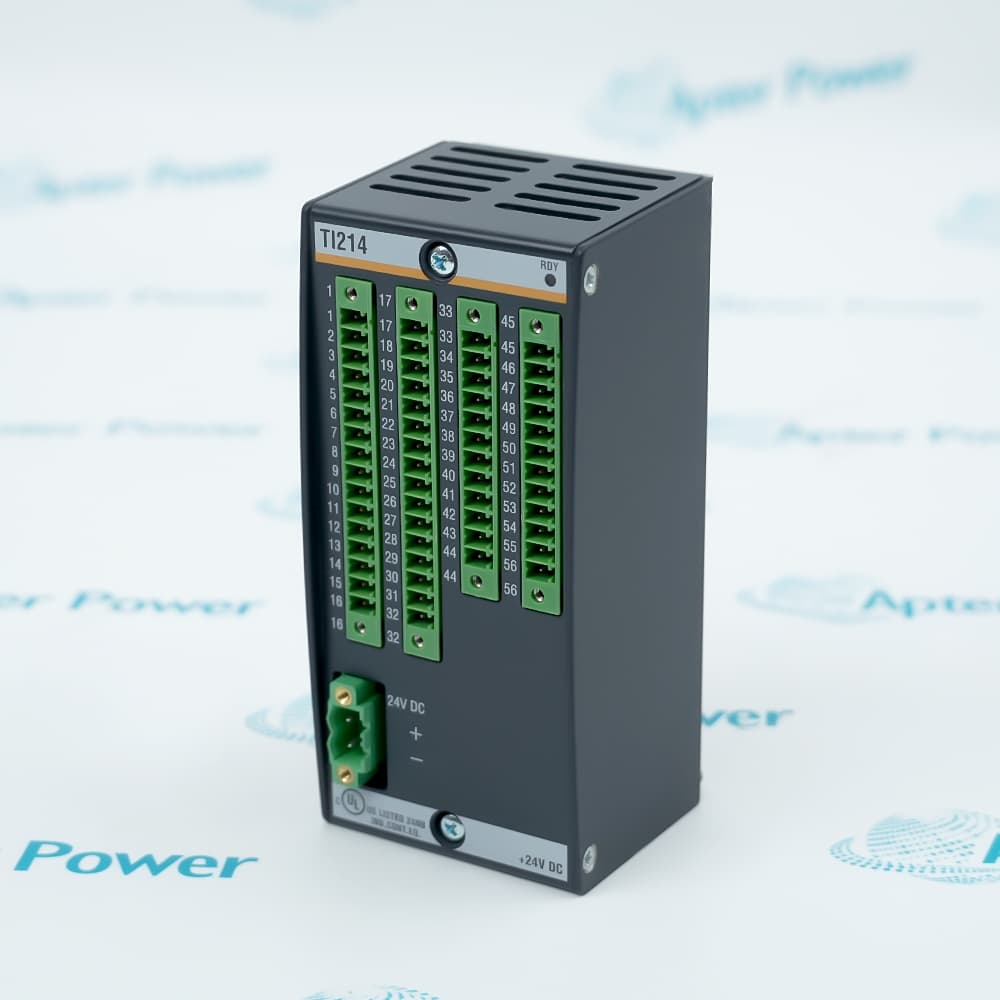

Bachmann TI214 is a 14-channel M200 temperature input module for Pt100/Pt1000 sensors and type J or K thermocouples.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for TI214
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for TI214

  • Manufacturer:
    Bachmann
  • Part Number:
    TI214
  • Product Family:
    Bachmann
  • Product Type:
    M200 Temperature Input Module
  • Stock:
    1
  • Input Channels:
    14
  • Sensor Types:
    Pt100/Pt1000 and thermocouple J/K
  • RTD Range:
    -100 to +800 °C
  • Thermocouple Range:
    -30 to +1000 °C
  • Resolution:
    14 bit; 16-bit averaged representation
  • RTD Wiring:
    2-wire or 3-wire
  • Approvals:
    CE, UKCA, cULus; ABS, BV, DNV, KR, LR, NK, RINA
  • Thermocouples linearization:
    Polynomial acc. to IEC 60584 part 1, for sensor types J or K
  • Error detection:
    Cable break
  • External withstand voltage:
    -36 V to +36 V
  • Galvanic isolation from the system:
    500 V
  • Voltage range:
    18 V DC to 34 V DC
  • Current consumption:
    Typ. 160 mA at +24 V DC
  • Reverse polarity protection:
    Yes
  • Operating temperature:
    -30 °C to +60 °C
  • Relative humidity, operation:
    5 % to 95 % noncondensing
  • Storage temperature:
    -40 °C to +85 °C
  • Relative humidity, storage:
    5 % to 95 % with condensation
  • Pollution degree (IEC 60664-1):
    2 (noncondensing)
  • Weight:
    0.4 kg
  • Estimated shipping dimensions:
    11x6x11.8cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Austria
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Sensor Inputs Signal Processing Power & Isolation Applications

Features:

  • Collects fourteen Pt100, Pt1000, type J, or type K temperature inputs.
  • Offers two-wire and three-wire RTD evaluation with lead compensation.
  • Combines cable-break detection, signal averaging, and 500 V system isolation.
TI214 lets each input channel use the sensor technology suited to its measuring point instead of forcing one module-wide selection.

Selectable averaging and low-pass filtering help separate stable process temperature from electrical interference.

The internal Pt100 reference can represent cabinet temperature for thermocouple cold-junction compensation without an added channel.

The Bachmann TI214 M200 Temperature Input Module is covered by a current Bachmann product datasheet and may be available from Apter Power.
Bachmann TI214 M200 Temperature Input Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Flexible sensor assignment

  • Channel Choice: Each of the fourteen measuring points can be assigned independently to a supported sensor type.
  • RTD Inputs: Pt100 and Pt1000 elements cover measurements from -100 to +800 degrees Celsius.
  • Thermocouples: Type J or K inputs cover the -30 to +1000 degrees Celsius range.
  • Lead Arrangement: Resistance sensors may use either simple two-wire wiring or compensated three-wire wiring.

Stable measured-value handling

  • Conversion: Fourteen-bit measurement is presented in a 16-bit averaged value.
  • Averaging: The controller can select 16-fold or 64-fold averaging to suppress interference.
  • Input Filtering: A per-channel first-order low-pass filter shapes the incoming temperature signal.
  • Open-Circuit Check: Cable-break recognition distinguishes a missing sensor path from a valid temperature value.

Electrical operating boundary

  • External Supply: The module accepts 18 to 34 VDC and draws about 160 mA at 24 VDC.
  • Supply Supervision: External-voltage monitoring reports whether the measurement electronics are being powered.
  • Polarity Protection: Reverse connection of the supply is blocked by the module's input protection.
  • System Separation: A 500 V galvanic barrier isolates the temperature channels from the controller system.

Supported temperature-measurement roles

  • Cabinet Reference: The integrated Pt100 element can measure switching-cabinet temperature on the same module.
  • Thermocouple Control: Type J and K channels suit temperature-control systems built around thermocouple sensors.
  • Long RTD Runs: Three-wire evaluation compensates equal lead resistance in symmetrical Pt100 or Pt1000 cables.
  • Mixed Measurement: Independent channel selection combines resistance sensors and thermocouples within one compact station.
Description
Bachmann TI214 concentrates fourteen temperature-measurement channels in one M200 module width. Each channel can be assigned to a Pt100, Pt1000, type J thermocouple, or type K thermocouple according to the connected sensor.

For resistance-temperature measurements, Bachmann TI214 accepts two-wire or three-wire Pt100/Pt1000 connections. The three-wire evaluation compensates conductor resistance in symmetrical cable runs, while the module's integrated Pt100 element provides the cold-junction or cabinet reference temperature.

Signal processing in Bachmann TI214 uses 14-bit conversion with averaged values represented at 16-bit resolution. Selectable 16-fold or 64-fold averaging, per-channel low-pass filtering, and cable-break detection help produce stable temperature data and identify open sensor circuits.

Bachmann TI214 operates from an external 18 to 34 VDC supply and isolates all measurement channels from the system at 500 V. Supply monitoring, reverse-polarity protection, a -30 to +60 degrees Celsius operating range, and multiple industrial and marine approvals define the module's installation boundaries.
Alternative Names
Bachmann TI214 TI-214 TI 214 Bachmann M200 TI214 TI214 Temperature Input Module M200 Temperature Module 00014008-00 T1214
Technical notes
Bachmann TI214 provides 14 isolated temperature inputs for Pt100/Pt1000 sensors or type J/K thermocouples, with 14-bit conversion and selectable measured-value averaging.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which sensors can Bachmann TI214 read?
Bachmann TI214 accepts Pt100 and Pt1000 resistance sensors as well as type J and type K thermocouples across its 14 channels.
Can Bachmann TI214 compensate lead resistance?
Yes. The three-wire Pt100/Pt1000 evaluation in Bachmann TI214 compensates the voltage error of symmetrical sensor leads.
How does Bachmann TI214 detect a disconnected sensor?
Bachmann TI214 includes cable-break detection on its temperature inputs so an open measurement circuit can be identified.
What power source is required by Bachmann TI214?
An external 18 to 34 VDC source powers Bachmann TI214, with typical current consumption of 160 mA at 24 VDC.
Is each Bachmann TI214 channel fixed to one sensor type?
No. Bachmann TI214 allows the sensor selection to be assigned individually for each measurement channel.
Where does Bachmann TI214 obtain cold-junction temperature?
An integrated Pt100 element lets Bachmann TI214 use the switching-cabinet temperature as the cold-junction reference for thermocouple measurements.
What isolation boundary does Bachmann TI214 provide?
The measuring channels in Bachmann TI214 are galvanically isolated from the M200 system at 500 V.
