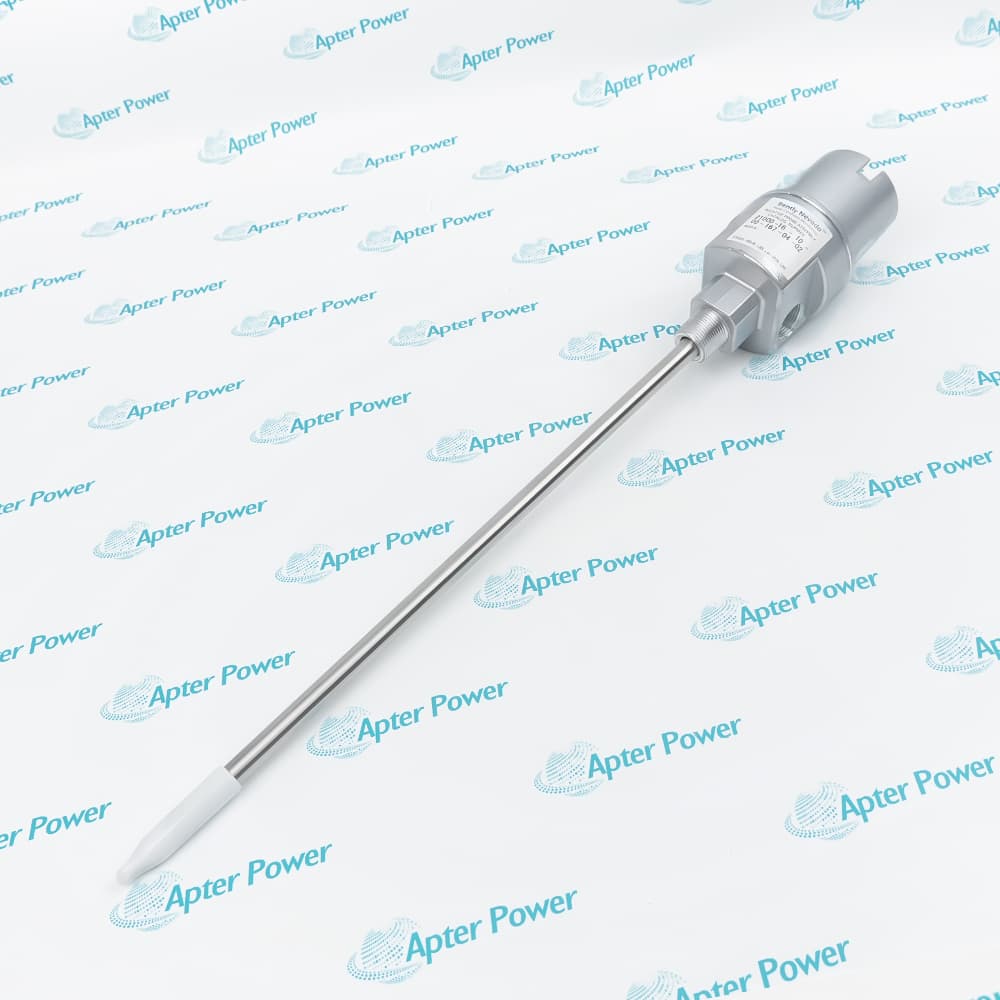

21000-16-10-00-077-03-02

/ 4.9
1001 reviews | Need a Specific Revision?
The 21000-16-10-10-00-077-03-02 model incorporates a robust aluminum construction that provides durable protection for the internal probe components against harsh industrial conditions, including exposure to chemicals, moisture, and physical impact.
Get a quick price for 21000-16-10-00-077-03-02
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 21000-16-10-00-077-03-02

  • Manufacturer:
    Bently Nevada
  • Part Number:
    21000-16-10-00-077-03-02
  • Product Family:
    21000, 24701, and 164818 Proximity Probe Housing A
  • Product Type:
    Proximity Probe Housing Assembly
  • Probe with Connector:
    3300 XL 8mm probe
  • Probe Cable Length:
    1.0 m (39 in)
  • Standoff Adapter Option:
    No standoff adapter
  • Probe Penetration:
    7.7 in
  • Mounting Thread:
    3/4-14 NPT
  • Material:
    Aluminum body with 304 stainless steel sleeve
  • Weight:
    1.1 kg
  • Estimated shipping dimensions:
    8.5x8.5x42.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Operating Environment Use Cases Configuration & Programming

Features:

  • Interface Between the Proximity Probe and External Machinery Mounting Surface
  • Combines Capability of Probe Protection with Explosion-Proof Hazardous Area Certification
  • Operates in Conjunction with the 3300 XL 8mm Probe Series and Standard Bently Nevada Monitoring Systems
The Bently Nevada 21000-16-10-00-077-03-02 Proximity Probe Housing Assembly serves as the external mounting solution for proximity probes in industrial machinery monitoring applications, providing secure mechanical installation and environmental protection for the internal probe components. It continuously houses the reverse mount proximity probe with a penetration depth of 7.7 inches and maintains sealed integrity through O-rings and thread seals to protect the probe against harsh industrial conditions. Seamless integration with standard conduit systems is standard with the 21000-16-10-00-077-03-02, however using the included cable seal grip with grommets will allow proper cable management for varying cable sizes from 1/8 to 3/8 inches in the event of different installation requirements. The 21000-16-10-00-077-03-02 has made improvements in several areas over previous housing designs in addition to incorporating CSA explosion-proof certification for hazardous area operation within industrial facilities.

The 21000-16-10-00-077-03-02 provides essential protection functions common to the entire proximity measurement path, and is a critical component of the vibration monitoring system, directly affecting the proper, normal operation of the overall machinery condition monitoring system. One 21000-16-10-00-077-03-02 housing assembly is required per probe installation depending on the desired mounting configuration. The 21000-16-10-00-077-03-02 occupies the external mounting position on machinery casings and is always located at the measurement point (designated penetration location, the dedicated probe housing position).

For Dual Cable Size applications, the 21000-16-10-00-077-03-02 system accommodates multiple cable diameters through the included grommet set installed in the cable seal grip. In addition to standard single cable size operation, the grommet configuration also performs proper sealing. The 21000-16-10-00-077-03-02 cable sealing system executes protection using the internal grommet sizing specified in the fitting options. Using this method, the cable seal system continually maintains environmental isolation for the probe cable. If the system detects that the cable seal is no longer providing proper fit (outside configured grommet size ranges), it will automatically require grommet replacement and ensure continued protection of the internal probe components.

The 21000-16-10-00-077-03-02 Bently Nevada Proximity Probe Housing Assembly may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 21000-16-10-00-077-03-02 Proximity Probe Housing Assembly Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 21000-16-10-00-077-03-02 Proximity Probe Housing Assembly Specs

General

  • Manufacturer Bently Nevada
  • Model 21000-16-10-00-077-03-02
  • Condition New Original ready stock
  • Product Family 21000-16-10-00-077-03-04,21000-16-10-00-077-03-03
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Temperature Range: Rated for extreme conditions from -51°C to +177°C (-60°F to +351°F).
  • Humidity: Capable of operating in 0% to 95% relative humidity, non-condensing.
  • Protection Rating: Certified as a CSA Type 4 enclosure, providing protection against windblown dust, rain, and hose-directed water.
  • Hazardous Area Certification: Certified for use in Class I, Division 1 and 2 locations (Groups C and D) and Class II (Groups E, F, and G).
  • Vibration and Position Monitoring: Used on rotating or reciprocating machinery, such as turbines, compressors, and motors, to measure shaft vibration and axial position.
  • External Access Requirements: Allows for probe gap adjustment or replacement without disassembling the machine casing.
  • Hazardous Environments: Ideal for offshore oil platforms, power generation stations, and petrochemical refineries where explosion-proof (CSA certified) equipment is mandatory.
  • Hardware Setup: The assembly includes a dome cover, housing body, 304 stainless steel sleeve, and O-rings for sealing.
  • Gap Adjustment: Mechanical adjustment is performed by rotating the probe within the sleeve to set the correct voltage gap, typically monitored via a Bently Nevada Proximitor sensor.
  • Standard Compliance: The assembly is fully compliant with API 670 standards for externally mounted proximity probes.
  • Mounting: Features a 3/4-14 NPT mounting thread for secure installation.
Description
The Bently Nevada 21000-16-10-00-077-03-02 Proximity Probe Housing Assembly is specifically engineered for the external mounting of proximity probes in demanding industrial environments, particularly within hazardous areas requiring explosion-proof certification. This 21000-16-10-00-077-03-02 assembly is designed to securely house and protect proximity measurement equipment, solving the critical challenge of reliably installing vibration monitoring sensors on machinery casings while maintaining safety integrity in potentially explosive atmospheres.

 This 21000-16-10-00-077-03-02 housing assembly features a comprehensive design consisting of a dome cover that screws into the body of the housing, threaded ports for conduit connections, and a probe sleeve of optional length to accommodate various installation requirements. The 21000-16-10-00-077-03-02 is equipped with O-rings for sealing integrity, a reverse mount proximity probe configuration, and a thread seal to prevent leakage, ensuring complete environmental protection for the sensitive measurement components within.

This 21000-16-10-00-077-03-02 assembly comes with one 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, and one cable seal grip with grommets designed to accommodate cable sizes ranging from 1/8 to 3/16 inches, 1/4 to 5/16 inches, and 5/16 to 3/8 inches, providing versatile cable management options for different installation scenarios.

The 21000-16-10-00-077-03-02 features a 3/4-14 NPT mounting thread and a probe penetration depth of 7.7 inches, with no standoff adapter included in this specific configuration, making it essential that this option must be ordered when the standoff adapter length is not specified as 00. The 21000-16-10-00-077-03-02 is configured with a Probe with Connector 3300 XL 8mm probe and a probe cable length of 1.0 meter (39 inches), ensuring compatibility with standard Bently Nevada proximity measurement systems.

This 21000-16-10-00-077-03-02 Proximity Probe Housing Assembly, along with the 24701 stainless steel probe housing assembly and 164818 variants, is available with Canadian Standards Association (CSA) approvals and is rated as explosion proof for hazardous areas, making the 21000-16-10-00-077-03-02 an ideal solution for petrochemical, oil and gas, power generation, and other heavy industrial applications where both precise machinery condition monitoring and stringent safety requirements must be simultaneously satisfied.
Alternative Names
21000-16-10-00-077-03-01 21000-16-10-00-077-03-04 21000-16-10-00-077-04-02 21000-16-10-00-077-00-02 21000-16-10-00-077-02-02
Technical notes
This 21000-16-10-00-077-03-02 assembly comes with one 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, and one cable seal grip with grommets designed to accommodate cable sizes ranging from 1/8 to 3/16 inches, 1/4 to 5/16 inches, and 5/16 to 3/8 inches, providing versatile cable management options for different installation scenarios.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the primary purpose of this housing assembly?
It is engineered to securely enclose and protect proximity probes while enabling reliable vibration and position monitoring on machinery casings, especially in explosion-prone areas.
What materials and construction features does it include?
The assembly is built with a robust aluminum housing, providing strong resistance to chemicals, moisture, and mechanical impact, ensuring durability in harsh industrial conditions.
What are the key design elements of this assembly?
It includes a dome cover that screws into the housing body, threaded conduit ports, and a probe sleeve with optional length configurations to suit various installation requirements.
