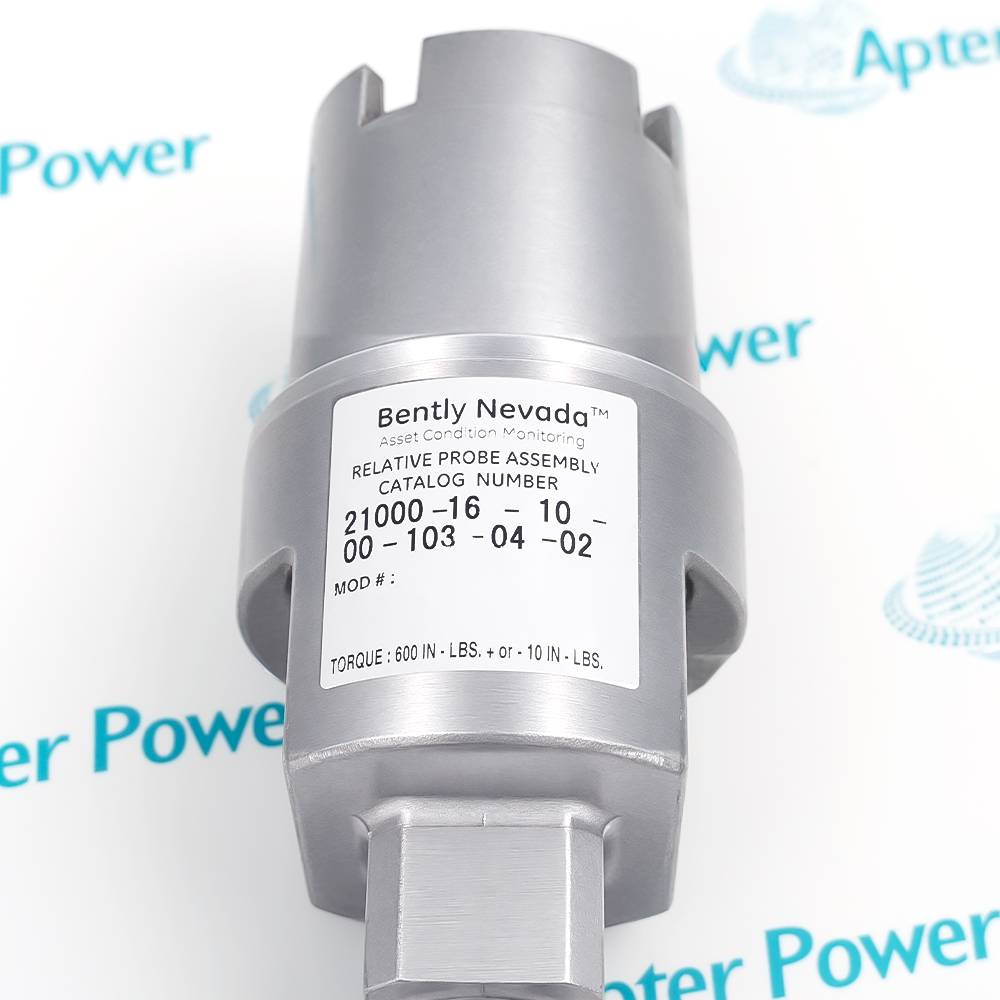

Bently Nevada 21000-16-10-00-103-04-02 is a configurable proximity probe housing assembly combining an aluminum housing and stainless-steel sleeve. The complete option code defines the supplied mechanical arrangement.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for 21000-16-10-00-103-04-02
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 21000-16-10-00-103-04-02

  • Manufacturer:
    Bently Nevada
  • Part Number:
    21000-16-10-00-103-04-02
  • Product Family:
    21000, 24701, and 164818 Proximity Probe Housing A
  • Product Type:
    21000 Proximity Probe Housing Assembly
  • Stock:
    1
  • Product family:
    21000 proximity probe housing
  • Housing material:
    Aluminum
  • Sleeve material:
    304 stainless steel
  • Configuration format:
    21000-AA-BB-CC-DDD-EE-FF
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Order Code Housing Fit Installation Product Applications

Features:

  • Probe protection: Provides a protective housing and sleeve for a compatible proximity probe.
  • Configured construction: Uses the complete multi-segment code to define the assembly.
  • Machine interface: Supports controlled probe positioning at the documented mounting location.
The configured code should be retained exactly because each segment can affect mechanical fit.

Probe length, insertion range, sleeve position, and target clearance should be checked together.

Weight and shipping dimensions remain blank until approved exact-assembly data are available.

Apter Power supports Bently Nevada 21000-16-10-00-103-04-02 21000 Proximity Probe Housing Assembly quotations, official documents, and installation matching.
Bently Nevada 21000-16-10-00-103-04-02 21000 Proximity Probe Housing Assembly Manuals, Datasheets, Links
Important Notice: Manuals and supporting documents are provided for identification and engineering review. Confirm the complete product code before ordering.
  • Full identity: Retain every segment of 21000-16-10-00-103-04-02.
  • Family boundary: Do not substitute another 21000 code from appearance alone.
  • Drawing record: Use the machine installation drawing as the mechanical reference.
  • Probe body: Confirm the compatible probe diameter, thread, and usable length.
  • Sleeve position: Set insertion and locking hardware to the approved machine dimension.
  • Cable route: Provide clearance and strain relief for the installed cable path.
  • Target gap: Establish probe gap according to the monitoring-system procedure.
  • Mechanical security: Check thread engagement, locknut, housing closure, and sealing.
  • Return to service: Verify signal stability and machine clearances after assembly work.
  • Bearing housings: Provides protected probe mounting near rotating-machine bearings.
  • Machine cases: Supports repeatable probe positioning through the equipment enclosure.
  • Maintenance access: Allows service of a configured proximity probe installation.
Description
The Bently Nevada 21000-16-10-00-103-04-02 is a 21000-series proximity probe housing assembly used to protect and position a compatible probe at the machine case. The assembly combines an aluminum housing with a stainless-steel sleeve and should be identified by the complete configured option code.

The ordered segments of 21000-16-10-00-103-04-02 govern the housing and sleeve arrangement, thread details, and connection features documented for the installation. A shared 21000 family name does not prove the same mechanical fit, probe reach, cable exit, or machine-thread interface.

Before installation, 21000-16-10-00-103-04-02 should be compared with the existing housing, compatible probe, mounting thread, sleeve position, clearance, and machine drawing. Apter Power can support exact-code quotation, official documentation, and assembly matching.
Alternative Names
210001610001030402 21000 16 10 00 103 04 02 21000-16-10-00-103-04-O2 21000-I6-10-00-103-04-02 Bently 21000 probe housing Bently Nevada 21000 housing 21000 series housing assembly 21000-16-10-00-103
Technical notes
For 21000-16-10-00-103-04-02, treat every option segment as part of the mechanical identity. Compare the machine thread, sleeve, probe body, insertion range, cable exit, target geometry, and locking method before installation. Apter Power can review the configured code and machine evidence before preparing official documents and a quotation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which probe and cable configuration does 21000-16-10-00-103-04-02 specify?
Option 16 specifies a 3300 XL 8 mm probe, and option 10 specifies a 1.0 m (39 in) probe cable.
Can a 3300 XL NSv or 11 mm probe replace the probe specified by 21000-16-10-00-103-04-02?
Keep the 3300 XL 8 mm probe selected by this order code. NSv and 11 mm probes use different option codes and require a separately configured housing assembly.
What machine mounting connection is required for 21000-16-10-00-103-04-02?
Option 02 specifies a 3/4-14 NPT mounting thread, while option 00 specifies no standoff adapter. Both conditions must match the machine connection.
What should be checked if 21000-16-10-00-103-04-02 cannot reach the required probe gap?
The configured geometry is no standoff plus 10.3 in (262 mm) probe penetration. Compare the machine-case depth and target position with the manufacturer-listed 13 mm (±0.5 in) adjustment range.
Which conduit fitting is supplied by 21000-16-10-00-103-04-02?
Option 04 provides one 3/4-14 NPT plug only; it does not specify the explosion-proof fitting packages listed under options 01 or 02.
Does 21000-16-10-00-103-04-02 by itself prove CSA explosion-proof approval?
Treat the approval as unconfirmed from this standard part number. The official datasheet identifies CA21000 housings as the CSA-certified explosion-proof versions; verify the site approval before installation.
