          Apter Power supports 24701-28-10-XX-149-03-XX MOD 323933-00-02 identification, documentation review and quotation.

        24701-28-10-XX-149-03-XX MOD 323933-00-02

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

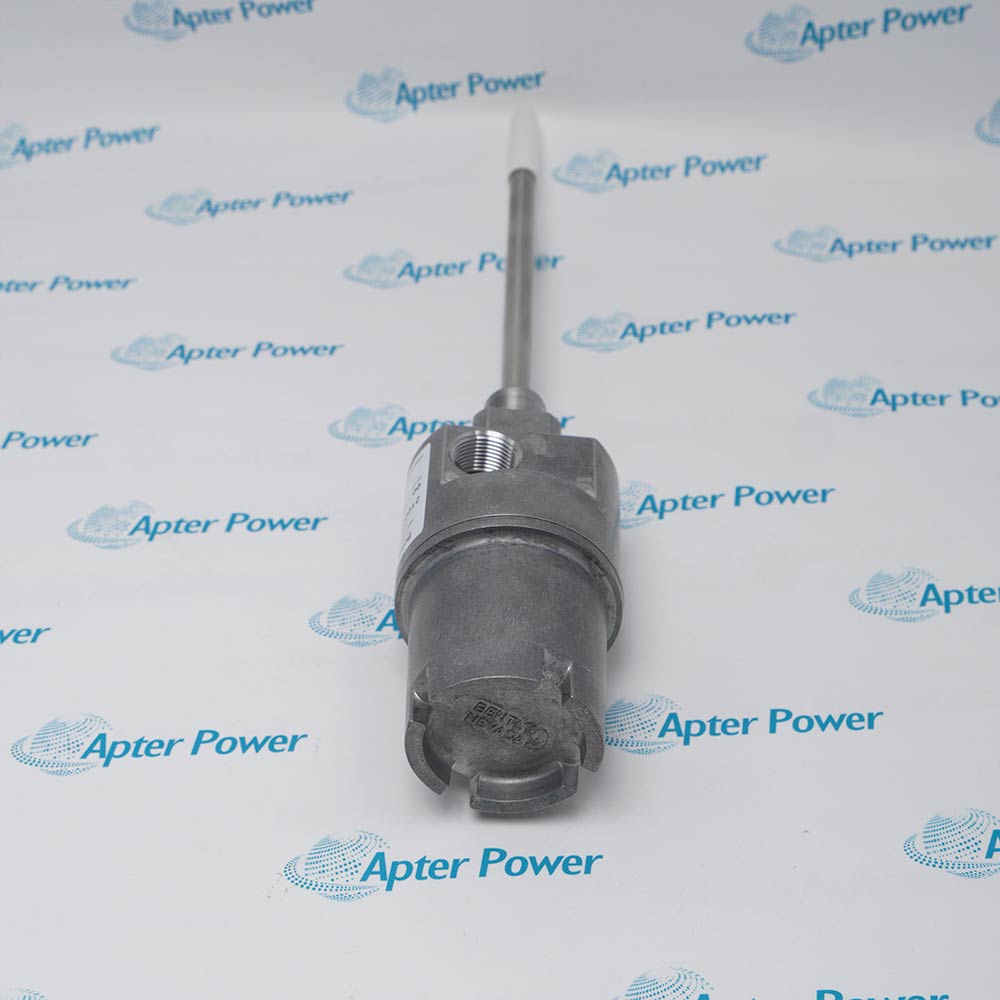

        Bently Nevada 24701-28-10-XX-149-03-XX MOD 323933-00-02 is a long-reach stainless-steel probe housing configured for a 1.0 m probe and 14.9 in penetration. Package 03 provides the documented connection fittings.
        In Stock
        Ships by Friday, October 30
        Fast Shipping Available
        Get a quick price for 24701-28-10-XX-149-03-XX MOD 323933-00-02
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 24701-28-10-XX-149-03-XX MOD 323933-00-02

        • Manufacturer:
          Bently Nevada
        • Part Number:
          24701-28-10-XX-149-03-XX MOD 323933-00-02
        • Product Family:
          21000, 24701, and 164818 Proximity Probe Housing A
        • Product Type:
          Long-Reach Proximity Probe Housing Assembly
        • Stock:
          1
        • Probe family option:
          28; 3300 XL 8 mm with selectable approval option
        • Probe cable length:
          1.0 m / 39 in
        • Probe penetration:
          14.9 in / 378.5 mm
        • Fitting package:
          03; plug, reducer and cable seal grip
        • Support requirement:
          Required because sleeve length exceeds 304 mm / 12 in
        • Housing body material:
          303 stainless steel
        • Sleeve material:
          304 stainless steel
        • Plug thread:
          3/4-14 NPT
        • Reducer thread:
          3/4-14 to 1/2-14 NPT
        • Standoff field:
          XX; controlled selection
        • MOD drawing reference:
          323933-00-02
        • Probe operating and storage temperature:
          -51 to +177 °C
        • Probe mounting style:
          Reverse mount
        • Probe connector protection:
          Not included with probe option 28
        • Probe approval configuration:
          Selectable hazardous-area approval option
        • Housing cover:
          Threaded metal dome cover
        • Conduit connection:
          Threaded housing ports
        • Housing seals:
          O-rings and thread seal included
        • Penetration adjustment range:
          13 mm / ±0.5 in
        • Probe-sleeve support accessory:
          37948-01 probe support and oil seal for long sleeves
        • Weight:
          3.968 lbs (1.8 kg)
        • Tariff Code:
          Please confirm the destination before shipping.
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Applications Environmental Ratings Compatibility & Interoperability Firmware

        Features:

        • Extends the probe 14.9 in into machinery with a recessed shaft target.
        • Accommodates a 1.0 m sensing lead rather than the shorter 0.5 m option.
        • Includes cable-seal and reducer hardware under fitting package 03.
        The 149 penetration option makes this the longest-reach assembly in the current batch.

        Its function is to hold a 3300 XL 8 mm probe steadily across a deep machine-case access path.

        A support bracket, exact XX fields and 323933-00-02 drawing match are essential before commissioning.

        Apter Power can review sourcing, documentation and system matching for 24701-28-10-XX-149-03-XX MOD 323933-00-02.
        Verified resources for Bently Nevada 24701-28-10-XX-149-03-XX MOD 323933-00-02: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Large turbine casings can use the long sleeve where the shaft surface is recessed behind an extended access port.
        • Compressor trains may route the one-metre probe lead from the deep insertion point to an external connection cover.
        • Retrofit work can preserve an existing long-reach geometry when the installed support and thread arrangement are documented.
        • The external stainless-steel assembly is designed for industrial machinery environments but requires suitable sealing at every threaded interface.
        • The connection cover and cable grip should remain closed against oil mist, dust and incidental moisture.
        • Any hazardous-area rating applies only when the full ordered assembly carries the required marking.
        • The sleeve accepts the probe configuration selected by the 28 and 10 ordering fields.
        • The probe, extension cable and Proximitor sensor must form one compatible 3300 XL 8 mm electrical-length system.
        • Mechanical compatibility also depends on the unresolved mounting-thread and standoff selections.
        • The housing contains no firmware and requires no software revision management.
        • Any configuration change is performed in the connected machinery-monitoring channel rather than this passive assembly.
        • Monitor firmware must continue to support the installed transducer channel and alarm strategy.
        Description
        24701-28-10-XX-149-03-XX MOD 323933-00-02 combines the 10 cable code with an unusually deep 14.9 in penetration. The longer 1.0 m probe allowance supports routing through the sleeve to the protected external connection area.

        This configuration is suited to machinery where the monitored shaft lies well inside a thick casing or extended standpipe. The stainless-steel body and sleeve create the mechanical reference required by the non-contacting probe.

        Because the penetration exceeds 12 in, sleeve support is mandatory. The unresolved standoff and mounting thread must be established from the fitted assembly or controlled drawing before replacement.
        Alternative Names
        24701-28-10-XX-149-03-XX MOD 323933-00-02 Bently Nevada 24701-28-10-XX-149-03-XX MOD 323933-00-02 24701 28 10 XX 149 03 XX MOD 323933 00 02 24701-28-10-XX-149-03-XX-MOD-323933-00-02 247012810XX14903XXMOD3239330002 24701-28-05-XX-065-03-XX MOD 323933-00-02 Bently Nevada 21000, 24701 and 164818 Proximity Probe Housing Assemblies Bently Nevada Long-Reach Proximity Probe Housing Assembly
        Technical notes
        The 14.9 in sleeve in 24701-28-10-XX-149-03-XX MOD 323933-00-02 requires positive support; unsupported motion can corrupt the proximity measurement.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Why is mechanical bracing mandatory for Bently Nevada 24701-28-10-XX-149-03-XX MOD 323933-00-02?
        Its 14.9 in penetration exceeds the published 12 in threshold for required sleeve support.
        What probe lead does Bently Nevada 24701-28-10-XX-149-03-XX MOD 323933-00-02 accommodate?
        The 10 field selects a 1.0 m probe lead.
        Which machines may need Bently Nevada 24701-28-10-XX-149-03-XX MOD 323933-00-02?
        It addresses deep shaft targets in large turbine, compressor or similar bearing housings.
        Does Bently Nevada 24701-28-10-XX-149-03-XX MOD 323933-00-02 require a firmware setting?
        No; it is passive hardware, although the connected monitor channel must be configured for the matched transducer system.
        What blocks a direct substitute for Bently Nevada 24701-28-10-XX-149-03-XX MOD 323933-00-02?
        A candidate must reproduce the long penetration, support geometry, probe length, fittings, XX selections and MOD drawing.
        What installation drawing should be sent with a Bently Nevada 24701-28-10-XX-149-03-XX MOD 323933-00-02 enquiry?
        Include the sleeve-support layout, casing section, thread detail, target position and controlled 323933-00-02 reference.
