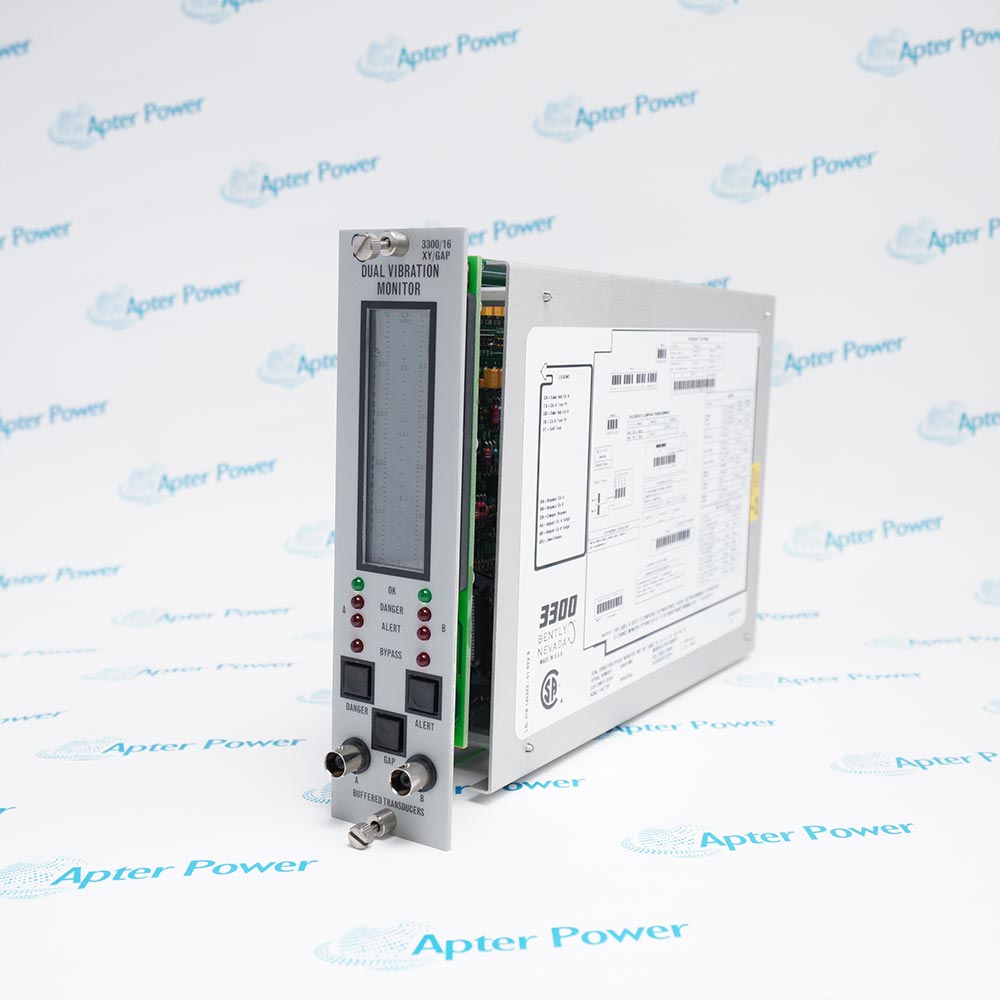

Bently Nevada 3300/16-15-01-03-00-00-02 3300 system module, rack hardware with visible connector and casing details
Bently Nevada 3300/16-15-01-03-00-00-02 vibration monitor module
Bently Nevada 3300/16-15-01-03-00-00-02 monitor module, showing front panel controls and label details
Bently Nevada 3300/16-15-01-03-00-00-02 3300 system module, rack hardware with visible connector and casing details
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com

3300/16-15-01-03-00-00-02

/ 4.9
1001 reviews | Need a Specific Revision?
The 3300/16 XY/Gap Dual Vibration Monitor continuously measures andmonitors two independent channels of radial vibration, and average shaftposition (gap), accepting inputs from two proximity probe/ Proximitor® systems.This monitor is designed to supersede the 3300/15 Dual Radial Vibration Monitor,which does not provide radial position gap alarms.
Get a quick price for 3300/16-15-01-03-00-00-02
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3300/16-15-01-03-00-00-02

  • Manufacturer:
    Bently Nevada
  • Part Number:
    3300/16-15-01-03-00-00-02
  • Product Family:
    3300 System
  • Full-scale Range Option:
    0-500 µm pp
  • Transducer Input Option:
    3300 8 mm, 3300 XL 8mm or7200 5 mm and 8 mmProximitor Sensor, 200 mV/mil
  • Sensitivity:
    100 mV/mil (4 V/mm) or200 mV/mil (8 V/mm)userprogrammable
  • Alarm Relay Option:
    No Relays
  • Agency Approval Option:
    Not required
  • Safety Barrier Option:
    None
  • Trip Multiply Option:
    2X
  • Weight:
    1.2 kg
  • Estimated shipping dimensions:
    5.1 cm x 22.9 cm x 33.0 cm
  • Tariff Code:
    9031809090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Diagnostics Performance Applications

Features:

  • Dual XY/Gap Measurement in One Module
  • High-Precision Monitoring with Wide Frequency Response
  • Flexible Outputs and Built-in Alarm Protection
It simultaneously processes two independent vibration channels (X & Y) along with average shaft position, delivering a complete machinery condition profile.This integrated design reduces the need for multiple modules, simplifying system architecture and lowering installation complexity.It is especially valuable in turbomachinery applications, where both vibration and shaft displacement must be monitored continuously.

With programmable frequency response (e.g., 4 Hz to 4 kHz), it captures both low-frequency structural issues and high-frequency bearing faults.High sensitivity and stable signal conditioning allow detection of subtle issues such as imbalance, misalignment, and looseness before failure occurs.This level of precision supports predictive maintenance strategies, minimizing unplanned downtime and repair costs.

It supports multiple output formats such as 4–20 mA and 0–10 V, enabling seamless integration with DCS, PLC, or SCADA systems.Built-in alarm relays allow users to set Alert and Danger thresholds, triggering immediate protective actions when limits are exceeded.This ensures fast response to abnormal conditions, improving overall machine safety and operational reliability.

The 3300/16-15-01-03-00-00-02 Bently Nevada XY/GAP Dual Vibration Monitor may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 3300/16-15-01-03-00-00-02 XY/GAP Dual Vibration Monitor,Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 3300/16-15-01-03-00-00-02 XY/GAP Dual Vibration Monitor Specs

General

  • Manufacturer Bently Nevada
  • Model 3300/16-15-01-03-00-00-02
  • Condition New Original ready stock
  • Product Family 3300/16-15-01-03-00-00-00,3300/16-15-01-01-00-00-00,3300/16-15-01-01-00-00-01
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Continuously tracks changes in radial vibration across both channels, enabling early identification of abnormal patterns such as imbalance or mechanical looseness.
  • Provides constant validation of probe signal health and shaft position stability, helping detect probe faults, installation issues, or axial movement deviations.
  • Configurable alert and danger setpoints allow the system to trigger relays when thresholds are exceeded, supporting rapid fault localization and response.
  • Built-in signal conditioning and monitoring functions help identify noise interference, signal loss, or degradation, ensuring reliable diagnostic feedback for maintenance teams.
  • Simultaneously processes two independent vibration signals, enabling continuous and synchronized condition tracking.
  • Provides stable and precise gap measurement, ensuring reliable probe system verification and shaft displacement monitoring.
  • Supports detailed detection of both minor and significant vibration levels across various machine conditions.
  • Integrated relay system ensures immediate reaction to abnormal conditions, improving protection efficiency.
  • Monitors critical vibration and shaft position parameters to prevent catastrophic failures in high-speed rotating systems.
  • Detects early signs of imbalance, misalignment, or wear, supporting predictive maintenance strategies.
  • Widely used in power plants to ensure continuous operation and compliance with machinery protection standards.
  • Ideal for harsh and mission-critical environments where reliability and real-time diagnostics are essential.
Description
The 3300/16-15-01-03-00-00-02 from Bently Nevada is a high-performance XY/Gap Dual Vibration Monitor designed for continuous condition monitoring of critical rotating machinery. It provides simultaneous measurement of two independent radial vibration channels along with average shaft position (gap), delivering a comprehensive view of machine health in real time.

Engineered for compatibility with 3300 8 mm, 3300 XL 8 mm, and 7200 5 mm / 8 mm proximity probe systems, this module ensures flexible integration into existing monitoring architectures. With a full-scale range of 0–500 µm peak-to-peak and 200 mV/mil sensitivity, it offers precise and stable signal processing suitable for demanding industrial environments such as turbines, compressors, and pumps.

A key advantage of the 3300/16 is its ability to monitor both vibration and shaft position within a single module, eliminating the need for separate devices and simplifying system configuration. Compared to its predecessor, the 3300/15 Dual Radial Vibration Monitor, this upgraded model introduces gap measurement and alarm functionality, enhancing protection strategies and enabling earlier detection of misalignment or shaft displacement issues.

The monitor features a quad relay output (epoxy-sealed option), supporting reliable alarm handling and system interlocks. This makes it ideal for integration into safety and control systems where immediate response to abnormal vibration or position conditions is critical. Its robust design ensures long-term operational stability even in harsh industrial settings.

Overall, the 3300/16 XY/Gap Dual Vibration Monitor is a trusted solution for predictive maintenance and machinery protection, helping operators reduce unplanned downtime, improve asset reliability, and maintain optimal performance across a wide range of rotating equipment applications.
Alternative Names
3300/16-15-01-03-00-00-00 3300/16-15-01-01-00-00-00 3300/16-15-01-01-00-00-01 3300/16-14-01-03-00-00-00 3300/16-13-01-01-00-00-00 3300/16-12-01-03-00-00-00
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the Bently Nevada 3300/16-15-01-03-00-00-02 used for?
It is designed for continuous monitoring of radial vibration and shaft position (gap) in rotating machinery. Common applications include steam turbines, gas compressors, pumps, and motors where real-time condition feedback is critical.
Why choose the 3300/16-15-01-03-00-00-02 over the 3300/15?
The 3300/16 provides additional gap monitoring and alarm capability, which the 3300/15 lacks. This enables more complete machinery protection, especially for applications requiring shaft position tracking.
How does the 3300/16-15-01-03-00-00-02 improve equipment reliability?
It continuously analyzes vibration trends and shaft position changes. Early detection of imbalance, misalignment, or mechanical looseness helps prevent unexpected failures.
What input signals are compatible with the 3300/16-15-01-03-00-00-02?
It accepts signals from 3300 8 mm, 3300 XL 8 mm, and 7200 series proximity probes. This ensures flexibility when upgrading or maintaining existing Bently Nevada systems.
How does the alarm system work in the 3300/16-15-01-03-00-00-02?
The module includes quad relay outputs for alarm triggering. These relays can be configured to activate based on preset vibration or gap thresholds, enabling automatic protective actions.
