    Apter Power provides this genuine Bently Nevada 330730-080-01-00 cable, ensuring your high-temperature monitoring systems operate with maximum accuracy.

330730-080-01-00

/ 4.9
1001 reviews | Need a Specific Revision?
330730-080-01-00 is an extension cable in the Bently Nevada 3300 XL 11 mm system, designed to extend the connection between probes and monitoring equipment in industrial condition monitoring applications.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330730-080-01-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330730-080-01-00

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330730-080-01-00
  • Product Family:
    3300 XL 11mm Proximity Transducer System
  • Product Type:
    extension cable
  • Stock:
    1
  • Cable Length:
    8.0 meters (26.2 feet)
  • Connector and Cable:
    Armored cable
  • Agency Approval:
    Not required
  • Operating Temperature Range:
    0°C to +45°C (32°F to 113°F)
  • Maximum Altitude:
    2000 m
  • Power Supply Voltage:
    –24 Vdc
  • –24 Vdc:
    10 kΩ
  • Probe Gap Setting:
    2.5 mm (100 mils)
  • Weight:
    0.78 kg
  • Estimated shipping dimensions:
    27x27x4cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Monitoring & Control Operating Environment Applications

Features:

  • Rugged and durable armored construction provides superior mechanical protection.
  • Reliable environmental sealing prevents loosening and moisture ingress.
  • Precise system integration ensures the total length of the probe and extension cable perfectly matches the specified system length of the proximity sensor.
This construction provides enhanced durability against crushing, abrasion, and other physical stresses commonly encountered in demanding industrial environments such as turbine halls and compressor stations.

With a recommended finger-tight torque (maximum 0.565 N·m) and compatibility with connector protectors or silicone tape, the sealing system ensures reliable operation in humid or moist conditions, though silicone tape is not recommended where the connection is exposed to turbine oil.

Additionally, the cable maintains a minimum bend radius of 25.4 mm (1.0 in) to prevent signal degradation or physical damage, ensuring proper installation and consistent system performance.

The 330730-080-01-00 Bently Nevada3300 XL 11 mm Extension Cable may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330730-080-01-00 3300 XL 11 mm Extension Cable Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330730-080-01-00 3300 XL 11 mm Extension Cable

General

  • Manufacturer GE / Bently Nevada
  • Model 330730-080-01-00
  • Condition New Original ready stock
  • Product Family 330730-040-01-00,330730-040-02-00,330730-040-02-05
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Signal Transmission: Reliably transmits a 3.94 V/mm (100 mV/mil) output signal over extended distances for non-contacting vibration and displacement measurements.
  • Frequency Response: Supports system frequency response from 0 to 8 kHz (typical, +0, -3 dB) with up to 305 meters (1000 feet) of field wiring.
  • System Compatibility: Must be used exclusively with 3300 XL 11 mm components (probe and Proximitor Sensor) and requires an updated monitoring system when upgrading from 7200-series systems.
  • Hazardous Area Approvals: Available for use in Class I, Zone 0 and Zone 2 hazardous areas when installed with appropriate intrinsic safety barriers per Bently Nevada drawings (e.g., 141092 or 140979).
  • Temperature Range: Operating and storage temperature range of -52°C to +177°C (-62°F to +351°F).
  • Humidity: Suitable for 100% condensing humidity when connectors are properly protected (tested to IEC 68-2-3 damp heat).
  • Chemical Exposure: The FEP insulation provides resistance to oil and other liquids, especially when ordered with the FluidLoc cable option.
  • Mechanical Stress: Designed with a maximum rated tensile strength of 270 N (60 lbs) at the connector junction.
  • Extending the connection between a 3300 XL 11 mm probe and its Proximitor Sensor.
  • Axial (thrust) position measurements on fluid film bearing machines.
  • Ramp differential expansion measurements on steam turbines.
  • Rod position or rod drop measurements on reciprocating compressors.
Description
330730-080-01-00 is an extension cable in the Bently Nevada 3300 XL 11 mm system, designed to extend the connection between probes and monitoring equipment in industrial condition monitoring applications. This model is specifically intended for use with 3300 XL 11 mm probes and associated system components, ensuring reliable signal transmission over extended distances.

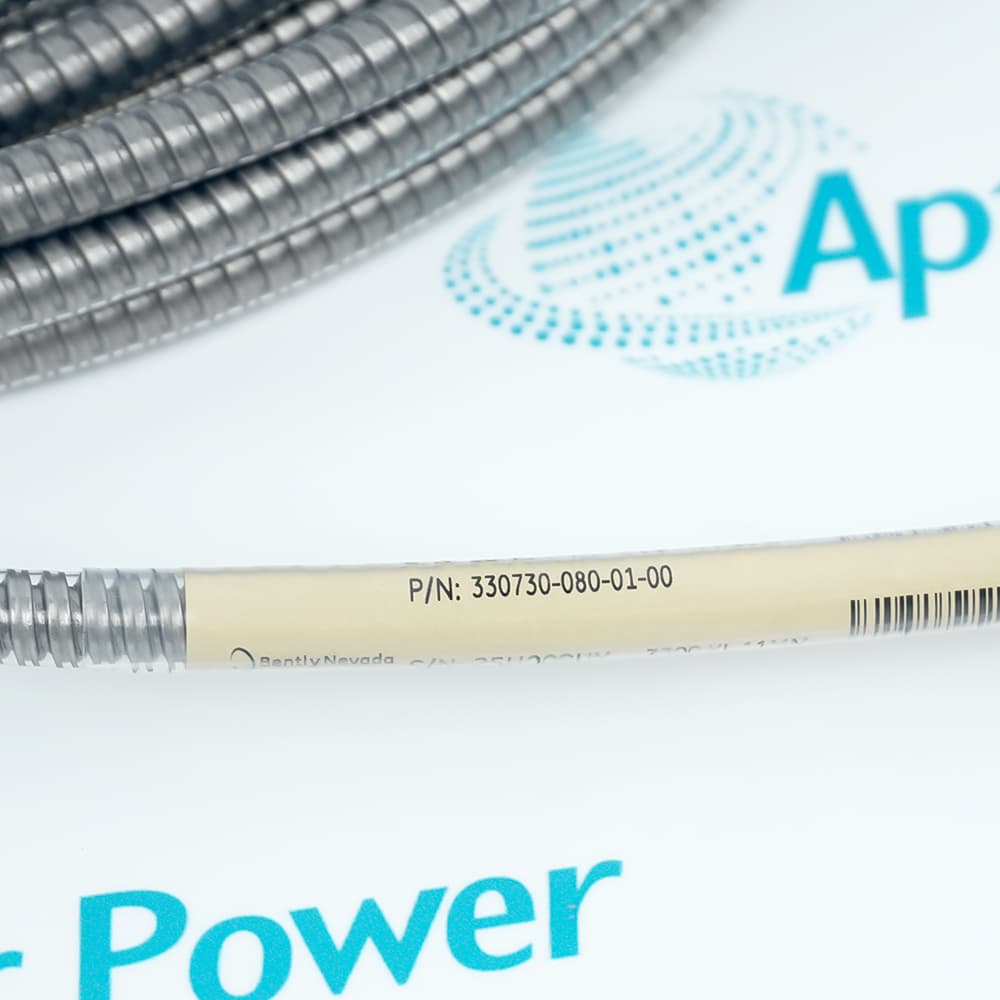

In terms of length and construction, 330730-080-01-00 has a cable length of 8.0 meters (26.2 feet) and is built with an armored cable, providing enhanced mechanical protection and durability in demanding industrial environments.

Regarding certifications, 330730-080-01-00 does not require agency approvals, making it suitable for general industrial applications where specific regulatory certifications are not mandatory, while maintaining compatibility and performance within the Bently Nevada 3300 XL 11 mm system.
Alternative Names
330730 080 01 00 330730-080-01-05 330730-080-01-CN 330730-080-01-BR 330730-080-01-RU 33O73O-O8O-O1-OO 330730-080-0I-00 330730-0B0-01-00
Technical notes
The Bently Nevada 330730-080-01-00 is an 8.0-meter (26.2 ft) armored extension cable designed specifically for the 3300 XL 11 mm Proximity Transducer System, featuring a 75 Ω triaxial FEP insulation and gold-plated brass ClickLoc connectors.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the minimum bend radius for the Bently Nevada 330730-080-01-00?
The minimum bend radius for the Bently Nevada 330730-080-01-00 is 25.4 mm (1.0 in). Exceeding this limit during installation can damage the cable and degrade signal performance.
Is the Bently Nevada 330730-080-01-00 resistant to machine oils?
Yes, the FEP jacket on the Bently Nevada 330730-080-01-00 provides excellent chemical resistance against typical industrial turbine oils. For enhanced protection in moist or humid environments, connector protectors or silicone self-fusing tape are strongly recommended.
Can the Bently Nevada 330730-080-01-00 be used with a 3300 XL 8 mm Proximity Transducer System?
No, the Bently Nevada 330730-080-01-00 is specifically designed for the 11 mm Proximity Transducer System. Components are not interchangeable between the 8 mm and 11 mm systems due to different calibration and electrical requirements.
Does the Bently Nevada 330730-080-01-00 require any specific cable length matching?
Yes, it is critical that the combined length of the probe lead and the Bently Nevada 330730-080-01-00 extension cable matches the total system length (typically 5 or 9 meters) for which the Proximitor sensor is calibrated.
How do I diagnose a potential signal issue involving the Bently Nevada 330730-080-01-00?
You can use a test cable and the Proximitor sensor test pin holes to check the system performance. Ensure the resistance values of the Bently Nevada 330730-080-01-00 match those specified in the datasheet (e.g., 0.6 ± 0.2 ohms for center conductor-to-center conductor).
