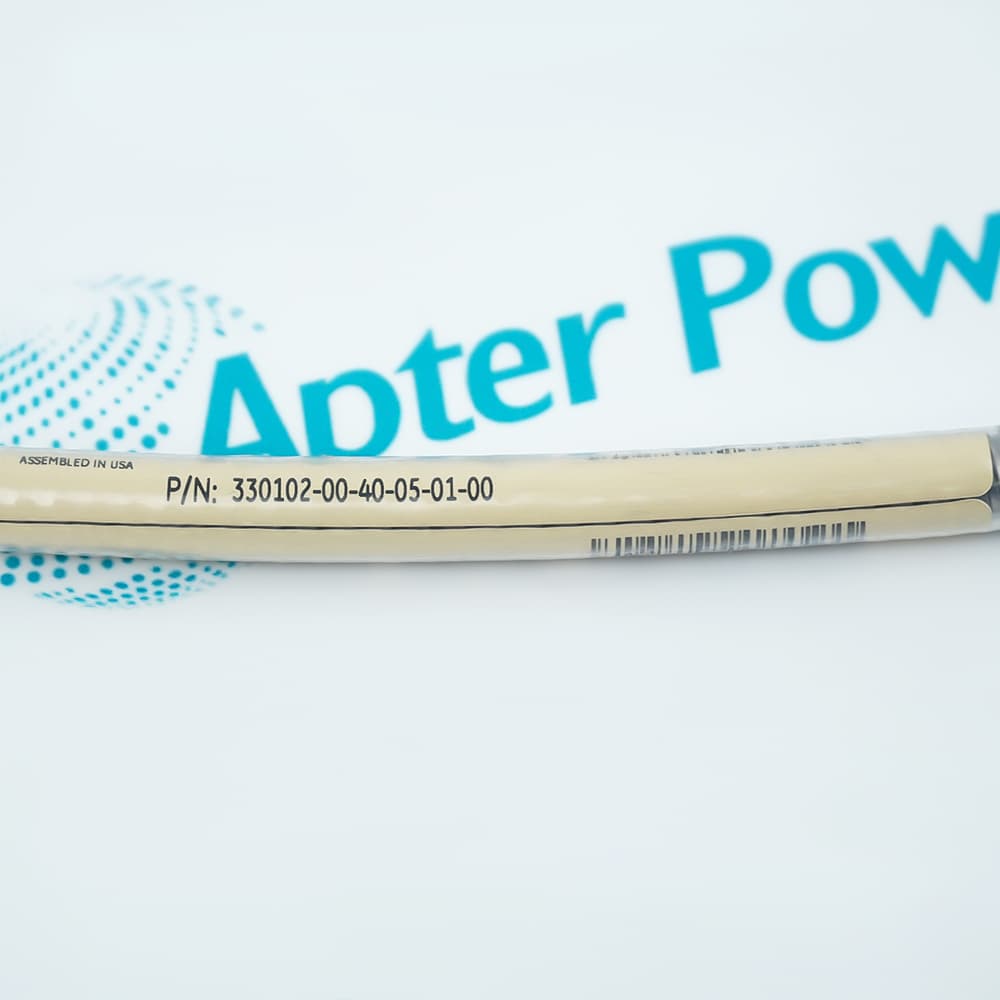

330102-00-40-05-01-00

Features:

• Connection Between the Observed Conductive Surface and 3300 XL Proximitor Sensor
• Integration of Eddy Current Sensing Technology with Patented Mechanical Bonding
• Functions in Coordination with the 3300 XL Extension Cable and Proximitor Sensor

The 330102-00-40-05-01-00 serves as the precision sensing element in the 3300 XL 8 mm Proximity Transducer System, delivering reliable displacement measurements for critical rotating machinery. It continuously generates an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, enabling accurate capture of both static (position) and dynamic (vibration) values across fluid-film bearing machines. Seamless signal integrity is standard with the 330102-00-40-05-01-00, and when combined with the 3300 XL extension cable and Proximitor Sensor, it forms a complete measurement chain that eliminates the need for component matching or bench calibration. The 330102-00-40-05-01-00 incorporates significant improvements over previous probe designs, including a patented TipLoc molding method that creates a more robust bond between the probe tip and probe body, along with a CableLoc design providing 330 N (75 lbf) pull strength for secure cable attachment.

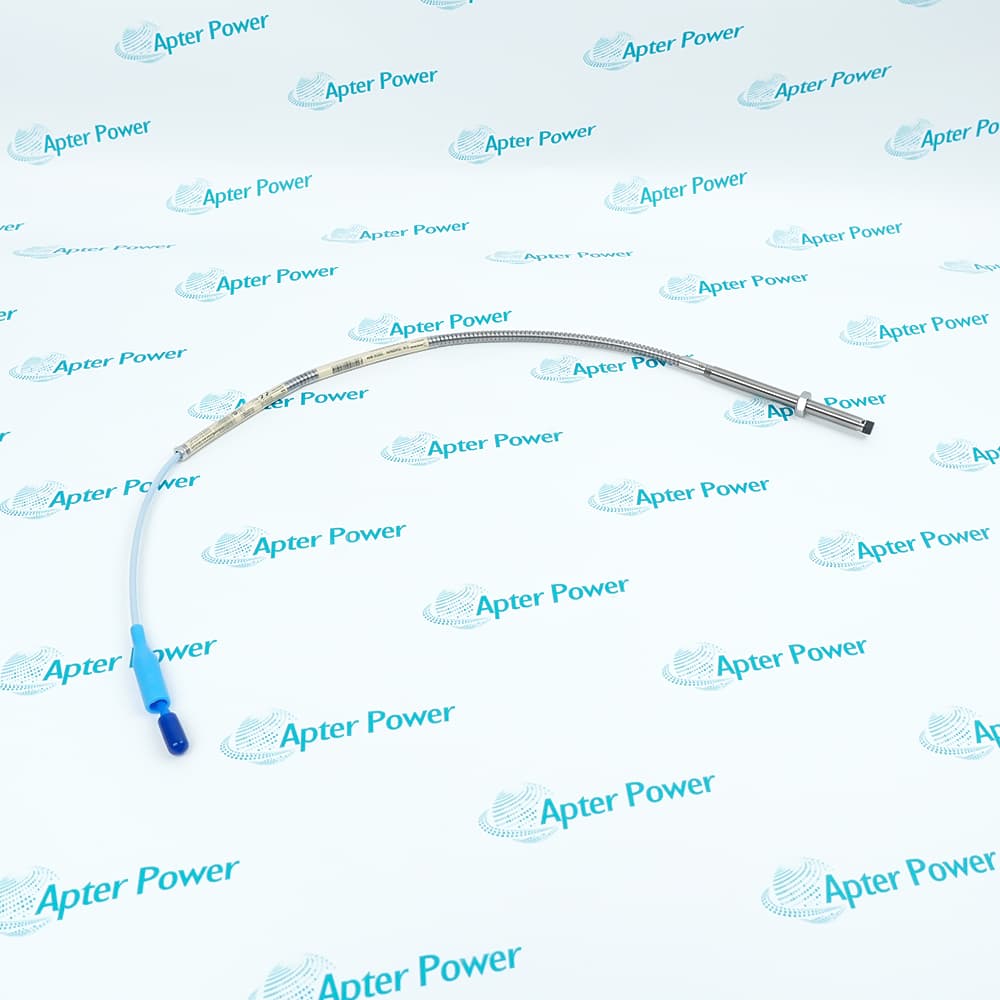

The 330102-00-40-05-01-00 provides essential sensing functions fundamental to the entire transducer system, and is a critical component of the monitoring path, directly affecting the proper, normal operation of vibration and position measurements on turbomachinery. One 330102-00-40-05-01-00 probe is required per measurement point, paired with one 3300 XL extension cable and one 3300 XL Proximitor Sensor to complete the system. The 330102-00-40-05-01-00 features a 3/8-24 UNF thread with armor, an unthreaded length of 0.0 inches, an overall case length of 4.0 inches, and a total length of 0.5 meter (1.6 feet), occupying a compact installation footprint with its miniature coaxial ClickLoc connector and connector protector.

For applications requiring fluid containment, the 330102-00-40-05-01-00 can be configured with an optional FluidLoc cable option. In addition to standard cable construction, this specialized configuration prevents oil and other liquids from leaking out of the machine through the cable's interior. The 330102-00-40-05-01-00 with FluidLoc option executes sealing through the cable design specified in the probe options. Using this method, the sealed probe system maintains environmental protection while preserving the full measurement performance and API 670 compliance expected from the 3300 XL platform. If the application involves submerged or oil-rich environments, the FluidLoc-equipped 330102-00-40-05-01-00 ensures reliable operation without compromising signal accuracy.
