Features:
- Interface Between the Proximity Measurement System and Rotating Machinery Shaft
- Combines Capability of Non-Contact Vibration Sensing with Durable Mechanical Construction
- Operates in Conjunction with the 3300 XL 8 mm Proximity Transducer System

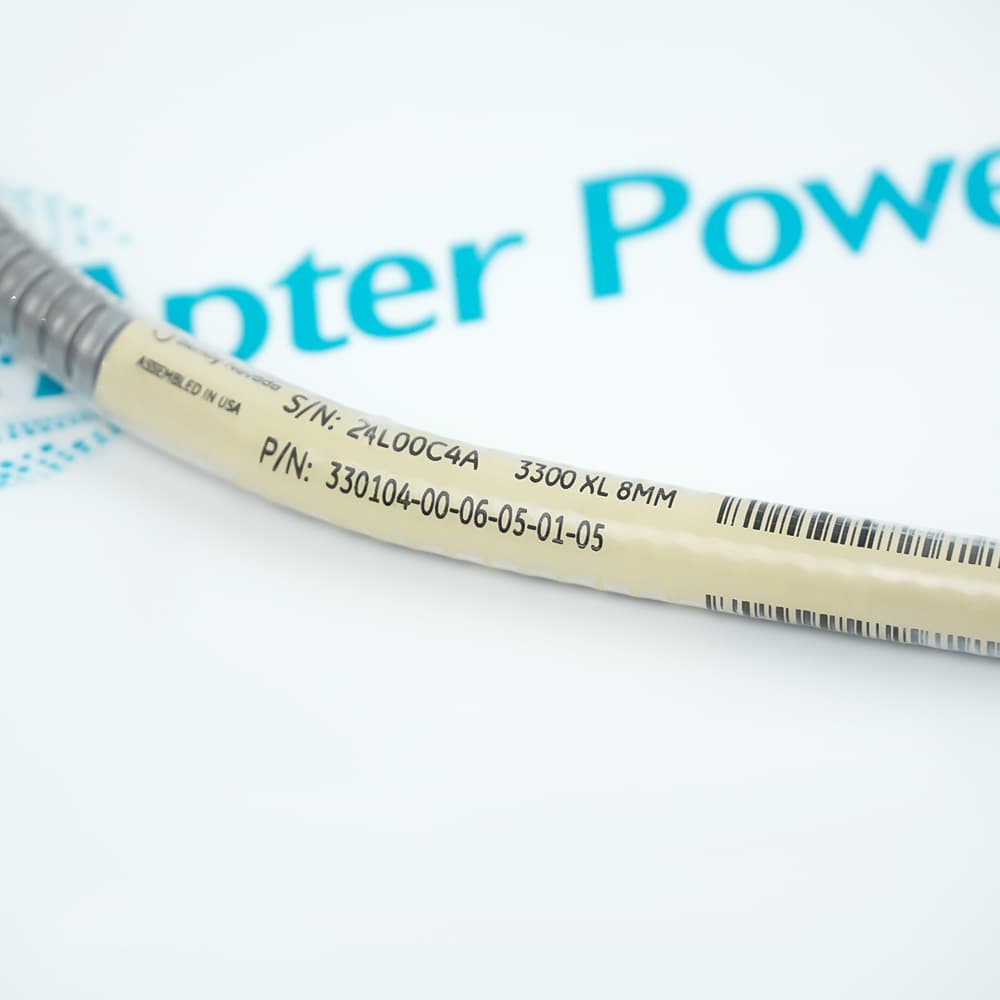

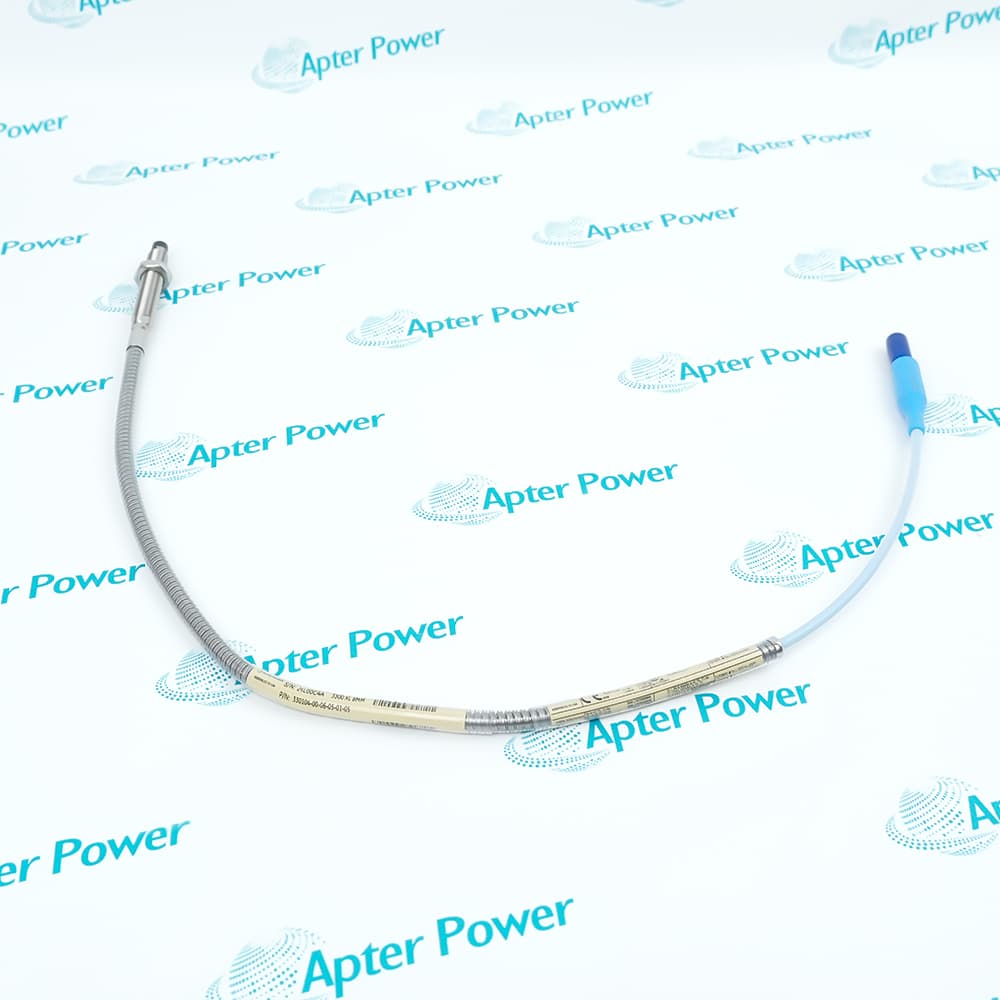

The 330104-00-06-05-01-05 operates as the 3300 XL 8 mm Proximity Probe in a Bently Nevada monitoring system, providing reliable eddy current proximity measurements for rotating equipment. It continuously generates a modulated RF field that interacts with the target shaft surface and transmits the resulting signal through the armored cable assembly to the proximitor for conditioning and output. Seamless signal integrity is standard with the 330104-00-06-05-01-05, however using the proper system calibration will ensure accurate gap voltage readings across the full linear range. The 330104-00-06-05-01-05 has made improvements in several areas over previous probe designs in addition to incorporating M10 x 1 thread mounting capability within the 3300 XL series.
The 330104-00-06-05-01-05 provides essential sensing functions common to the entire transducer system, and is a critical component of the measurement path, directly affecting the proper, normal operation of the overall machinery protection system. One 330104-00-06-05-01-05 probe is required per measurement point depending on the desired monitoring parameter. The 330104-00-06-05-01-05 features a standard 8 mm probe tip diameter and is always installed with the M10 x 1 thread engaged in the mounting bracket for secure positioning.
For Dual Redundant Measurement applications, the 3300 System requires a second 330104-00-06-05-01-05 proximity probe module installed at the redundant measurement location. In addition to standard single probe operation, the redundant configuration also performs independent monitoring. The 3300 dual probe configuration executes verification using the separate channel inputs specified in the monitor options. Using this method, the redundant measurement system continually monitors the health of both probes. If the system detects that the primary 330104-00-06-05-01-05 probe is no longer providing stable output (outside configured gap voltage/tolerance levels), it will automatically reference the secondary probe and place an event in the System Event List.
The 330104-00-06-05-01-05 Bently Nevada 3300 XL 8 mm Proximity Probe may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330104-00-06-05-01-05 3300 XL 8 mm Proximity Probe Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330104-00-06-05-01-05 3300 XL 8 mm Proximity Probe Specs
General
- Manufacturer Bently Nevada
- Model 330104-00-06-05-01-05
- Condition New Original ready stock
- Product Family 330104-00-06-05-01-00,330104-00-06-05-01-CN,330104-00-06-10-01-05
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Vibration and Position Measurements: Specifically on fluid-film bearing machines.
- Keyphasor® Signals: Providing phase reference for diagnostics.
- Speed and Tachometer Measurements: Monitoring shaft RPM.
- Industrial Compatibility: Meets the API 670 Standard for mechanical configuration and accuracy, making it suitable for the oil and gas and power generation industries.
- Calibrated Target: Standard systems are factory-calibrated to AISI 4140 steel.
- Scale Factor: Delivers a standard output of 7.87 V/mm (200 mV/mil).
- Supply Voltage: Requires a power supply of -17.5 Vdc to -26 Vdc (optimally -24 Vdc).
- Grounding: Follow a single-point grounding strategy at the monitor end only to prevent ground loops that cause erratic readings.
- Operating Temperature: The probe and cable are rated for -51 °C to +177 °C (-60 °F to +351 °F).
- Pressure Seal: Designed to seal differential pressure between the tip and case using a Viton® O-ring.
- Moisture Resistance: Rated for 100% condensing humidity, provided the connectors are protected.
- Chemical Resistance: The tip is made of Polyphenylene sulfide (PPS), which provides resistance to many industrial chemicals and process fluids.
- Mechanical Strength: Incorporates a patented CableLoc™ design that provides 330 N (75 lbf) pull strength between the cable and probe tip.
