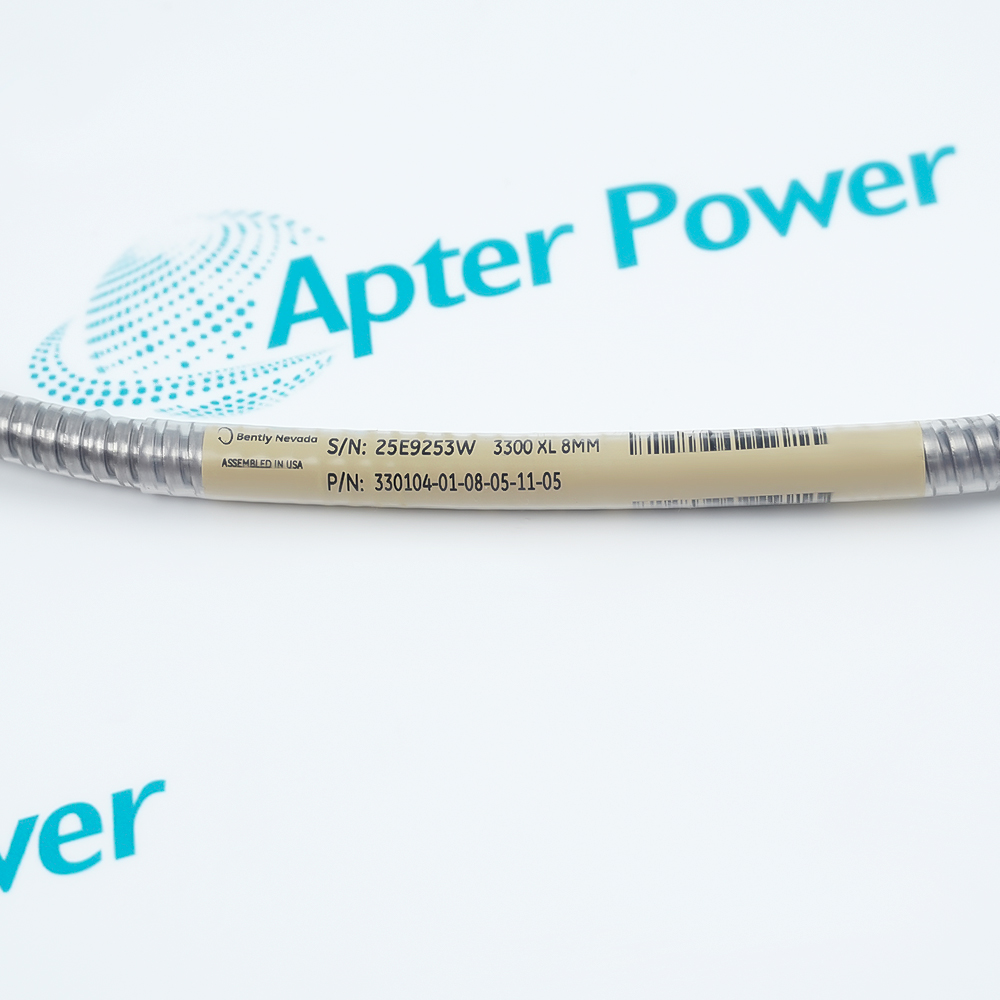

Bently Nevada 330104-01-08-05-11-05 is a configured 3300 XL 8 mm proximity probe for machinery vibration and position measurement.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330104-01-08-05-11-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330104-01-08-05-11-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330104-01-08-05-11-05
  • Product Family:
    3300 XL 8 mm Probe
  • Product Type:
    3300 XL 8 mm Proximity Probe
  • Stock:
    1
  • Manufacturer:
    Bently Nevada
  • Model:
    330104-01-08-05-11-05
  • Transducer family:
    3300 XL 8 mm
  • Probe thread:
    M10x1
  • Unthreaded length:
    10 mm
  • Case length:
    80 mm
  • Total length:
    0.5 m
  • Connector option:
    ClickLoc with FluidLoc
  • Supply condition:
    New and factory sealed
  • Weight:
    0.1 kg
  • Estimated shipping dimensions:
    1.7x1.5x65cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals System Match Probe Setup Signal Checks Product Applications

Features:

  • Probe family: Bently Nevada 3300 XL 8 mm proximity transducer system.
  • Configured body: M10x1 thread with documented unthreaded, case and total lengths.
  • Connection option: ClickLoc connector with FluidLoc protection.
Bently Nevada 330104-01-08-05-11-05 is a configured 3300 XL 8 mm probe for non-contact shaft vibration and position measurement.

Its full ordering code identifies the mechanical body, length and connection choices required for exact replacement.

Channel performance depends on matching the probe with the correct extension cable, Proximitor sensor and installation gap.

Apter Power offers documentation, ordering-code review and quotation support for sourcing the Bently Nevada 330104-01-08-05-11-05 3300 XL 8 mm Proximity Probe.
Bently Nevada 330104-01-08-05-11-05 3300 XL 8 mm Proximity Probe Manuals,Datasheets,Link Important Notice: Apter Power supports product selection, documentation enquiries and quotation requests through these resources.
  • System length: match probe, extension cable and Proximitor sensor to the documented total electrical length.
  • Connector option: preserve the ClickLoc and FluidLoc arrangement defined by the ordering code.
  • Channel identity: retain the complete probe code with the associated monitoring point record.
  • Mechanical mounting: confirm thread engagement, probe position and available adjustment range.
  • Gap setting: establish the correct operating point using the monitoring channel and approved procedure.
  • Cable protection: support routing to avoid abrasion, sharp bends and connector strain.
  • Unstable reading: review probe gap, target surface, connector condition and cable routing together.
  • Channel isolation: include the extension cable and Proximitor sensor before assigning a probe fault.
  • Commissioning evidence: record bias voltage and normal machine response after installation.
  • Shaft vibration monitoring: non-contact measurement at rotating machinery bearings and journals.
  • Shaft position measurement: axial or radial displacement channels using the documented 3300 XL system.
  • Machinery protection: probe input for compatible monitors and condition-monitoring systems.
  • Planned maintenance: exact configured spare for outage and sensor-chain service.
Description
The Bently Nevada 330104-01-08-05-11-05 is a configured 3300 XL 8 mm proximity probe for non-contact measurement of shaft vibration and position. Its ordering code defines the M10x1 probe body, unthreaded and case lengths, total length, connector option and approval selection.

Reliable channel performance depends on the complete transducer chain, so 330104-01-08-05-11-05 should be matched with the correct extension cable and 3300 XL Proximitor sensor. Probe gap, cable routing, connector condition and the mechanical target all influence the measured signal.

Apter Power can support selection of 330104-01-08-05-11-05 by reviewing the full ordering code and installed channel arrangement. Official documentation and quotation support help engineering and purchasing teams preserve the intended probe configuration.
Alternative Names
330104 01 08 05 11 05 330104-0108051105 330104-01-08-05-11 Bently Nevada 330104-01-08-05-11-05 3300 XL 330104-01-08-05-11-05 330104-01-O8-05-11-05 330104-01-08-O5-11-05 330104-01-08-05-1I-05
Technical notes
A reliable 330104-01-08-05-11-05 installation depends on the complete probe code, compatible extension cable and 3300 XL Proximitor sensor. When a vibration or position channel becomes unstable, connector condition, cable routing, probe gap and mechanical target condition should be reviewed together before replacing one component.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which transducer components should be checked for compatibility with 330104-01-08-05-11-05?
Confirm the 3300 XL 8 mm system, compatible extension cable, Proximitor sensor, total electrical length and connector arrangement before installation.
Why is the complete ordering code important when sourcing 330104-01-08-05-11-05?
Each code position identifies a physical or connection choice such as thread, case length, total length and connector option. Preserving the complete code supports an exact replacement.
How can an unstable vibration reading involving 330104-01-08-05-11-05 be investigated?
Review probe gap, connector condition, cable routing, target surface and the associated extension cable and Proximitor sensor to define the fault boundary.
Should only the probe be replaced when a channel using 330104-01-08-05-11-05 becomes faulty?
We recommend evaluating the complete transducer chain because a connector, cable or Proximitor issue can produce symptoms similar to a probe fault.
What cable-handling practices help protect 330104-01-08-05-11-05 during installation?
Avoid sharp bends, pulling at the connector and routing that exposes the cable to abrasion or unnecessary electrical noise. Proper support helps preserve signal stability.
Which checks are valuable after installing 330104-01-08-05-11-05?
Confirm mounting, probe gap, connector security, channel bias voltage and the expected machine response under the approved commissioning procedure.
How should approval requirements be handled for 330104-01-08-05-11-05?
Compare the complete approval option and site classification with the official datasheet and plant requirements before installation in a regulated area.
How can Apter Power support sourcing of 330104-01-08-05-11-05?
We can review the full ordering code and transducer-chain context, then provide quotation, official documentation and procurement support.
