        Bently Nevada 330106-05-30-10-02-CN
        Bently Nevada 330106-05-30-10-02-CN
        Bently Nevada 330106-05-30-10-02-CN
        Bently Nevada 330106-05-30-10-02-CN
        Bently Nevada 330106-05-30-10-02-CN
        Bently Nevada 330106-05-30-10-02-CN
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Active / Available from OEM
          Apter Power supports 330106-05-30-10-02-CN quotations, official documents, sourcing, and matched-system guidance.

        330106-05-30-10-02-CN

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

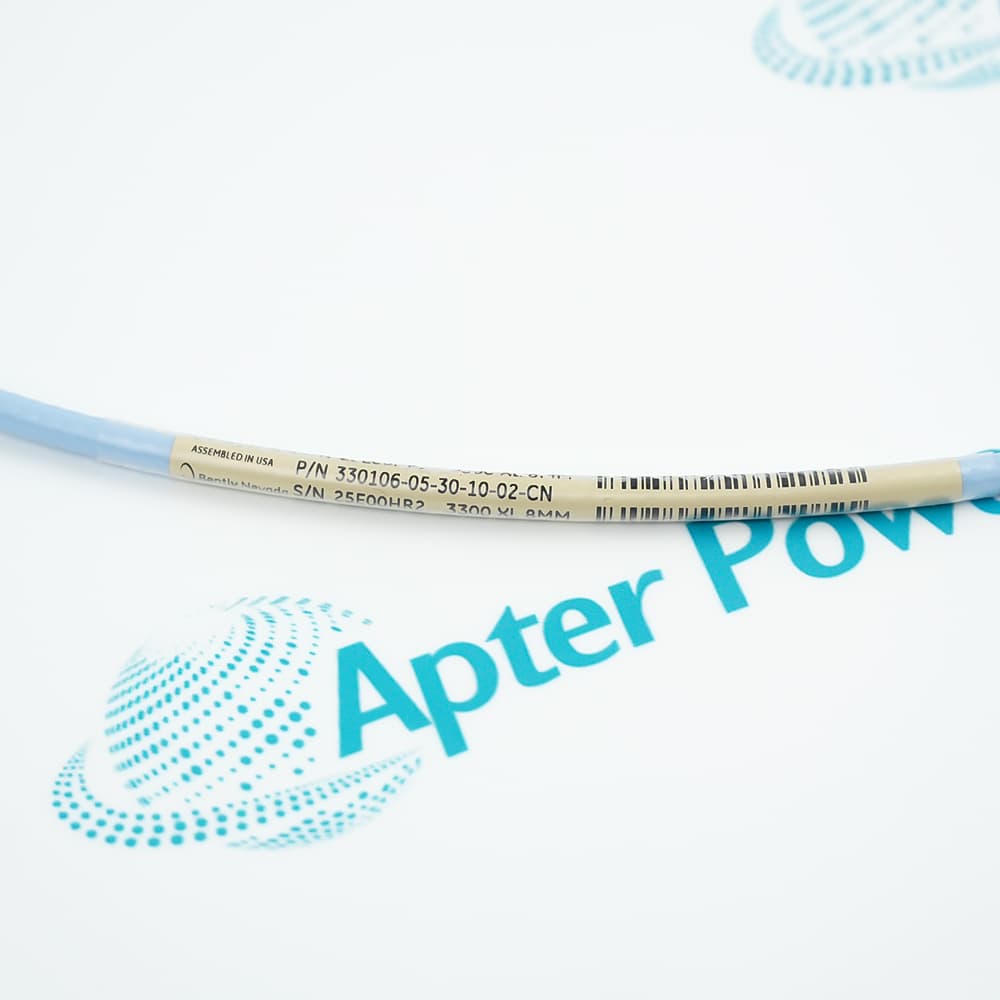

        Bently Nevada 330106-05-30-10-02-CN reverse-mount 3300 XL 8 mm probe, M10 x 1, 30 mm case, 1.0 m lead, ClickLoc, and CN hazardous-area option.
        In Stock
        Ships by Saturday, October 31
        Fast Shipping Available
        Get a quick price for 330106-05-30-10-02-CN
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 330106-05-30-10-02-CN

        • Manufacturer:
          Bently Nevada
        • Part Number:
          330106-05-30-10-02-CN
        • Product Family:
          3300 XL 8 mm Probe
        • Product Type:
          3300 XL 8 mm Proximity Probe
        • Stock:
          1
        • Mounting Style:
          Reverse Mount
        • Probe Thread:
          M10 x 1
        • Unthreaded Length:
          5.0 mm (0.20 in)
        • Overall Case Length:
          30 mm (1.2 in)
        • Total Probe Length:
          1.0 m
        • Connector:
          Miniature coaxial ClickLoc
        • Cable:
          standard FEP-insulated cable
        • Armor:
          reverse-mount sleeve; armor is not offered for this ordering family
        • Agency Approval:
          China hazardous-area option; NEPSI/CCC and ATEX/IECEx markings as applicable
        • Linear Range:
          2 mm (80 mils)
        • Incremental Scale Factor:
          7.87 V/mm (200 mV/mil)
        • Probe Temperature:
          -52 to +177 deg C
        • Weight:
          0.323 kg
        • Estimated shipping dimensions:
          30 mm (1.2 in) case; 8.0 mm probe tip; 1.0 m total probe length
        • Tariff Code:
          9031809090
        • Country of origin:
          United States
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications 106CN 30/10 Code 106CN 30/02 Fit 106CN Approval

        Product overview:

        • Probe configuration: reverse-mount, M10 x 1, reverse-mount sleeve; armor is not offered for this family.
        • Mechanical code: 5.0 mm (0.20 in) unthreaded length and 30 mm (1.2 in) overall case length.
        • Electrical lead: 1.0 m, ClickLoc, CN China hazardous-area option.

        330106-05-30-10-02-CN is one probe component of a complete 3300 XL 8 mm proximity-transducer chain.

        Pair with the 4 m extension cable for a 5 m system or the 8 m extension cable for a 9 m system.

        Availability is subject to Apter Power's current inventory and sourcing confirmation.

        Verified resources for Bently Nevada 330106-05-30-10-02-CN:

        Bently Nevada 330106-05-30-10-02-CN 3300 XL 8 mm Proximity Probe Specs

        General

        • Manufacturer Bently Nevada
        • Model 330106-05-30-10-02-CN
        • Condition New and factory sealed
        • Product Family 3300 XL 8mm Proximity Transducer System

        Ordering-code details

        • Probe family: 330106 reverse-mount M10 x 1 probe.
        • Case fields: 05-30 specifies 5.0 mm unthreaded length and 30 mm overall case length.
        • Length field: 10 specifies 1.0 m.
        • Connector field: 02 specifies miniature coaxial ClickLoc with standard FEP-insulated cable.
        • Approval field: CN specifies the China hazardous-area option; NEPSI/CCC and ATEX/IECEx markings apply as applicable.

        Keep the complete part number when requesting this configuration.

        Matched-system requirements

        • Probe system: Use only matched 3300 XL 8 mm components.
        • Electrical length: pair with the 4 m extension cable for a 5 m system or the 8 m extension cable for a 9 m system.
        • Scale factor: 7.87 V/mm (200 mV/mil) under the published reference conditions.
        • Linear range: 2 mm (80 mils), approximately 0.25 to 2.3 mm from the target.
        • Target material: Published accuracy is referenced to an AISI 4140 steel target.

        Confirm total electrical length before commissioning the measurement loop.

        China approval guidance

        • Area of use: China hazardous-area applications.
        • China requirements: NEPSI/CCC requirements are covered as applicable.
        • International markings: ATEX/IECEx hazardous-area markings and rating are included as applicable.
        • Ordering availability: Baker Hughes 108M1756 Rev. AV lists CN as available for proximity family 330106.
        • System check: confirm matched probe, extension cable, and Proximitor Sensor electrical length.

        Confirm the site approval requirements before ordering.

        Description

        Bently Nevada 330106-05-30-10-02-CN is a reverse-mount 3300 XL 8 mm proximity probe with an M10 x 1 case, 5.0 mm (0.20 in) unthreaded length, 30 mm (1.2 in) overall case length, and 1.0 m total probe length.

        This configuration uses a miniature coaxial ClickLoc, standard FEP-insulated cable, reverse-mount sleeve, and the China hazardous-area approval option. Official Baker Hughes guidance states that CN covers NEPSI/CCC and ATEX/IECEx markings as applicable.

        Pair with the 4 m extension cable for a 5 m system or the 8 m extension cable for a 9 m system. The matched chain measures shaft vibration and position without physical contact.

        Alternative Names
        Bently Nevada 330106-05-30-10-02-CN Baker Hughes Bently Nevada 330106-05-30-10-02-CN Bently 330106-05-30-10-02-CN probe 330106-05-30-10-02-CN 3300 XL 8 mm probe 3301060530100200 proximity sensor probe M10 x 1 reverse mount probe 330106-05-30-10-02-CN 1.0 m 3300 XL probe 330106-05-30-10-02-CN 30 mm (1.2 in) case Bently Nevada part 330106-05-30-10-02-CN
        Technical notes
        330106-05-30-10-02-CN uses a 30 mm M10 x 1 reverse-mount case, 1.0 m lead, and the CN China hazardous-area option. Pair with the 4 m extension cable for a 5 m system or the 8 m extension cable for a 9 m system.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What reverse-mount geometry does 330106-05-30-10-02-CN specify?
        It has M10 x 1 threads, 5.0 mm unthreaded length, and a 30 mm overall case length.
        Does 330106-05-30-10-02-CN include probe armor?
        No. The 330106 reverse-mount family uses a reverse-mount sleeve and does not offer armor.
        What integral lead length is supplied on 330106-05-30-10-02-CN?
        The ordering code specifies a 1.0 m lead with standard FEP-insulated cable.
        Which extension cable completes 330106-05-30-10-02-CN?
        Use 4 m for a 5 m system or 8 m for a 9 m system.
        Which connector is fitted to 330106-05-30-10-02-CN?
        Option 02 is a miniature coaxial ClickLoc connector.
        What does the CN approval option mean on 330106-05-30-10-02-CN?
        It is the China hazardous-area option covering NEPSI/CCC and ATEX/IECEx markings as applicable.
        Does Baker Hughes list CN for the 330106 proximity family?
        Yes. Official guide 108M1756 Rev. AV marks CN as available for 330106.
        Which target dimensions apply to 330106-05-30-10-02-CN?
        Official guidance specifies a 15.2 mm minimum flat target and recommends a 76.2 mm minimum shaft.
