    Apter Power provides this genuine Bently Nevada 330130-040-02-05 cable to maintain the critical performance of your machinery protection loops.

330130-040-02-05

/ 4.9
1001 reviews | Need a Specific Revision?

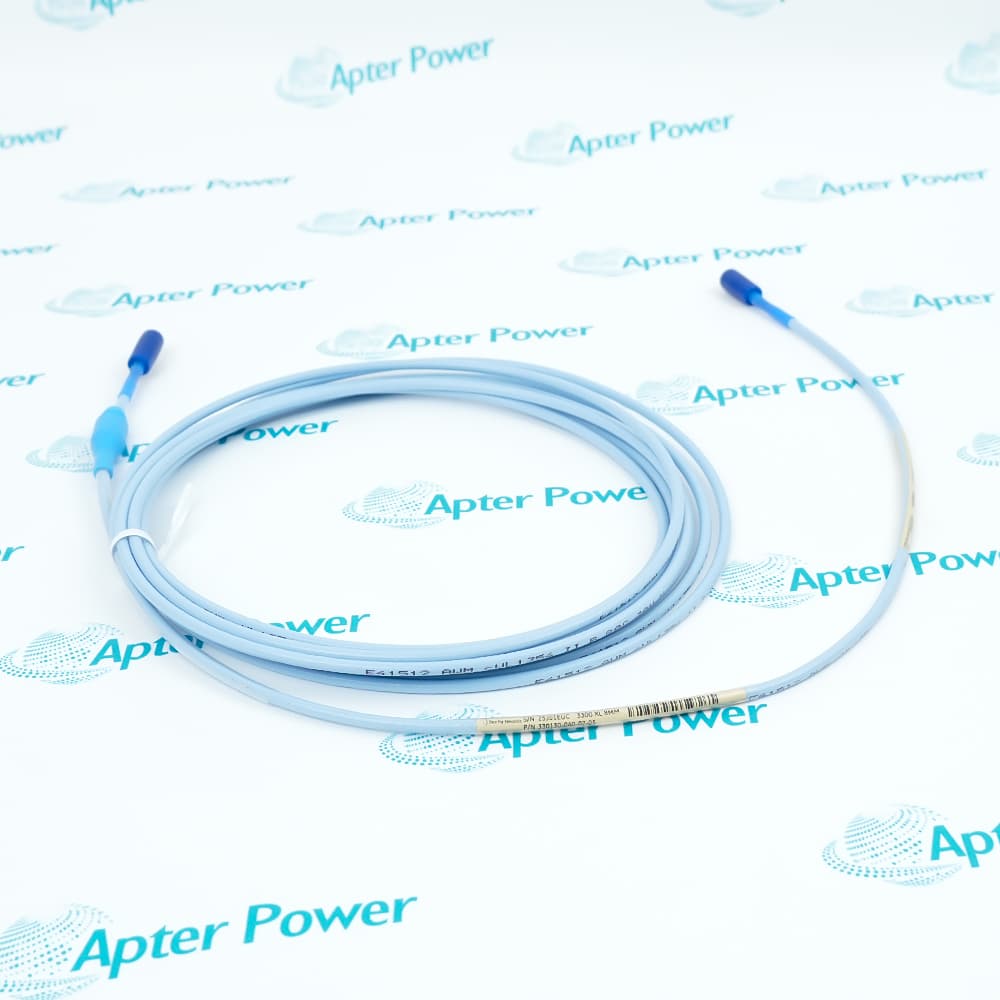

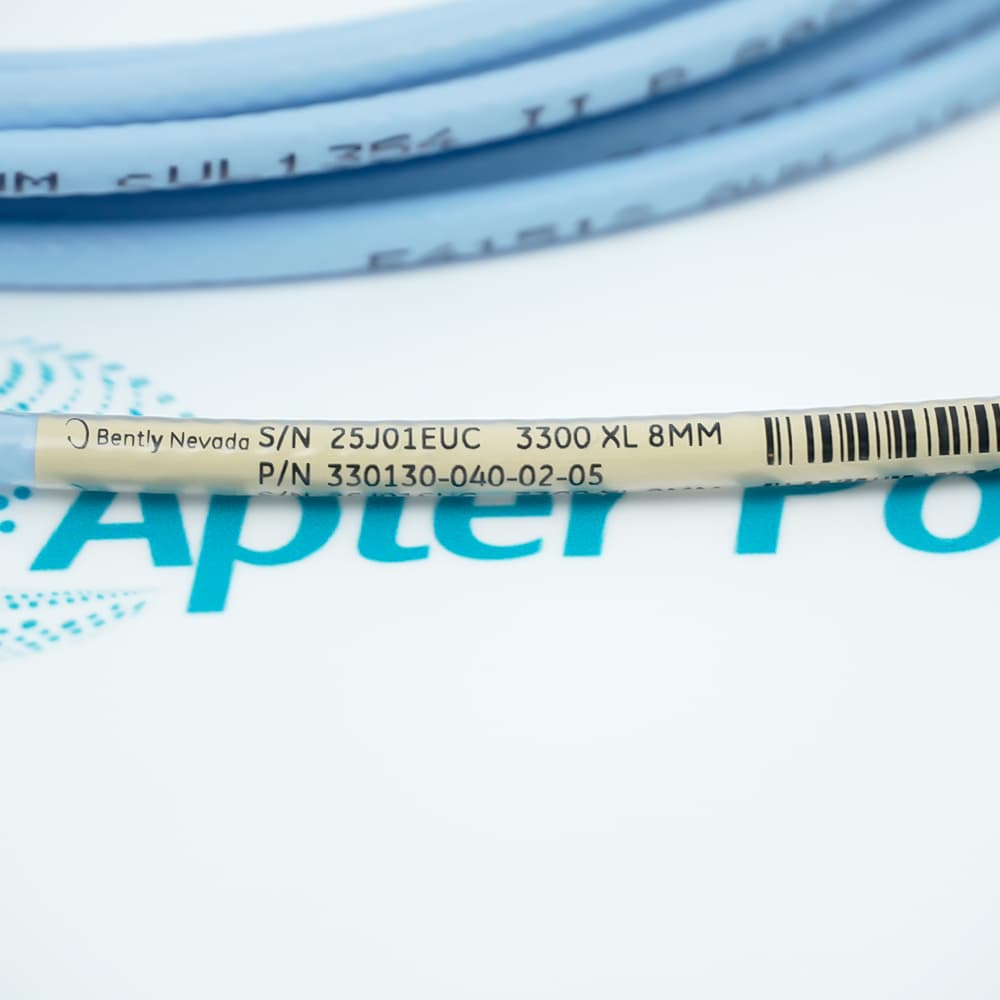

The Model 330130-040-02-05 is a 3300 XL standard extension cable designed for the 3300 XL 8 mm Proximity Transducer System, featuring 4.0 meters (11.5 feet) length with standard cable construction and pre-installed connector protector.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330130-040-02-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330130-040-02-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330130-040-02-05
  • Product Family:
    3300 XL Extension Cable
  • Product Type:
    Cable
  • Stock:
    1
  • Cable Length:
    4.0 meters (11.5 feet)
  • Cable Type:
    Standard cable with connector protector
  • Agency Approvals:
    CSA, ATEX, IECEx
  • Cable Attachment:
    Patented CableLoc design
  • Included Accessory:
    Silicone tape
  • Standard Temperature Rating:
    Up to 177°C (350°F)
  • Key Feature:
    Complete component interchangeability
  • Weight:
    0.16 kg
  • Estimated shipping dimensions:
    21x21x1.5cm
  • Tariff Code:
    8544492100
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Communication & Connectivity Firmware & Updates

Features:

  • 3300 XL standard extension cable with 4.0-meter length for 8 mm proximity transducer systems
  • CSA, ATEX, and IECEx hazardous area certified with pre-installed connector protector
  • Patented CableLoc 330 N pull strength design with silicone tape included for field installation
The 330130-040-02-05 provides essential signal connection functions critical to the entire monitoring path, serving as the vital link between sensing probes and signal conditioning electronics, directly affecting the proper, normal operation of the overall protection system. One 330130-040-02-05 extension cable is required per measurement point, connecting the 3300 XL 8 mm probe mounted on machinery to the remotely located Proximitor sensor.

For applications requiring hazardous area compliance, the 330130-040-02-05 carries CSA, ATEX, and IECEx approvals for use in potentially explosive atmospheres worldwide. In addition to standard signal transmission, the cable includes silicone tape that can be used as an alternative to connector protectors for field installations, though it is not recommended for applications exposing connections to turbine oil.

The 330130-040-02-05's robust construction ensures reliable operation in demanding industrial environments. Using patented CableLoc design with 330 N pull strength, the cable provides secure attachment where standard cables would fail. The 330130-040-02-05 is fully compatible with standard temperature probes rated to 177°C and ETR components rated to 260°C, though ETR components limit system accuracy to ETR specifications.

The 330130-040-02-05 Bently Nevada 3300 XL Standard Extension Cable may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330130-040-02-05 3300 XL Standard Extension Cable Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330130-040-02-05 3300 XL Standard Extension Cable Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 330130-040-02-05
  • Condition New Original ready stock
  • Product Family 330130-045-02-05,330130-050-02-05,330130-040-02-00
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Fluid-Film Bearing Machines: Monitoring rotor vibration and axial position.
  • Compression Systems: Assessing performance and mechanical integrity.
  • Speed & Keyphasor Measurements: Providing timing and rotational speed data for diagnostic purposes.
  • Hazardous Environments: Approved for use in explosive atmospheres (ATEX/IECEx/CSA).
  • Interchangeability: The 3300 XL system components are fully interchangeable and backward-compatible with older 3300 series 5 mm and 8 mm components. No bench calibration is required when swapping individual cables or probes.
  • Connectors: Features ClickLoc gold-plated connectors that lock with finger-tight torque to prevent loosening in high-vibration environments.
  • Signal Output: Facilitates the transmission of an output voltage proportional to the distance between the probe tip and the target surface.
  • Analog System: As a passive physical component of an eddy-current transducer system, the extension cable itself does not have firmware.
  • System Updates: If upgrading older monitoring systems (like the 7200 series) to the 3300 XL, you must replace the entire transducer chain (probe, cable, and sensor). Advanced monitoring units like the Bently Nevada 3500 System may require configuration software updates to recognize and scale for newer transducer systems.
Description
The Model 330130-040-02-05 is a 4.0 meter standard extension cable engineered for the 3300 XL 8 mm Proximity Transducer System. This cable features standard construction with pre-installed connector protector for enhanced environmental protection. The 330130-040-02-05 carries CSA, ATEX, and IECEx hazardous area approvals, allowing global installation in potentially explosive atmospheres where certified equipment is required.

The patented CableLoc design of the 330130-040-02-05 provides 330 N (75 lbf) pull strength, securely attaching the cable and preventing failures due to vibration or mechanical stress. This mechanical robustness ensures reliable signal transmission over the 4.0 meter length. The 330130-040-02-05 maintains signal integrity for accurate vibration and position measurements in demanding industrial environments.

Each 330130-040-02-05 includes silicone tape that can be used instead of connector protectors for field installations. However, silicone tape is not recommended for applications exposing the probe-to-extension cable connection to turbine oil, as oil exposure may degrade the tape's protective properties. The pre-installed connector protector on the 330130-040-02-05 provides superior protection for most applications.

The 330130-040-02-05 supports complete system interchangeability, eliminating the need to match or bench calibrate individual components. For high-temperature applications exceeding standard 177°C (350°F), ETR components are available and compatible with the 330130-040-02-05, though system accuracy becomes limited by the ETR component specifications.
Alternative Names
330130-060-02-05 330130-070-02-05 330130-080-02-05 330130-040-02-00 330130-040-02-00 330130 040 02 05 33O13O-O4O-O2-O5 330I30-040-02-05
Technical notes
The 330130-040-02-05 is an extension cable belonging to the 3300 XL series. This model features a standard length of 4.0 meters (approximately 13.1 feet) and is equipped with a 3/8-24 UNF threaded connector. Suitable for intrinsically safe applications, its shielded design effectively prevents electromagnetic interference, ensuring stable signal transmission.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the length and temperature rating of the 330130-040-02-05 extension cable?
The 330130-040-02-05 is a 4.0 meter (11.5 feet) standard extension cable rated for continuous operation up to 177°C (350°F). It carries CSA, ATEX, and IECEx hazardous area approvals and features patented CableLoc design providing 330 N pull strength for secure cable attachment in demanding industrial environments.
What are the limitations of the silicone tape included with the 330130-040-02-05?
The 330130-040-02-05 includes silicone tape as an alternative to connector protectors for field installation. However, silicone tape is not recommended for applications that will expose the probe-to-extension cable connection to turbine oil, as oil exposure may degrade the tape's protective properties. For most applications, the pre-installed connector protector on the 330130-040-02-05 provides superior environmental protection.
Is the 330130-040-02-05 compatible with extended temperature range (ETR) components?
Yes, the 330130-040-02-05 is fully compatible with ETR probes rated to 218°C (425°F) and ETR extension cables rated to 260°C (500°F). When any ETR component is used in the system, the ETR component limits the overall system accuracy to the accuracy specifications of the ETR system. The 330130-040-02-05 maintains complete interchangeability with all 3300 XL 8 mm system components.
What hazardous area approvals does the 330130-040-02-05 carry and why is interchangeability important?
The 330130-040-02-05 carries CSA, ATEX, and IECEx hazardous area approvals, enabling installation in potentially explosive atmospheres worldwide. Complete interchangeability means any 330130-040-02-05 works with any 3300 XL 8 mm probe and Proximitor sensor without bench calibration, reducing spare parts inventory and simplifying field replacements while maintaining certified performance in hazardous locations.
