    Apter Power markets original Bently Nevada shielded coaxial accessories, shielding crucial diagnostic data loops against electrical noise.

330130-045-02-CN

/ 4.9
1001 reviews | Need a Specific Revision?
The 330130-045-02-CN has a cable length of 4.5 meters (14.8 feet), providing flexibility for installation in various industrial layouts.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330130-045-02-CN
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330130-045-02-CN

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330130-045-02-CN
  • Product Family:
    3300 XL Extension Cable
  • Product Type:
    Extension Cable
  • Stock:
    2
  • Cable Length:
    4.5 meters (14.8 feet)
  • Connector Protector and Cable:
    Standard cable with connector protector
  • Agency Approval:
    CSA, ATEX, IECEx Approvals
  • Cable Role:
    Maintains electrical and environmental compatibility within the 3300 XL system; no independent performance specs.
  • Accuracy and Interchangeability:
    Only guaranteed when calibrated to AISI 4140 steel; may not apply to other target materials.
  • Performance Applicability:
    Specifications apply only to full 3300 XL 8 mm systems.
  • Weight:
    0.18 kg
  • Estimated shipping dimensions:
    20x20x2cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Firmware and Updates Configuration

Features:

  • Provides reliable probe-to-Proximitor connection with 330 N pull strength and ClickLoc connector.
  • Includes connector protector and FEP insulation for moisture/contaminant resistance.
  • Customer-specific option requiring verification of exact specifications.
The 330130-045-02-CN is a 4.5‑meter extension cable that connects a 3300 XL proximity probe to its Proximitor sensor, ensuring high‑integrity signal transmission for critical vibration and position monitoring. The cable incorporates CableLoc technology, providing 330 N (75 lbf) pull strength to securely attach the cable and prevent accidental disconnection. The gold‑plated ClickLoc connector ensures a corrosion‑resistant, secure connection with a locking mechanism to prevent loosening.

The 330130-045-02-CN includes a connector protector for enhanced environmental sealing, preventing moisture and contaminants from degrading the connection. Its FEP insulation and double‑shielded construction minimize signal degradation, maintaining the integrity of critical machinery health data. The cable operates over a wide temperature range, making it suitable for demanding industrial applications such as turbines, compressors, and generators.

The "CN" suffix on the 330130-045-02-CN indicates a custom modification or customer‑specific option, which may include special cable lengths, connector configurations, or other application‑specific requirements. This customization allows the cable to be tailored for unique installation conditions. The exact specifications of the "CN" modification must be verified against the original order documentation to ensure correct application.

The 330130-045-02-CN Bently Nevada Extension Cable may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

Bently Nevada 330130-045-02-CN Extension Cable Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330130-045-02-CN Extension Cable Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 330130-045-02-CN
  • Condition New Original ready stock
  • Product Family 330130-045-02-00,330130-045-02-05,330130-045-02-RU
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Power Gen/Turbomachinery: Steam/gas turbines, generators, and boiler feed pumps.
  • Oil & Gas/Petrochem: Centrifugal compressors, turbo-expanders, and large fans.
  • Measurements: Radial vibration, axial (thrust) position, and speed/Keyphasor timing.
  • Hardware Revision Tracking: While it has no digital firmware to upgrade, Bently Nevada continuously optimizes the material resilience of the 3300 XL line. Physical upgrades are managed via strict hardware part number revisions to maintain precise electrical characteristics.
  • Upstream Updates: If firmware adjustments are needed, they are performed exclusively on the active electronic monitoring modules connected further down the loop, such as a Bently Nevada 3500/22M Transient Data Interface or an Orbit 60 Protection Rack.
  • The 5-Meter / 9-Meter Electrical Tuning Rule: Eddy current loops are calibrated explicitly to a specific total electrical length (usually 5.0 meters or 9.0 meters) to match the internal oscillator of the Proximitor Sensor. Because this cable is 4.5 meters long (045), it must be paired with a 0.5-meter proximity probe to form a combined 5.0-meter system length. Cutting, splicing, or changing the cable length will uncalibrate the electrical impedance, corrupting the 8 V/mm voltage-scale output.
  • Physical Configuration (Connector Protectors): The 02 suffix indicates that the cable includes factory-installed connector protectors. These plastic sleeves prevent oil, moisture, and fine metal shavings from ingress into the ClickLoc coaxial connection point between the probe and the cable.
Description

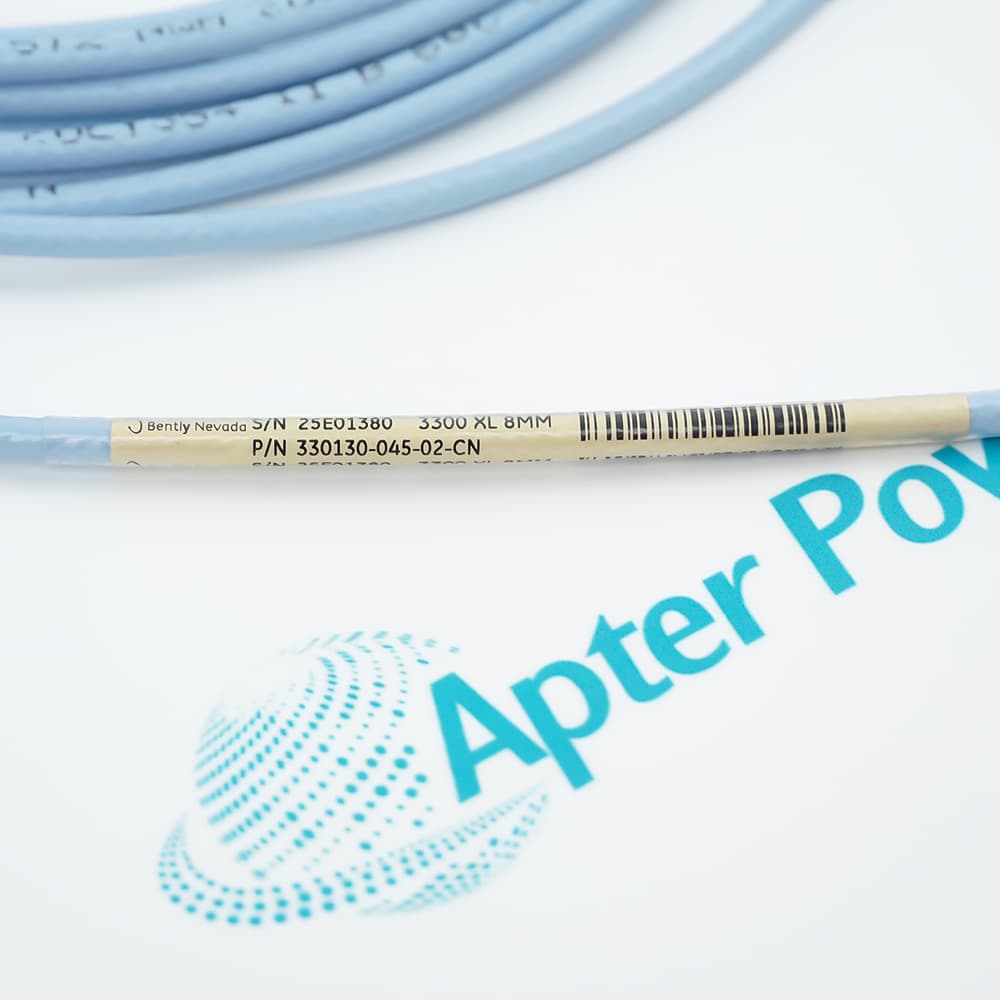

The Bently Nevada 330130-045-02-CN is a 4.5‑meter (14.8‑foot) extension cable designed for the 3300 XL 8 mm Proximity Transducer System. It provides a reliable, low‑noise connection between a 3300 XL proximity probe and its associated Proximitor sensor, ensuring high‑integrity signal transmission for critical vibration and position monitoring applications.

The 330130-045-02-CN features a standard cable construction with a gold‑plated ClickLoc connector and includes a connector protector for enhanced environmental sealing. This design prevents moisture and contaminants from degrading the connection, ensuring long‑term reliability in harsh industrial environments such as turbines, compressors, and generators.

The 330130-045-02-CN incorporates CableLoc technology, providing 330 N (75 lbf) pull strength to securely attach the cable and prevent accidental disconnection. Its FEP insulation and double‑shielded construction minimize signal degradation, maintaining the integrity of critical machinery health data.

The 330130-045-02-CN is fully interchangeable with both XL and non‑XL 3300 series extension cables, eliminating the need for bench calibration. Its 4.5‑meter length allows flexible system configuration while maintaining optimal electrical matching.
Alternative Names
33O13O-O45-O2-CN 330I30-045-02-CN 330130 045 02 CN 330130-045-02-00 330130-045-02-05 330130-045-02-RU 330130-040-00-00 330130-080-00-05
Technical notes
The Bently Nevada 330130-045-02-CN is a 4.5‑meter (14.8‑foot) extension cable designed for the 3300 XL 8 mm Proximity Transducer System, providing a reliable, low‑noise connection between a 3300 XL proximity probe and its associated Proximitor sensor . The cable features a standard cable construction with a gold‑plated ClickLoc connector and includes a connector protector for enhanced environmental sealing, preventing moisture and contaminants from degrading the connection.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the minimum bend radius for 330130-045-02-CN the cable?
The cable should not be bent tighter than 25.4 mm (1.0 in) to avoid damage and maintain signal integrity.
What metals are used for the 330130-045-02-CN?
The connector contacts are made from either gold-plated brass or gold-plated beryllium-copper, providing excellent conductivity and corrosion resistance.
What is the primary function of the 330130-045-02-CN?
The 330130-045-02-CN is a 4.5-meter extension cable that connects a 3300 XL proximity probe to the Proximitor sensor, ensuring reliable signal transmission in the 3300 XL 8 mm transducer system.
What are the key specifications of the 330130-045-02-CN?
The 330130-045-02-CN is a 4.5-meter (14.8-foot) cable with standard cable construction, a gold-plated ClickLoc connector, and includes a connector protector for enhanced environmental sealing.
