Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Active / Available from OEM
    Apter Power provides authentic Bently Nevada hardware parts, offering dependable component replacements to safeguard industrial rotating machinery against unexpected failures.

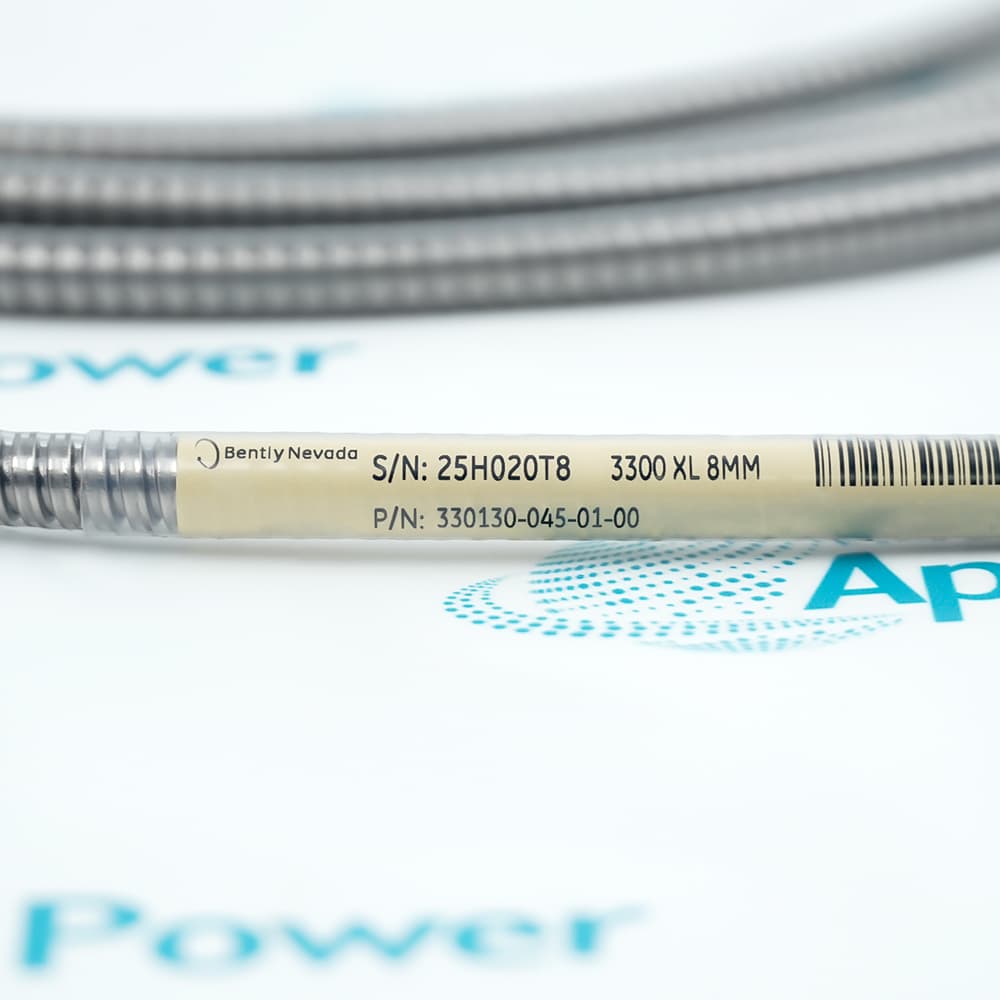

330130-045-01-00 330180-045-01-00

/ 4.9
1001 reviews | Need a Specific Revision?
The 330130-045-01-00 provides a reliable signal transmission extension solution for sensor systems, suitable for measurement applications in industrial settings.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330130-045-01-00 330180-045-01-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330130-045-01-00 330180-045-01-00

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330130-045-01-00 330180-045-01-00
  • Product Family:
    3300 XL Extension Cable
  • Product Type:
    Extension Cable
  • Stock:
    1
  • Cable Length:
    4.5 meters (14.8 feet)
  • Connector Protector and Cable:
    Armored cable
  • Ambient Temperature:
    +18°C to +27°C (+64°F to +80°F).
  • Maximum Altitude:
    Up to 2000 meters.
  • Power Supply:
    -24 Vdc.
  • Load:
    10 kΩ.
  • Target Material for Calibration:
    AISI 4140 steel.
  • Application:
    Designed for use within 3300 XL 8 mm systems, including Proximitor Sensor and 8 mm probe.
  • Weight:
    0.44 kg
  • Estimated shipping dimensions:
    26x26x3cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Protection Features Installation Precautions

Features:

  • Stainless steel armored construction provides mechanical protection against crushing, abrasion, and impact damage.
  • Patented TipLoc and CableLoc technologies deliver 330 N pull strength and robust probe tip bonding.
  • Compatible with standard and ETR components, with optional FluidLoc cable for fluid containment.

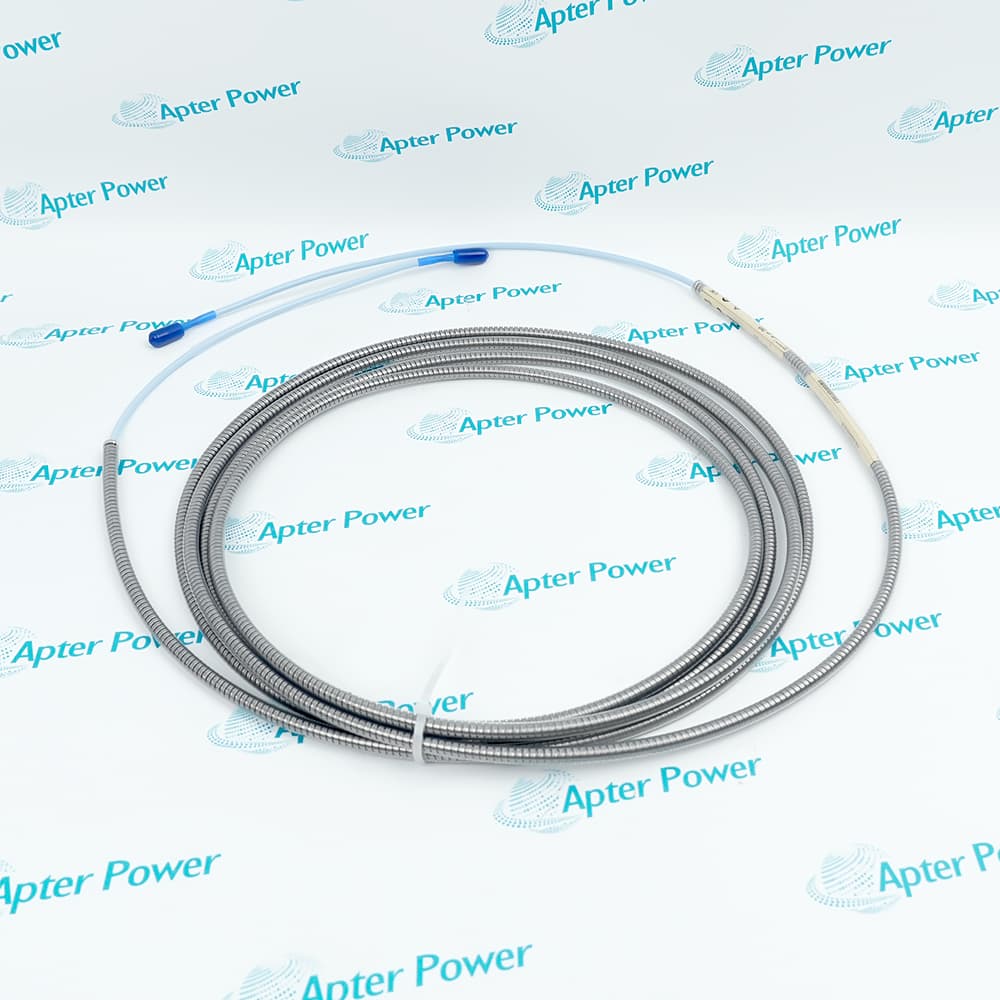

The 330130-045-01-00 wraps its 4.5-meter length in stainless steel armor. This protects the cable against crushing when routed through conduit, abrasion from contact with sharp edges, and impact damage during installation. For facilities where standard cables fail due to mechanical abuse, this armored cable delivers long-term reliability. The armor does not compromise flexibility—the cable still routes through standard cable trays and junction boxes. When combined with the optional FluidLoc cable option, the 330130-045-01-00 also blocks oil migration through the cable interior.

TipLoc molding bonds the probe tip to the body, preventing separation under vibration. CableLoc provides 330 N pull strength, keeping the cable attached even during rough pulls. These patented features are factory-engineered, not field-applied. The 330130-045-01-00 arrives ready to withstand the mechanical stresses of installation and operation. For maintenance teams, this means fewer failures caused by loose connections or detached cables. The gold-plated ClickLoc connectors lock with finger-tight torque, staying secure without tools.

The 330130-045-01-00 works with standard 3300 XL Proximitor sensors and probes. For high-temperature applications, ETR probes (218°C) and ETR cables (260°C) are available separately. The 330130-045-01-00 itself is rated for standard temperatures up to 177°C, but it is fully compatible with ETR components. Note that using any ETR component limits system accuracy to ETR specifications. For lubricated machinery, specify the optional FluidLoc cable to prevent oil from wicking through the cable interior. This flexibility allows the same basic cable to serve a wide range of applications.

The 330130-045-01-00 Bently Nevada Extension Cable may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

Bently Nevada 330130-045-01-00 Extension Cable Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330130-045-01-00 Extension Cable Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 330130-045-01-00
  • Condition New Original ready stock
  • Product Family 330130-070-01-00,330130-075-01-00,330130-045-03-00
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Signal Transmission Bridge: Leads the signal from the probe installed inside the machine to the external protective box (preamplifier mounting location).
  • Large Rotating Machinery Monitoring: Used for vibration and displacement monitoring of steam turbines, compressors, fans, and pumps.
  • Harsh Environmental Areas: This model uses FEP (fluorinated ethylene propylene) insulation, which has excellent oil resistance, chemical corrosion resistance, and high-temperature resistance, making it suitable for installation in oily environments in petrochemical and power facilities.
  • ClickLoc™ Connector Protection: The gold-plated connectors feature an automatic locking function to prevent poor contact caused by mechanical vibration. This is the primary protection against spiking.
  • System OK Diagnosis: When a cable experiences an open or short circuit, the connected 3500 monitoring system will detect a voltage deviation from the normal range (e.g., exceeding -2V to -18V DC) and immediately trigger a "NOT OK" status to prevent false alarms due to cable faults.
  • Optional Protection: -00 in the code indicates no stainless steel armor. If used in areas susceptible to mechanical damage, the armored (-02) model is usually selected to provide additional physical protection.
  • Length Matching: This model has a length of 4.5 meters (45). Ensure that the probe length + extension cable length = the total system length specified by the preamplifier (typically 5.0 or 9.0 meters), otherwise measurement errors will occur.
  • Connector Insulation: Use connector protectors during installation to prevent the connectors from contacting the housing ground, which could cause grounding loop interference.
Description
The 330130-045-01-00 is a 3300 XL Standard Extension Cable designed to provide reliable signal transmission and stable connectivity within industrial monitoring systems. This extension cable is engineered to support consistent performance while maintaining compatibility with 3300 XL series proximity probe systems. Its construction ensures dependable signal integrity and supports long-term operational reliability in demanding industrial environments.

The 330130-045-01-00 features a total cable length of 4.5 meters (14.8 feet), providing extended installation flexibility and allowing convenient routing between system components. The extended length supports system layout requirements while maintaining stable communication between connected devices.

This model is manufactured with an armored cable structure that enhances mechanical protection and durability. The armored design helps safeguard the cable from physical stress, environmental exposure, and potential installation damage. In addition, the cable is equipped with a connector protector, which provides added reinforcement at connection points and helps maintain secure and stable system connections.

The 330130-045-01-00 does not require agency approvals, making it suitable for installations where certification is not mandatory. The cable is designed to maintain dependable performance while supporting efficient integration into compatible monitoring systems.
Alternative Names
33O13O-O45-O1-OO 330I30-045-0I-00 330130 045 01 00 330130-045-01-05 330130-045-01-RU 330130-045-01-CN 330130-040-00-00 330130-045-00-05
Technical notes
The Bently Nevada 330130-045-01-00 is a 4.5-meter (14.8-foot) armored extension cable, an integral part of the 3300 XL 8mm Proximity Transducer System. It is engineered to provide a reliable, low-noise connection between the 3300 XL proximity probe and the Proximitor sensor, ensuring high-integrity signal transmission for critical vibration and position monitoring applications.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the minimum bend radius for the cable?
The cable should not be bent tighter than 25.4 mm (1.0 in) to avoid damage and maintain signal integrity.
What metals are used for the connector contacts?
The connector contacts are made from either gold-plated brass or gold-plated beryllium-copper, providing excellent conductivity and corrosion resistance.
Why choose your company for automation parts supply?
We provide fast delivery, extensive industry experience, a large inventory, and strict quality assurance. Our goal is to supply reliable automation components quickly and efficiently to support stable industrial operations.
