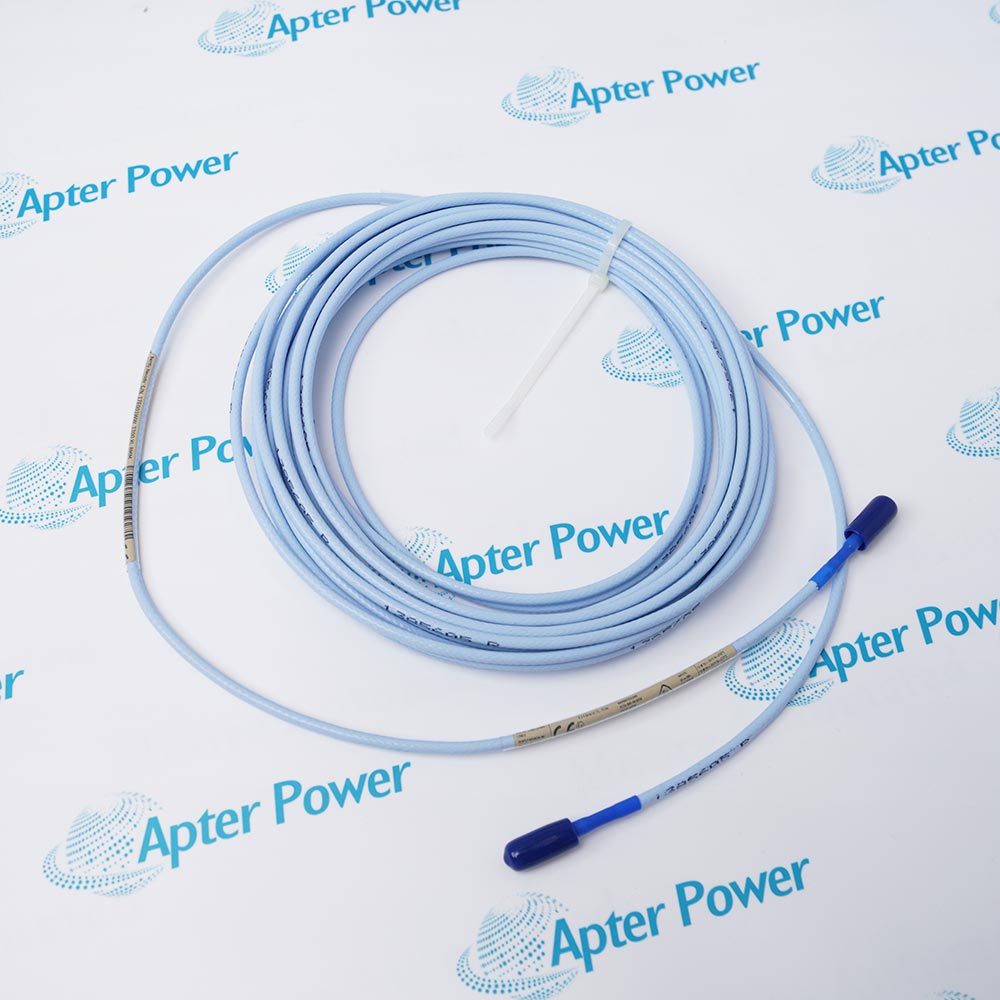

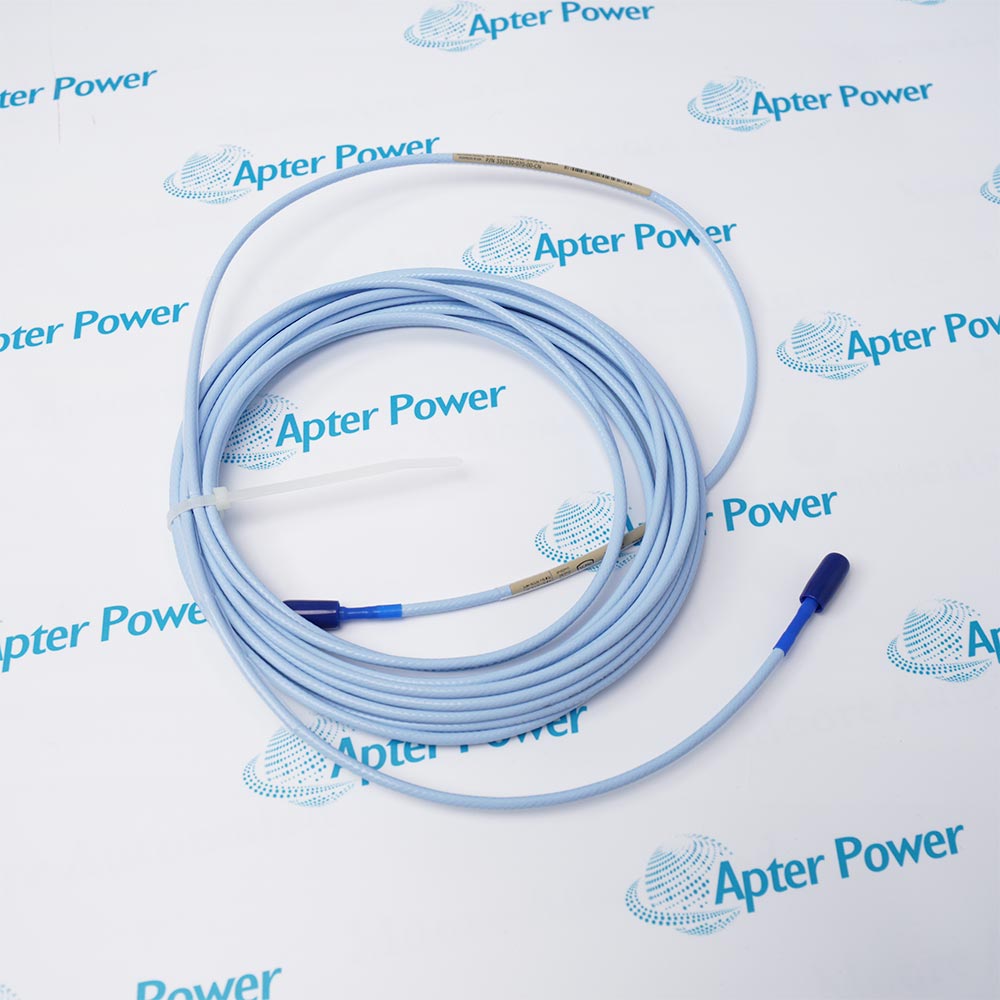

Bently Nevada 330130-070-00-CN is a 7.0 m 3300 XL extension cable for 8 mm proximity transducer systems. It connects the probe to the matching Proximitor sensor while maintaining the required system cable configuration.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330130-070-00-CN
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330130-070-00-CN

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330130-070-00-CN
  • Product Family:
    3300 XL Extension Cable
  • Product Type:
    3300 XL Proximity Transducer Extension Cable
  • Stock:
    1
  • Cable Length Option:
    7.0 meters (22.9 feet)
  • Connector Protector and Cable Option:
    Standard cable
  • Nominal Extension Cable DC Resistance:
    1.54 ± 0.23 Ω
  • Resistance (RJACKET ) from Outer Conductor to Outer Conductor:
    0.46 ± 0.09 Ω
  • Operating and Storage Temperature:
    -52°C to +177°C (-62°F to +350°F)
  • Weight:
    0.5291 lbs (0.24 kg)
  • Estimated shipping dimensions:
    19.3 x 18.6 x 2.1 cm
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Operating Environment Configuration Performance

Features:

  • Provides a 7.0 m standard extension cable for the 3300 XL proximity transducer system.
  • Ordering code 070 denotes the 7.0 m length option.
  • Ordering code 00 denotes the standard cable option.
The listed configuration identifies a 7.0 m extension cable with the standard cable option. The trailing CN suffix is not decoded by the cited OEM ordering table and should be verified against the complete item label.

The extension cable connects the proximity probe to a compatible Proximitor sensor within a 3300 XL transducer loop.

Before replacement, confirm the connector arrangement and check that probe length plus extension-cable length equals the required Proximitor sensor system length.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for Bently Nevada 330130-070-00-CN:
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Connects a compatible 3300 XL 8 mm probe to its Proximitor sensor in a machinery monitoring loop.
  • Supports non-contact measurement arrangements used for shaft vibration and position monitoring.
  • Use within the specified transducer system when the installation requires a 7.0 m extension cable.
  • The standard 330130 extension cable is rated from -52°C to +177°C for operating and storage conditions.
  • Its 75-ohm triaxial conductors use FEP insulation for the published standard-temperature cable construction.
  • Maintain the 25.4 mm minimum bend radius and protect the coaxial connectors from contamination and moisture.
  • The 070 ordering code identifies the 7.0 m extension-cable length.
  • The 00 cable option denotes the standard cable configuration in the OEM ordering information.
  • Confirm the complete suffix on the equipment label; the trailing CN marking is not defined by the cited OEM ordering table.
  • The 75-ohm triaxial construction preserves the electrical path specified for the 3300 XL 8 mm proximity transducer system.
  • The 7.0 m extension must be combined with the selected probe lead to provide the total cable length expected by the matched Proximitor sensor.
  • Stable measurement depends on clean, fully engaged connectors and routing that avoids crushing, excessive tension, and bends below the published radius.
Description
Bently Nevada 330130-070-00-CN is a 7.0 m extension cable for the 3300 XL 8 mm proximity transducer system. It links the matching probe cable to the Proximitor sensor while preserving the electrical characteristics required by the configured system length.

The cable uses 75-ohm triaxial construction with a fluorinated ethylene propylene jacket intended for industrial machinery environments. Its flexible routing supports installation between the monitored machine and the signal-conditioning location without altering the calibrated transducer-system relationship.

Selection must confirm the complete suffix, combined probe and extension-cable length, connector condition, and approval requirements for the installation. Observe the published minimum bend radius and avoid twisting, crushing, or contaminating the coaxial connection during replacement.
Alternative Names
330130-070-00-CN 330130 070 00 CN 330130-070-00CN 33013007000CN Bently Nevada 330130-070-00-CN 3300 XL 330130-070-00-CN 330130-070-00-CN Extension Cable GE Bently Nevada 330130-070-00-CN
Technical notes
330130-070-00-CN must preserve the specified probe-plus-extension electrical length; keep connectors clean and observe the 25.4 mm minimum bend radius during routing.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How does the 7.0 m length of Bently Nevada 330130-070-00-CN affect system matching?
The extension length forms part of the calibrated probe-plus-cable system, so the probe lead and extension cable must produce the total length required by the matched Proximitor sensor.
Why does Bently Nevada 330130-070-00-CN use a 75-ohm triaxial cable?
The specified triaxial impedance preserves the signal path expected by the 3300 XL proximity system; ordinary coaxial or uncontrolled cable is not an equivalent substitute.
What routing limit protects Bently Nevada 330130-070-00-CN from cable damage?
Maintain at least the published 25.4 mm bend radius and route the cable away from crushing, sharp edges, excessive tension, and repeated flexing.
Can Bently Nevada 330130-070-00-CN be replaced by a different 330130 suffix?
Not by suffix alone. Cable length, connector option, agency approval, and the complete 3300 XL system configuration must all remain compatible.
What should be inspected before connecting Bently Nevada 330130-070-00-CN?
Check both connectors for contamination or damage, verify the full part code, confirm the route and total electrical length, and inspect the mating probe and sensor.
Which details support an accurate Bently Nevada 330130-070-00-CN quotation?
Provide the exact suffix, quantity, installed probe and Proximitor sensor numbers, destination, and any certification or documentation requirement.
