    Apter Power routes original factory-certified monitoring hardware directly to your high-stress plant sectors.

330130-080-00-05

/ 4.9
1001 reviews | Need a Specific Revision?

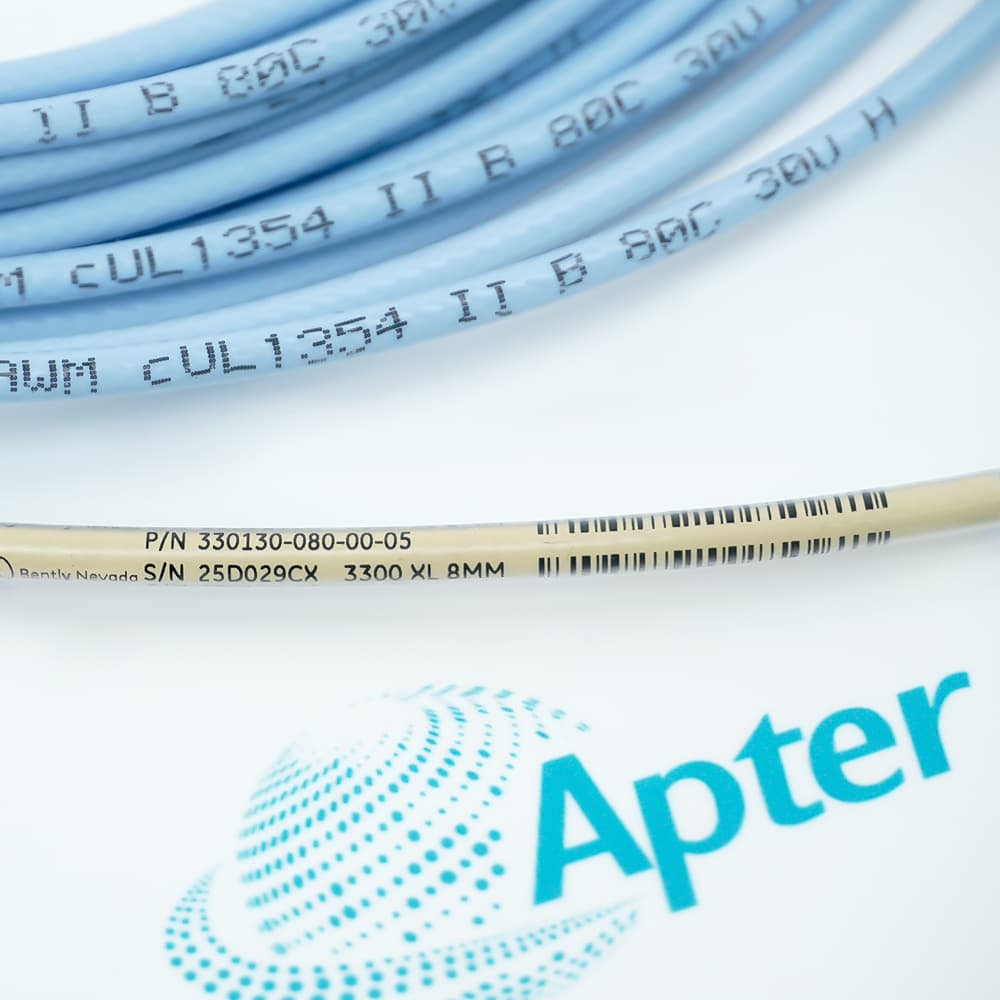

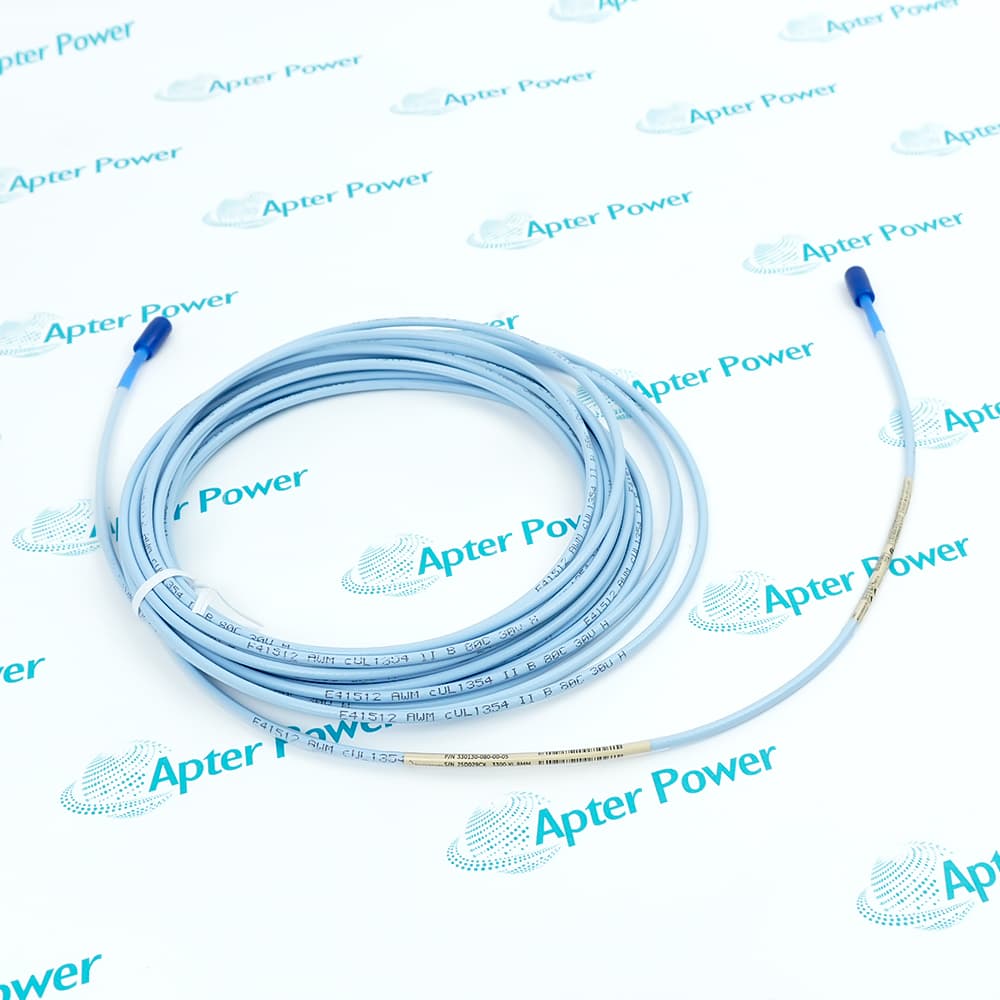

The 330130-080-00-05 is a standard extension cable from the 3300 XL series, designed to extend the connection of 3300 XL sensor systems.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330130-080-00-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330130-080-00-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330130-080-00-05
  • Product Family:
    3300 XL Extension Cable
  • Product Type:
    3300 XL Standard Extension Cable
  • Stock:
    1
  • Cable Length:
    8.0 meters (26.2 feet)
  • Cable Option:
    Standard cable
  • Agency Approval:
    CSA, ATEX, IECEx Approvals
  • Power Supply:
    -24 Vdc.
  • Load:
    10 kΩ.
  • Target Material for Calibration:
    AISI 4140 steel.
  • Probe Gap:
    1.27 mm (50 mils).
  • Weight:
    0.28 kg
  • Estimated shipping dimensions:
    21x21x2cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Firmware & Updates Environmental Ratings

Features:

  • Signal Connection Between the 3300 XL Probe and Proximitor Sensor Over 8.0 Meters
  • 75 Ω Triaxial FEP Construction with Integrated Connector Protector
  • CSA, ATEX, and IECEx Certification for Hazardous Area Standards
The 330130-080-00-05 operates as the Standard Extension Cable in a 3300 XL 8 mm proximity transducer system, providing a reliable 8.0-meter (26.2-foot) signal path between the probe and the Proximitor sensor. It continuously maintains signal integrity across the full cable length using its 75 Ω triaxial, fluoroethylene propylene (FEP) insulated construction. The 330130-080-00-05 includes a Connector Protector to safeguard the connection interface from mechanical damage and environmental contamination.

The 330130-080-00-05 provides essential signal transmission functions common to the entire proximity measurement path, and is a critical component of the monitoring channel, directly affecting the accuracy of vibration and position data delivered to the monitor system. One 330130-080-00-05 extension cable is typically required per transducer channel when the distance between the probe mounting location and the Proximitor sensor exceeds the probe's integral cable length. The 330130-080-00-05 occupies no rack slot as it is a field-installed cable component, routed externally between the probe termination and the Proximitor sensor mounting location.

For fluid containment applications, the 3300 XL system supports an optional FluidLoc cable option that can be specified with the 330130-080-00-05 to prevent oil and other liquids from leaking out of the machine through the cable's interior. In addition to standard single-cable operation, the 330130-080-00-05 can be combined with other 3300 XL extension cables to achieve the precise total cable length required for system calibration. The 3300 XL system requires exact cable length matching from the probe tip through the 330130-080-00-05 to the Proximitor sensor; if the total installed length does not correspond to the calibrated configuration, the system will produce inaccurate proximity measurements, making proper cable selection and installation verification essential.

The 330130-080-00-05 Bently Nevada 3300 XL Standard Extension Cable may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330130-080-00-05 3300 XL Standard Extension Cable Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330130-080-00-05 3300 XL Standard Extension Cable Specs

General

  • Manufacturer Bently Nevada
  • Model 330130-080-00-05
  • Condition New Original ready stock
  • Product Family 330130-080-00-00,330130-080-00-CN,330130-085-00-05
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Vibration Analysis: Transmits dynamic shaft vibration signals from fluid-film bearings.
  • Position Monitoring: Relays static thrust and axial position data to protection systems.
  • Speed Sensing: Connects Keyphasor sensors to measure rotational speed and phase angles.
  • Harsh Environments: Deployed across oil refineries, chemical plants, and power stations.
  • System Integration: Connects 3300 XL 8mm probes directly to Proximitor sensors.
  • Passive Component: Contains no microprocessors, software, or digital circuitry.
  • Firmware Requirement: Requires zero firmware, programming, or software patches.
  • System Upgrades: Maintenance updates apply only to the connected Proximitor or rack monitor.
  • Operating Temperature: Ranges from -51°C to +177°C (-60°F to +350°F).
  • Humidity Tolerance: Built for up to 100% condensing relative humidity.
  • Moisture Protection: Achieves IP67 and IP68 equivalent sealing when properly mated.
  • Hazardous Approvals: Certified for ATEX/IECEx Ex ia IIC T4 and CSA Class I, Div 1.
Description
The 330130-080-00-05 is a standard extension cable from the 3300 XL series, designed to extend the connection of 3300 XL sensor systems. This extension cable ensures reliable signal transmission and secure connections, maintaining stable operation in industrial environments.

The 330130-080-00-05 features a cable length of 8.0 meters (26.2 feet), providing flexibility for various installation requirements. It is a standard cable equipped with an armored design and a connector protector, offering enhanced durability and protection against mechanical damage.

This model has received CSA, ATEX, and IECEx approvals, meeting international industrial standards and making it suitable for demanding industrial environments.
Alternative Names
33O13O-O8O-OO-O5 330I30-080-00-05 330130 080 00 05 330130-080-00-00 330130-080-00-CN 330130-080-00-RU 330130-080-00-BR 330130-040-00-00
Technical notes
The 330130-080-00-05 is a standard extension cable within the Bently Nevada 3300 XL proximity transducer system. It is designed to connect the proximity probe to the signal conditioning monitor while maintaining signal integrity over extended distances. This ensures that vibration and position measurements remain stable and accurate even in large or complex machinery installations.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the main function of the 330130-080-00-05 extension cable?
The main function of the 330130-080-00-05 is to transmit high-fidelity signals between the probe and monitoring electronics without degradation. It solves common industrial issues such as signal loss, distortion, and electromagnetic interference, which can affect the accuracy of vibration monitoring in rotating equipment.
What are the key technical characteristics of the 330130-080-00-05?
The 330130-080-00-05 features a 75 Ω triaxial cable construction with FEP insulation and shielding, providing strong resistance to heat, chemicals, and harsh industrial environments. It includes a Connector Protector that enhances mechanical durability and prevents contamination from moisture or debris, helping to extend the service life of the entire measurement system.
How does the 330130-080-00-05 improve measurement reliability?
By maintaining signal stability across long distances, the 330130-080-00-05 reduces the risk of measurement distortion caused by electrical noise or cable stress. This ensures that vibration, axial displacement, and shaft position readings remain consistent, supporting accurate condition monitoring and predictive maintenance strategies.
What design technologies are compatible with this 330130-080-00-05 extension cable?
The 330130-080-00-05 is compatible with advanced probe technologies used in the 3300 XL system, including TipLoc construction, which strengthens the bond between probe tip and body, and CableLoc technology, which provides high pull strength to prevent accidental disconnection. It can also be used with FluidLoc-enabled configurations to prevent oil migration through the cable in lubricated machinery environments.
