    Apter Power provides original, armored sensor cables for critical rotating machinery vibration diagnostic networks.

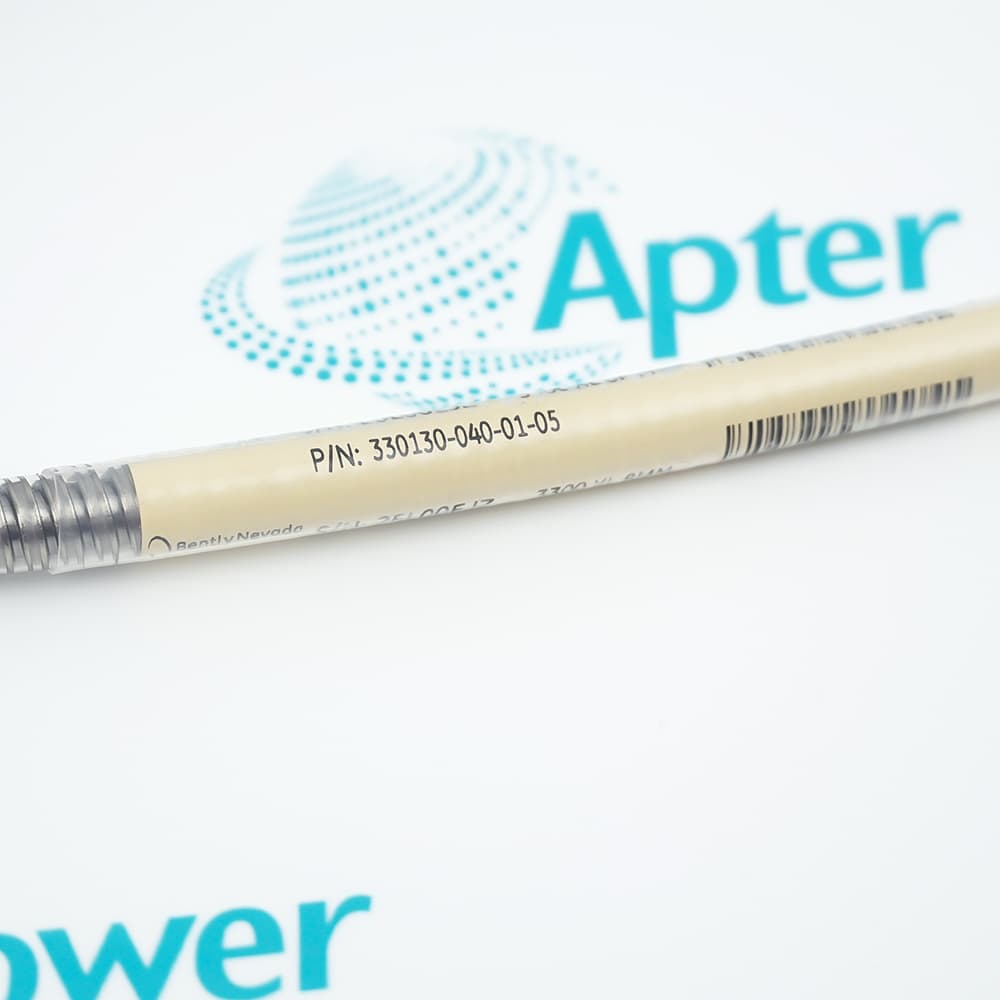

330130-040-01-05

/ 4.9
1001 reviews | Need a Specific Revision?

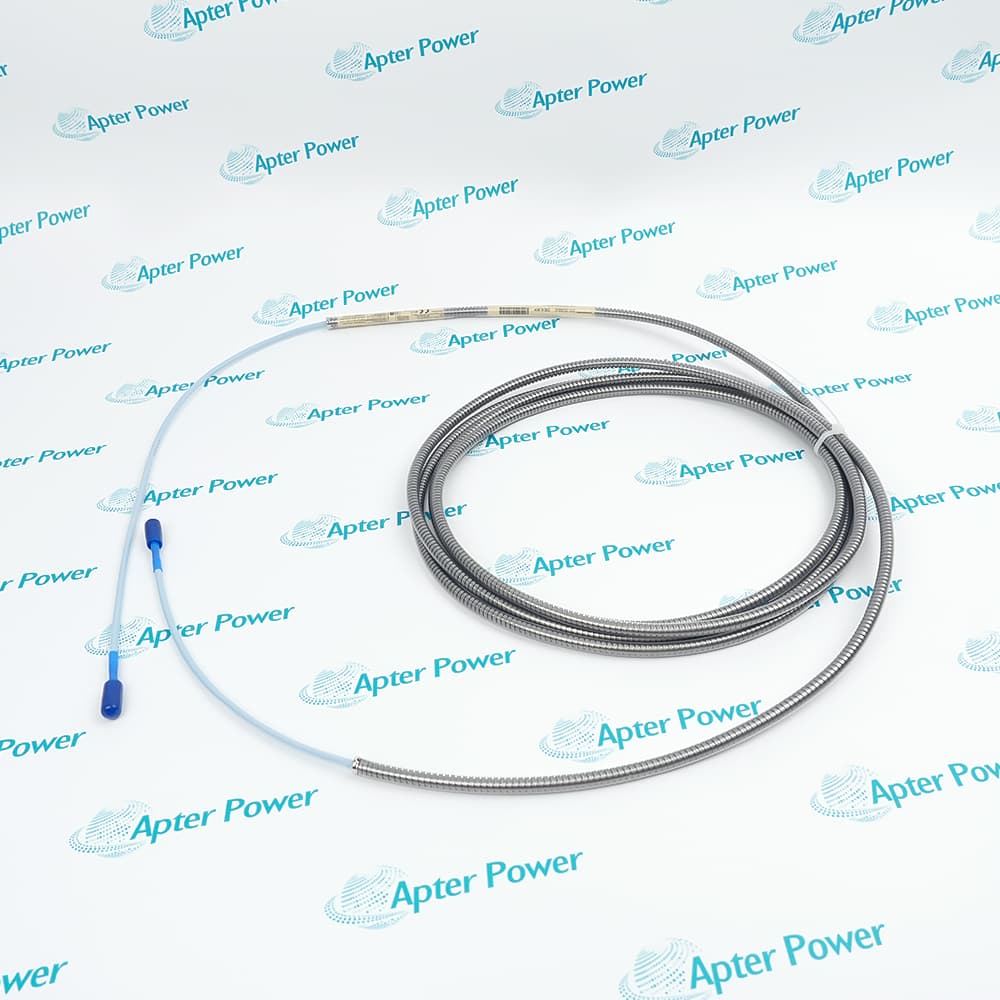

The 330130-040-01-05 standard extension cable has a length of 4.0 meters (11.5 feet), providing flexibility for various installation environments while maintaining stable and accurate signal transmission.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330130-040-01-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330130-040-01-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330130-040-01-05
  • Product Family:
    3300 XL Extension Cable
  • Product Type:
    Extension Cable
  • Stock:
    2
  • Cable Length:
    4.0 meters (11.5 feet)
  • Connector Protector and Cable:
    Armored cable
  • Agency Approval:
    CSA, ATEX, IECEx Approvals
  • Maximum Connector Torque:
    0.565 N•m (5 in•lbf)
  • Extension Cable Capacitance:
    69.9 pF
  • Power Supply:
    24 Vdc.
  • Load:
    10 kΩ.
  • Weight:
    0.38 kg
  • Estimated shipping dimensions:
    33x28x2cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Communication Safety and Compliance

Features:

  • Patented TipLoc™ molding provides a stronger bond between the probe tip and body.
  • Gold-plated ClickLoc™ connectors require only finger-tight torque (audible "click" confirms proper engagement).
  • FluidLoc® cable option prevents oil and other liquids from leaking out of the machine through the cable interior.
The 330130-040-01-05 extension cable benefits from two patented mechanical innovations. First, TipLoc™ molding creates a much stronger bond between the probe tip and the probe body compared to previous designs. This prevents the tip from loosening or rotating during installation or under vibration. Second, CableLoc™ secures the cable attachment point where the probe cable joins the probe tip. This design provides an impressive 330 N (75 lbf) pull strength. In practical terms, even if someone accidentally pulls on the cable during installation or maintenance, the connection will not separate.

The 330130-040-01-05 uses gold-plated ClickLoc™ connectors at all interfaces. Gold plating provides excellent corrosion resistance, which is critical in environments with moisture, oil, or chemical vapors. Unlike traditional connectors that require wrenches and specific torque values, ClickLoc™ connectors tighten by hand. You simply screw the coupling nut until you hear a distinct "click." This audible feedback confirms that the connector is fully engaged and locked. The specially engineered locking mechanism prevents the connector from loosening due to vibration – a common problem with standard coaxial connectors.

The 330130-040-01-05 offers two important options for environmental protection. First, the optional FluidLoc® cable prevents oil and other process liquids from leaking out of the machine through the cable interior. In applications such as steam turbines or compressors with oil-lubricated bearings, a standard cable can act as a wick, drawing oil along the internal strands and creating a leak path. FluidLoc® eliminates this risk, keeping the machine sealed and preventing environmental contamination. Second, connector protectors can be ordered pre-installed or as field-installed kits.

The 330130-040-01-05 Bently Nevada Extension Cable may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL)by the manufacturer (OEM).

Bently Nevada 330130-040-01-05 Manuals, Datasheets,Drivers,Link Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
Bently Nevada 330130-040-01-05 Extension Cable Specs

General

  • Manufacturer Bently Nevada
  • Model 330130-040-01-05
  • Condition New Original ready stock
  • Product Family 330130-070-01-05,330130-075-01-05,330130-040-10-05
Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
  • Rotating Machinery Monitoring: Used to measure shaft vibration, axial displacement, and rotational speed in sliding bearing machinery.
  • Phase Reference: As part of a Keyphasor system, it provides an accurate phase reference signal.
  • Harsh Industrial Environments: The armored design makes it particularly suitable for extreme physical environments such as oil, petrochemical, refining, and offshore platforms, where it is susceptible to mechanical damage or oil corrosion.
  • Connector Technology: Utilizes gold-plated ClickLoc™ coaxial connectors, requiring only finger tightening to achieve the predetermined torque (a "click" sound is produced when rotating), requiring no special tools and preventing loosening due to vibration.
  • Electrical Compatibility: Requires the total electrical length of the probe cable and extension cable to match the total length required by the proximitor (e.g., 5-meter or 9-meter systems) to maintain the standard sensitivity of 7.87 V/mm.
  • Explosion-proof Certification: Option "05" means that the cable complies with major international safety standards, including CSA in North America, ATEX in Europe, and IECEx certification from the International Electrotechnical Commission, allowing installation in hazardous areas such as Class I, Division 1, or Zone 0.
  • Industry Standards: Fully compliant with API 670 (4th Edition), meeting the stringent requirements of the American Petroleum Institute for mechanical protection systems in terms of linearity, accuracy, and temperature stability.
  • Durability: Operating temperature range covers -51°C to +177°C, with excellent resistance to chemical corrosion and moisture.
Description
The 330130-040-01-05 is a standard extension cable for the 3300 XL series, designed for high-reliability measurement applications. The cable has a length of 4.0 meters (11.5 feet), providing flexibility for various installation environments while maintaining stable and accurate signal transmission.

330130-040-01-05 features a connector protector and is built with an armored cable, offering enhanced mechanical protection to ensure durability and safety in harsh industrial conditions.

The 330130-040-01-05 is certified by multiple authorities, including CSA, ATEX, and IECEx, meeting international safety standards and providing reliable performance for global applications.
Alternative Names
33O13O-O4O-O1-O5 330I30-040-0I-05 330130 040 01 05 330130-040-01-00 330130-040-01-CN 330130-040-01-RU 330130-040-00-00 330130-045-00-00
Technical notes
330130-040-01-05 is designed to connect a 3300 XL 8 mm probe to a Proximitor® sensor. The 3300 XL system uses a pluggable connector interface between the probe, extension cable, and Proximitor. The 01 connector type typically features a standard coaxial design with a threaded coupling nut for secure, vibration‑resistant connections in industrial environments.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the 330130-040-01-05's primary function?
4.0m armored extension cable connecting 3300 XL probes to Proximitor sensors with hazardous area approvals.
What are the 330130-040-01-05's key specifications?
4.0m length, armored, 75Ω coaxial, FEP insulation, 330 N pull strength, CSA/ATEX/IECEx approved.
Is 330130-040-01-05 interchangeable?
Yes, fully interchangeable with XL and non-XL 3300 series extension cables.
