    Apter Power sources original, factory-calibrated Bently Nevada proximity sensors to sustain peak plant productivity.

330180-90-05

/ 4.9
1001 reviews | Need a Specific Revision?

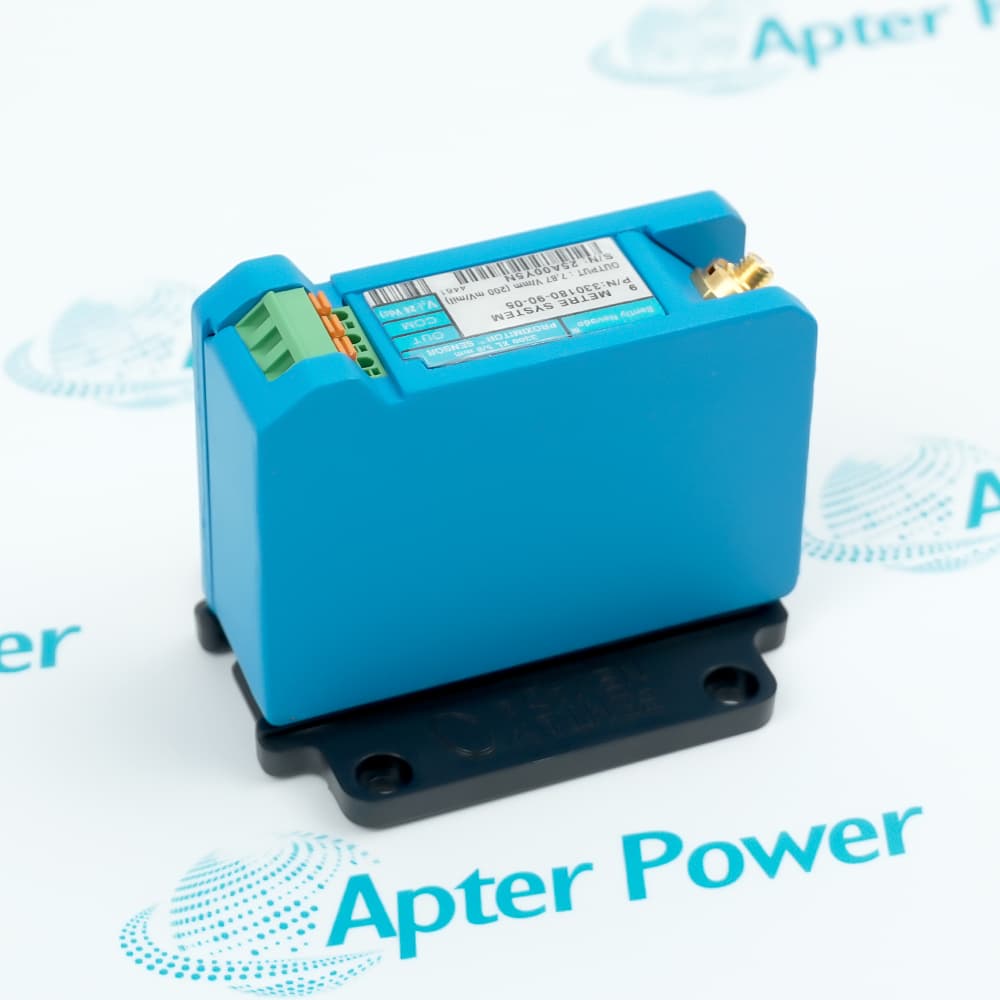

The 330180-90-05 system has a total length of 9.0 meters (29.5 feet) and adopts a panel mount design for easy integration into control cabinets or equipment panels.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330180-90-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330180-90-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330180-90-05
  • Product Family:
    3300 XL Proximitor Sensor
  • Product Type:
    Proximitor Sensor
  • Stock:
    4
  • Total Length:
    9.0 meters (29.5 feet) system length
  • Mounting:
    panel mount
  • Agency Approval:
    CSA, ATEX, IECEx Approvals
  • Load Resistance:
    10 kΩ
  • Probe Gap Setting:
    1.27 mm (50 mils)
  • Operating Temperature Range:
    -52°C to +100°C (-62°F to +212°F)
  • Storage Temperature Range:
    -52°C to +105°C (-62°F to +221°F)
  • Weight:
    0.22 kg
  • Estimated shipping dimensions:
    7.8x6x6.4cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Certifications Compatibility

Features:

  • DIN rail mounting enables high-density installation in modern control cabinets, saving valuable panel space compared to traditional panel mount designs.
  • CSA, ATEX, and IECEx approvals allow global hazardous area deployment without requiring region-specific variants, simplifying international procurement.
  • Complete interchangeability with 3300 XL 8 mm probes and extension cables eliminates the need for component matching or bench calibration.
The 330180-90-05 is designed for facilities transitioning to modern control cabinet layouts where space is at a premium. Its DIN rail mounting allows multiple Proximitor sensors to be snapped onto a standard rail side by side, eliminating the need for drilling individual mounting holes and reducing installation time. This high-density configuration is particularly valuable in retrofit projects where existing cabinets are already crowded, or in new builds where minimizing enclosure size reduces material costs.

The 330180-90-05 carries CSA, ATEX, and IECEx approvals, making it suitable for deployment in explosive environments across North America, Europe, and international markets. A single part number serves refineries in Texas, chemical plants in Germany, and offshore platforms in the North Sea, eliminating the need to stock region-specific variants. This simplifies procurement for multinational projects and keeps spare parts inventory lean.

The 330180-90-05 is fully interchangeable with all 3300 XL 8 mm probes and extension cables, meaning field crews can replace any component without matching it to a specific Proximitor or performing bench calibration. This eliminates the need for matched component sets, reduces spare parts inventory complexity, and simplifies field service. When a probe or cable fails, any 3300 XL 8 mm component can be substituted, minimizing downtime.

The 330180-90-05 Bently Nevada 3300 XL Proximitor Sensor may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330180-90-05 3300 XL Proximitor Sensor Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330180-90-05 3300 XL Proximitor Sensor Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 330180-90-05
  • Condition New Original ready stock
  • Product Family 330180-10-05,330180-11-05,330180-12-05
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Radial Vibration and Position Measurement: Monitoring axial vibration and radial position of fluid dynamic bearing machines.
  • Axial (Thrust) Displacement Monitoring: Measuring rotor displacement relative to the bearing to prevent collisions between moving and stationary parts.
  • Speed ​​and Phase Reference: As a keyphasor (phase reference) sensor, providing accurate speed and phase signals.
  • Explosion-proof Certifications: CSA, ATEX, and IECEx certified, suitable for use in explosive hazardous areas.
  • Industrial Design Standards: Compliant with API 670 (4th Edition) standards, meeting petrochemical industry specifications in terms of linear range, accuracy, and temperature stability.
  • Safety Integrity (SIL): Can be integrated into safety protection systems compliant with SIL 2 (single configuration) or SIL 3 (redundant configuration).
  • Probe and Cable Compatibility: Accepts one non-contact 3300 Series 5mm, 8mm, or 3300 XL 8mm probe and extension cable.
  • Backward Compatibility: Directly replaces older non-XL versions of the 3300 Series preamplifier and shares the same 4-hole mounting dimensions.
  • System Interchangeability: Fully interchangeable between components of the same model (probe, cable, preamplifier) ​​without requiring manual matching or recalibration for specific combinations (reference target material is AISI 4140 steel).
Description
330180-90-05 is a representative model in the 3300 XL Proximitor Sensor series. It is primarily used in conjunction with 3300 XL eddy current probes and extension cables to form a complete proximity measurement system. Within the system configuration, this model performs the critical function of signal conditioning and output, making it suitable for industrial monitoring applications that require high stability and consistency.

The 330180-90-05 features a total system length of 9.0 meters (29.5 feet), which includes the probe, cable, and sensor as a complete assembly. This fixed system length simplifies standard installation between the monitored machine and the control cabinet, while also helping to maintain calibration consistency and reduce measurement deviations caused by length variations.

In terms of installation, the 330180-90-05 is designed for panel mounting, allowing it to be installed directly on control panels or instrument enclosures. This mounting method supports organized cabinet layout and convenient maintenance, aligning well with standardized industrial installation practices.

Regarding certifications, the 330180-90-05 is approved to CSA, ATEX, and IECEx standards. These international approvals enable the sensor to be used across different regions and in hazardous area applications where compliance with safety and regulatory requirements is essential.
Alternative Names
33O18O-9O-O5 330I80-90-05 330180 90 05 330180-90-00 330180-90-CN 330180-90-RU 330180-92-05 330180-51-00
Technical notes

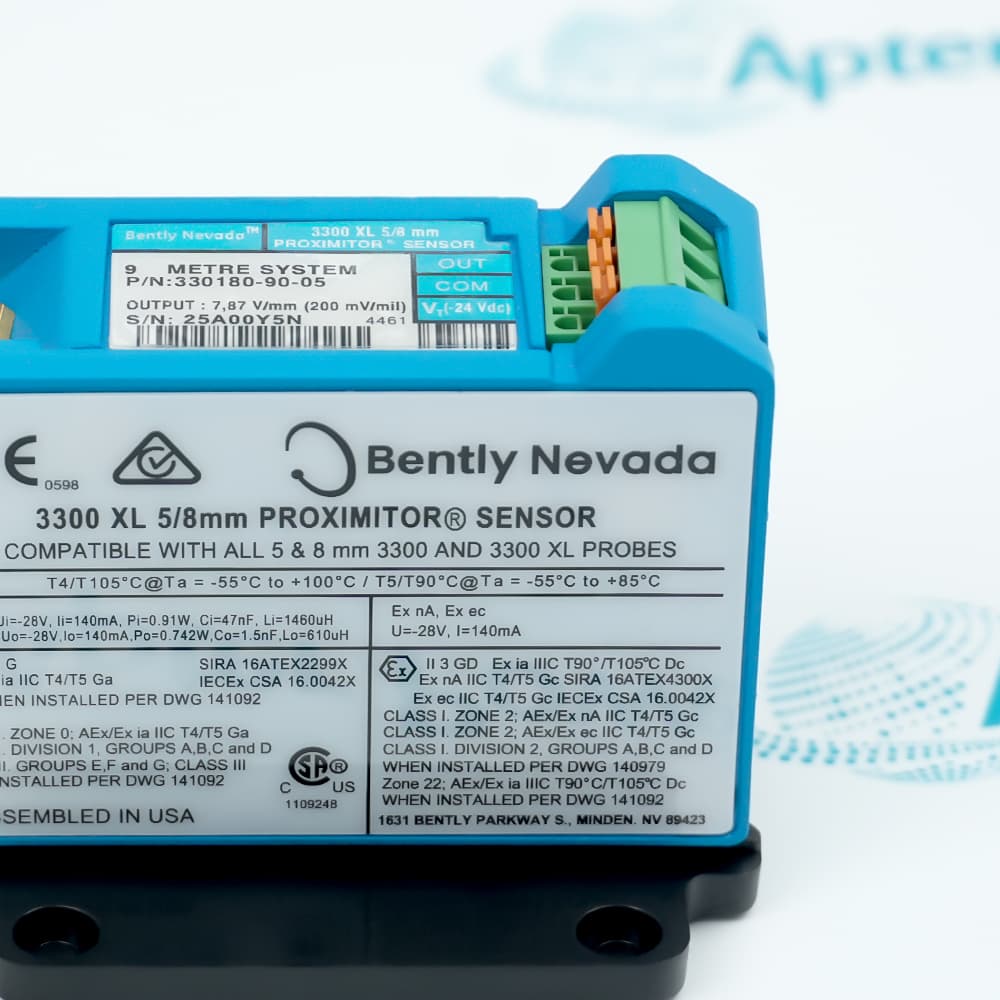

The Bently Nevada 330180-90-05 is a 3300 XL Proximitor® Sensor, the signal conditioning element of the 3300 XL 8 mm Proximity Transducer System . Designed with a panel mount configuration and a total system length of 9.0 meters (29.5 feet), it is a core component for non-contact vibration and position monitoring in industrial rotating machinery.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What two mounting styles does the 3300 XL Proximitor Sensor support?
The sensor supports both high-density DIN-rail mounting and traditional 4-hole panel mounting. Both options use the same footprint as older 3300 XL designs, allowing easy upgrades without modifying existing setups.
How does the Bently Nevada 330180-90-05 handle radio-frequency interference?
The 3300 XL is highly immune to RFI and EMI, enabling reliable operation even in electrically noisy environments. It can be safely installed in non-metallic housings such as fiberglass without adverse effects from nearby radio or electromagnetic sources.
How does the Bently Nevada 330180-90-05 handle signal degradation over long cable runs?
The Bently Nevada 330180-90-05 supports field wiring up to 305 meters (1,000 feet) between the sensor and the monitor. Engineers must consult the frequency response graphs (Figures 10 and 12 in the datasheet) to account for potential signal roll-off when using longer field wiring lengths.
What diagnostic capabilities does the Bently Nevada 330180-90-05 offer for troubleshooting without disconnecting wires?
The Bently Nevada 330180-90-05 features integrated test pin holes on the terminal strip, which allow maintenance technicians to verify sensor performance and signal integrity without the need to remove or disconnect essential field wiring.
What are the primary I/O electrical wiring and field cabling requirements when integrating a Bently Nevada 330180-90-05 Proximitor Sensor into a plant monitoring infrastructure?
The Bently Nevada 330180-90-05 requires a multi-conductor shielded triad field wiring cable with wire sizes ranging from 0.2 to 1.5 mm² (16 to 24 AWG). For optimal performance, the maximum loop length between this 9.0-meter system sensor and the monitoring rack must not exceed 305 meters (1,000 feet) to prevent high-frequency signal roll-off. The terminal strip features SpringLoc connections that eliminate traditional screw-clamping mechanisms, ensuring stable field wiring that resists loosening from machine vibration.
