    Apter Power supports quotations, OEM-document review, and matched-system sourcing for 330180-X1-05 MOD:145004-75.

330180-X1-05 MOD:145004-75

/ 4.9
1001 reviews | Need a Specific Revision?

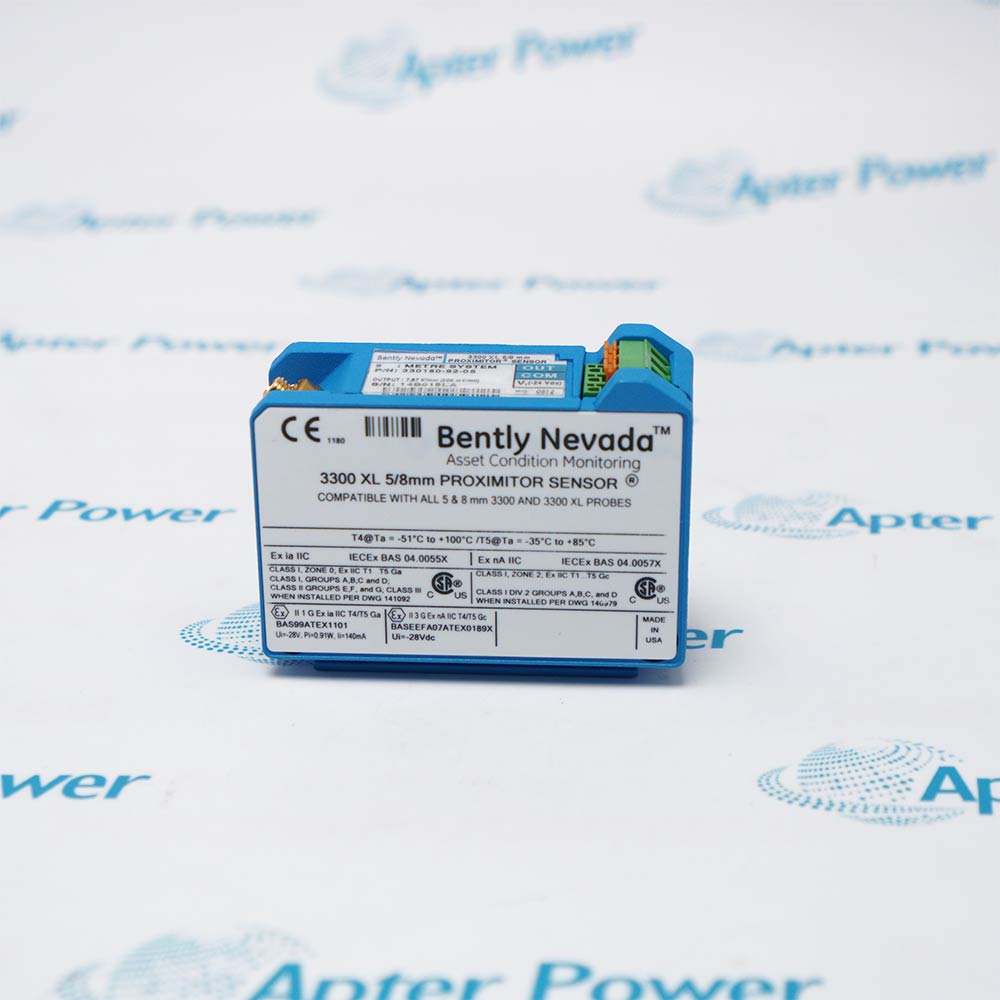

Bently Nevada 330180-X1-05 MOD:145004-75 is a custom-configuration 3300 XL 8 mm Proximitor Sensor; X1 and modification 145004-75 require exact OEM drawing review.
In Stock
Ships by Monday, October 26
Fast Shipping Available
Get a quick price for 330180-X1-05 MOD:145004-75
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330180-X1-05 MOD:145004-75

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330180-X1-05 MOD:145004-75
  • Product Family:
    3300 XL Proximitor Sensor
  • Product Type:
    3300 XL 8 mm Proximitor Sensor, custom MOD configuration
  • Stock:
    1
  • Base part number:
    330180
  • Product role:
    3300 XL 8 mm Proximitor Sensor
  • Standard order format:
    330180-AA-BB
  • Standard -05 code:
    CSA/ATEX/IECEx in standard table; MOD scope unconfirmed
  • Custom option:
    X1 — OEM drawing required
  • Modification reference:
    145004-75
  • System interface:
    Matched probe and extension cable
  • Evidence boundary:
    Public table does not decode X1 or this MOD
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Order-Code Control System Matching Installation Review Product Applications

Features:

  • Sensor role: Custom 3300 XL 8 mm Proximitor Sensor for a matched proximity-measurement channel.
  • Signal conditioning: Powers the probe circuit and converts gap changes into the proportional output.
  • Identity boundary: X1 and MOD:145004-75 remain controlled by the exact OEM modification record.
The Proximitor Sensor is the conditioning stage between the installed probe system and the machinery-monitoring input.

Public 330180 family data establishes the base function, but it does not decode the X1 field or the MOD:145004-75 implementation.

A replacement decision therefore depends on the complete nameplate, probe and extension-cable pairing, monitor input and MOD drawing.

Apter Power provides documentation, quotation and procurement support for the Bently Nevada 330180-X1-05 MOD:145004-75 3300 XL 8 mm Proximitor Sensor, custom MOD configuration.
Bently Nevada 330180-X1-05 MOD:145004-75 3300 XL 8 mm Proximitor Sensor, custom MOD configuration Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • 330180: Base 3300 XL 8 mm Proximitor Sensor family.
  • X1: Custom option not decoded in the public standard-order table.
  • 05: Approval suffix in the standard table; it does not by itself establish the approval scope of this X1/MOD unit.
  • MOD:145004-75: Modification reference that must be matched to the OEM record.
  • Match the complete 330180-X1-05 MOD:145004-75 nameplate, not only the 330180 base number.
  • Confirm the installed probe and extension cable against the required total transducer-system length.
  • Verify the monitor input, power and wiring before commissioning.
  • Do not treat a standard 330180 variant as a direct substitute without the OEM MOD drawing.
  • Confirm the MOD-specific mounting arrangement and mechanical drawing.
  • Check supply, wiring, grounding and connector condition against the installed system record.
  • For hazardous areas, verify the exact marking, MOD approval record and applicable certificate.
  • After installation, verify probe gap, linear response and monitor-channel operation before returning the machine to service.
  • Radial shaft-vibration measurement on rotating machinery.
  • Axial-position or thrust-position monitoring when configured for that measurement.
  • Matched proximity-system service in machinery protection and condition monitoring channels.
  • Exact-code retrofit support where the installed unit carries custom X1 and MOD:145004-75 identification.
Description
330180-X1-05 MOD:145004-75 is a custom 3300 XL 8 mm Proximitor Sensor configuration. It powers the matched probe circuit, conditions the eddy-current signal and supplies the proportional output used by the monitoring channel.

The public 330180 family information establishes the product role, while X1 and MOD:145004-75 remain controlled by the OEM modification record. A standard 330180 suffix cannot be used to infer the modified unit's mechanics, wiring or approval scope.

A service replacement should retain the complete nameplate and be checked against the installed probe, extension cable, monitor input and MOD drawing before commissioning.
Alternative Names
330180-X1-05 MOD:145004-75 330180 X1 05 MOD 145004 75 330180X105 14500475 Bently Nevada 330180-X1-05 MOD:145004-75 Baker Hughes 330180-X1-05 MOD:145004-75 3300 XL Proximitor Sensor 145004-75 330180-X1-05 145004-75 145004-75 Proximitor Sensor
Technical notes
Baker Hughes identifies 330180 as a 3300 XL 8 mm Proximitor Sensor and publishes standard 330180-AA-BB codes. The public order table does not define X1 or MOD 145004-75. Do not assign a standard length, mounting style, approval scope, or interchangeability claim without the applicable OEM modification record and drawing.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can 330180-X1-05 MOD:145004-75 be replaced by a standard 330180-90-05 sensor?
No direct substitution can be approved from the standard code. Because X1 and MOD 145004-75 are not decoded in the public table, compare the OEM modification record, mounting arrangement and matched total system length first.
What should an RFQ for 330180-X1-05 MOD:145004-75 include?
Provide the complete nameplate, clear photographs, the custom drawing if available, and the installed probe, extension-cable and mounting details.
Can the X1 option in 330180-X1-05 MOD:145004-75 be decoded from the public 330180 table?
No. The public table lists numeric system-length and mounting codes; X1 must be verified from the applicable OEM modification record.
Can 330180-X1-05 MOD:145004-75 work with any 3300 XL extension cable?
No. The probe plus extension cable must match the Proximitor system length and the intended 3300 XL 8 mm transducer configuration.
Does option 05 on 330180-X1-05 MOD:145004-75 approve every hazardous-area installation?
The standard 330180 table assigns -05 to listed approvals, but the X1/MOD-specific approval scope is not confirmed. Verify the exact marking, MOD record, certificate and site conditions.
Will 330180-X1-05 MOD:145004-75 preserve the existing probe gap calibration automatically?
Only after the complete matched system is verified. Check the probe, cable, sensor, total length and output response during commissioning.
What should be checked if output changes after installing 330180-X1-05 MOD:145004-75?
Check the full identities, system length, connectors, wiring, supply voltage, mounting and probe gap before changing monitor settings.
What if the MOD record for 330180-X1-05 MOD:145004-75 is unavailable?
Do not approve interchangeability from the base number alone. Retain the unit for exact-code sourcing and obtain the OEM drawing or original equipment record.
