    Apter Power provides quotations, OEM documentation and exact-code sourcing support for this NSv probe.

330905-00-18-05-02-05

/ 4.9
1001 reviews | Need a Specific Revision?

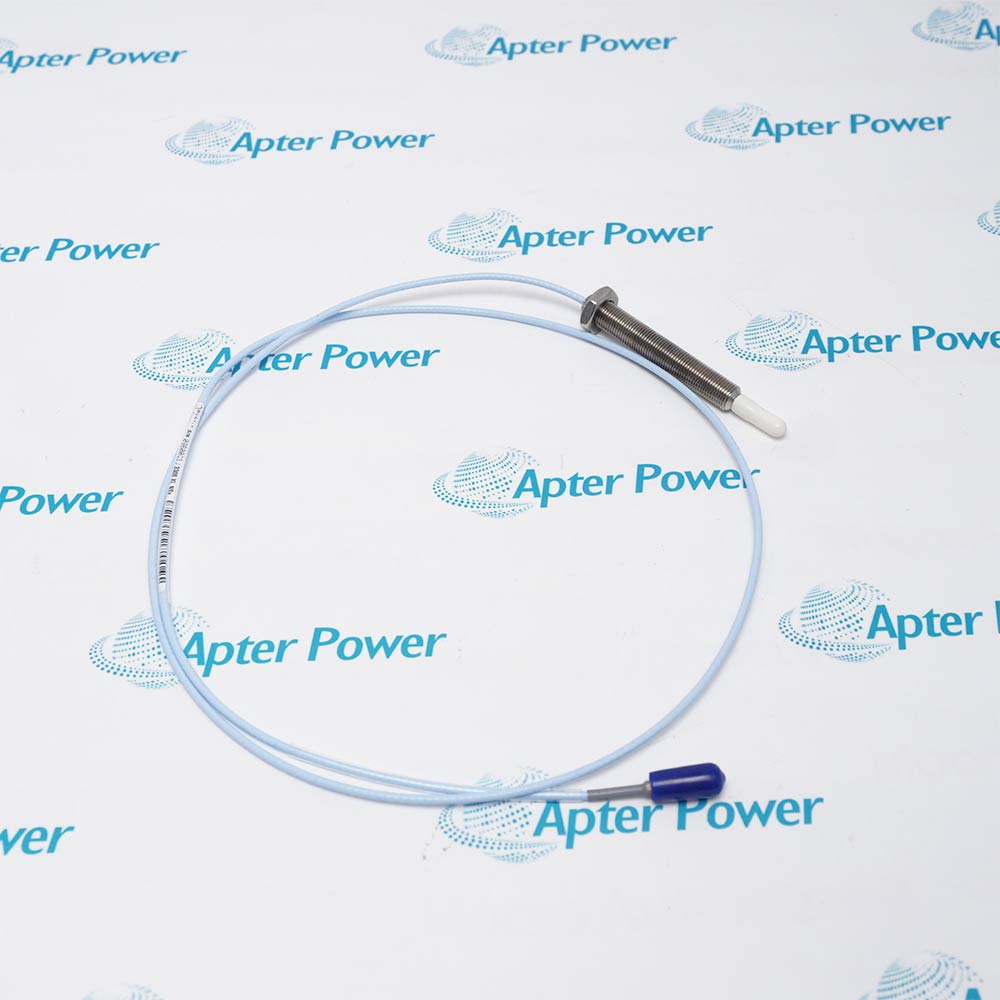

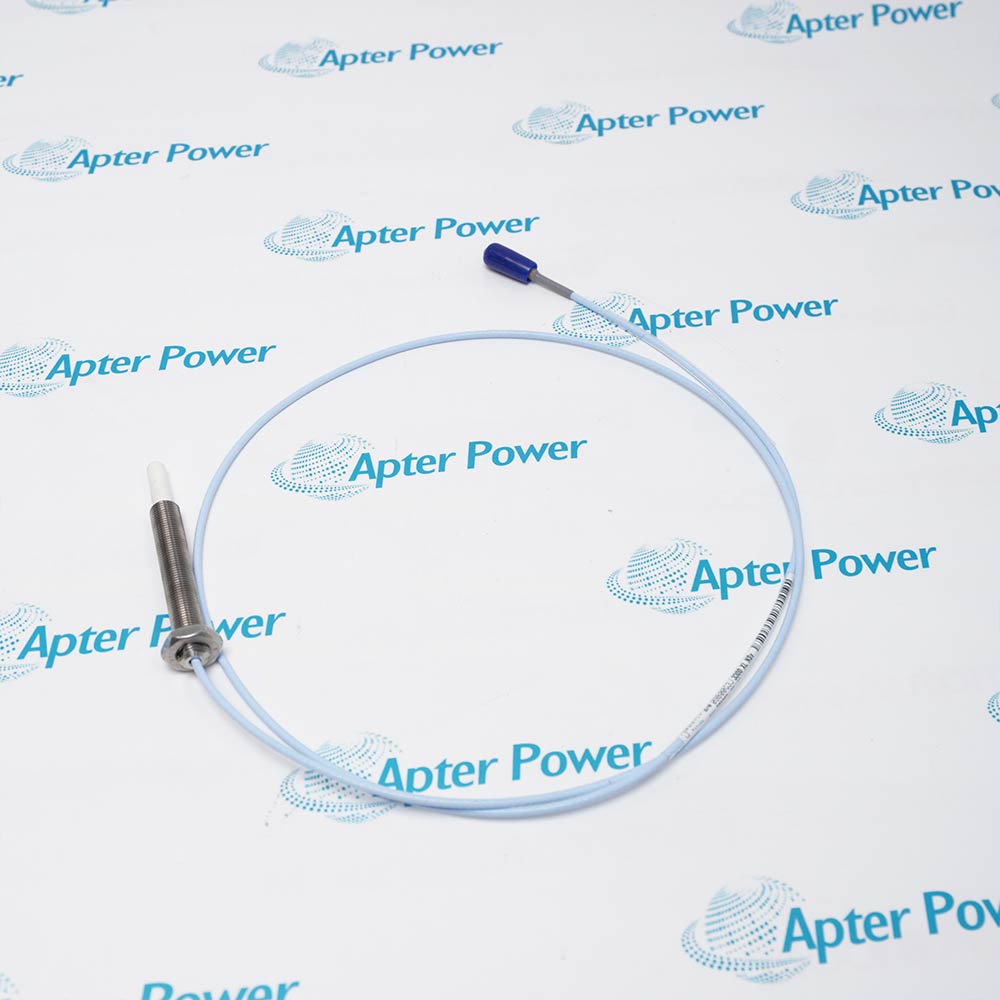

Bently Nevada 330905-00-18-05-02-05 is a standard-mount, unarmored M10×1 NSv proximity probe with a 180 mm case, 0.5 m lead and standard ClickLoc cable.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330905-00-18-05-02-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330905-00-18-05-02-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330905-00-18-05-02-05
  • Product Family:
    NSV Probe
  • Product Type:
    3300 NSv unarmored M10×1 proximity probe
  • Stock:
    1
  • Product Classification:
    3300 NSv Proximity Probe
  • Thread Configuration:
    M10 x 1 (Unarmored, Metric)
  • Unthreaded Length:
    0 mm
  • Overall Case Length:
    180 mm
  • Cable Length:
    0.5 m probe lead
  • Termination Type:
    Miniature coaxial ClickLoc
  • Cable Construction:
    Standard cable (option 02; not FluidLoc)
  • Agency Approvals:
    05 multiple-approvals ordering option; verify applicable certification for site
  • Weight:
    0.1 kg
  • Estimated shipping dimensions:
    1.7 × 1.5 × 67 cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Model identity Cable and connector System documentation Product Applications

Features:

  • Unarmored M10×1 probe: The base code is the metric standard-mount member of the NSv range without armor.
  • Specified case length: The 00-18 geometry identifies a 0 mm unthreaded section and 180 mm overall case.
  • 0.5 m standard lead: The 05-02 selection combines a half-metre lead with a miniature coaxial ClickLoc connector and standard cable.
The full order code separates this unarmored metric probe from other NSv mounting and cable configurations.

The 05 lead-length selection describes the probe segment; an NSv system also uses an extension cable and Proximitor Sensor.

The final 05 is an OEM multiple-approvals order option, while installation suitability depends on the delivered marking and applicable certification documents.

Apter Power supports documentation review, quotation and sourcing for the Bently Nevada 330905-00-18-05-02-05 3300 NSv Proximity Probe.
Bently Nevada 330905-00-18-05-02-05 3300 XL NSv Standard-Mount Probe Manuals,Datasheets,Link
Important Notice: These links are site navigation, not a complete-code OEM datasheet. Confirm the installed probe and system configuration with the manufacturer documentation.
  • The complete order code is 330905-00-18-05-02-05; retain every field when asking for a replacement quotation.
  • 330905 is the M10×1 unarmored standard-mount probe; 330910 is a separate armored catalog base.
  • The 00 field gives 0 mm unthreaded length and the 18 field gives 180 mm case length.
  • The 05 lead-length field specifies 0.5 m, not 5.0 m.
  • Connector option 02 is a miniature coaxial ClickLoc connector on standard cable.
  • Option 02 does not list a connector protector; option 01 is the standard-cable option with protector.
  • FluidLoc is a different cable option: 12 without protector or 11 with protector, according to the OEM chart.
  • The final 05 identifies the multiple-approvals ordering option, not a blanket permission for any installation.
  • Baker Hughes defines an NSv transducer system as probe, NSv extension cable and NSv Proximitor Sensor; this page offers the coded probe only.
  • System electrical-performance tables in 147385 describe a specified complete system and test conditions, not a standalone 330905 probe rating.
  • For a replacement file, record the installed probe code, extension cable and Proximitor code separately.
  • Baker Hughes describes NSv systems for centrifugal air, refrigeration and process-gas compressors with restricted installation space.
  • The complete NSv system supports radial vibration or position and axial position monitoring on suitably sized machine targets.
  • The OEM also lists tachometer, zero-speed and phase-reference measurements as NSv system applications; the correct probe, extension cable and Proximitor configuration remains required.
Description
330905-00-18-05-02-05 is a Bently Nevada 3300 NSv standard-mount probe. Baker Hughes identifies 330905 as the unarmored M10×1 version; the 00 and 18 options specify a 0 mm unthreaded section and 180 mm overall case.

The 05 probe-length option specifies 0.5 m. Connector option 02 is a miniature coaxial ClickLoc connector with standard cable; unlike option 01, its description does not include a connector protector. The final 05 is the manufacturer’s multiple-approvals ordering option, not a blanket site-installation approval.

The NSv probe is one component of a measurement system that also uses an extension cable and NSv Proximitor Sensor. For 330905-00-18-05-02-05 replacement sourcing, retain the full catalog code and confirm the installed system and applicable documentation before selecting other components.
Alternative Names
3309050018050205 330905 00 18 05 02 05 330905-00-18-05-2-05
Technical notes
Baker Hughes datasheet 147385 Rev. R identifies 330905 as the unarmored M10×1 3300 NSv probe. The complete -00-18-05-02-05 code specifies 0 mm unthreaded length, 180 mm case, 0.5 m standard probe lead and ClickLoc connector without protector; -05 is a multiple-approvals ordering option, not a site-installation approval. Verify the installed unit and complete transducer-system records before sourcing.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Our compressor spare request specifies FluidLoc cable. Does 330905-00-18-05-02-05 meet that request?
This complete code selects standard cable with a ClickLoc connector. Baker Hughes lists FluidLoc under connector option 12, so we would ask for a corrected full code before placing a FluidLoc order.
A compressor connection has been exposed to contamination. What connector protection can be requested with 330905-00-18-05-02-05?
Option 02 does not include a connector protector. Baker Hughes lists a separate NSv connector-protector kit, 40113-03; we can help identify that accessory and its OEM instructions for the connection.
Our stores team proposes an armored 330910 in place of 330905-00-18-05-02-05. Can we record them as the same spare?
Baker Hughes lists 330905 as unarmored and 330910 as armored. They are different ordered constructions; please keep the installed full code on the request and review any proposed change against the equipment record.
A classified-area project requests 330905-00-18-05-02-05. Is its order code sufficient to release the installation?
The final 05 selects the OEM multiple-approvals option, but that alone does not determine site permission. We can provide the applicable documentation for review against the delivered markings and project conditions.
A short-case probe is offered for a constrained bearing housing. Does that quotation still identify 330905-00-18-05-02-05?
This configuration has a 180 mm case and M10×1 unarmored body in the Baker Hughes ordering chart. Compare the proposed case drawing and complete code with the removed unit before accepting the substitution.
Our NSv channel is specified as a complete 5 m measurement system. Can 330905-00-18-05-02-05 alone complete the bill of materials?
This code supplies a 0.5 m probe lead, not the whole measurement chain. Baker Hughes specifies a matching NSv extension cable and Proximitor Sensor for the selected total length; we can help assemble the correct documentation and quotation.
