Features:
- Dedicated signal link between the 330400/330425 Accelerometer and monitoring system termination
- Integrates 3-conductor shielded 22 AWG construction with 3-socket plug and terminal lug connectivity
- Supports vibration monitoring applications across industrial rotating machinery installations

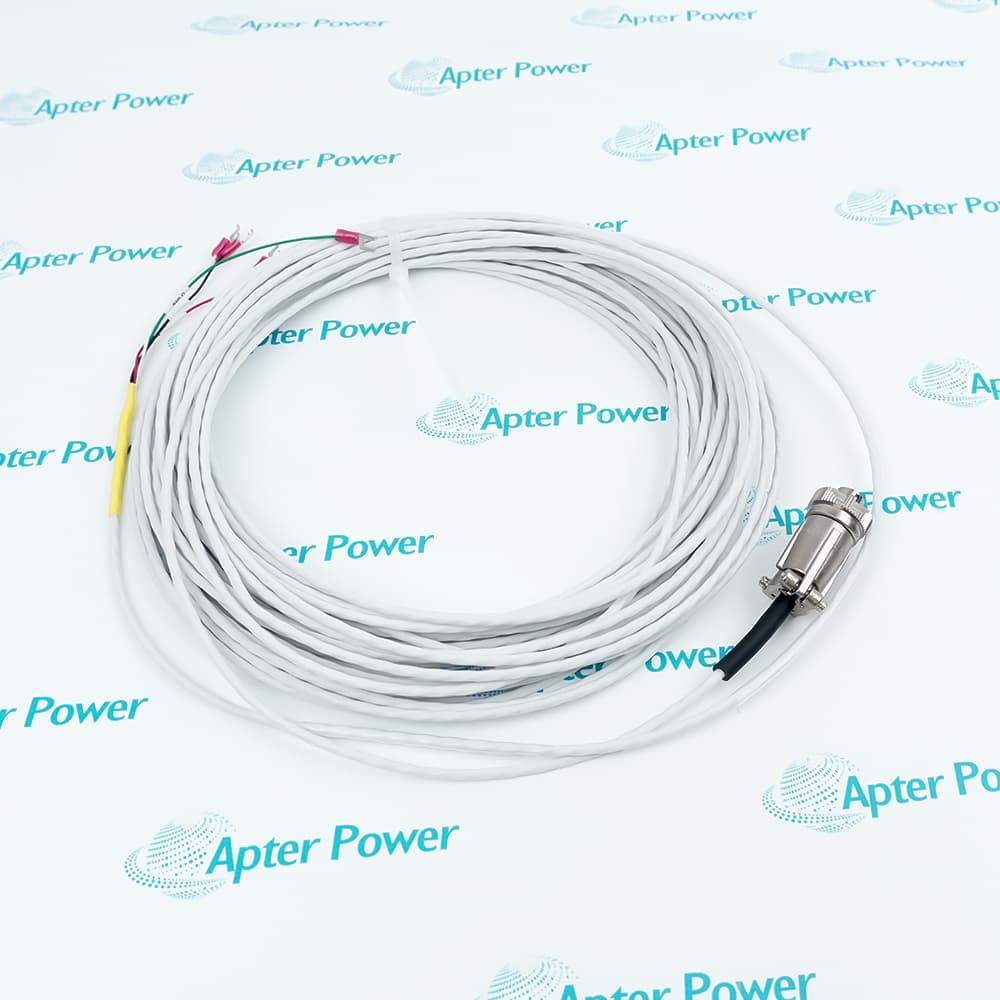

The Bently Nevada 16925-70 operates as the dedicated interconnecting cable for the 330400 and 330425 Accelerometer Acceleration Transducer, providing reliable signal transmission between the accelerometer and the monitoring system interface. It continuously maintains shielded signal integrity across lengths from 2.0 ft (0.6 m) to 99 ft (30 m) and routes the 3-conductor signal path through the 3-socket plug and terminal lugs to support steady-state operation of vibration measurement channels. Seamless signal transmission is standard with the 16925-70, however using proper shield grounding practices at the monitoring system end will allow optimal noise suppression in the event of electromagnetic interference.
The 16925-70 provides essential signal path functions common to the entire vibration monitoring channel, and is a critical component of the measurement path, directly affecting the proper, normal operation of the overall accelerometer-based monitoring system. One 16925-70 cable is required per accelerometer installation depending on the distance between the transducer and the termination interface. The 16925-70 occupies minimal routing space in the installation environment and is always positioned between the accelerometer socket and the system terminal block or junction box.
For multi-channel vibration monitoring applications, the monitoring system requires an additional 16925-70 cable installed for each accelerometer channel. In addition to standard single-channel operation, the multi-point configuration also performs parallel signal routing. The 16925-70 multi-channel setup executes reliable transmission using the shielded 3-conductor construction specified in the cable design.
The 16925-70 Bently Nevada 3-core shielded cable may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 16925-70 3-core shielded cable Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 16925-70 3-core shielded cable Specs
General
- Manufacturer Bently Nevada
- Model 16925-70
- Condition New Original ready stock
- Product Family 16925-20,16925-50
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Proximity Probe Interconnect: Connects 3300 XL transducer systems to machinery protection monitors.
- Vibration Signal Transmission: Carries dynamic analog voltage data over a 70-foot span.
- Industrial Noise Shielding: Blocks electromagnetic interference from disrupting low-voltage sensor data.
- Machinery Condition Monitoring: Supports real-time tracking of shaft displacement, position, and speed.
- Zero Software Interface: This product is a passive analog hardware component with no software, programming interface, or configurable settings.
- Physical Wiring Only: Configuration is strictly manual, requiring physical termination of the three internal conductors (Power, Signal, and Common) and the shield drain wire.
- Host System Setup: All operational parameters are configured on the connected monitoring rack using Bently Nevada Configuration Software.
- Shield Grounding Guard: The shield drain wire must be grounded at exactly one end (typically at the monitor side) to actively prevent ground loops.
- No Firmware Flash: Lacks internal microprocessors, firmware chips, or flashable memory.
- Hardware Maintenance: Requires physical inspection of shielding and connectors rather than software updates.
- System Level Updates: Needs updates only on the connected monitoring rack software platforms.
