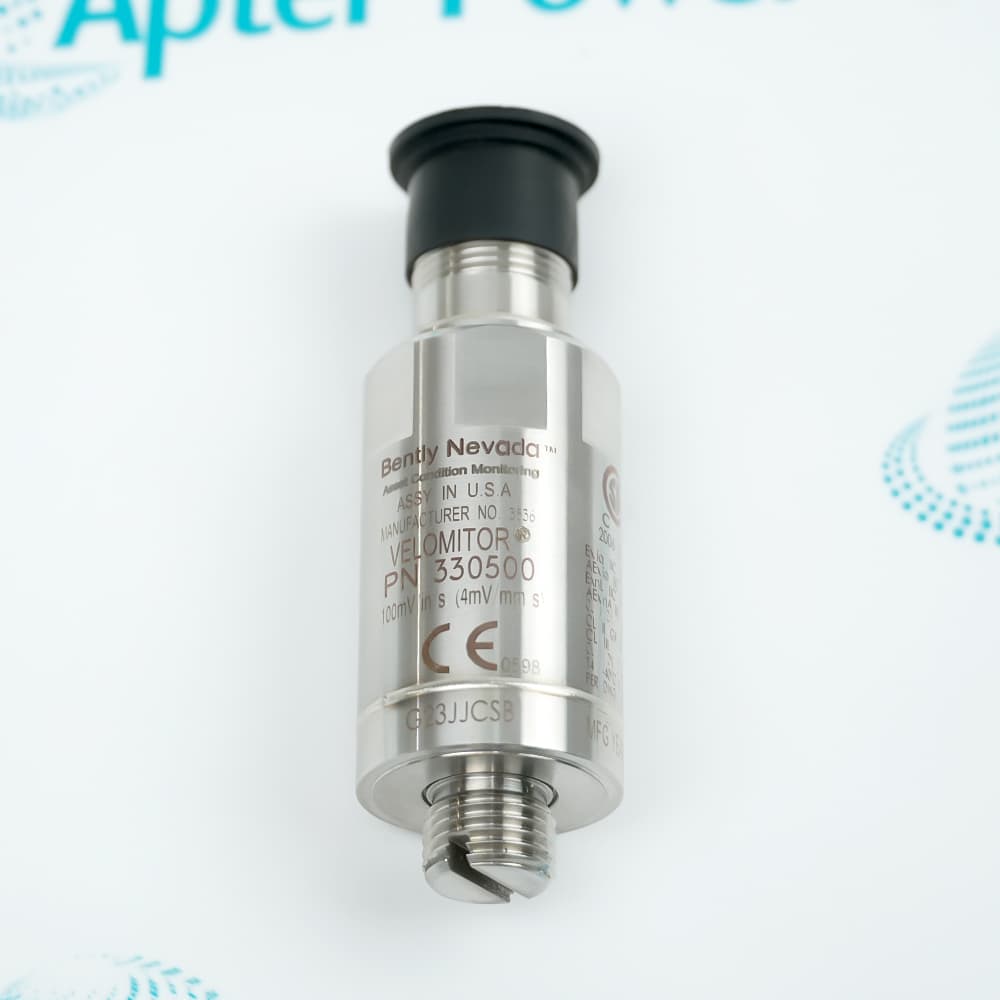

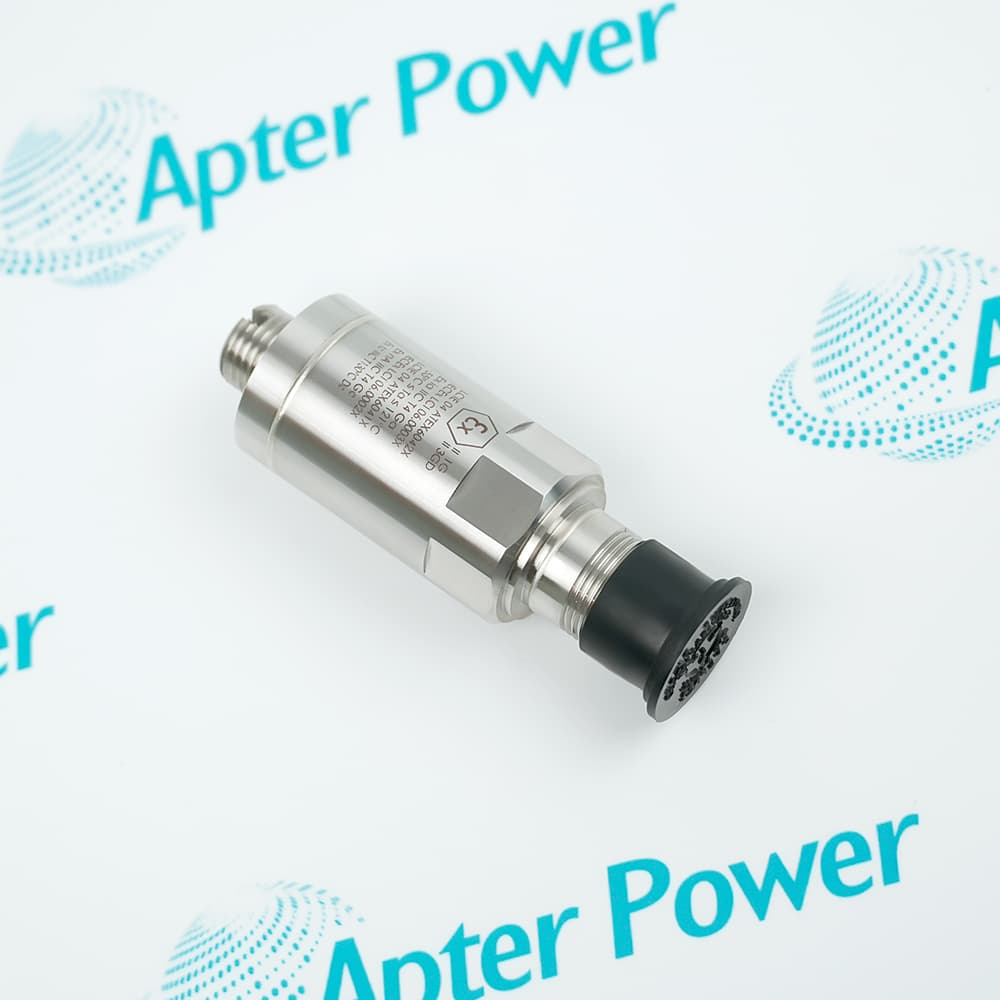

    Apter Power offers this brand new, genuine Bently Nevada 330500-01-00 sensor to ensure your mechanical protection systems operate with the highest accuracy.

330500-01-00

/ 4.9
1001 reviews | Need a Specific Revision?
The 330500-01-00 piezoelectric speed sensor provides reliable performance and efficient solutions in a variety of industrial environments, reducing deployment costs and shortening deployment cycles.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330500-01-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330500-01-00

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330500-01-00
  • Product Family:
    330500 Velomitor Piezo-velocity Sensor
  • Product Type:
    Velomitor Piezo-velocity Sensor
  • Stock:
    4
  • Mounting Thread Adaptor:
    1/2 - 20 UNF
  • Agency Approval:
    Not required
  • Magnetic Field Susceptibility:
    <51 min/s/gauss (50 gauss, 50–60 Hz).
  • Relative Humidity:
    Up to 100% (non-submerged); hermetically sealed case.
  • Operating Temperature Range:
    -55°C to 121°C (-67°F to 250°F).
  • Grounding:
    Case isolated.
  • Weight:
    0.15 kg
  • Estimated shipping dimensions:
    2.5x2.5x8cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Safety & Compliance Compatibility & Interoperability

Features:

  • Wear-Free Solid-State Architecture
  • Versatile Multi-Angle Orientation Mounting
  • Exceptional Environmental Resilience and Construction
The Bently Nevada 330500-01-00 relies on an advanced piezoelectric accelerometer design incorporating embedded integrated electronics. Having no moving internal components, it completely eliminates the risks of mechanical degradation, friction, and physical wear over continuous operation, ensuring a massive lifespan and stable performance under extreme machine vibrations.

Thanks to its solid-state construction, the Bently Nevada 330500-01-00 is completely unaffected by gravity or installation alignment. Industrial engineers can mount the sensor vertically, horizontally, or at any precise oblique orientation angle on the machine's casing or bearing housing without sacrificing data sensitivity or introducing measurement bias.

Encased in a hermetically sealed 316L stainless steel shell with a robust Mil-C-5015 connector, the Bently Nevada 330500-01-00 stands up to harsh conditions. It withstands 100% relative humidity, tolerates severe thermal swings from -55°C up to 121°C, and survives peak mechanical shocks of up to 5,000 g without loss of factory calibration.

The 330500-01-00 Bently Nevada Velomitor Piezo-velocity Sensor may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330500-01-00 Velomitor Piezo-velocity Sensor Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330500-01-00 Velomitor Piezo-velocity Sensor

General

  • Manufacturer GE / Bently Nevada
  • Model 330500-01-00
  • Condition New Original ready stock
  • Product Family 330500-00-00,330500-02-CN,330500-02-04
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Critical Asset Protection: The Bently Nevada 330500-01-00 monitors absolute casing vibration on large steam and gas turbines to detect unbalance and misalignment.
  • Pump & Compressor Monitoring: Utilized by the Bently Nevada 330500-01-00 to identify early-stage cavitation or structural looseness in high-pressure process pumps.
  • Industrial Gearbox Analysis: Provides the Bently Nevada 330500-01-00 with the necessary high-frequency bandwidth to detect gear meshing issues and bearing degradation.
  • Structural Health Monitoring: Deployed by the Bently Nevada 330500-01-00 on machine casings to provide a baseline for overall structural integrity in harsh industrial settings.
  • Hazardous Area Certification: The Bently Nevada 330500-01-00 is fully certified under ATEX/IECEx standards, ensuring safety in potentially explosive atmospheres.
  • Marine Standards: Complies with ABS requirements, making the Bently Nevada 330500-01-00 suitable for onboard critical machinery monitoring in offshore and marine environments.
  • Global Regulatory Adherence: The Bently Nevada 330500-01-00 meets RoHS and China RoHS directives, confirming global environmental compliance in supply chains.
  • Quality Assurance: Manufactured to Bently Nevada's rigorous internal quality protocols, every Bently Nevada 330500-01-00 ensures predictable safety performance under nominal operating conditions.
  • Monitoring System Integration: The Bently Nevada 330500-01-00 is specifically designed to be compatible with Bently Nevada's 3300 and 3500 series vibration monitoring systems.
  • Flexible Mounting Options: With various thread adaptors, the Bently Nevada 330500-01-00 offers high mechanical interoperability, allowing it to replace older sensor types on diverse machine casings.
  • Cabling Standardization: The Bently Nevada 330500-01-00 utilizes industry-standard 2-pin MIL-C-5015 connectors, ensuring compatibility with a wide range of global industrial cabling inventories.
  • Retrofit Capability: The compact form factor of the Bently Nevada 330500-01-00 ensures easy retrofitting into space-constrained areas where legacy sensors were previously mounted.
Description
The Velomitor Piezo-velocity Sensor 330500-01-00 is a precision instrument designed for accurate vibration velocity measurement in rotating machinery applications. This advanced sensor, designated as 330500-01-00, converts mechanical motion into reliable electrical signals for condition monitoring and predictive maintenance systems. The 330500-01-00 configuration provides dependable performance across a wide range of industrial environments where vibration analysis is critical to operational safety and equipment longevity.

The 330500-01-00 features a 1/2 - 20 UNF mounting thread adaptor, ensuring secure and standardized installation on monitoring points throughout industrial equipment. This thread specification on the 330500-01-00 allows for direct attachment to commonly available mounting studs and fixtures in vibration monitoring applications. The robust mechanical interface of the 330500-01-00 guarantees stable sensor positioning and consistent measurement accuracy during continuous operation.

The Velomitor Piezo-velocity Sensor 330500-01-00 is provided without agency approval requirements, streamlining the procurement and installation process for standard industrial applications. This designation for the 330500-01-00 indicates that the sensor meets standard operational specifications without necessitating additional third-party certification. The 330500-01-00 therefore represents an efficient solution for facilities where specialized agency approvals are not mandated, reducing both cost and lead time for deployment.
Alternative Names
33O5OO-O1-OO 330500-0I-00 330500 01 00 330500-01-05 330500-01-CN 330500-01-RU 330500-01-BR 330500-02-04
Technical notes
The Bently Nevada 330500-01-00 requires careful mounting on rigid machine surfaces to ensure accurate frequency response and to avoid signal contamination from mechanical resonance. When integrating the Bently Nevada 330500-01-00 into displacement monitoring systems, ensure proper signal conditioning to prevent electrical noise amplification.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the 330500-01-00 base strain sensitivity?
The base strain sensitivity is 0.005 in/s per micro-strain, indicating very low sensitivity to mounting surface strain.
What is the 330500-01-00 shock survivability rating?
It can withstand shock levels up to 5,000 g peak (maximum) without damage, ensuring durability in harsh industrial conditions.
What type of dynamic output signal does the Bently Nevada 330500-01-00 provide, and how is its I/O wiring handled?
The Bently Nevada 330500-01-00 outputs a continuous velocity-proportional analog voltage via a hermetically sealed 2-pin Mil-C-5015 connector. Its internal circuitry uses a negative output bias voltage of -12 ±3.0 VDC referenced to Pin A. When the casing motion shifts toward the connector, Pin A turns positive relative to Pin B. It seamlessly wires into continuous vibration monitors using standard two-conductor twisted, shielded cables like the Bently Nevada 9571-NN or 84661-NN series.
Can the Bently Nevada 330500-01-00 output be integrated into a programmable logic controller (PLC) or distributed control system (DCS) for displacement tracking?
While the Bently Nevada 330500-01-00 provides deep diagnostics for velocity, integrating its raw output signal to obtain displacement data is explicitly discouraged. Integrating the analog velocity wave amplifies high-frequency and circuit-induced electrical noise from external interference. This noise amplification can severely degrade the overall transducer system performance and generate highly inaccurate, corrupted displacement readings.
Does the Bently Nevada 330500-01-00 support direct integration with third-party PLC/DCS systems?
Yes, the Bently Nevada 330500-01-00 provides a standard voltage output that can be interfaced with standard industrial monitors; however, for full diagnostic capability, it is recommended to integrate with Bently Nevada monitoring hardware.
How does the Bently Nevada 330500-01-00 handle long cable runs?
The Bently Nevada 330500-01-00 maintains signal integrity over cable lengths up to 305 meters (1,000 ft) due to its low output impedance, provided the recommended shielded cabling is used.
