Bently Nevada 330500-02-04
Bently Nevada 330500-02-04
Bently Nevada 330500-02-04
Bently Nevada 330500-02-04
Bently Nevada 330500-02-04
Bently Nevada 330500-02-04
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Active / Available from OEM
    Apter Power supports quotations, adapter verification, cable review, and velocity-monitoring application matching.

330500-02-04

/ 4.9
1001 reviews | Need a Specific Revision?

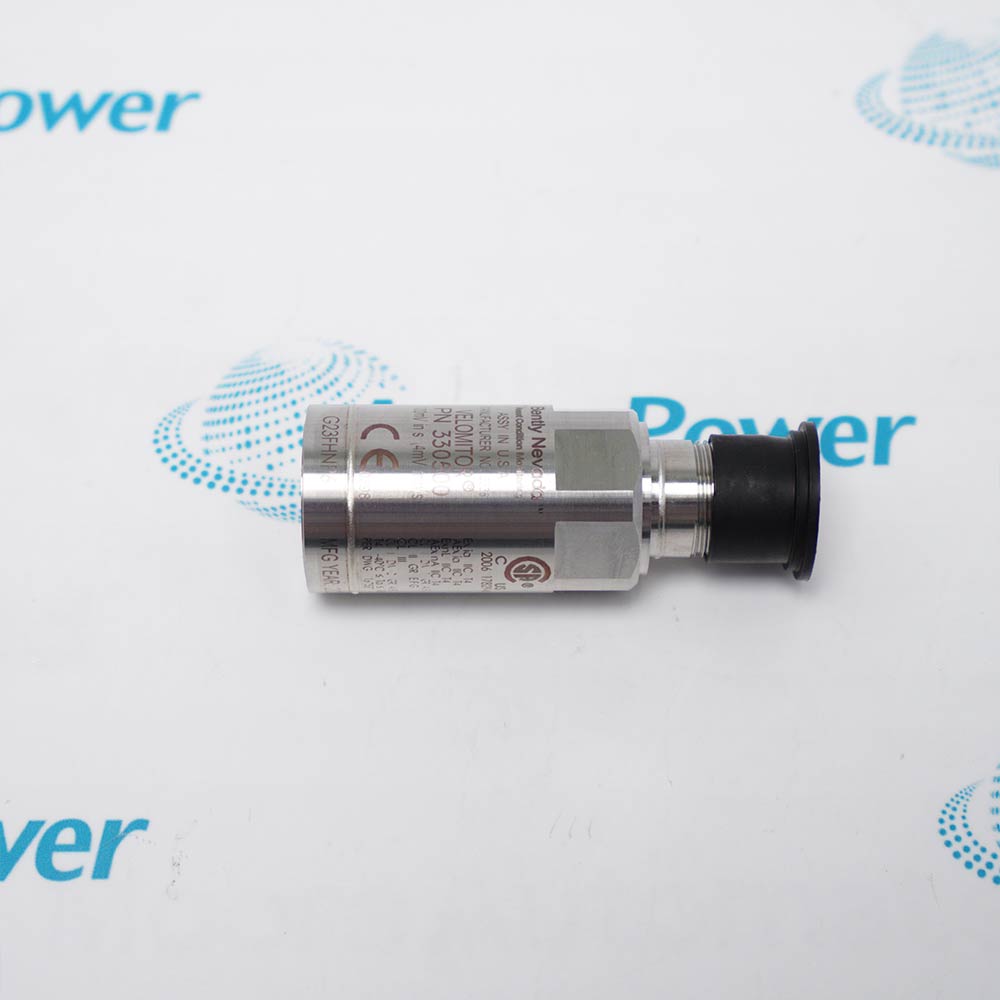

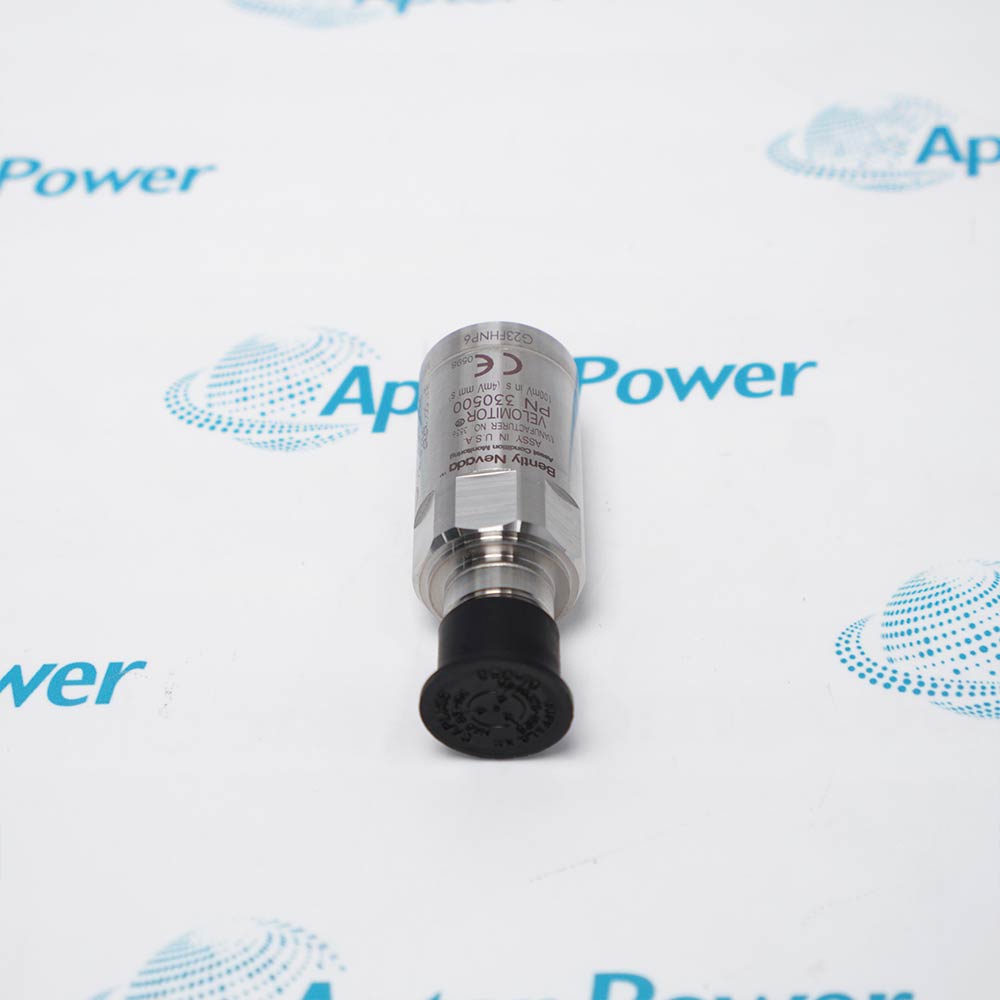

Bently Nevada 330500-02-04 Velomitor piezo-velocity sensor with an M8 x 1 mounting adapter and multiple agency approvals.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330500-02-04
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330500-02-04

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330500-02-04
  • Product Family:
    330500 Velomitor Piezo-velocity Sensor
  • Product Type:
    Velomitor Piezo-velocity Sensor
  • Stock:
    1
  • Mounting Thread Adapter:
    M8 x 1
  • Agency Approval:
    Multiple approvals (CSA, ATEX)
  • Sensitivity:
    3.94 mV/mm/s (100 mV/in/s) ±5%
  • Frequency Response:
    4.5 Hz to 5 kHz ±3 dB
  • Velocity Range:
    1270 mm/s (50 in/s) peak
  • Connector:
    2-pin MIL-C-5015 receptacle
  • Weight:
    0.142 kg
  • Estimated shipping dimensions:
    2.53 cm diameter x 6.32 cm height
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Velocity Measurement Adapter Review Installation Review

Features:

  • Velocity output: The 330500 provides 3.94 mV/mm/s (100 mV/in/s) sensitivity for machinery vibration measurement.
  • M8 adapter: Order option 02 supplies the M8 x 1 mounting thread adapter.
  • Multiple approvals: Order option 04 identifies the CSA and ATEX multiple-approval configuration.

Bently Nevada 330500-02-04 is a solid-state Velomitor sensor intended for bearing-housing, casing, and structural vibration measurements in velocity units.

Its two-pin connector and embedded electronics form part of the measurement circuit. The monitor input, cable, mounting adapter, and polarity must be reviewed as a complete installation.

Procurement review should confirm the 02 mounting option and 04 approval option together with the required sensitivity, frequency response, and monitoring application.

Availability is subject to Apter Power's current inventory and sourcing confirmation.

Bently Nevada 330500-02-04 Velomitor Piezo-velocity Sensor Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Bently Nevada 330500-02-04 Velomitor Piezo-velocity Sensor Specs

General

  • ManufacturerBently Nevada
  • Model330500-02-04
  • ConditionNew and factory sealed
  • Product Family330500 Velomitor Piezo-velocity Sensor
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Absolute vibration: The sensor measures bearing-housing, casing, or structural vibration relative to free space.
  • Velocity sensitivity: The specified output is 3.94 mV/mm/s (100 mV/in/s) ±5%.
  • Measurement boundary: The official response is 4.5 Hz to 5 kHz at ±3 dB; displacement integration can amplify electrical noise.
  • Option 02: The first suffix selects an M8 x 1 mounting thread adapter.
  • Sensor interface: The Velomitor body uses a threaded mounting arrangement that must match the prepared machine surface.
  • Order-code check: Do not confuse the adapter option with a different 330500 mounting code.
  • Orientation: The solid-state sensor can be mounted vertically, horizontally, or at another angle.
  • Connector: The sensor uses a two-pin MIL-C-5015 receptacle and requires the correct interconnection cable.
  • Signal quality: An unsuitable casing location or mounting method can reduce response or produce non-representative vibration data.
Description

The Bently Nevada 330500-02-04 is a two-pin Velomitor piezo-velocity sensor for absolute bearing-housing, casing, or structural vibration measurements on machinery with rolling-element bearings.

Official documentation for 330500-02-04 specifies 100 mV/in/s sensitivity, a 4.5 Hz to 5 kHz frequency response at +/-3 dB, an M8 x 1 mounting adapter, and multiple approvals.

Before ordering 330500-02-04, verify the complete suffix, mounting point, two-pin cable connection, monitor input, approval requirements, and required measurement units.

Alternative Names
Bently Nevada 330500-02-04 Baker Hughes Bently Nevada 330500-02-04 330500-02-04 330500 02 04 3305000204 330500-02-04 Velomitor Bently Nevada 330500 Piezo-velocity Sensor 330500 Velomitor Piezo-velocity Sensor
Technical notes
Bently Nevada 330500-02-04 measures absolute bearing-housing, casing, or structural vibration with 100 mV/in/s sensitivity. Its suffix specifies an M8 x 1 mounting adapter and multiple CSA and ATEX approvals.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is Bently Nevada 330500-02-04 used for?
Bently Nevada 330500-02-04 measures absolute bearing-housing, casing, or structural vibration in velocity units. It is especially suited to condition monitoring of machinery with rolling-element bearings.
Which product family includes 330500-02-04?
330500-02-04 belongs to the Bently Nevada 330500 Velomitor piezo-velocity sensor family. It is a solid-state integrating piezoelectric accelerometer with embedded electronics.
How do I verify the correct 330500-02-04 before ordering?
Check the complete model on the nameplate and purchasing records. Option 02 specifies an M8 x 1 mounting adapter, and option 04 specifies multiple CSA and ATEX approvals.
What sensitivity and frequency range does 330500-02-04 provide?
The official datasheet specifies 3.94 mV/mm/s (100 mV/in/s) sensitivity and a 4.5 Hz to 5 kHz response at +/-3 dB. Match these values to the monitor channel and measurement units.
Can 330500-02-04 be mounted in different orientations?
Yes. The official datasheet allows vertical, horizontal, or other mounting orientations because the sensor has no moving parts. The selected surface must still transmit representative casing vibration.
Is Bently Nevada 330500-02-04 active or discontinued?
Baker Hughes currently maintains an official 330500 product page and datasheet without a discontinuation statement. Availability from Apter Power remains subject to sourcing confirmation.
Is there an official replacement for 330500-02-04?
The official 330500 product page and datasheet reviewed for this listing do not identify a replacement for 330500-02-04. Do not substitute another Velomitor without documented adapter, cable, sensitivity, range, and approval checks.
Where can I get the 330500-02-04 datasheet and request a quote?
The official manufacturer datasheet is linked in the Manuals tab. Contact Apter Power with the complete model, quantity, destination, and required condition for price, stock, and lead-time confirmation.
