125840-01

/ 4.9
1001 reviews | Need a Specific Revision?

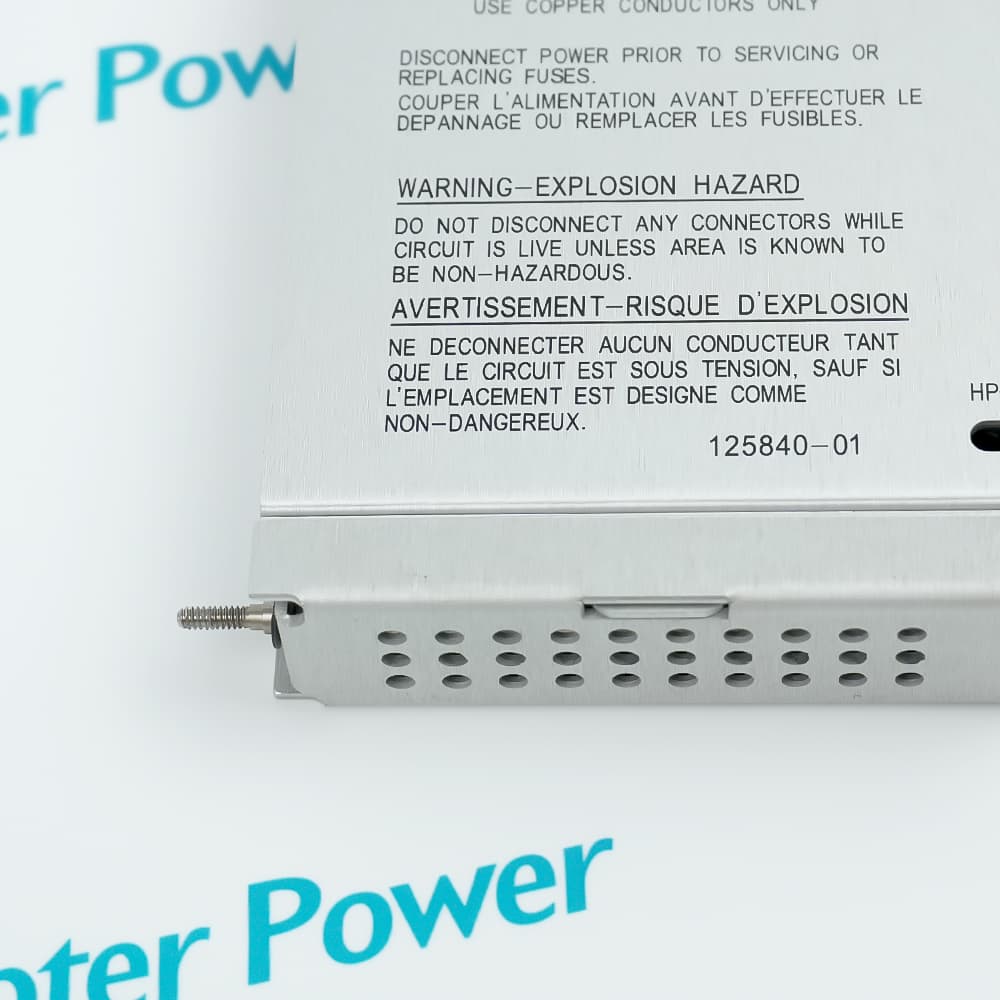

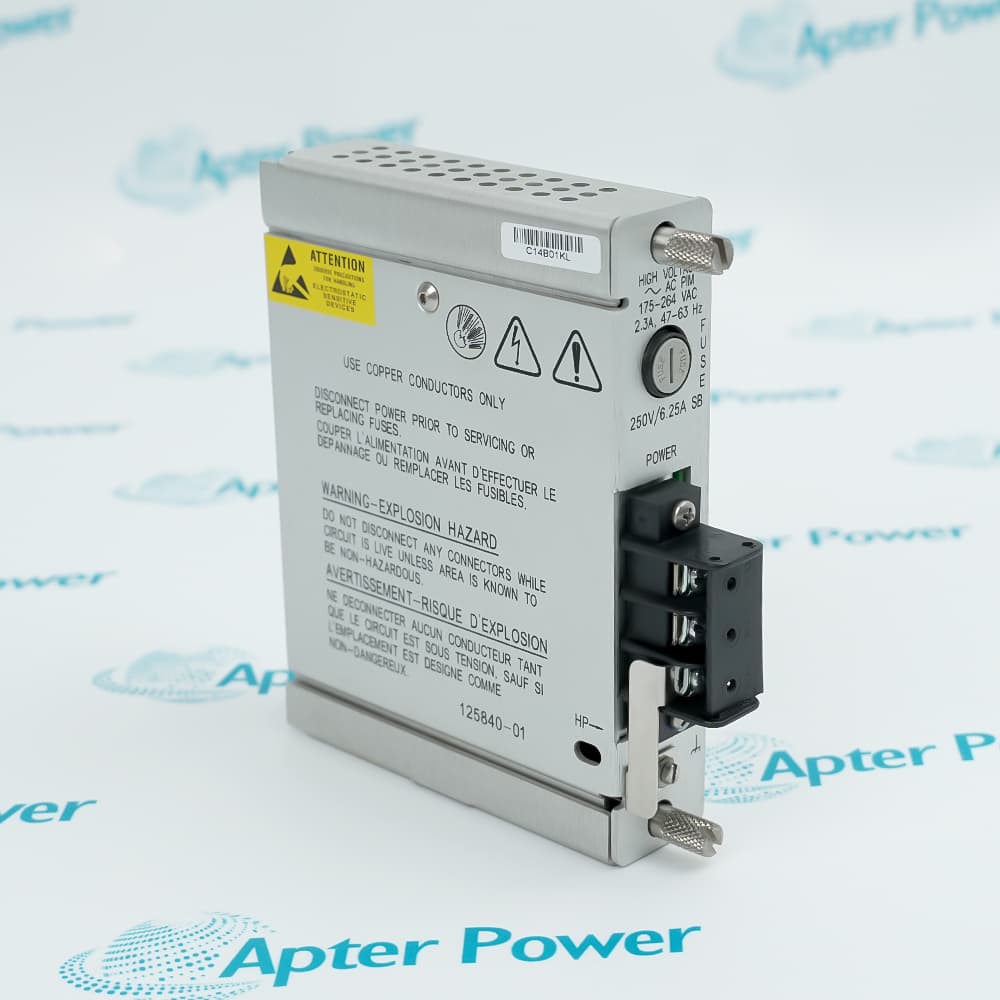

Bently Nevada 125840-01 legacy High Voltage AC PIM for 3500/15 racks, documented as Phase Out.
In Stock
Ships by Saturday, October 31
Fast Shipping Available
Get a quick price for 125840-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 125840-01

  • Manufacturer:
    Bently Nevada
  • Part Number:
    125840-01
  • Product Family:
    3500 System
  • Product Type:
    High Voltage AC Power Input Module
  • Stock:
    1
  • Input Type:
    High Voltage AC
  • Input Range:
    175 to 264 Vac rms
  • Module Role:
    Legacy rear PIM
  • Replacement Family:
    Universal AC power input
  • Lifecycle:
    Phase Out
  • Humidity:
    95%, non-condensing.
  • Weight:
    0.75 lbs (0.34 kg)
  • Estimated shipping dimensions:
    120.7 x 25.4 x 114.3 mm
  • Tariff Code:
    8538900000
  • Country of origin:
    United States
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications HV AC Legacy PIM Replacement Fuse Safety

Product overview:

  • Legacy HV AC: 175 to 264 Vac rms input range.
  • Rear module: field-power interface behind the associated 3500/15 supply.
  • Migration scope: replace the legacy supply and PIM as a matched Universal AC pair.
125840-01 is a Phase Out High Voltage AC PIM for legacy 3500/15 rack power configurations.

Plan replacement around the complete supply/PIM pair and verify existing field voltage.
Bently Nevada 125840-01 3500/15 Power Supplies Specs

General

  • Manufacturer Bently Nevada
  • Model 125840-01
  • Condition New and factory sealed
  • Product Family 3500/15 Power Supplies

Legacy input characteristics

  • Input range: 175 to 264 Vac rms.
  • Application: rear input module for the legacy High Voltage AC supply.
  • Rack role: routes field AC power into the selected supply position.
  • Status: official transition material identifies the part as Phase Out.

Document the installed supply and wiring before removing the legacy module.

Migration requirements

  • Replacement type: Universal AC Power Input Module.
  • Supply pairing: use the matching Universal AC Power Supply Module.
  • Scope: replace the legacy supply and PIM together.
  • Rack check: confirm primary or secondary power position.

A PIM-only substitution is not the documented migration path.

Service precautions

  • Power isolation: de-energize the rack input before service.
  • Voltage check: verify the connected source is within the documented range.
  • Approval review: retain site-required rack approvals.
  • Wiring record: label line and neutral conductors before migration.

Follow the official 3500/15 installation and maintenance instructions.

Description

Bently Nevada 125840-01 is the legacy High Voltage AC Power Input Module for the 3500/15 power-supply system. Its documented input range is 175 to 264 Vac rms.

The PIM mounts behind the associated AC power-supply module and brings field power into the rack. Official transition information identifies this configuration as Phase Out.

A migration requires both the Universal AC supply and its matching Universal AC PIM; the replacement should be checked against rack wiring and approvals.

Alternative Names
Bently Nevada 125840-01 Bently 125840-01 Baker Hughes Bently Nevada 125840-01 125840-01 High Voltage AC Power Input Module 125840-01 Bently Nevada 12584001 Bently part 3500/15 Power Supplies 125840-01 Bently Nevada part number 125840-01
Technical notes
125840-01 is a Phase Out High Voltage AC PIM. Replace it with the matched Universal AC supply and PIM configuration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Is Bently Nevada 125840-01 still a current power-input module?
No. Official transition information identifies the legacy High Voltage AC PIM as Phase Out.
What voltage range belongs to 125840-01?
The documented High Voltage AC input range is 175 to 264 Vac rms.
Where is 125840-01 installed in the 3500 system?
It mounts at the rear of the rack behind its associated 3500/15 supply.
Can only the 125840-01 PIM be replaced during migration?
The documented migration uses a matched Universal AC supply and Universal AC PIM pair.
Which current PIM family succeeds 125840-01?
The Universal AC power-input family succeeds the separate legacy High Voltage AC configuration.
What rack information is needed to source a 125840-01 replacement?
Provide the installed supply part number, input voltage, rack approval, and power-slot position.
Does the 125840-01 migration preserve dual-supply operation?
A compatible Universal AC pair can occupy the corresponding primary or secondary rack position.
Why should field wiring be reviewed before replacing 125840-01?
The legacy input range and the selected Universal AC configuration must match the actual site source.
