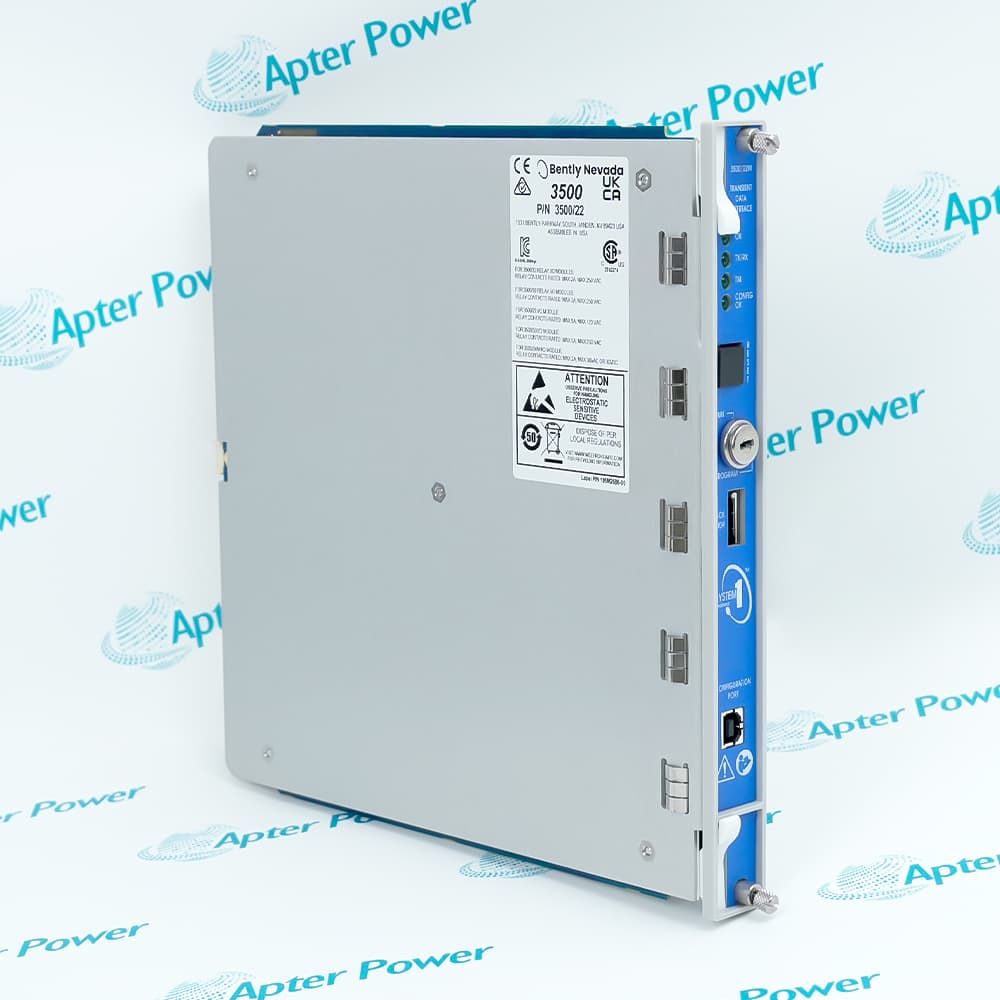

Bently Nevada 3500/22M 288055-01 Transient Data Interface module for System 1 communication and rack configuration

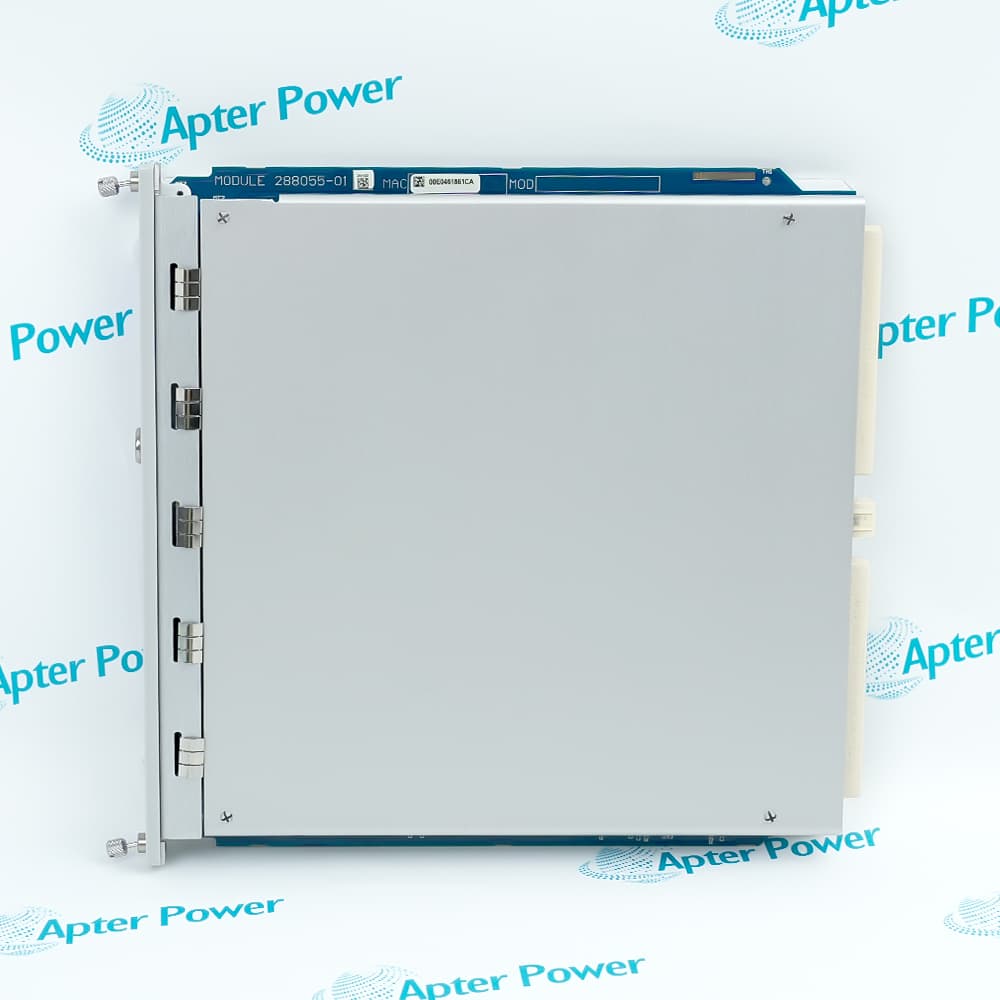

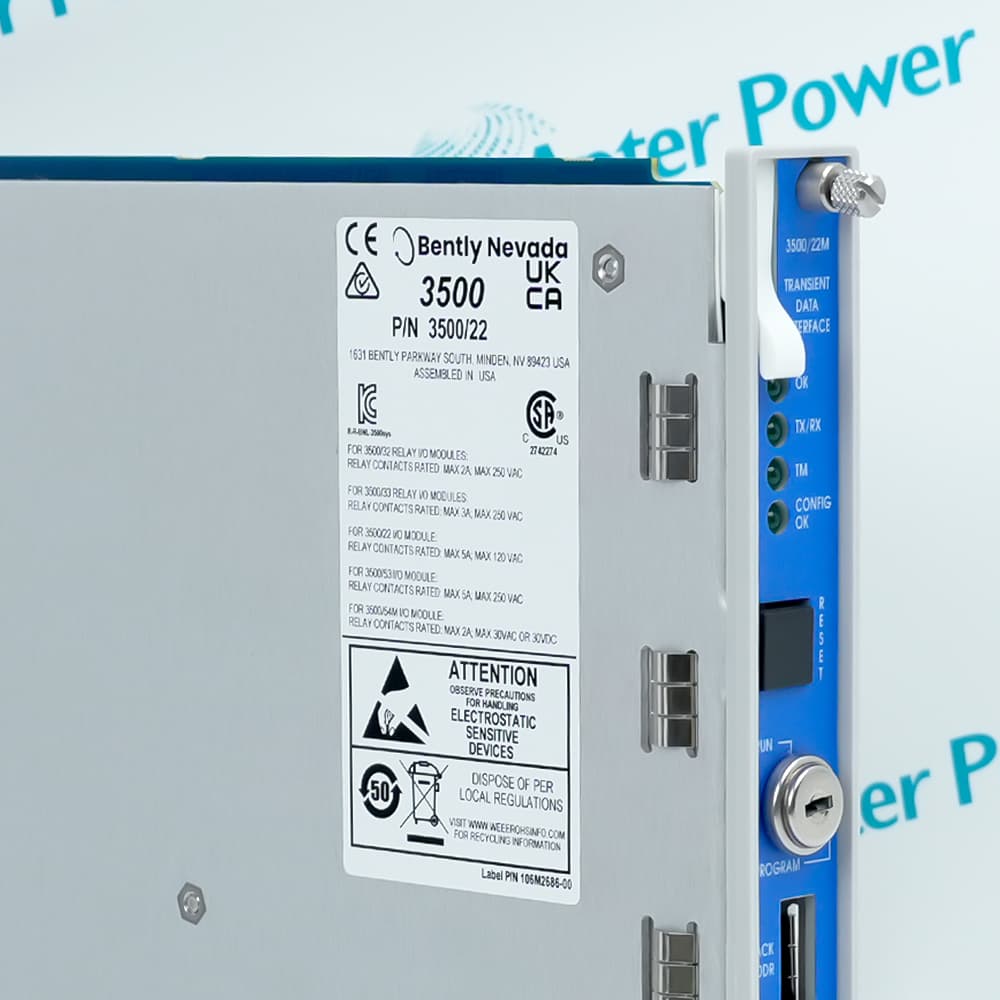

Bently Nevada 3500/22M 288055-01 TDI module with front USB port, status indicators, rack reset button, and security key
Bently Nevada 3500/22M 288055-01 transient data interface with electronic board, metal frame, and backplane connector
Bently Nevada 3500/22M 288055-01 Transient Data Interface module for System 1 communication and rack configuration
Bently Nevada 3500/22M 288055-01 TDI module with front USB port, status indicators, rack reset button, and security key
Bently Nevada 3500/22M 288055-01 transient data interface with electronic board, metal frame, and backplane connector
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle Status

    Active / Available
    Maintain peak performance with Apter Power's stock of factory-new Bently Nevada 3500 modules, engineered to ensure precise diagnostics and robust connectivity for your critical machinery.

3500/22M 288055-01

/ 4.9
1001 reviews | Need a Specific Revision?
Bently Nevada 3500/22M 288055-01 is a Transient Data Interface Module that connects the 3500 monitoring system with compatible software while continuously collecting and transferring steady-state and transient data.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 3500/22M 288055-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3500/22M 288055-01

  • Manufacturer:
    Bently Nevada
  • Part Number:
    3500/22M 288055-01
  • Product Family:
    3500 System
  • Product Type:
    Transient Data Interface Module
  • Stock:
    4
  • Mounting:
    Installs in Slot 1 of the 3500 rack
  • Enclosure:
    Metal housing with IP20 protection (for indoor use in protective cabinets)
  • Operating Temperature:
    -30°C to +65°C (-22°F to +149°F)
  • Storage Temperature:
    -40°C to +85°C (-40°F to +185°F)
  • Relative Humidity:
    Up to 95% (non-condensing)
  • Input Channels:
    16 channels for monitoring various parameters
  • Output Channels:
    2
  • Weight:
    0.82 kg
  • Estimated shipping dimensions:
    2.5x27x24.2cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Monitoring & Control Communication & Connectivity Use Cases

Features:

  • Interface Between the 3500 Monitoring System and Compatible Software
  • Combines Function of 3500/20 Rack Interface Module with Data Collection Capability of Communication Processor
  • Operates in Conjunction with M Series Monitors (3500/40M, 3500/42M, etc.)
The 3500/22M 288055-01 operates as the Transient Data Interface (TDI) in a 3500 rack, serving as the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). It continuously collects steady state and transient dynamic (waveform) data from M series monitors and passes this data through an Ethernet link to the host software. Static data capture capability is standard with the 3500/22M 288055-01, however using an optional Channel Enabling Disk will allow the 3500/22M 288055-01 to capture dynamic and high-resolution transient data as well. The 3500/22M 288055-01 has incorporated the communication processor function within the 3500 rack.

The 3500/22M 288055-01 provides certain functions common to the entire rack, but is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall monitor system for automatic machinery protection. Every 3500 rack requires one TDI or RIM depending on the data interface requirements. The 3500/22M 288055-01 occupies only a single full-height slot in the rack and is always located in Slot 1 (next to the power supplies).

For dynamic and high-resolution transient data capture applications, the 3500/22M 288055-01 requires the optional Channel Enabling Disk to be installed. In addition to standard static data capture, this optional configuration also performs dynamic data collection. The 3500/22M 288055-01 executes data transfer using the Ethernet link specified in the interface options. Using this method, the 3500/22M 288055-01 continually interfaces with M series monitors to collect both steady state and transient dynamic data and passes this information to the host software for analysis and diagnostics.

The 3500/22M 288055-01 Bently Nevada Transient Data Interface Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 3500/22M 288055-01 Transient Data Interface Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 3500/22M 288055-01 Transient Data Interface Module

General

  • Manufacturer GE / Bently Nevada
  • Model 3500/22M 288055-01
  • Condition New Original ready stock
  • Product Family 3500/22M,146031-01,146031-02
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Transient Data Collection: Collects high-resolution dynamic waveform data during machine startup, coastdown, and alarm events.
  • Steady-State Monitoring: Continuously gathers static values and dynamic overall data from M-series monitors (e.g., 3500/40M, 3500/42M).
  • Rack Control Modes: Features a physical Configuration Keylock to switch the rack between "RUN" (normal operation) and "PROGRAM" (allows configuration changes) modes.
  • System Indicators: Includes a Rack Reset button to clear latched alarms and an OK Relay to signal the operational health of the 3500 rack.
  • Special Functions: Supports Trip Multiply (adjusting alarm levels during startup) and Alarm Inhibit (disabling all rack alarms).
  • Ethernet Ports: Offers connectivity via 10Base-T/100Base-TX (RJ-45) or 100Base-FX Fiber Optic (MT-RJ) for high-speed data transfer.
  • Local Interface: Includes a USB-B port on the front panel for local laptop connection and configuration.
  • Protocols: Supports proprietary BN Host Protocol and BN TDI Protocol using Ethernet TCP/IP.
  • Keyphasor Support: Manages up to four Keyphasor signals for precise speed and phase data collection.
  • Asset Health Management: Providing the necessary data for System 1 software to perform long-term trend analysis and fault diagnosis.
  • Turbomachinery Analysis: Essential for monitoring steam and gas turbines, compressors, and large motors/generators where startup/coastdown behavior is critical.
  • Predictive Maintenance: Detecting early signs of mechanical failure, such as vibration anomalies or temperature spikes, in power plants, chemical facilities, and refineries.
  • TMR Applications: The TMR version is used in Triple Modular Redundant systems for high-reliability voting and channel comparison.
Description
Bently Nevada 3500/22M 288055-01 serves as the interface between the 3500 Machinery Protection System and compatible software, including System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software. The module combines the functions of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor, allowing monitoring information to be transmitted efficiently through an Ethernet connection. Installed in Slot 1 adjacent to the power supplies, the TDI is a required component for every 3500 rack.

The module communicates with M series monitors, including the 3500/40M and 3500/42M, to continuously collect steady-state operating data as well as transient dynamic waveform data. Static data capture is provided as a standard function, while an optional Channel Enabling Disk expands the module's capability to capture dynamic and high-resolution transient data. Bently Nevada 3500/22M 288055-01 incorporates the communication processor directly within the 3500 rack, simplifying system architecture while supporting efficient data exchange with host software.

Bently Nevada 3500/22M 288055-01 features a metal enclosure with an IP20 protection rating for installation inside protective cabinets. The module operates in temperatures from -30°C to +65°C (-22°F to +149°F) and can be stored between -40°C and +85°C (-40°F to +185°F) with relative humidity up to 95% non-condensing. Supporting 16 input channels for monitoring various parameters and 2 output channels, the module provides reliable communication without affecting the critical machinery protection path, ensuring normal operation of the overall 3500 monitoring system.
Alternative Names
3500/22M 288055-01 35OO/22M 288O55-O1 350022M 28805501 3500/22M 146031-01 3500/22M 146031-02 3500/22M 146031-03 3500/22M 146031-04
Technical notes
The Bently Nevada 3500/22M (288055-01) Transient Data Interface Module provides 100 Mbps Ethernet connectivity, serving as the essential, high-speed gateway for System 1 machinery diagnostics. This module features local USB 2.0 configuration, occupies a dedicated half-height slot, and enables precise, simultaneous processing of transient waveform data across all rack channels.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What functions does Bently Nevada 3500/22M 288055-01 perform?
Bently Nevada 3500/22M 288055-01 serves as a Transient Data Interface Module, providing communication and transient data handling for the 3500 monitoring system while supporting multiple monitored parameters.
How does Bently Nevada 3500/22M 288055-01 fit into the 3500 rack?
Bently Nevada 3500/22M 288055-01 is designed for installation in Slot 1 of the 3500 rack, providing the required interface for system communication and data collection.
Can Bently Nevada 3500/22M 288055-01 operate in demanding industrial environments?
Yes. Bently Nevada 3500/22M 288055-01 supports operating temperatures from -30°C to +65°C and relative humidity up to 95% non-condensing, making it suitable for industrial control cabinet installations.
Does Bently Nevada 3500/22M 288055-01 provide multiple monitoring channels?
Yes. Bently Nevada 3500/22M 288055-01 supports 16 input channels for monitoring various parameters and includes 2 output channels for system communication.
