133323-01

/ 4.9
1001 reviews | Need a Specific Revision?

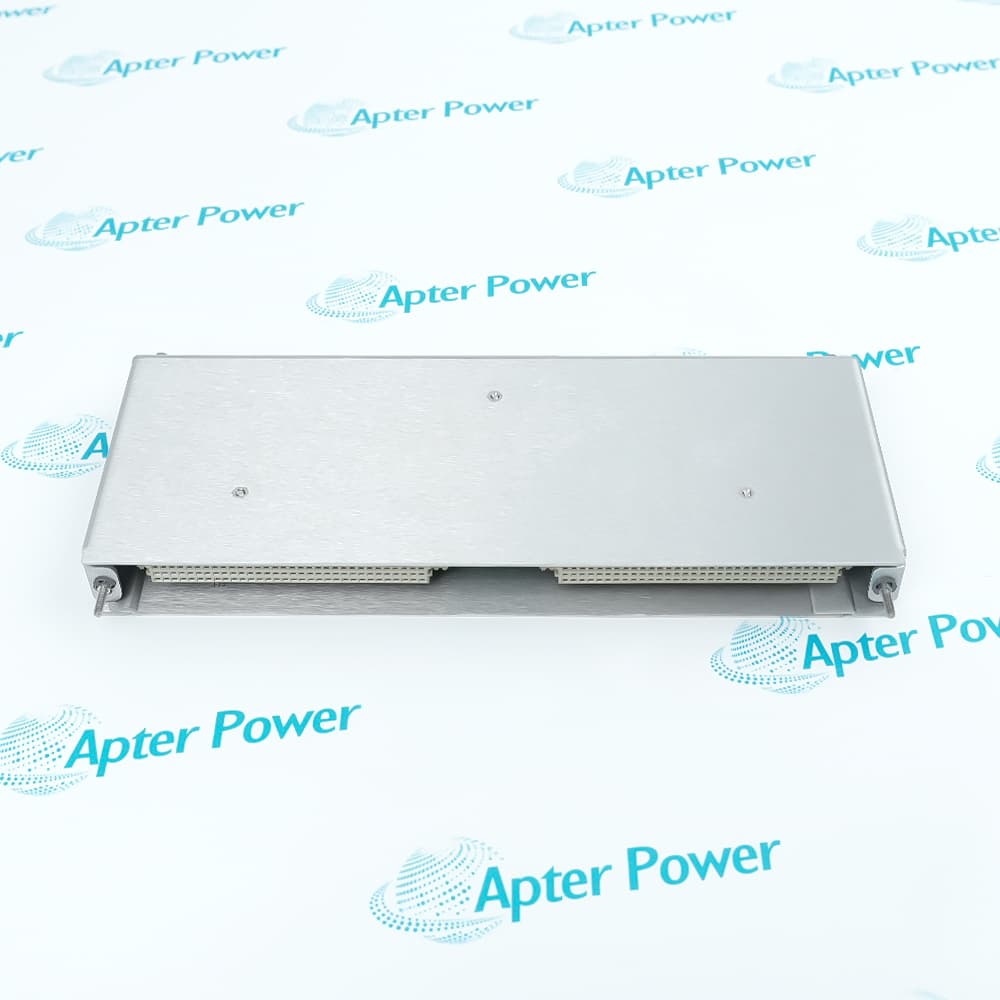

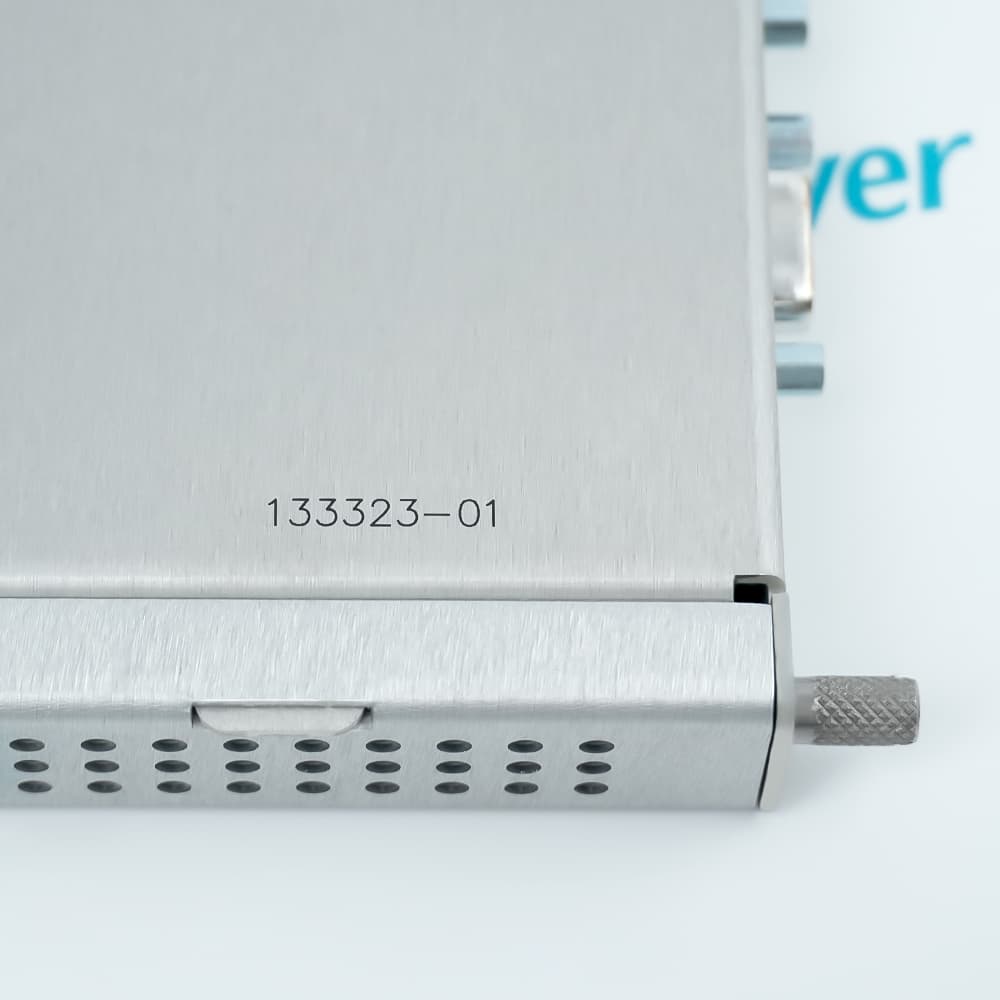

The Model 133323-01 is a Bently Nevada 3500/92 Communication Gateway module designed to provide extensive communication capabilities for 3500 rack monitoring systems.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 133323-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 133323-01

  • Manufacturer:
    Bently Nevada
  • Part Number:
    133323-01
  • Product Family:
    3500 System
  • Product Type:
    Modbus RS485 I/O Module
  • Stock:
    9
  • Serial Communications:
    RS232, RS422, RS485
  • Data Access:
    All rack monitored values and statuses
  • Compatible Software:
    3500 Rack Configuration Software, Data Acquisition Software
  • Mounting:
    3500 Rack slot
  • Weight:
    0.4 kg
  • Estimated shipping dimensions:
    2.5x11.2x24.2cm
  • Tariff Code:
    8517795000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Diagnostics & Protection Installation & Integration

Features:

  • 3500/92 Communication Gateway module for Bently Nevada 3500 monitoring systems
  • Dual communication capability with Ethernet TCP/IP and serial (RS232/RS422/RS485) interfaces
  • Enables integration of all rack monitored values with process control systems and remote configuration software
The 133323-01 operates as the 3500/92 Communication Gateway module within a 3500 monitoring rack, providing reliable data communication between the rack and external control systems. It continuously collects all rack monitored values and statuses and transmits this data through its Ethernet TCP/IP and serial (RS232/RS422/RS485) interfaces to process control systems, DCS platforms, and automation networks.

The 133323-01 provides essential communication functions common to the entire rack, serving as the critical interface between the monitoring system and plant-wide information networks, directly affecting the accessibility and usability of machinery condition data.

For applications requiring both configuration access and data acquisition, the 133323-01 supports Ethernet communications with 3500 Rack Configuration Software and Data Acquisition Software. In addition to standard data publishing, the module's serial interfaces perform continuous data transmission using industry-standard protocols. The 133323-01 executes communication functions using its internal processing circuitry and firmware.

The 133323-01 Bently Nevada  I/O Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 133323-01 I/O Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 133323-01 I/O Module Specs

General

  • Manufacturer Bently Nevada
  • Model 133323-01
  • Condition New Original ready stock
  • Product Family 135489-01,125840-01,125768-01,128229-01
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • The 133323-01 is primarily used in large-scale industrial plants (Power Generation, Oil & Gas, and Petrochemical) to export critical rack data.
  • It is the primary interface for connecting the Bently Nevada 3500 system to Distributed Control Systems (DCS), Programmable Logic Controllers (PLC), and SCADA systems.
  • It allows operators to view real-time vibration, position, and temperature data alongside other process variables in a centralized control room environment.
  • System Integrity: It transmits status and "Not OK" alerts from the rack to the control system, ensuring operators are immediately aware of hardware or transducer failures.
  • Data Accuracy: Supports digital transmission of high-precision diagnostic data, including current values and alarm event lists, reducing the risk of signal degradation compared to analog outputs.
  • Safety Integration: By providing remote access to alarm statuses, it facilitates automated safety shutdowns and emergency response protocols within the broader plant network.
  • Rear-Mount Design: This I/O module is installed in the rear of the 3500 rack, directly behind the 3500/92 Communication Gateway main module.
  • RS485 Daisy-Chaining: Its RS485 physical layer supports multi-drop topologies, allowing for a 1,200m (4,000ft) cable run and connection of up to 32 devices on a single segment.
  • Software Configuration: Integration is managed through the 3500 Rack Configuration Software, where users utilize the Configurable Modbus Register Utility to map specific data points (vibration levels, setpoints, etc.) to specific Modbus addresses for easy retrieval by the host system.
Description
The Model 133323-01 serves as the 3500/92 Communication Gateway module within Bently Nevada's 3500 monitoring system architecture, providing critical data connectivity between the protection rack and external control systems. This versatile module enables comprehensive integration by offering both Ethernet TCP/IP and serial communications capabilities, allowing the 133323-01 to interface with a wide range of process control systems, distributed control systems (DCS), and plant automation networks.

Serial communications flexibility is a key feature of the 133323-01, which supports multiple physical layer standards including RS232, RS422, and RS485. This adaptability allows the 133323-01 to connect with legacy control systems using traditional serial interfaces as well as modern automation platforms requiring differential signaling for longer cable runs and improved noise immunity.

Ethernet connectivity on the 133323-01 enables high-speed data communication over TCP/IP networks, facilitating integration with modern plant information systems and providing access to rack data from multiple workstations simultaneously. The 133323-01 permits Ethernet communications with 3500 Rack Configuration Software, allowing engineers to configure and commission monitoring racks remotely without requiring direct physical access to the hardware.

The 133323-01 plays an essential role in the overall machinery management strategy by making protection rack data accessible to higher-level systems for process optimization and predictive maintenance. By consolidating communication functions into a single module, the 133323-01 reduces the complexity of integrating vibration and position monitoring data with plant control systems.
Alternative Names
133323 01 133323-O1 133323-0I 125768-01 136180-01 136188-02 125736-01 137495-01
Technical notes
The Bently Nevada 133323-01 is a Modbus RS485 I/O Module designed for the 3500/92 Communication Gateway, facilitating seamless integration of critical machinery data into external DCS and PLC systems by supporting up to 32 slave devices over distances of 1,200 meters with configurable baud rates and 256 Modbus registers.
