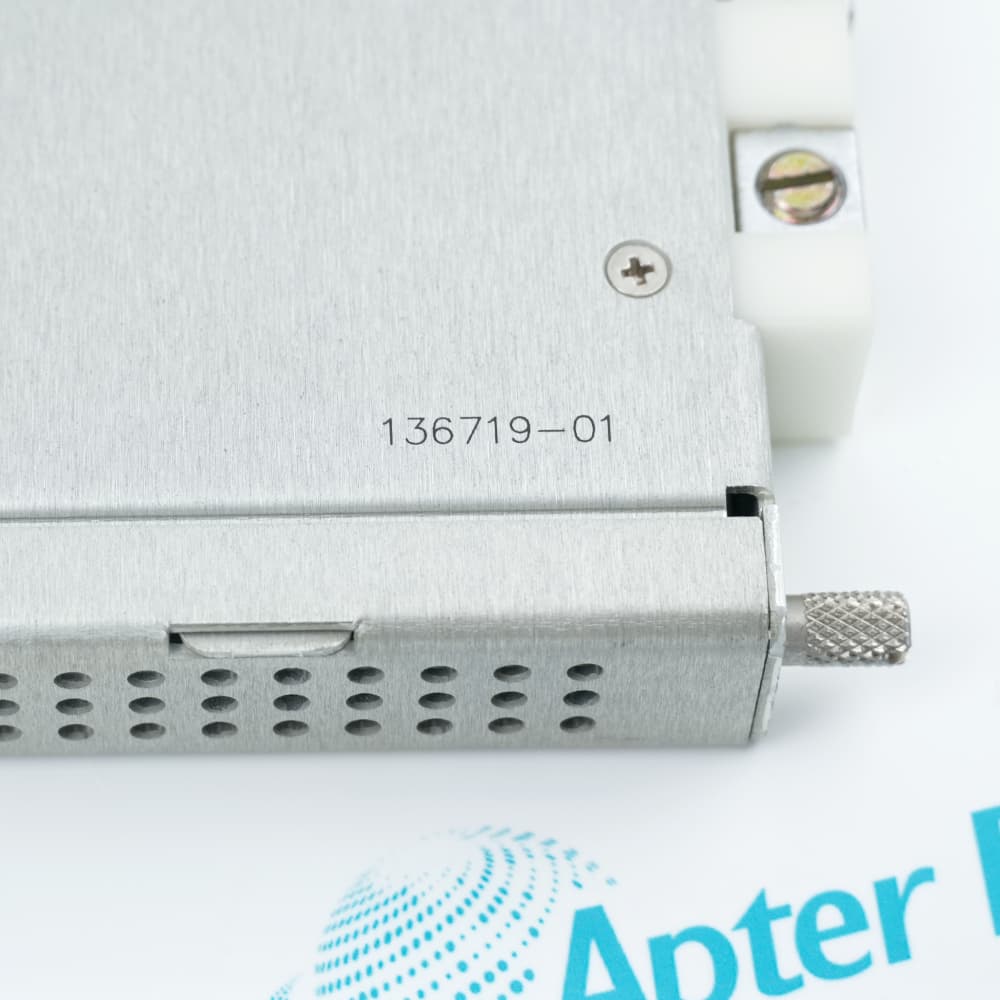

        Bently Nevada 136719-01
        Bently Nevada 136719-01
        Bently Nevada 136719-01
        Bently Nevada 136719-01
        Bently Nevada 136719-01
        Bently Nevada 136719-01
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Discontinued / Obsolete by OEM
          Apter Power delivers completely register-mapped, out-of-production connection nodes to stabilize your central telemetry backbone and shield your diagnostic networks from catastrophic polling lockups and host-client communication drops.

        136719-01

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        The Bently Nevada 136719-01 is a critical, dedicated Internal Barrier Earthing I/O Module engineered to provide a robust, intrinsically safe (IS) earth connection directly through the 3500 Machinery Protection System backplane.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for 136719-01
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 136719-01

        • Manufacturer:
          Bently Nevada
        • Part Number:
          136719-01
        • Product Family:
          3500 System
        • Product Type:
          Internal Barrier Earthing I/O Module
        • Stock:
          1
        • Maximum Safe Voltage:
          250 V
        • Operating Temperature:
          -20℃ to +65℃ ( -4℉ to +149℉ )
        • Physical Slot Requirement:
          1 Dedicated Monitor/IO Slot Position
        • Electrical Safety Standards:
          EN 61010-1, CE, DNV GL, ABS Marine Rules
        • EMC Directive Compliance:
          2014/30/EU (EN 61000-6-2 Immunity / EN 61000-6-4 Emissions)
        • Hazardous Area Approvals:
          ATEX, IECEx, cNRTLus (Class I, Div 2 / Zone 2, Groups A, B, C, D)
        • Weight:
          0.4 kg
        • Estimated shipping dimensions:
          2.4x11x24.1cm
        • Tariff Code:
          8537101190
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Applications Monitoring & Control Performance & Efficiency

        Features:

        • Integrated Intrinsic Safety Framework
        • Pre-Certified System-Level Compliance
        • Enhanced Hazardous-Area Physical Separation
        The Bently Nevada 136719-01 forms an uncompromised, integral part of the 3500 platform, avoiding the signal attenuation and impedance mismatching commonly introduced by external alternative barriers.

        By implementing the Bently Nevada 136719-01, each component complies both individually and as part of a system, releasing plant engineers from the time-consuming burden of validating individual cross-certificates between field probes and rack inputs.

        The mechanical design of the Bently Nevada 136719-01 increases overall back-of-rack depth by 50 mm (2 in), providing a built-in physical barrier that guarantees hazardous-area field wiring remains insulated from safe-area electronics.

        The 136719-01 Bently Nevada 3500/04 Series Internal Barrier Earthing I/O Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        Bently Nevada 136719-01 3500/04 Series Internal Barrier Earthing I/O Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        Bently Nevada 136719-01 3500/04 Series Internal Barrier Earthing I/O Module

        General

        • Manufacturer GE / Bently Nevada
        • Model 136719-01
        • Condition New Original ready stock
        • Product Family 3500/04,138257-01,135473-01
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Petrochemical and Refinery Downstream Racks: The module acts as the foundation for intrinsic safety within hazardous Class I Div 2 refining units, allowing proximity sensors around hydrocarbon pumps to ground safely.
        • Gas Turbine Core Enclosures: It provides a safe interface for proximity sensors, accelerometers, and aeroderivative monitoring systems installed directly within explosive gas atmospheres.
        • Offshore Marine & LNG Infrastructure: It satisfies strict marine type-approvals (such as ABS and DNV GL standards), guaranteeing structural safety against electrical faults on offshore processing vessels.
        • Power Plant Asset Life Extension: It supports retrofit projects, allowing older, standard-wired 3500 protection racks to step up to modern intrinsically safe standards simply by changing I/O paths.
        • Zero Performance Attenuation Monitoring: Unlike legacy external zener blocks that damp and degrade high-frequency signals, this backplane solution allows high-speed 30 kHz dynamic vibration loops to remain perfectly crisp and uninhibited.
        • Structured Back-of-Rack Cable Management: It dictates clear spatial separation between safe-area control signals heading down to the DCS and hazardous field signals coming from machine casings.
        • Unified Intrinsic Ground Distribution: It bonds the entire rack’s barrier array to a single, dedicated grounding path, avoiding ground loop noise that can trigger false machinery trips.
        • On-line Hot-Swap Accessibility: The structural spacing engineered around the module ensures plant maintenance teams can quickly access and test standard adjacent monitor boards without disturbing nearby active protection channels.
        • Maximizing Enclosure Space Efficiency: By integrating the barrier components directly into the 3500 chassis footprint, it saves substantial DIN-rail space and eliminates the need for standalone external barrier cabinets.
        • Elimination of Multi-Certificate Verification: Because the unit holds unified system-level compliance, engineers do not have to waste weeks auditing individual component matching certificates.
        • Minimization of Component Fault Points: Standardizing on an internal architecture drastically reduces intermediate wire terminations, minimizing manual loop failures and lowering long-term maintenance costs.
        • Accelerated Software Setup & Mapping: The hardware interfaces directly with the 3500 Rack Configuration utility, making it easy to allocate and configure slots without manual script writing or complex firmware overrides.
        Description
        The Bently Nevada 136719-01 represents a fundamental safety component within the Bently Nevada 3500/04 internal barrier subsystem, acting as the singular, unified grounding bridge between the hazardous industrial environment and the safe-area protection system architecture. By incorporating the grounding network internally, it seamlessly eliminates the need for bulky, performance-degrading external galvanic or Zener barriers.

        When configuring or scaling critical turbomachinery protection systems, the Bently Nevada 136719-01 ensures that the physical 50 mm (2 in) separation standard required between safe-area and hazardous-area field wiring is rigorously maintained within the chassis layout. This design approach simplifies field instrumentation layouts, optimizes real estate inside standard instrument enclosures, and enhances signal fidelity across highly sensitive vibration loops.

        Every system rack deploying internal explosion protection requires exactly one Bently Nevada 136719-01 module to comply globally with North American and international safety regulations. It provides immediate infrastructure readiness for multi-channel vibration, thrust, and speed monitoring, guaranteeing that system expansions or field retrofits can be carried out safely without rewriting individual hazardous area certification approvals.
        Alternative Names
        136719 01 I367I9-0I 136719-O1 138257-01 135473-01 135489-01 135489-02
        Technical notes
        The Bently Nevada 136719-01 must be paired with a 3500/04-01 Earthing Module front panel to successfully form a complete functional grounding assembly within the rack. Because it establishes an absolute intrinsically safe reference ground, the Bently Nevada 136719-01 will occupy a dedicated monitor slot, which limits the total number of remaining active monitor positions in a standard 19-inch rack to 13.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Does the Bently Nevada 136719-01 possess independent I/O channel parameters or loop voltage limiting circuits?
        No, the Bently Nevada 136719-01 is a pure, dedicated Earth I/O interface board. It does not route individual dynamic sensor channels or hold specific voltage/current caps like Uo or Io on its own; instead, it establishes the master backplane reference ground through which adjacent monitor modules (such as the 3500/42M or 3500/25) ground their internal barrier loops.
        What firmware and configuration software thresholds must be met before deploying the Bently Nevada 136719-01 in an existing rack?
        To enable and integrate the internal barrier chassis infrastructure tied to the Bently Nevada 136719-01, you must utilize Revision 2.3 or later of the 3500 Rack Configuration software. Additionally, legacy active monitors like the 3500/25 or 3500/50 must be flashed to specific baseline firmware versions (v1.06 and v1.05 respectively) to ensure system interoperability.
        Can the Bently Nevada 136719-01 be used in a rack configured for Triple Modular Redundant (TMR) monitor options?
        No. TMR architectures involve splitting and routing a single transducer input across multiple discrete I/O slots, which violates intrinsic safety loop isolation guidelines. Therefore, installing the Bently Nevada 136719-01 is strictly restricted to non-TMR safety layouts.
        How does the Bently Nevada 136719-01 handle external termination blocks or multi-cored cable wiring assemblies?
        The External Termination option is entirely unavailable for any slots relying on the Bently Nevada 136719-01 framework. Hazardous area regulatory approvals strictly prohibit mixing or enclosing intrinsically safe field wiring loops within multi-cored cable bundles that route back to remote termination panels.
        What are the exact physical cabinet footprint limitations when mounting a 3500 rack equipped with the Bently Nevada 136719-01?
        Because the Bently Nevada 136719-01 features an increased depth profile to preserve wiring isolation, a standard 3500 rack utilizing this module will not fit inside a shallow 400 mm deep enclosure. System integrators must utilize a minimum cabinet depth of 600 mm, a bulkhead rack version, or a certified 3500/06 Weatherproof Housing.
        What is the specific installation protocol for routing cables around the Bently Nevada 136719-01 to avoid cross-talk?
        To maintain the mandatory 50 mm (2 in) insulation boundary, field installers must route all hazardous-area field wiring upwards out of the top tray and all safe-area control loops downwards out of the bottom tray relative to the position of the Bently Nevada 136719-01.
