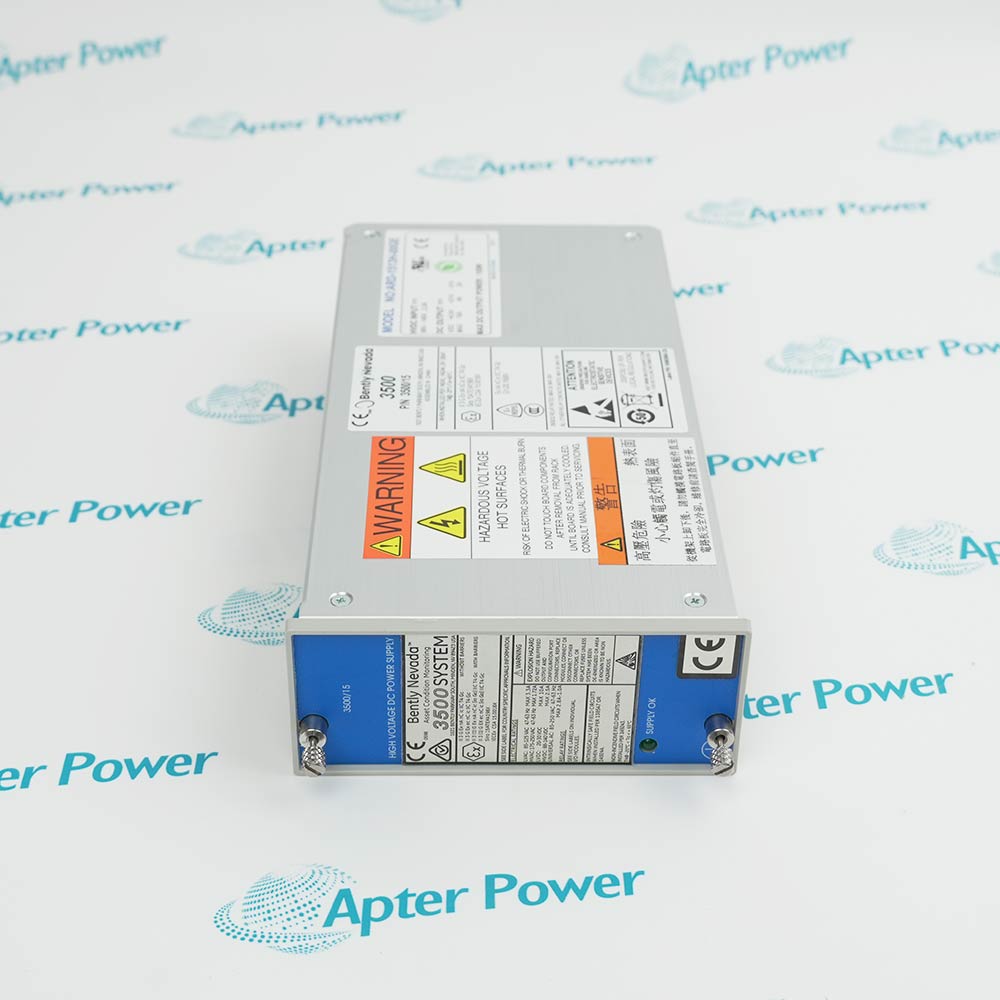

Bently Nevada 3500/15 114M5329-01 rack power supply with status LEDs, front label, and module extraction handle

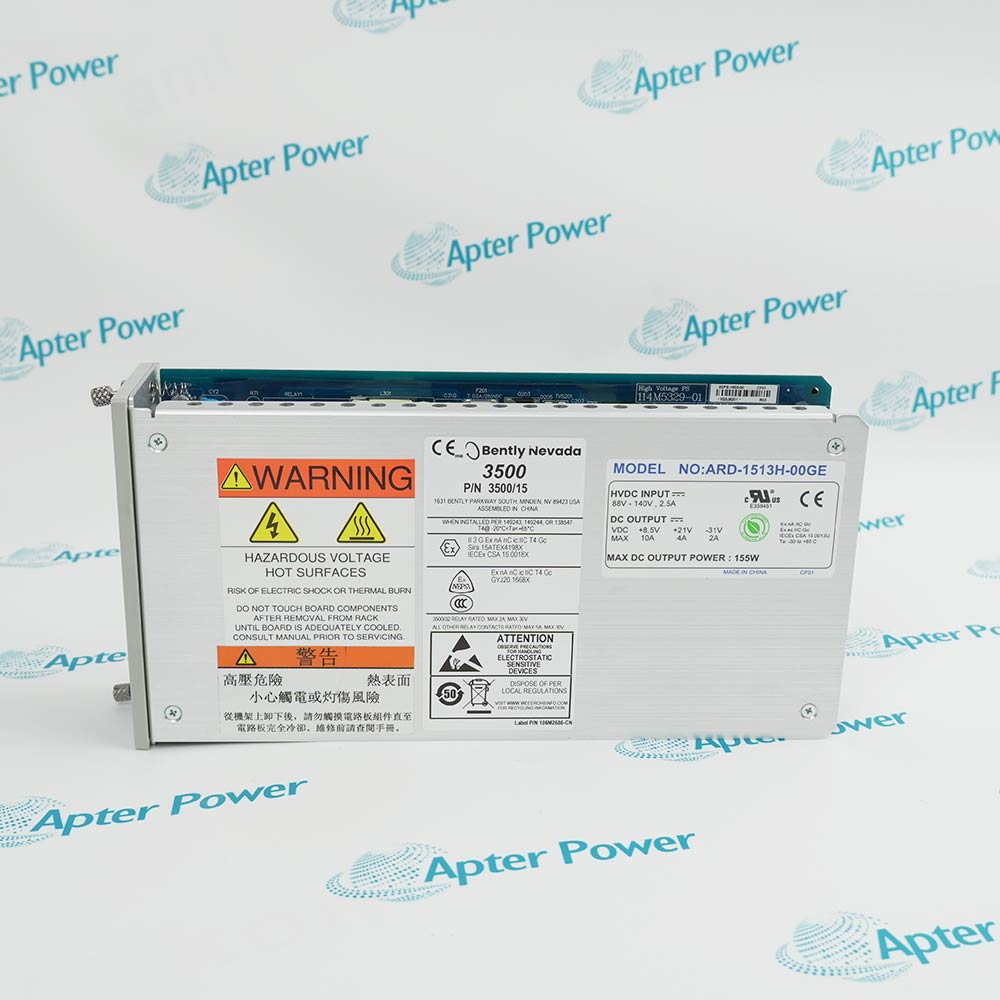

Bently Nevada 3500/15 114M5329-01 power module with metal enclosure, cooling vents, and backplane connector
Bently Nevada 3500/15 114M5329-01 power supply module for a 3500 machinery protection rack
Bently Nevada 3500/15 114M5329-01 rack power supply with status LEDs, front label, and module extraction handle
Bently Nevada 3500/15 114M5329-01 power module with metal enclosure, cooling vents, and backplane connector
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com

3500/15-114M5329-01

/ 4.9
1001 reviews | Need a Specific Revision?
The 3500/15-114M5329-01 is a high-voltage DC power supply half-height module for 3500 racks, supporting redundant configurations with hot-swap capability.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 3500/15-114M5329-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3500/15-114M5329-01

  • Manufacturer:
    Bently Nevada
  • Part Number:
    3500/15-114M5329-01
  • Product Family:
    3500 System
  • Stock:
    3
  • Product Type:
    Power Supply Module
  • Form Factor:
    Half-height
  • Input Type:
    High-voltage DC
  • Mounting Position:
    Left side of 3500 rack
  • Redundancy:
    Primary/backup (lower/upper slots)
  • Hot-Swap:
    Yes (with second supply installed)
  • Key Benefit:
    Solves uninterrupted operation—hot-swap allows replacement without shutdown; redundant configuration eliminates single point of failure; AC/DC mixable.
  • Weight:
    1.25 kg
  • Estimated shipping dimensions:
    5x25.2x12cm
  • Tariff Code:
    8517795000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Protection Functions Installation

Features:

  • Half-height form factor fits in designated left-side slots of 3500 racks.
  • Hot-swap capable—remove or insert without system shutdown when second supply installed.
  • Primary/backup redundancy with automatic switchover; AC and DC supplies mixable.
Replace a failed 3500/15-114M5329-01 while the rack stays online. No shutdown, no process interruption. Just pull the bad supply, insert the new one, and continue. The second supply carries the load during the swap.

Lower slot is primary, upper slot is backup. Install two supplies, and the system automatically fails over if the primary fails. The 3500/15-114M5329-01 doesn't need configuration—just install and trust the redundancy.

Need both AC and DC sources? Install one of each. The rack doesn't care. The 3500/15-114M5329-01 plays well with AC supplies. Mix types, get redundancy, and keep your monitoring system powered.

The 3500/15-114M5329-01 Bently Nevada 3500/15 Power Supply Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

Bently Nevada 3500/15-114M5329-01 3500/15 Power Supply Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 3500/15-114M5329-01 3500/15 Power Supply Module Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 3500/15-114M5329-01
  • Condition New Original ready stock
  • Product Family 3500/15-114M5329-02,3500/15-113M5329-01,3500/15-112M5329-01
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Energy and Power Generation: Suitable for monitoring systems and power supply of gas turbines, steam turbines, and hydroelectric generator sets.
  • Oil and Natural Gas: Used for protection systems of centrifugal compressors, reciprocating compressors, and various industrial pumps.
  • Heavy Industrial Manufacturing: Supports status monitoring and automatic shutdown protection for critical equipment such as large fans and generators.
  • Status Monitoring (Supply OK LED): The panel features a green LED indicator that displays in real-time whether the output voltage is within the specified range.
  • Undervoltage Protection: Insufficient voltage will not damage the power module or input module (PIM).
  • Overvoltage Protection: When the input voltage is too high, the fuse on the PIM module will automatically blow to protect the downstream circuitry.
  • Redundancy and Fault Tolerance: Supports the installation of two power modules in the same 3500 rack, achieving "primary/backup" redundancy. When the primary power supply fails, the backup power supply will immediately and automatically take over, ensuring uninterrupted system operation.
  • Installation Location: This is a half-height module and must be installed in the dedicated power supply slot on the left side of the 3500 rack.
  • PIM Pairing Requirements: This power supply module must be paired with the 115M7750-01 High Voltage DC Power Input Module (PIM), which is installed at the rear of the rack.
  • Hot-Swap Feature: Supports hot-swapping with redundant power supplies installed, without needing to shut down the monitoring system during replacement.
Description
The 3500/15-114M5329-01 is a half-height power supply module that installs in designated slots on the left side of a 3500 rack. It accepts high-voltage DC input and powers all modules in the rack. One supply can power a full rack alone. When two are installed, the lower slot holds the primary, the upper slot the backup.

Removing or inserting the 3500/15-114M5329-01 does not disrupt rack operation as long as the second supply is present. This hot-swap capability allows replacement without system shutdown. AC and DC supplies can mix in the same rack. Either type, primary or backup, supports the entire rack.

The 3500/15-114M5329-01 works with any combination of AC or DC supplies. A single supply powers a fully loaded rack. Two supplies provide redundancy; failure of one triggers automatic switchover to the other. No rack power loss during supply replacement.

This power supply solves the pain point of uninterrupted operation in critical monitoring systems. The 3500/15-114M5329-01’s hot-swap design allows maintenance without shutdown. Redundant configurations eliminate single points of failure. Mix AC and DC in the same rack for flexible power sourcing.
Alternative Names
3500/15-114M5329-02 3500/15-113M5329-01 3500/15-112M5329-01 3500/15-112M5329-02
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can I mix AC and DC supplies in the same rack?
Yes. Any combination of AC and DC supplies can be used. One or two supplies, either type, will power the rack.
Which slot is primary?
The lower slot holds the primary supply. The upper slot holds the backup. This assignment is fixed by rack design.
Can I remove a supply while the rack is running?
Yes. As long as the second supply is installed, you can remove or insert the 3500/15-114M5329-01 without disrupting rack operation.
How many supplies are needed to power a full rack?
One 3500/15-114M5329-01 can power a fully loaded rack alone. A second adds redundancy.
