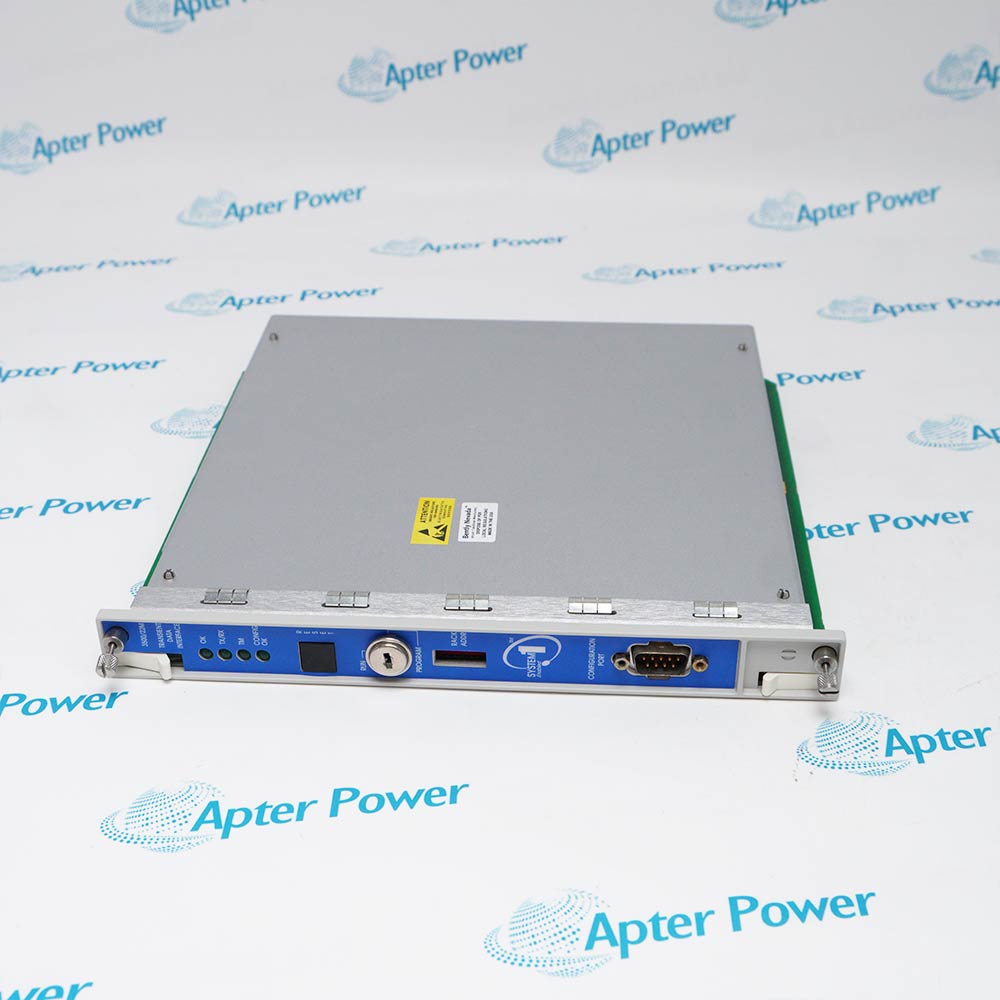

Bently Nevada 3500/22M 138607-01 TDI module, showing the front panel, status LEDs, USB port, and control key

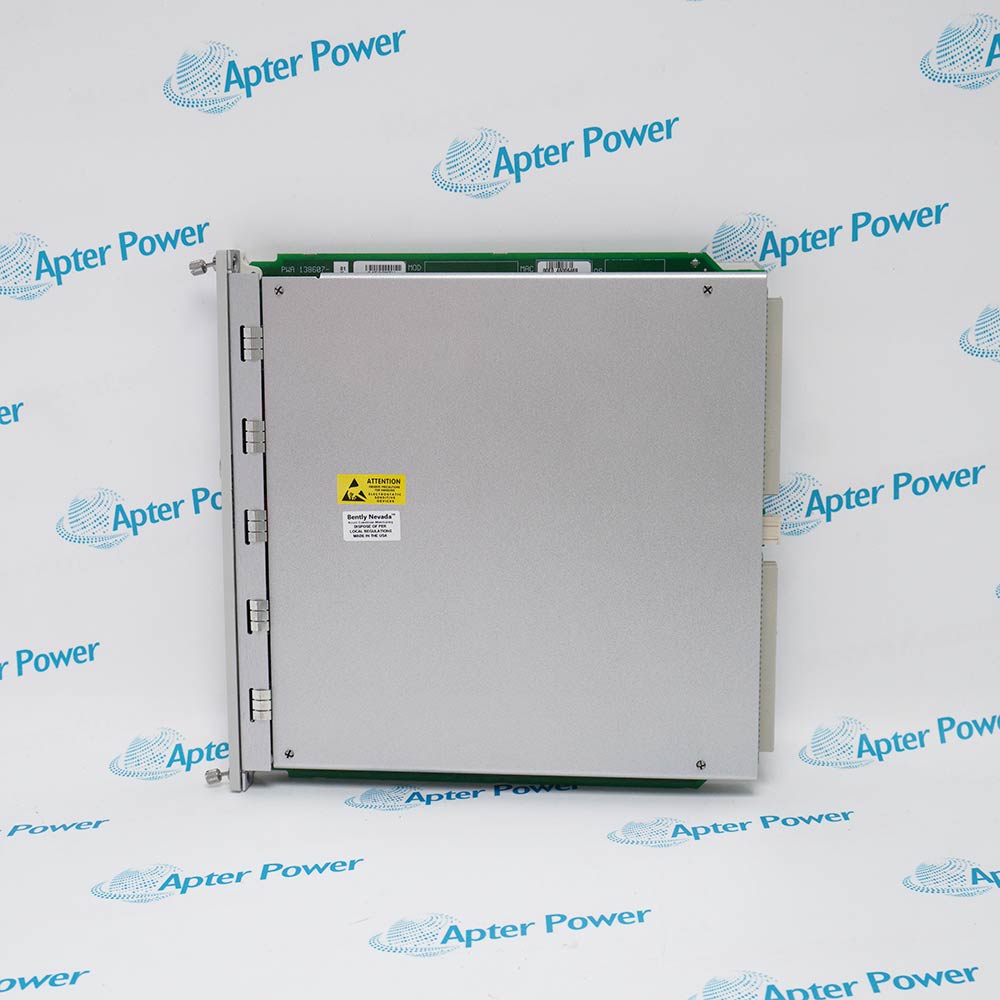

Bently Nevada 3500/22M 138607-01 transient data interface with circuit board components and rack backplane connector
Bently Nevada 3500/22M 138607-01 Transient Data Interface module for rack configuration and condition monitoring communication
Bently Nevada 3500/22M 138607-01 TDI module, showing the front panel, status LEDs, USB port, and control key
Bently Nevada 3500/22M 138607-01 transient data interface with circuit board components and rack backplane connector
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Active / Available from OEM
    Apter Power secures hard-to-find 3500/22M modules to support your site's reliability, delivering high-quality, pre-tested hardware to keep your critical rotating assets protected.

3500/22M 138607-01

/ 4.9
1001 reviews | Need a Specific Revision?
The 3500/22M 138607-01 Transient Data Interface (TDI) connects the Bently Nevada™ 3500 monitoring system to software like System 1 and 3500 Configuration.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 3500/22M 138607-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3500/22M 138607-01

  • Manufacturer:
    Bently Nevada
  • Part Number:
    3500/22M 138607-01
  • Product Family:
    3500 System
  • Product Type:
    Transient Data Interface Module
  • Stock:
    1
  • Consumption:
    10.5 Watts
  • OK LED:
    Indicates when the 3500/22M is operating properly
  • Trip Multiply Description:
    Used to place 3500 rack in Trip Multiply
  • Trip Multiply Maximum Current:
    <1 mAdc, Dry Contact to Common
  • Alarm Inhibit Description:
    Used to inhibit all alarms in the 3500 rack
  • Alarm Inhibit Maximum:
    Current <1 mAdc, Dry Contact to Common
  • Rack Reset Description:
    Used to clear latched alarms and Timed OK Channel Defeat
  • Rack Reset Maximum Current:
    <1 mAdc, Dry Contact to Common
  • Operating Temperature:
    -30°C to +65°C (-22°F to +149°F)
  • Storage Temperature:
    -40°C to +85°C (-40°F to +185°F)
  • Humidity:
    95%, non-condensing
  • Weight:
    0.8 kg
  • Estimated shipping dimensions:
    2.5x25x24cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Data Bridge Diagnostic Enhancement Application

Features:

  • Provides interface between 3500 monitoring system and System 1 Condition Monitoring and Diagnostic software as well as 3500 System Configuration software.
  • Combines Rack Interface Module (RIM) functionality with communication processor capability for data collection and transmission.
  • Collects steady-state and transient dynamic waveform data and transmits it via Ethernet to host software systems.
The Bently Nevada 3500/22M 138607-01 Transient Data Interface Module serves as a critical communication bridge within the 3500 monitoring system architecture. The Bently Nevada 3500/22M 138607-01 is designed to connect the rack-based monitoring system with advanced software platforms used for condition monitoring and system configuration. By integrating communication and data handling functions, the Bently Nevada 3500/22M 138607-01 supports efficient system-level data exchange in industrial machinery protection environments. It is commonly used in power generation, oil and gas, and other process industries where real-time monitoring is essential.

The Bently Nevada 3500/22M 138607-01 combines the functionality of a 3500/20 Rack Interface Module with the capabilities of a communication processor similar to TDXnet. The Bently Nevada 3500/22M 138607-01 continuously collects both steady-state and transient dynamic waveform data from M series monitors such as 3500/40M and 3500/42M. This data is then transmitted through an Ethernet connection to host software for analysis and diagnostics. In modern predictive maintenance systems, the Bently Nevada 3500/22M 138607-01 plays an important role in enabling advanced machinery health evaluation.

The Bently Nevada 3500/22M 138607-01 is installed in the slot adjacent to the power supplies within the 3500 rack, occupying Slot 1 as required for system operation. The Bently Nevada 3500/22M 138607-01 supports standard static data capture as well as optional high-resolution transient data collection when configured with a Channel Enabling Disk. Although the Bently Nevada 3500/22M 138607-01 provides communication and data handling functions, it is not part of the critical protection path and does not affect the automatic machinery protection functions of the system. Each 3500 rack requires one Bently Nevada 3500/22M 138607-01 or RIM module to ensure proper system communication structure.

The 3500/22M 138607-01 Bently Nevada Transient Data Interface Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 3500/22M 138607-01 Transient Data Interface Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 3500/22M 138607-01 Transient Data Interface Module Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 3500/22M 138607-01
  • Condition New Original ready stock
  • Product Family 3500/22M,3500/22M-01-01-00,146031-02
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • System Hub: Serves as the core communication interface between the 3500 monitoring system and the host computer configuration software and System 1 diagnostic software.
  • Multi-Machine Integration: Integrates the functionality of the 3500/20 frame interface module (RIM) and adds advanced data processing capabilities similar to TDXnet.
  • High-Efficiency Transmission: Seamlessly transmits steady-state and dynamic waveform data collected by each monitoring module to the host computer via Ethernet links.
  • Real-Time Feedback: Supports local maintenance and real-time data reading at the front end of the rack via a dedicated interface.
  • Transient Capture: Automatically collects critical high-speed dynamic vibration data during transient processes such as equipment startup and shutdown.
  • Status Transparency: Provides a high-resolution waveform analysis foundation for expert system diagnostics, helping to identify potential rotor dynamics problems.
  • Continuous Monitoring: Works in conjunction with M-series modules to ensure uninterrupted tracking of the equipment's thermal steady-state performance during normal operation.
  • Centralized Management: Parameter distribution and configuration synchronization for the entire 3500 frame can be completed through a single node.
  • Steam Turbine Generator Sets: Monitoring the start-up and shutdown processes of large units in the power industry, analyzing critical speeds and unbalanced responses.
  • Industrial Compressors: Providing critical performance curves for preventative maintenance of centrifugal compressors in oil refining or air separation units.
  • Critical Pump Sets: Conducting health assessments of high-speed delivery pumps in the petrochemical industry to reduce sudden mechanical failures.
  • Rotational Testing Platforms: Recording detailed mechanical vibration data under various load variations during research or manufacturing testing.
Description
The Bently Nevada™ 3500/22M 138607-01 Transient Data Interface (TDI), specifically part number 138607-01, serves as the essential communication link between a 3500 monitoring rack and external management software. This module is specifically designed to solve the complexity of data integration by combining the standard functions of a Rack Interface Module (RIM) with the high-speed data collection capabilities of a communication processor. By unifying these roles, it eliminates the need for separate hardware like TDXnet, streamlining the architecture of the monitoring system.

In demanding industrial environments, this TDI is engineered to handle the continuous acquisition of both steady-state and transient dynamic waveform data. It addresses the critical challenge of machinery diagnostics by interfacing directly with M series monitors to capture high-resolution information during machine startup or coast-down events. This allows the system to pass comprehensive datasets through an Ethernet link to System 1 Condition Monitoring software, ensuring that engineers have the precise diagnostic visibility required for predictive maintenance.

The module also resolves the risk of interference with core safety functions by operating outside the critical monitoring path. It is designed to facilitate advanced data capture—such as dynamic and high-resolution transient data via an optional Channel Enabling Disk—without affecting the automatic machinery protection or normal operation of the overall system. Occupying Slot 1 next to the power supplies, the 3500/22M 138607-01 ensures that while the rack remains dedicated to protecting the asset, the TDI provides the necessary data transparency for long-term health analysis.

Alternative Names
35OO/22M 1386O7-O1 3500/22M I38607-0I 350022M 13860701 3500/22M 288055-01 3500/22M 123M4610 3500/22M 146031-01 3500/22M 146031-02 3500/22M 161580
Technical notes
By integrating the core functions of a 3500/20 Rack Interface Module (RIM) with the advanced data collection capabilities of a communication processor, this 3500/22M 138607-01 module resolves the need for auxiliary hardware by providing a unified gateway for both rack configuration and diagnostic data.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Does the 3500/22M 138607-01 come with a warranty?
Yes, the 3500/22M 138607-01 includes a free 1-year Apter Power warranty.
What is the power consumption of the 3500/22M 138607-01 Transient Data Interface Module?
The 3500/22M consumes 10.5 Watts during operation, ensuring efficient energy usage while supporting full interface functionality.
How can I tell if the 3500/22M 138607-01 is operating properly?
The module features an OK LED indicator that lights up when the 3500/22M is functioning correctly.
Are your products 100% original and new?
Absolutely. All items are 100% original, brand new, never refurbished or counterfeit.
