        • Lifecycle status

          Discontinued / Obsolete by OEM
          Apter Power supplies factory-fresh Bently Nevada TK-3E (177313-02-01-00) validation hardware, providing instrumentation engineers with a dependable, current-generation calibration standard to ensure pristine accuracy of critical turbomachinery vibration loops.

        TK-3E 177313-02-01-00

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        The Bently Nevada TK-3E 177313-02-01-00 Proximity System Test Kit is an industry-standard, electric-driven calibration instrument engineered to simulate dynamic shaft vibration and static position.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for TK-3E 177313-02-01-00
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for TK-3E 177313-02-01-00

        • Manufacturer:
          Bently Nevada
        • Part Number:
          TK-3E 177313-02-01-00
        • Product Family:
          TK-3 Proximity System
        • Product Type:
          Proximity System Test Kit
        • Stock:
          1
        • Input Supply Voltage (Standard):
          95 to 125 Vac, 50/60 Hz
        • Input Supply Voltage (Alternate):
          190 to 250 Vac, 50/60 Hz
        • Current Consumption (Minimum):
          1.0 A minimum load requirement
        • Spindle Micrometer Measurement Scale:
          Metric Units: 0 mm to 25.4 mm (0 to 1000 mils)
        • Power Cord Configuration:
          American Standard Power Cord (Type 01)
        • Vibration Amplitude Output Range:
          50 µm to 254 µm (2 to 10 mils) peak-to-peak
        • Maximum Motor Operational Speed:
          0 to 5,000 cpm ± 1,000 cpm (cycles per minute)
        • Wobble Plate & Target Button Material:
          AISI 4140 Alloy Steel
        • Universal Probe Mounting Range:
          5 mm to 19 mm (0.197 inches to 0.75 inches)
        • Operational Ambient Temperature:
          0°C to 50°C (Continuous usage above 40°C limited)
        • Storage Ambient Temperature Range:
          -18°C to 65°C (0°F to 150°F)
        • Relative Ambient Humidity Limits:
          95% maximum Relative Humidity, non-condensing
        • Weight:
          5.1 kg
        • Estimated shipping dimensions:
          8537101190
        • Tariff Code:
          30x25x20cm
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Applications Performance Certifications

        Features:

        • Electric Motor Driven Wobulator Mechanism
        • Integrated High-Precision Metric Micrometer
        • Universal Tool-less Probe Mount Architecture
        The Bently Nevada TK-3E 177313-02-01-00 utilizes an electric motor to spin an inclined wobble plate, introducing real-time mechanical vibration frequencies up to 5,000 cpm. This lets engineers calibrate machinery protection monitors against physical dynamic inputs across a 50 µm to 254 µm peak-to-peak range, verifying alert setpoints safely before startup.

        The Bently Nevada TK-3E 177313-02-01-00 includes a removable spindle micrometer configured exclusively with a metric measurement dial ranging from 0 to 25.4 mm. Combined with a magnetic base, it permits technical crews to safely detach the precision gauge and measure precise voltage increments right next to critical machine bearings.

        The Bently Nevada TK-3E 177313-02-01-00 eliminates the logistics of managing variable adapter sleeves via its integrated universal collet setup. The single holder mechanism firmly grips prox probes from 5 mm up to 19 mm, vastly decreasing setup downtime when cycling through multiple diagnostic points across a plant facility.

        The TK-3E 177313-02-01-00 Bently Nevada Proximity System Test Kit may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        Bently Nevada TK-3E 177313-02-01-00 Proximity System Test Kit Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        Bently Nevada TK-3E 177313-02-01-00 Proximity System Test Kit

        General

        • Manufacturer GE / Bently Nevada
        • Model TK-3E 177313-02-01-00
        • Condition New Original ready stock
        • Product Family TK-3E 177313-02-02-00,TK-3E 177313-02-01,TK-3E 177313-01-01-00
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Rotating Machinery Condition Monitoring Loops: Used globally to verify the calibration of 3500 and 3300 racks monitoring critical asset metrics like radial vibration, axial thrust, and case expansion.
        • Field Instrumentation Diagnostics: Provides a portable, reliable platform for instrumentation and electrical (I&E) crews to test proximity sensors directly on turbine, compressor, and pump decks.
        • Turbomachinery Overhaul & Turnaround Audits: Deployed during major plant turnarounds to bench-test the linearity of proximity probes before re-installing them into critical machine bearings.
        • Calibration Lab Quality Assurance: Serves as a primary reference tool in industrial instrument labs to verify new or re-certified Proximitor sensors against factory standards.
        • Calibrated Metric Precision: The mechanical micrometer provides a smooth, repeatable travel range from 0 to 25.4 mm, giving engineers fine-grained positional control for exact voltage curve mapping.
        • Dynamic Variable Speed Output: The electric drive maintains stable speeds up to 5,000 cpm, ensuring dependable mechanical vibration generation for verifying high-frequency alarm and trip thresholds.
        • Optimized Adaptability Factor: The universal probe mount eliminates the need for tool changes and separate adapter rings, cutting cross-sensor inspection times down to mere minutes.
        • Field-to-Bench Portability: Weighing 5.22 kg and housed in a durable layout with a detachable micrometer, the unit balances rugged durability with easy portability across large plant layouts.
        • European Electromagnetic Compatibility (EMC): Evaluated under EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions), protecting nearby control networks from electrical interference.
        • Low Voltage Safety Directive (LVD): Conforms fully to EN 61010-1 criteria, guaranteeing proper grounding, insulation, and shock protection for users during operation.
        • Environmental Protection Class: The robust outer carrying enclosure meets IP54 specifications, sealing out dust and moisture spray during transit or storage in industrial settings.
        • FCC Part 15 Compliance: Meets the strict criteria for Class A digital devices, ensuring the electric motor drive won't disrupt nearby wireless plant communications.
        Description
        The Bently Nevada TK-3E 177313-02-01-00 integrates a high-precision, metric-calibrated spindle micrometer alongside an electric-motor-driven wobble plate. This dual-function configuration enables comprehensive verification of both position monitoring and dynamic vibration thresholds, allowing users to accurately map transducer linearity curves directly in the field.

        By leveraging the absolute scale factor of a proximity probe, the Bently Nevada TK-3E 177313-02-01-00 allows instrument engineers to determine the peak-to-peak mechanical vibration amplitude using a standard digital multimeter. This specialized methodology eliminates the need for bulky, complex oscilloscopes in harsh or constrained industrial plant environments.

        Equipped with a rugged universal probe mount, the Bently Nevada TK-3E 177313-02-01-00 easily accommodates case diameters ranging from 5 mm to 19 mm without requiring loose, easily misplaced adapters. This adaptive tool-less architecture ensures swift, seamless diagnostic integration with a vast fleet of standard and extended-range Proximitor sensors.

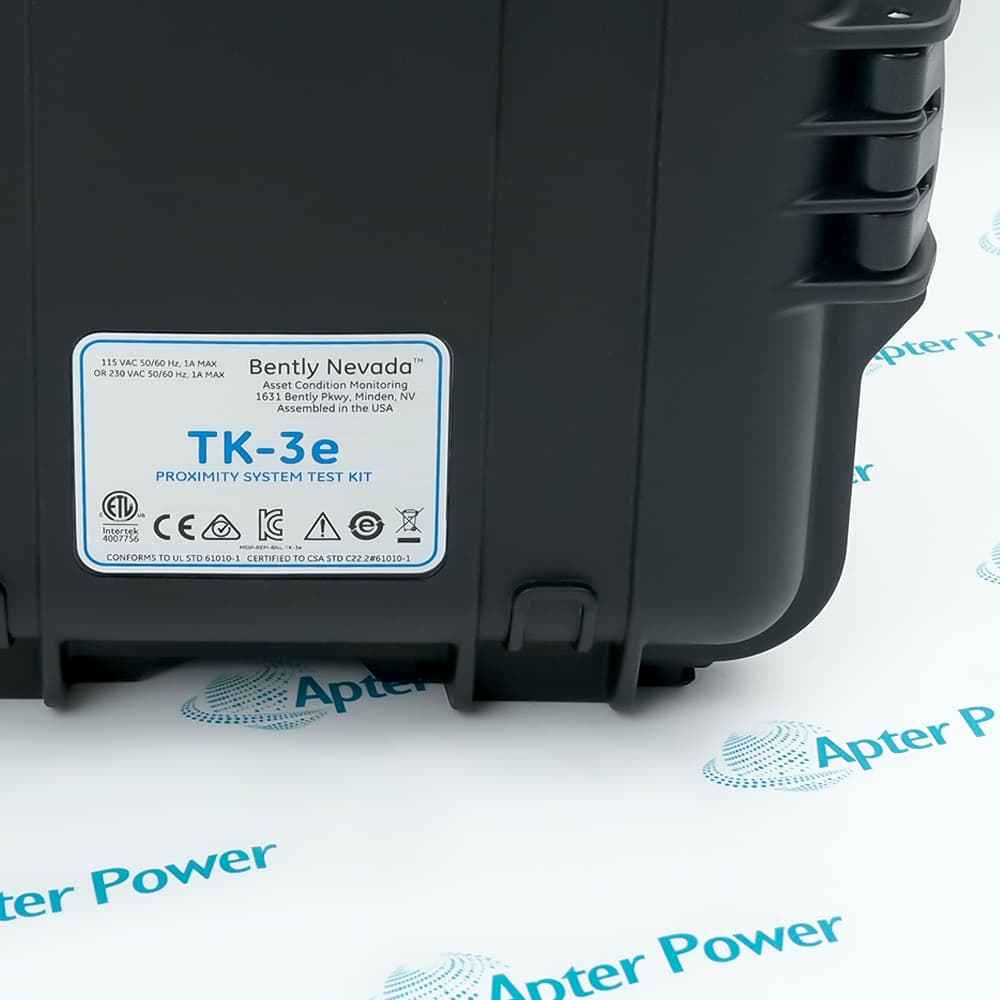

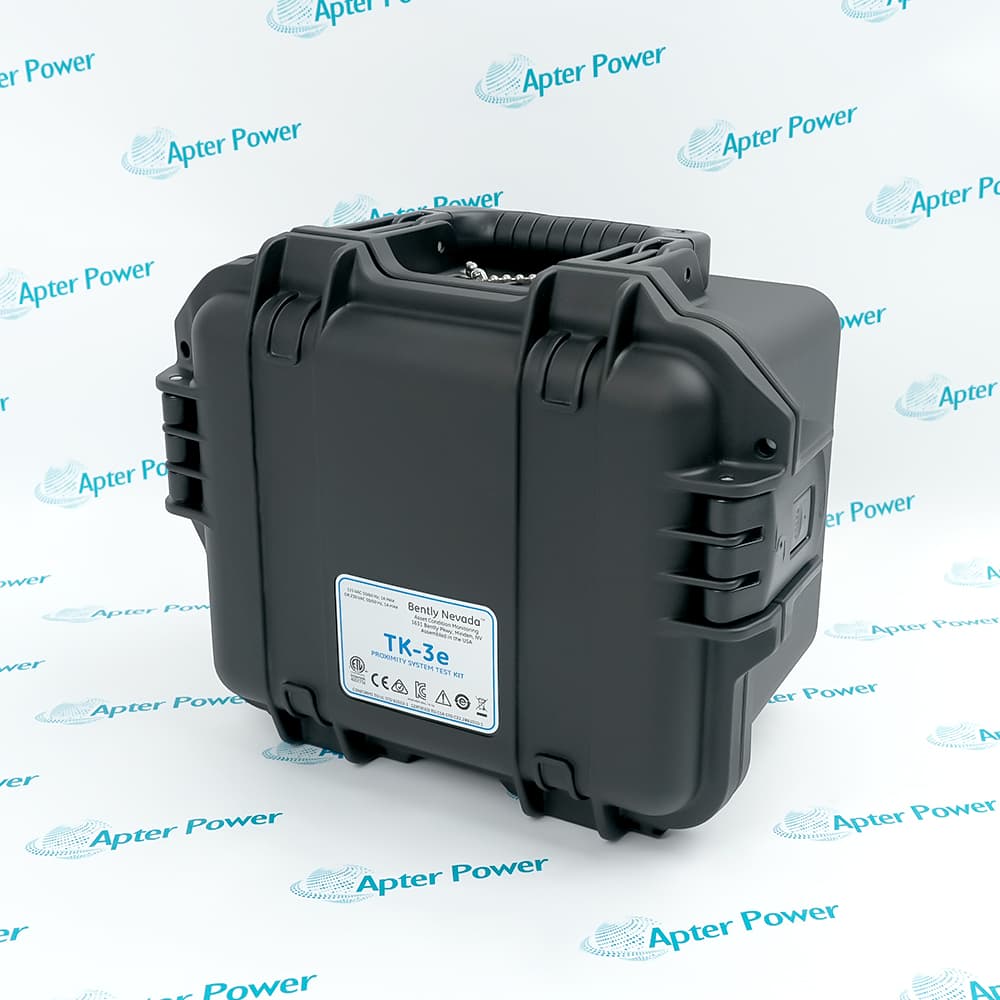

        Housed in an IP54-rated, weather-resistant structural carrying case, the Bently Nevada TK-3E 177313-02-01-00 is purpose-built to withstand the mechanical shocks and ambient rigors of processing plants. The spindle micrometer assembly additionally features a heavy-duty magnetic base, allowing for stable, hands-free mounting directly onto target rotating machinery casings.
        Alternative Names
        177313-02-01-00 TK-3E 177313 02 01 00 TK-3E I773I3-02-0I-00 TK-3E 177313-O2-O1-OO TK-3E 177313-02-02-00 TK-3E 177313-02-01 TK-3E 177313-01-01-00
        Technical notes
        The Bently Nevada TK-3E 177313-02-01-00 utilizes an electric motor to actuate an AISI 4140 alloy steel wobble plate for precise peak-to-peak voltage references. Technicians must strictly adhere to physical clearance guidelines from rotating internal parts during operational calibration cycles to mitigate equipment damage or personal safety risks.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        How do you verify the precise dynamic vibration amplitude using the Bently Nevada TK-3E 177313-02-01-00 without an oscilloscope?
        The Bently Nevada TK-3E 177313-02-01-00 relies on the absolute scale factor (ASF) of the specific proximity sensor under test. Technicians hook up a digital multimeter to measure the peak-to-peak AC voltage output generated by the proximity probe as it views the rotating AISI 4140 alloy steel wobble plate. By dividing this AC voltage by the target probe's known scale factor (e.g., 7.87 V/mm for a standard 8mm probe), you calculate the precise mechanical vibration amplitude, making field calibration fast and self-contained.
        Does the Bently Nevada TK-3E 177313-02-01-00 require a specific firmware version or system software to map sensor outputs?
        No, the Bently Nevada TK-3E 177313-02-01-00 is an entirely analog mechanical and electrical simulation device. It requires no digital software, communications protocols, or firmware integration to function. The electrical motor operates on simple hardware loops, and all diagnostic readings are obtained directly via raw physical voltage tracking on standard multimeters, rendering it universally compatible with old legacy and current-generation proximity sensors.
        What are the dual input voltage wiring capabilities of the Bently Nevada TK-3E 177313-02-01-00?
        The Bently Nevada TK-3E 177313-02-01-00 features internal hardware circuitry capable of operating across two distinct grid configurations: a low-voltage band of 95–125 Vac at 50/60 Hz, and a high-voltage band of 190–250 Vac at 50/60 Hz. Power connection parameters require at least a 1A minimum current feed. This specific
        What are the necessary setup steps to conduct a static position linearity test with the Bently Nevada TK-3E 177313-02-01-00?
        First, position the Bently Nevada TK-3E 177313-02-01-00 close to your test site and secure the removable metric spindle micrometer assembly via its integrated magnetic base. Insert the proximity probe into the universal mount (securing probes from 5mm to 19mm) until the probe tip is close to the AISI 4140 target button. Adjust the micrometer dial in precise calibrated increments (e.g., 0.25 mm steps), and log the corresponding DC voltage changes from the Proximitor sensor to map out your calibration curve.
        What are the dual input voltage wiring capabilities of the Bently Nevada TK-3E 177313-02-01-00?
        The Bently Nevada TK-3E 177313-02-01-00 features internal hardware circuitry capable of operating across two distinct grid configurations: a low-voltage band of 95–125 Vac at 50/60 Hz, and a high-voltage band of 190–250 Vac at 50/60 Hz. Power connection parameters require at least a 1A minimum current feed. This specific "01" configuration ships with a standard American power cord, but it handles international industrial voltages easily when used with the appropriate plug adapter.
