        Bently-Nevada TK-3E 177313-02-02-00
        Bently-Nevada TK-3E 177313-02-02-00
        Bently-Nevada TK-3E 177313-02-02-00
        Bently-Nevada TK-3E 177313-02-02-00
        Bently-Nevada TK-3E 177313-02-02-00
        Bently-Nevada TK-3E 177313-02-02-00
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Active / Available from OEM
          Apter Power supplies verified Bently Nevada test equipment to support precise field calibration, transducer verification, and continuous reliability for machinery health monitoring setups.

        TK-3E 177313-02-02-00

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

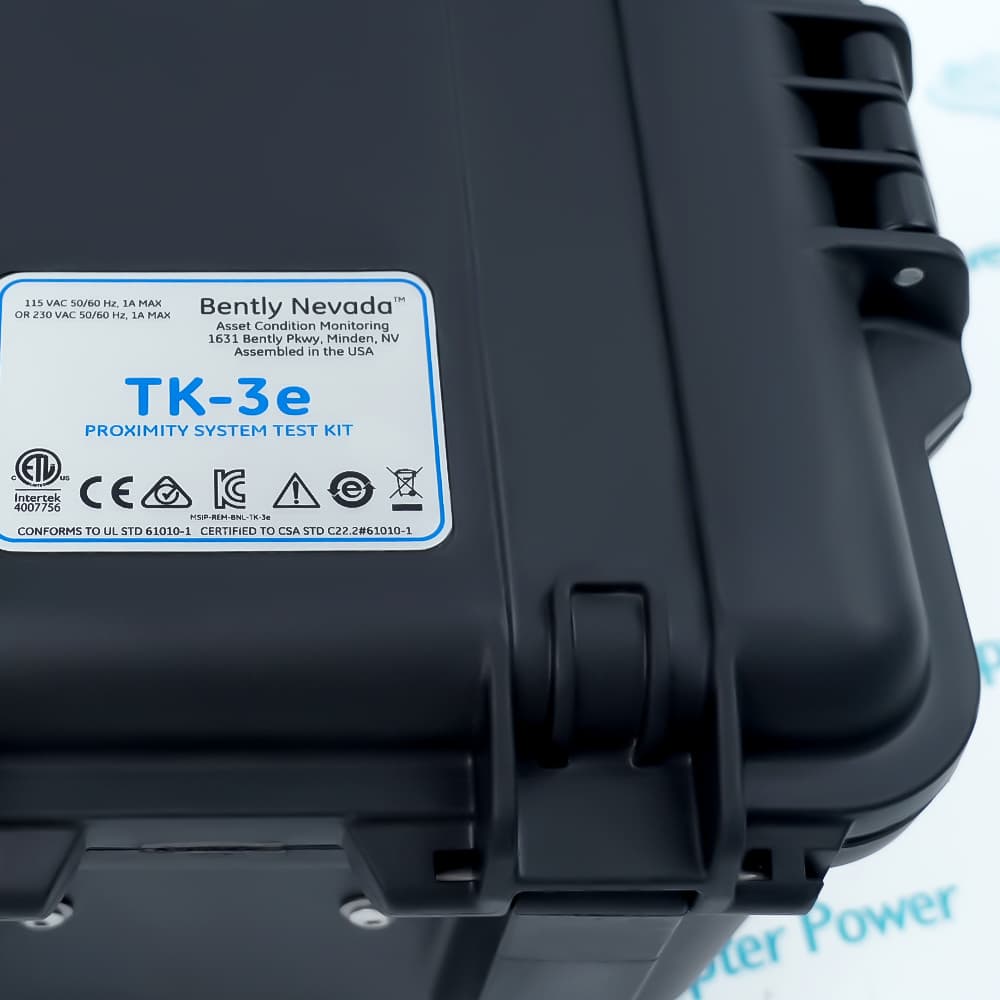

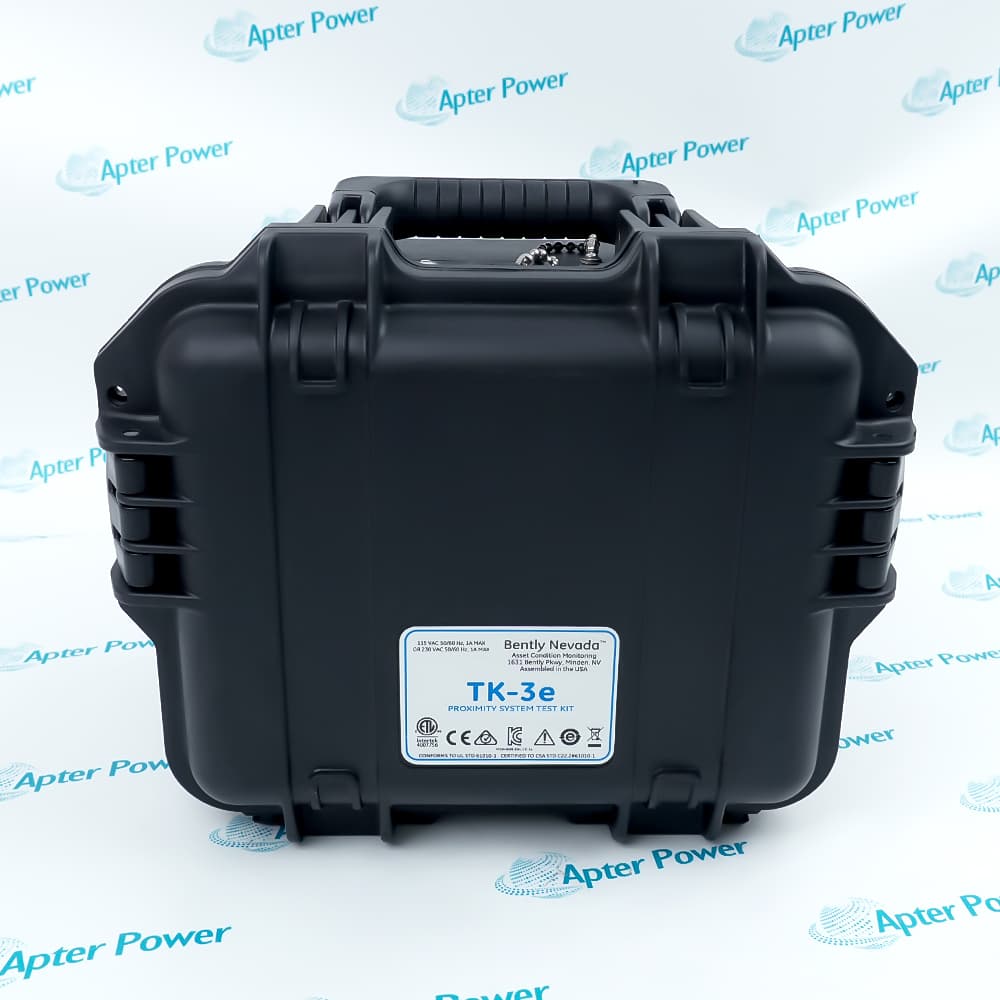

        The Bently Nevada TK-3E 177313-02-02-00 Proximity System Test Kit is an electric-driven calibration instrument designed with metric scale units and equipped with a European power cord type.
        In Stock
        Ships by Wednesday, October 28
        Fast Shipping Available
        Get a quick price for TK-3E 177313-02-02-00
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for TK-3E 177313-02-02-00

        • Manufacturer:
          Bently Nevada
        • Part Number:
          TK-3E 177313-02-02-00
        • Product Family:
          TK-3 Proximity System
        • Product Type:
          Proximity System Test Kit
        • Stock:
          1
        • Scale Units:
          Metric
        • Power Cord Type:
          European
        • Agency Approvals:
          None
        • Air Requirements:
          90 psi (6.2 bar) maximum
        • Wobulator Vibration Amplitude Range:
          50 μm to 254 μm (2 to 10 mils) peak-to-peak
        • Maximum Speed (Electric):
          0 to 5000 cpm ± 1000 cpm
        • Maximum Speed (Air):
          0 to 5000 cpm ± 1000 cpm
        • Spindle Micrometer Range:
          0 – 25.4 mm (0 – 1000 mils)
        • Power Disconnection:
          Disconnect the power cable from the TK-3 unit
        • Power Requirements (Electric):
          95-125 Vac, 50/60 Hz, 1A minimum / 190-250 Vac, 50/60 Hz, 1A minimum
        • Weight:
          5.4 kg
        • Estimated shipping dimensions:
          30.5x25x20cm
        • Tariff Code:
          9031809090
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Applications Operating Environment Firmware & Updates

        Features:

        • Simulates Mechanical Shaft Vibration and Static Displacement for Monitor Calibration
        • Integrates Electric-Driven Wobble Plate with Precision Metric Spindle Micrometer
        • Verifies Proximitor Sensors and Readout Accuracy Across Various Probe Sizes
        The Bently Nevada TK-3E 177313-02-02-00 operates as an electric-driven proximity system test kit, providing reliable mechanical signal simulation for calibrating vibration and position monitoring systems. It converts electrical power via a European power cord to drive its internal motor, utilizing a precision metric wobble plate and spindle micrometer to generate calibrated target motion for proximity transducers. By establishing known mechanical vibration (50 to 254 μm peak-to-peak) and static position inputs, the kit resolves the challenge of unverified sensor output and uncalibrated monitor channels without requiring an external oscilloscope.

        The TK-3E 177313-02-02-00 performs essential diagnostic functions critical to machinery protection, directly ensuring the integrity and accuracy of the overall monitoring loop before critical equipment is brought online. One test kit is typically deployed per maintenance station or field service technician to verify probes ranging from 5 mm to 19 mm (0.197 in to 0.75 in) in diameter. The unit features a compact, portable enclosure with a universal probe mount, an electric wobble plate, and a removable spindle micrometer assembly equipped with a magnetic base for flexible field operation.

        For static and dynamic calibration procedures, the TK-3E 177313-02-02-00 offers two distinct testing modes. In static testing, the spindle micrometer holds the probe while the user manually alters the target distance in metric increments, allowing precise recording of the Proximitor Sensor's DC voltage output to evaluate linearity. For dynamic testing, the swing-arm holds the probe over the motor-driven wobble plate to generate a mechanical vibration signal; technicians then measure the resulting peak-to-peak DC voltage on a multimeter and compare the known input directly against the vibration monitor readout to verify accuracy.

        The TK-3E 177313-02-02-00 Bently Nevada Proximity System Test Kit may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        Bently Nevada TK-3E 177313-02-02-00 Proximity System Test Kit Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        Bently Nevada TK-3E 177313-02-02-00 Proximity System Test Kit Specs

        General

        • Manufacturer Bently Nevada
        • Model TK-3E 177313-02-02-00
        • Condition New Original ready stock
        • Product Family TK-3E 177313-02-01-00,TK-3E 177313-02-03-00
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Static Calibration: Tests sensor linearity and axial thrust position using a calibrated spindle micrometer.
        • Dynamic Calibration: Simulates physical radial vibration from 50 µm to 254 µm peak-to-peak via a motor-driven wobble plate.
        • Speed Verification: Tests Keyphasor sensors and RPM monitors using a dedicated physical notch on the wobble plate.
        • Universal Field Testing: Accommodates multiple probe diameters from 5 mm to 19 mm using a single universal mount.
        • Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F).
        • Storage Temperature: -18 °C to 65 °C (0 °F to 150 °F).
        • Relative Humidity: Maximum 95% non-condensing.
        • Input Voltage Range: Dual-band support for 95–125 Vac or 190–250 Vac (50/60 Hz).
        • Target Metallurgy: Standard AISI 4140 Alloy Steel for factory-accurate eddy-current matching.
        • Drive Speed Limit: Variable motor adjustment from 0 to 5000 cycles per minute (cpm).
        • Onboard Software: None. The device is a purely electromechanical hardware tool.
        • Firmware Flashing: Not applicable. There is no microprocessor or digital code to update.
        • Product Evolution: Upgraded from legacy TK-3 models with an improved protective outer shell and a maintenance-free electric motor drive.
        • Maintenance Schedule: Requires annual physical re-certification and mechanical calibration rather than digital software patches.
        Description
        The Bently Nevada TK-3E 177313-02-02-00 Proximity System Test Kit is a specialized diagnostic instrument built for comprehensive field testing and calibration of machinery monitoring systems. This Bently Nevada TK-3E 177313-02-02-00 is specifically designed to handle the challenge of unverified transducer output and uncalibrated monitor readouts, solving the critical issue of inaccurate shaft position and vibration measurements in industrial rotating machinery protection systems. Applied extensively in power generation, oil and gas, petrochemicals, and heavy manufacturing facilities, the kit ensures that proximity transducer systems and monitor channels deliver reliable, precise data for predictive maintenance.

        To verify static position and proximity transducer linear response, the Bently Nevada TK-3E 177313-02-02-00 utilizes a removable spindle micrometer assembly equipped with a metric scale. A universal probe mount on the assembly accommodates probe diameters ranging from 5 mm to 19 mm (0.197 in to 0.75 in), holding the proximity probe securely while the technician manually adjusts the target distance in calibrated metric increments. By recording the resulting output voltage from the Proximitor Sensor using a standard voltmeter, users can easily map and verify the transducer's scale factor. The spindle micrometer assembly also incorporates a convenient magnetic base, allowing the TK-3E 177313-02-02-00 to be quickly mounted directly onto machine casings or steel structures during field inspections.

        For dynamic vibration calibration, the Bently Nevada TK-3E 177313-02-02-00 employs an electric motor-driven wobble plate to simulate mechanical shaft vibration. A swing-arm assembly positioned over the wobble plate features the same universal probe mount, holding the probe steady over the moving target surface. By leveraging the probe's absolute scale factor alongside a standard multimeter, technicians can set the probe to generate precise mechanical vibration signals ranging from 50 to 254 μm (2 to 10 mils) peak-to-peak. This peak-to-peak DC voltage reading eliminates the need for a bulky oscilloscope in field environments, allowing straightforward comparison between the known mechanical signal input from the TK-3E 177313-02-02-00 and the display reading on the vibration monitor.
        Alternative Names
        TK-3E 177313-02-02-00 TK-3E 177313 02 02 00 TK-3E 177313-02-03-00 TK-3E 177313-02-01-00 TK-3E 177313-01-02-00
        Technical notes
        The Bently Nevada TK-3E 177313-02-02-00 test kit is primarily used to simulate shaft vibration and position, allowing technicians to verify and calibrate Bently Nevada monitors. By ensuring a perfect match between sensor inputs and monitor readings, this test kit guarantees the overall accuracy and reliability of critical mechanical protection systems.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What is the Bently Nevada TK-3E 177313-02-02-00 Proximity System Test Kit?
        The Bently Nevada TK-3E 177313-02-02-00 is a portable test kit designed to verify the performance of proximity transducer systems and vibration monitors. It allows maintenance personnel to check system accuracy before machinery is returned to service.
        What problem does the Bently Nevada TK-3E 177313-02-02-00 solve?
        The kit helps eliminate inaccurate sensor readings, transducer drift, and uncalibrated monitor channels that may lead to false alarms or undetected machinery faults. It provides a reliable way to confirm the operating condition of vibration monitoring systems.
        Why do proximity transducer systems require regular testing?
        Over time, proximity probes may experience calibration drift due to temperature variations, vibration, mechanical wear, or environmental conditions. Routine testing helps maintain accurate machinery protection and condition monitoring.
        How does the Bently Nevada TK-3E 177313-02-02-00 verify system performance?
        The test kit creates controlled mechanical movement that simulates shaft vibration and probe displacement. This enables technicians to verify monitor readings and confirm that the entire proximity transducer system is operating correctly.
