IS200VCRCH1BBB

/ 4.9
1001 reviews | Need a Specific Revision?

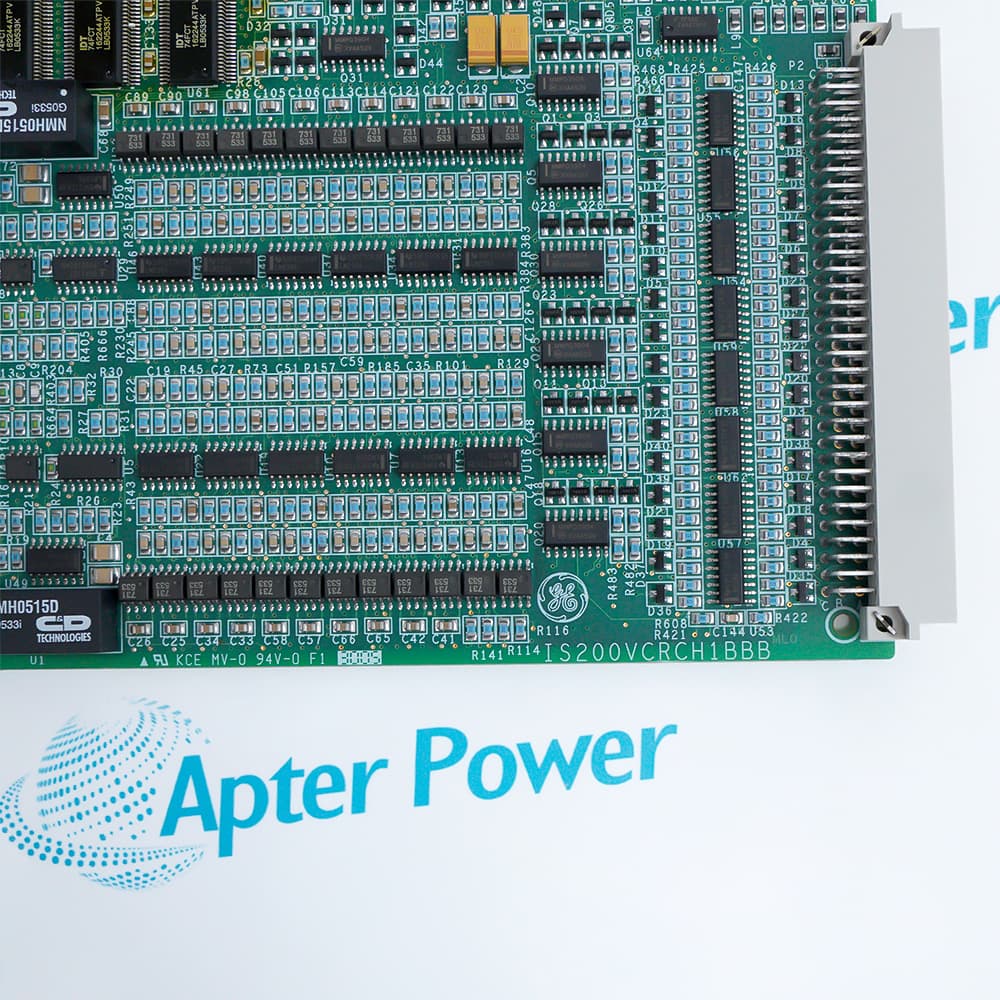

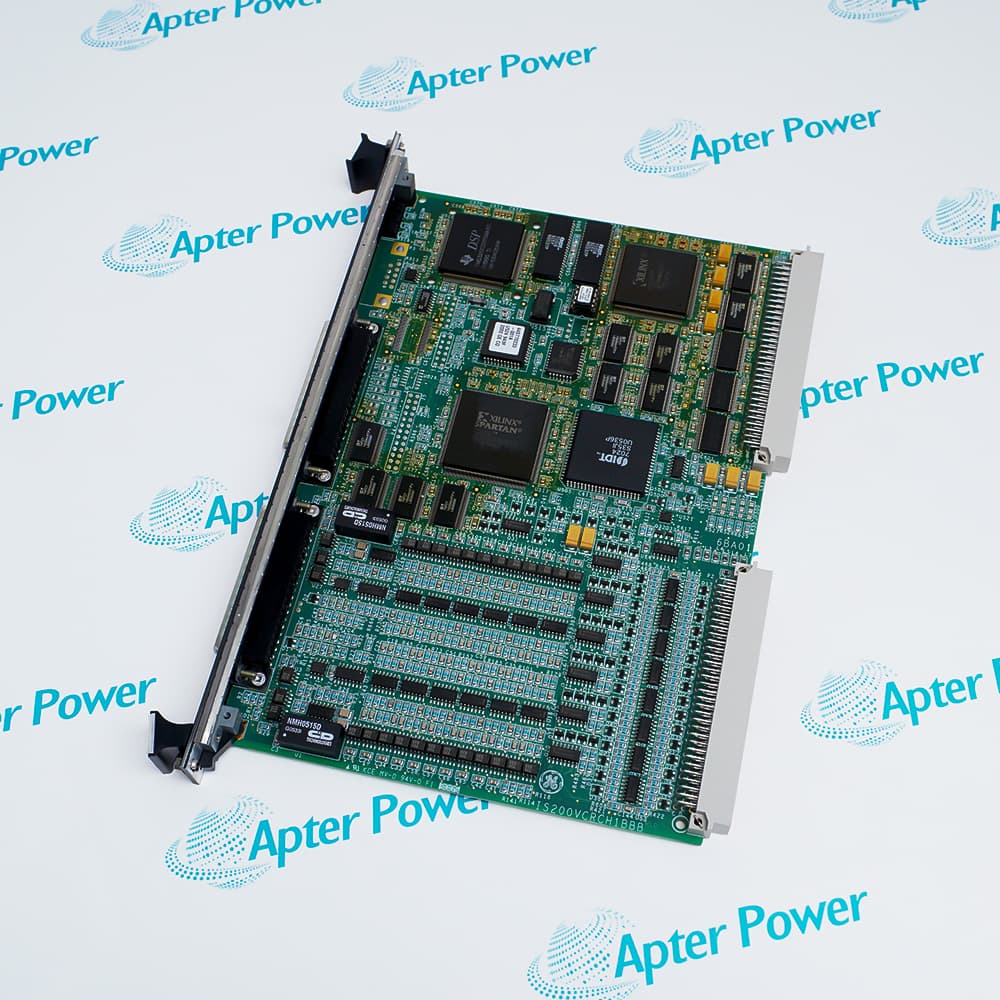

General Electric IS200VCRCH1BBB is a contact input and relay output board that provides 48 discrete DC input channels and 24 relay output channels in a single-slot configuration.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for IS200VCRCH1BBB
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IS200VCRCH1BBB

  • Manufacturer:
    General Electric
  • Part Number:
    IS200VCRCH1BBB
  • Product Family:
    GE Mark VI Gas Turbine Control
  • Product Type:
    Contact Input/Relay Output Board
  • Stock:
    1
  • Rated operating voltage:
    28.0 VDC (nominal)
  • Maximum operating voltage:
    32.0 VDC
  • Max response time on:
    25 ms
  • Max response time off:
    25 ms
  • Relay contact material:
    Silver cad-oxide
  • Number of channels:
    48
  • Operating temperature range:
    0 to 60 ℃
  • Contact inputs:
    48 discrete DC inputs
  • Relay outputs:
    24 relay outputs
  • Hardware interfaces:
    J33 and J44 connectors
  • Input terminal block:
    TBCI
  • Output terminal block:
    TRLY
  • Front panel indicator lights:
    3 LEDs
  • Weight:
    0.3 kg
  • Estimated shipping dimensions:
    2.1x18.8x26.2cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Protection Use Cases Installation

Features:

  • Supports 48 discrete DC contact inputs and 24 relay outputs within a compact single-slot design.
  • Provides maximum ON and OFF response times of 25 ms for timely signal processing and control actions.
  • Combines silver cad-oxide relay contacts, UL and CE compliance, and operation from 0 to 60°C for dependable field performance.
General Electric IS200VCRCH1BBB is a versatile contact input and relay output board developed for industrial control applications requiring both monitoring and switching capabilities. By integrating 48 discrete DC inputs with 24 relay outputs, the module simplifies system architecture and reduces the need for additional interface hardware. The single-slot configuration also helps maximize control cabinet space efficiency. Such a combination is valuable in automation environments where numerous field signals must be processed simultaneously.

Operating from a nominal 28.0 VDC supply and supporting up to 32.0 VDC, IS200VCRCH1BBB provides stable electrical performance for industrial systems. Signal processing is supported by response times of no more than 25 ms for both activation and deactivation events. Field connectivity is managed through dedicated TBCI and TRLY terminal blocks, while J33 and J44 connectors provide hardware interface connections. Three LED indicators on the front panel allow personnel to quickly verify module status during operation.

In practical applications, General Electric IS200VCRCH1BBB can be deployed in manufacturing, process control, utility, and automation systems where reliable signal acquisition and relay-based control are essential. The use of silver cad-oxide relay contacts contributes to dependable switching operation under industrial conditions. UL and CE certifications support compliance with recognized industry requirements. Combined with a 0 to 60°C operating temperature range, IS200VCRCH1BBB offers a dependable solution for demanding control environments.

The IS200VCRCH1BBB General Electric Contact Input/Relay Output Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IS200VCRCH1BBB Contact Input/Relay Output Board Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric IS200VCRCH1BBB Contact Input/Relay Output Board Specs

General

  • Manufacturer General Electric
  • Model IS200VCRCH1BBB
  • Condition New Original ready stock
  • Product Family IS200VCRCH1B,IS200VCRCH1BBA,IS200VCRCH1BBC
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Optical Isolation Protection: Input physical signals are isolated during transmission via optocouplers, completely blocking external overvoltage surges into the control core.
  • Jitter Filtering and Suppression: A built-in 4ms physical filter automatically eliminates harmful jitter generated during the closing of mechanical contacts.
  • Automatic Fault Cut-off: When the VME communication bus disconnects or a fatal hardware error occurs, the relay will forcibly cut off the output, entering a safe power-off state.
  • Diagnostic Alarm Reminder: When the board detects an abnormality in a hardware channel or circuit, the front panel STATUS orange light will immediately remain illuminated and locked.
  • Switch Limit Status Acquisition: Large-scale access to the physical dry contacts of the turbine-side steam inlet valves and emergency shut-off valves at their travel limits.
  • Gas Turbine Auxiliary Equipment Control: Outputs solenoid valve control logic to directly drive the turning gear motor, lubricating oil pump, and other starting relays.
  • Strict Transient Process Monitoring: Utilizes its 1ms high-speed scan and SOE waveform recording to capture and record the millisecond-level timing relationships at the moment of shutdown in real time.
  • Triple Modular Redundancy Safety Logic: Configured in the R, S, and T control core channels of Mark VI, jointly performing logic voting to ensure continuous operation of large units.
  • Vertical Rail Insertion and Removal: The board must be aligned with the internal guide rails of the VME control rack and pushed in smoothly while maintaining a horizontal and vertical orientation.
  • Tightening Front Panel Screws: After insertion, tighten the fixing bolts on the top and bottom edges to ensure proper grounding and lock the VME bus socket.
  • Compact Rack Space: The single-slot narrow board eliminates the complex traditional daughterboard structure, allowing for compact arrangement next to other control cards.
  • External Cable Connection: The data cable for the external TBCI or TRLY terminal block should be directly connected to the prominent J33 and J44 interfaces on the front panel.
Description
General Electric IS200VCRCH1BBB combines contact input acquisition and relay output control on a single board, making it suitable for applications that require dependable field signal interfacing. The module supports 48 discrete DC contact inputs and 24 relay outputs, allowing control systems to monitor equipment status while simultaneously executing switching commands. With a rated operating voltage of 28.0 VDC and a maximum operating voltage of 32.0 VDC, the board is designed for stable industrial operation.

The board features a single-slot structure that helps optimize cabinet space while providing high channel density. Hardware connectivity is accomplished through J33 and J44 connectors, while field wiring is organized through the TBCI input terminal block and TRLY output terminal block. Relay outputs utilize silver cad-oxide contact material, supporting reliable switching performance in demanding industrial environments.

IS200VCRCH1BBB is equipped with three front-panel LED indicators that provide quick visual status monitoring during operation and maintenance. The module delivers response times of up to 25 ms for both ON and OFF state changes, ensuring timely signal processing. Operating temperatures from 0 to 60°C, together with UL and CE certifications, make General Electric IS200VCRCH1BBB suitable for a wide range of industrial control and automation installations where dependable input monitoring and relay output control are required.
Revisions

Revision Part #

Also known as

IS200VCRCH1BBA
IS200VCRCH1B-BA, Series BA, Rev BA
IS200VCRCH1BBC
IS200VCRCH1B-BC, Series BC, Rev BC
Alternative Names
IS2OOVCRCH1BBB IS200VCRCHIBBB IS200VCRCH1B IS200VCRCH1BBA IS200VCRCH1BBC IS200VAICH1D IS200VRTDH1D IS200VSVOH1B
Technical notes
Optimized for space-constrained Mark VI racks, the single-slot GE IS200VCRCH1BBB board streamlines industrial turbine automation by consolidating 48 discrete contact inputs and 24 high-capacity relay outputs into a high-density, VME-based control module.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What functions does General Electric IS200VCRCH1BBB provide?
General Electric IS200VCRCH1BBB combines 48 discrete DC contact inputs and 24 relay outputs, enabling both signal monitoring and control functions within the same module.
How quickly can IS200VCRCH1BBB respond to input changes?
The module provides a maximum response time of 25 ms for both ON and OFF transitions.
Can IS200VCRCH1BBB operate above 28 VDC?
The board is rated for 28.0 VDC nominal operation and supports a maximum operating voltage of 32.0 VDC.
