KJ2005X1-SQ1 12P6383X052

/ 4.9
1001 reviews | Need a Specific Revision?

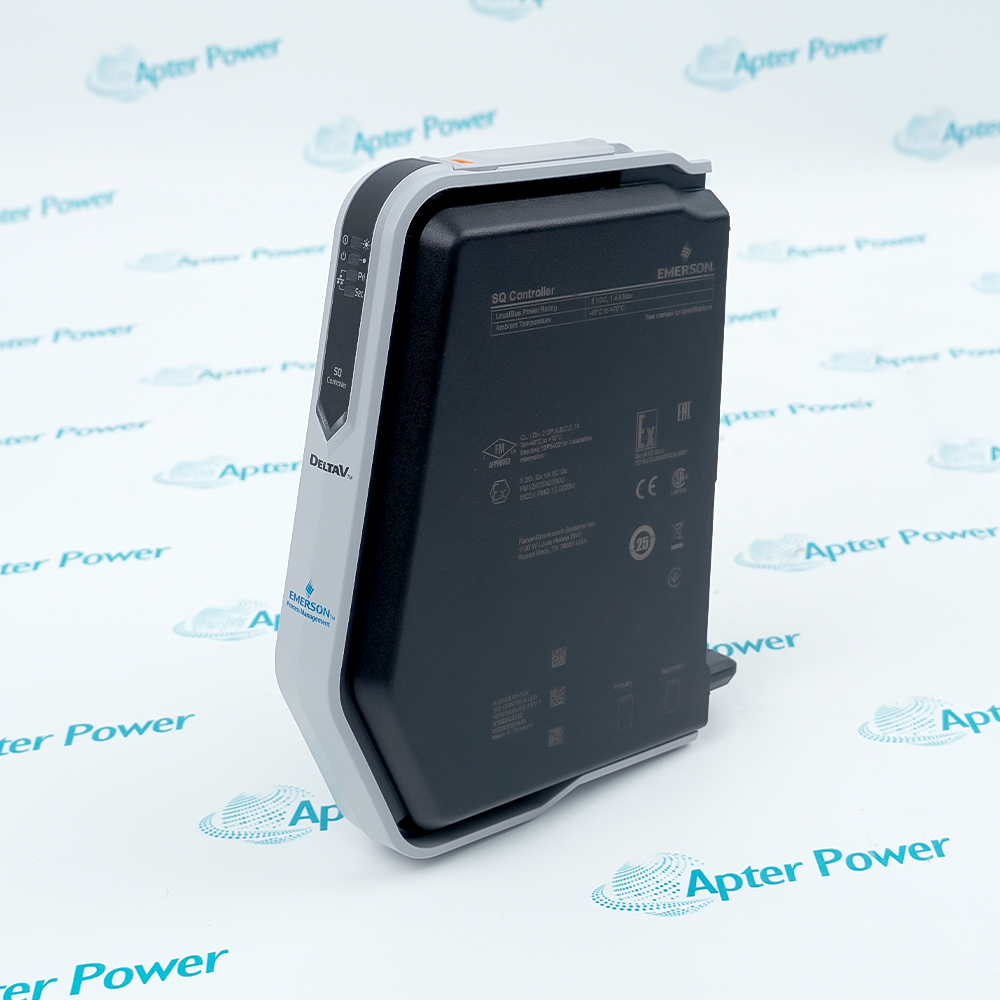

Emerson KJ2005X1-SQ1 12P6383X052 is a DeltaV SQ controller assembly supporting local and remote I/O, control-network connectivity, and optional 1:1 controller redundancy.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for KJ2005X1-SQ1 12P6383X052
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for KJ2005X1-SQ1 12P6383X052

  • Manufacturer:
    Emerson
  • Part Number:
    KJ2005X1-SQ1 12P6383X052
  • Product Family:
    DeltaV
  • Product Type:
    DeltaV SQ Controller
  • Stock:
    1
  • Redundancy:
    Optional 1:1 controller redundancy
  • Local I/O Capacity:
    Up to 64 local I/O cards on eight carriers
  • Remote I/O Units:
    Up to 16
  • CIOC Support:
    Up to 16 CIOCs with 96 signals each
  • Device Signal Tag Limit:
    750
  • SCADA Tag Limit:
    3200
  • Controller Memory:
    48 MB
  • Typical Power Dissipation:
    5 W
  • Maximum Power Dissipation:
    7 W
  • Internal Fuse:
    3 A
  • Control Network Connections:
    Primary and secondary 8-pin RJ45
  • Operating Temperature:
    -40 to +70 °C
  • Storage Temperature:
    -40 to +85 °C
  • Relative Humidity:
    5–95%, non-condensing
  • Protection Rating:
    IP20
  • Corrosion Protection:
    ISA-S71.04 G3 conformal coating
  • Dimensions:
    4.1 × 16.5 × 20 cm
  • Weight:
    0.4 kg
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Hardware Match Configuration Commissioning Application
  • Executes DeltaV control strategies and coordinates distributed process I/O
  • Supports traditional I/O, CHARMs, remote I/O, and supported external interfaces
  • Can operate in an approved 1:1 redundant controller arrangement

KJ2005X1-SQ1 12P6383X052 is an Emerson DeltaV SQ controller assembly for process-control execution.

The SQ architecture links control strategies with local carriers, remote I/O, CIOCs, control networks, and supported serial or Ethernet I/O devices.

Correct replacement requires the complete hardware identity, carrier and power arrangement, compatible DeltaV release, network settings, redundancy design, and validated database backup.

Availability, condition, price, and shipping time for KJ2005X1-SQ1 12P6383X052 are confirmed during quotation.

Emerson KJ2005X1-SQ1 12P6383X052 SQ Controller Manuals, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

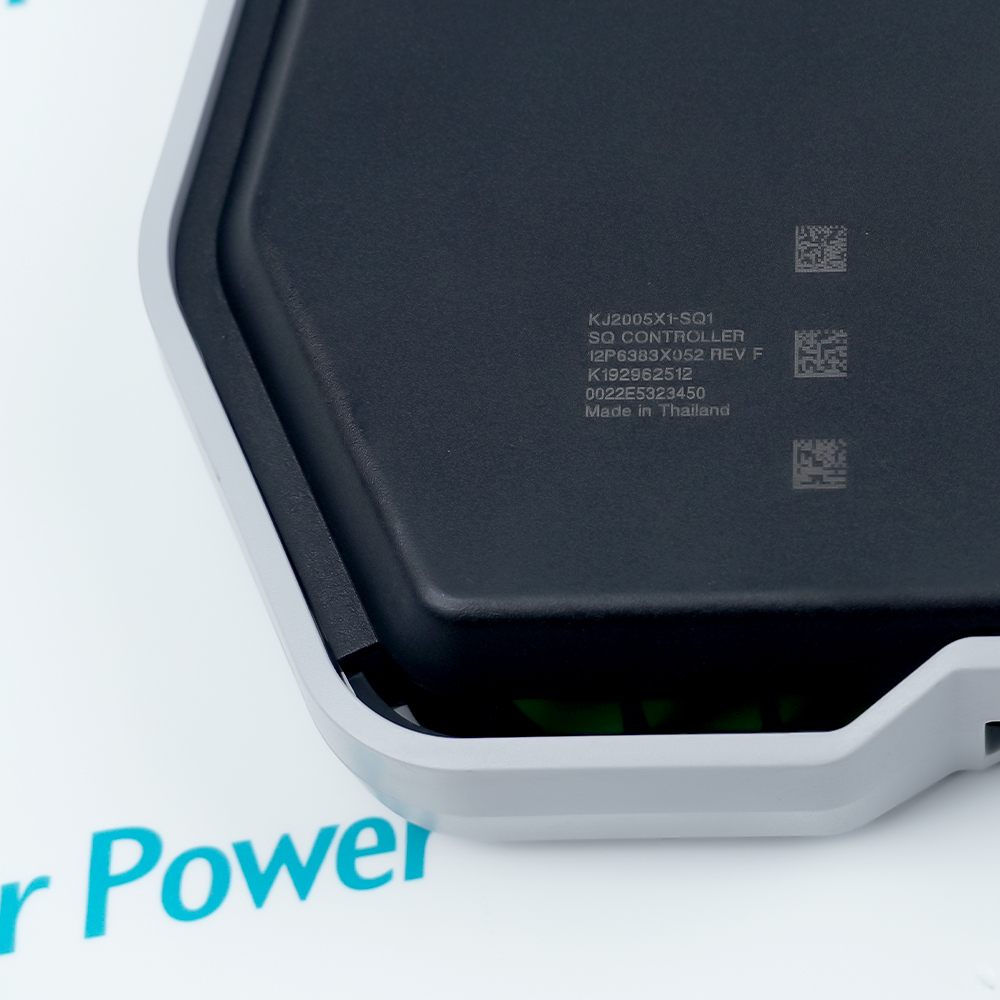

  • Compare both KJ2005X1-SQ1 and 12P6383X052 with the installed label
  • Confirm the approved controller carrier, dedicated power supply, and network connectors
  • Verify single or redundant architecture before assigning the replacement
  • Back up the validated DeltaV database and controller strategies
  • Preserve controller identity, network settings, I/O assignments, and redundancy state
  • Use a DeltaV release documented for the SQ controller platform
  • Check carrier power, module seating, and primary/secondary network links
  • Download the approved configuration and review controller diagnostics
  • Test I/O communication and redundancy transfer under the site procedure
  • Continuous process control using DeltaV local and distributed I/O
  • Batch and sequence execution in DeltaV automation systems
  • Redundant controller service for process units requiring 1:1 availability
Description
KJ2005X1-SQ1 12P6383X052 is an Emerson DeltaV SQ controller assembly for process-control execution and distributed I/O coordination.

The SQ platform supports local traditional I/O, CHARMs, remote I/O, control-network connections, serial and Ethernet I/O, and optional 1:1 controller redundancy.

Before replacement, match the complete KJ and 12P code, carrier, power supply, DeltaV release, redundancy arrangement, network identity, controller database, and saved control configuration.
Alternative Names
KJ2005X1-SQ1 12P6383X052 KJ2005X1 SQ1 12P6383X052 KJ2005X1-SQ1 12P6383X052 Emerson KJ2005X1-SQ1 12P6383X052 DeltaV SQ Controller KJ2005X1-SQ1 12P6383X052
Technical notes
KJ2005X1-SQ1 12P6383X052 requires matching the complete hardware code, DeltaV release, carrier, power, network identity, redundancy arrangement, and saved database; platform mismatch can block commissioning.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why must the full Emerson KJ2005X1-SQ1 12P6383X052 code be matched?
The KJ and 12P identifiers define the controller assembly. Match both codes, carrier, DeltaV release, redundancy design, and installed hardware rather than ordering only “SQ controller.”
Can Emerson KJ2005X1-SQ1 12P6383X052 replace another DeltaV controller family directly?
Not automatically. Confirm platform migration support, DeltaV software release, carrier and power supply, I/O architecture, network design, licenses, and controller database conversion.
What should be backed up before replacing Emerson KJ2005X1-SQ1 12P6383X052?
Back up the controller configuration, module assignments, control strategies, network settings, redundancy state, licenses, and the validated DeltaV database under the site procedure.
Can Emerson KJ2005X1-SQ1 12P6383X052 be used as a redundant controller?
The SQ platform supports 1:1 redundancy when the approved companion controller, carrier arrangement, power, network links, and DeltaV configuration are present.
What can keep Emerson KJ2005X1-SQ1 12P6383X052 offline after installation?
Check carrier power, seating, primary/secondary network links, node identity, DeltaV version, controller assignment, redundancy configuration, database download, and active diagnostics.
Does Emerson KJ2005X1-SQ1 12P6383X052 support only local traditional I/O?
No. Official SQ documentation covers local traditional I/O, CHARMs through CIOCs, remote I/O units, and supported serial or Ethernet I/O interfaces.
What is the main selection risk for Emerson KJ2005X1-SQ1 12P6383X052?
The chief risk is matching the controller family but not the complete hardware code, carrier, software release, redundancy architecture, or saved DeltaV configuration.
