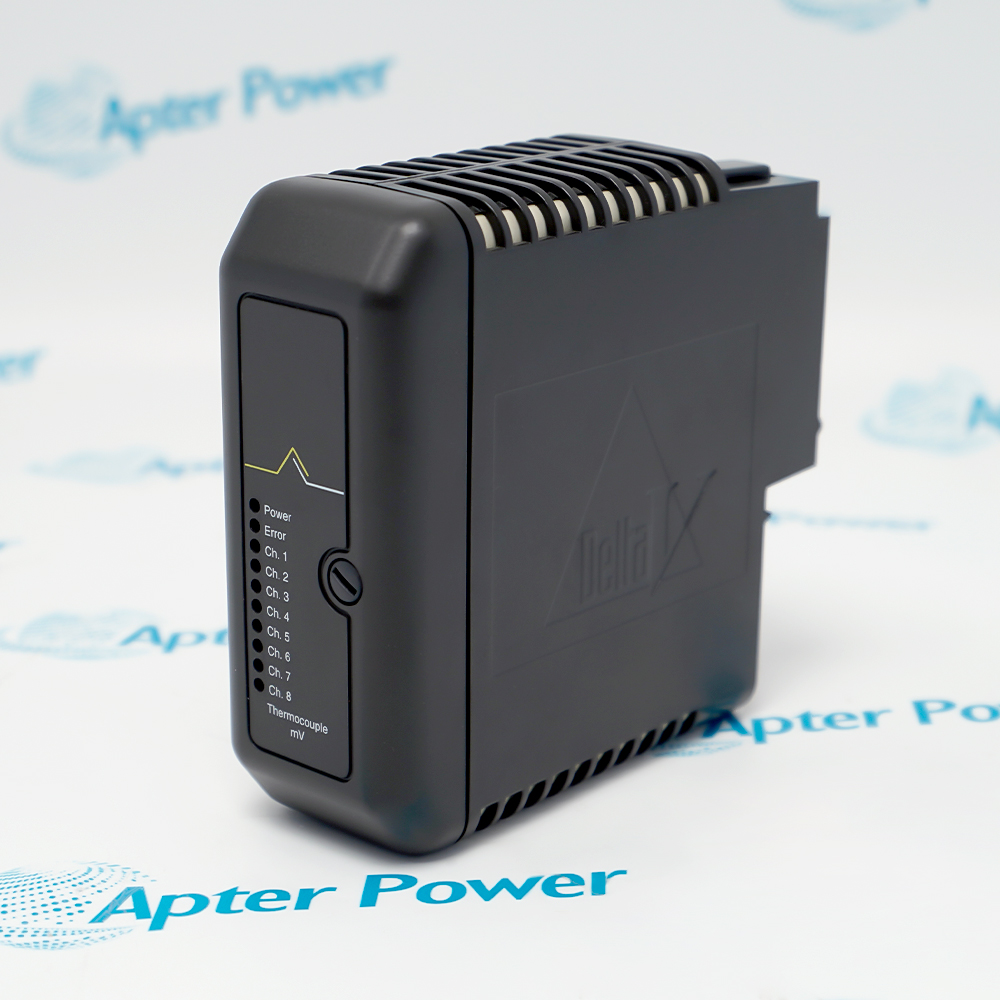

Emerson KJ3002X1-BG2 is an eight-channel DeltaV M-series thermocouple and millivolt input card.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for KJ3002X1-BG2
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for KJ3002X1-BG2

  • Manufacturer:
    Emerson
  • Part Number:
    KJ3002X1-BG2
  • Product Family:
    DeltaV
  • Product Type:
    8-Channel Thermocouple/mV Input Card
  • Stock:
    1
  • Number of channels:
    8
  • Thermocouple types:
    B, E, J, K, N, R, S, T, and uncharacterized
  • Additional input:
    Low-level voltage source
  • A/D resolution:
    16 bit
  • Repeatability:
    0.05%
  • Cold-junction compensation:
    Local CJC with compatible terminal block; external CJC by configuring one channel
  • Isolation:
    Optical isolation from the system; channel groups 1–4 and 5–8 isolated from one another
  • Common-mode rejection:
    120 dB at DC and 50/60 Hz
  • Input impedance:
    Greater than 10 MΩ
  • Open-sensor detection:
    Less than 70 nA; 10-second detection time
  • LocalBus current:
    210 mA at 12 V DC
  • Field circuit:
    5.5 V DC at 0.6 mA per channel
  • Operating temperature:
    0 to 60 °C
  • Tariff Code:
    853890000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Power Environment Handling Application
  • Eight channels accept documented thermocouple types and low-level millivolt sources
  • Local or externally configured cold-junction compensation supports temperature measurement
  • Two four-channel groups provide the documented isolation arrangement

KJ3002X1-BG2 is an Emerson thermocouple/mV input card designed for the DeltaV M-series Traditional I/O platform.

The card acquires low-level temperature and voltage signals with 16-bit conversion, open-sensor detection, and the documented cold-junction compensation options.

Before installation or replacement, verify the complete catalog number, actual label, thermocouple type, terminal block, cold-junction method, polarity, channel grouping, and saved DeltaV configuration.

Availability, condition, price, and shipping time for KJ3002X1-BG2 are confirmed during quotation.

Emerson KJ3002X1-BG2 8-Channel Thermocouple/mV Input Card Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • LocalBus power is rated 12 V DC at 350 mA
  • The field circuit is rated 5.5 V DC at 0.6 mA per channel
  • Field power supplied through the terminal or carrier must be removed before connecting or removing the card
  • The documented ambient operating range is 0 to 60 °C
  • Shock resistance is 10 g half-sine wave for 11 ms
  • Vibration resistance is 1 mm peak-to-peak from 5 to 16 Hz and 0.5 g from 16 to 150 Hz
  • Only one unit at a time may be removed with system power energized and only under the power-supply conditions stated in the model instruction sheet
  • Do not remove a terminal-block fuse with field power energized in non-sparking circuits
  • The card contains no user-serviceable parts and must not be disassembled
  • Thermocouple temperature measurement in DeltaV M-series process-control systems
  • Low-level millivolt signal acquisition from compatible field sources
  • Eight-channel temperature monitoring using documented cold-junction compensation hardware
Description
KJ3002X1-BG2 is an Emerson eight-channel thermocouple/mV input card for the DeltaV M-series Traditional I/O platform.

The card supports thermocouple types B, E, J, K, N, R, S, and T plus low-level voltage sources, with 16-bit conversion and open-sensor detection.

Before installation or replacement, confirm the complete catalog number, actual label, terminal hardware, sensor type, polarity, cold-junction compensation, and saved channel configuration.
Alternative Names
KJ3002X1-BG2 KJ3002X1BG2 KJ3002X1 BG2 Emerson KJ3002X1-BG2 DeltaV KJ3002X1-BG2 Emerson DeltaV KJ3002X1-BG2
Technical notes
KJ3002X1-BG2 requires the thermocouple type, polarity, terminal block, cold-junction compensation method, channel grouping, and complete label identity to be verified before installation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which sensors can Emerson KJ3002X1-BG2 accept?
It supports thermocouple types B, E, J, K, N, R, S, and T, an uncharacterized thermocouple mode, and low-level millivolt sources.
Does Emerson KJ3002X1-BG2 provide cold-junction compensation?
Yes. Local compensation is available with compatible terminal hardware, and external compensation can be implemented by configuring one channel.
How does Emerson KJ3002X1-BG2 detect an open sensor?
The documented detection current is less than 70 nA and the published open-sensor detection time is 10 seconds.
Are all channels of Emerson KJ3002X1-BG2 isolated from one another?
No. The card isolates channel groups 1–4 and 5–8 from each other; channels within each four-channel group are not individually isolated.
What should be checked when moving a thermocouple to Emerson KJ3002X1-BG2?
Confirm thermocouple type, polarity, extension-wire material, terminal block, cold-junction method, channel grouping, and the DeltaV channel definition.
Does Emerson KJ3002X1-BG2 require calibration?
The DeltaV M-series product data states that calibration is not required for this thermocouple/mV input type.

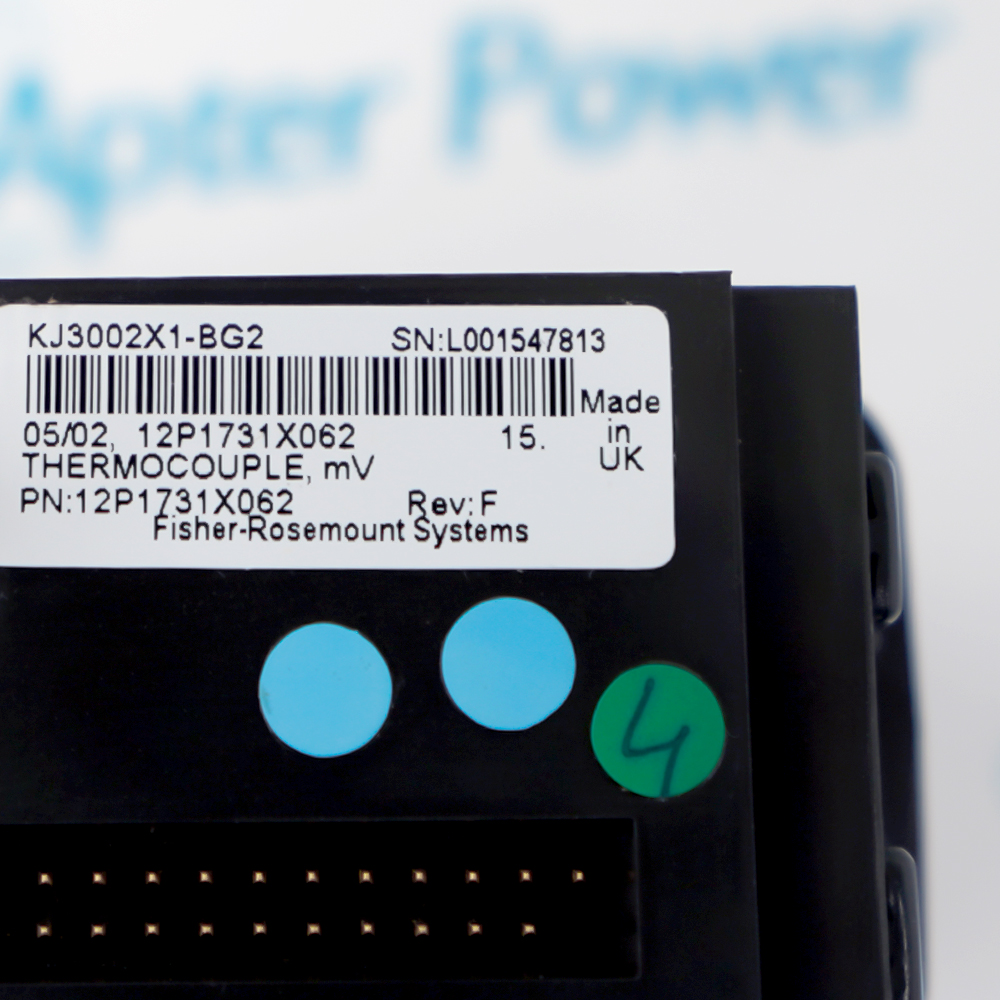

Can 12P1731X062 be treated as an official alias for Emerson KJ3002X1-BG2?
Only when both identifiers are visible on the actual product label or covered together by a manufacturer document. The available official functional data confirms KJ3002X1-BG2 but does not establish that one 12P suffix applies to every card.
