KJ4001X1-CJ1 12P1902X032

/ 4.9
1001 reviews | Need a Specific Revision?

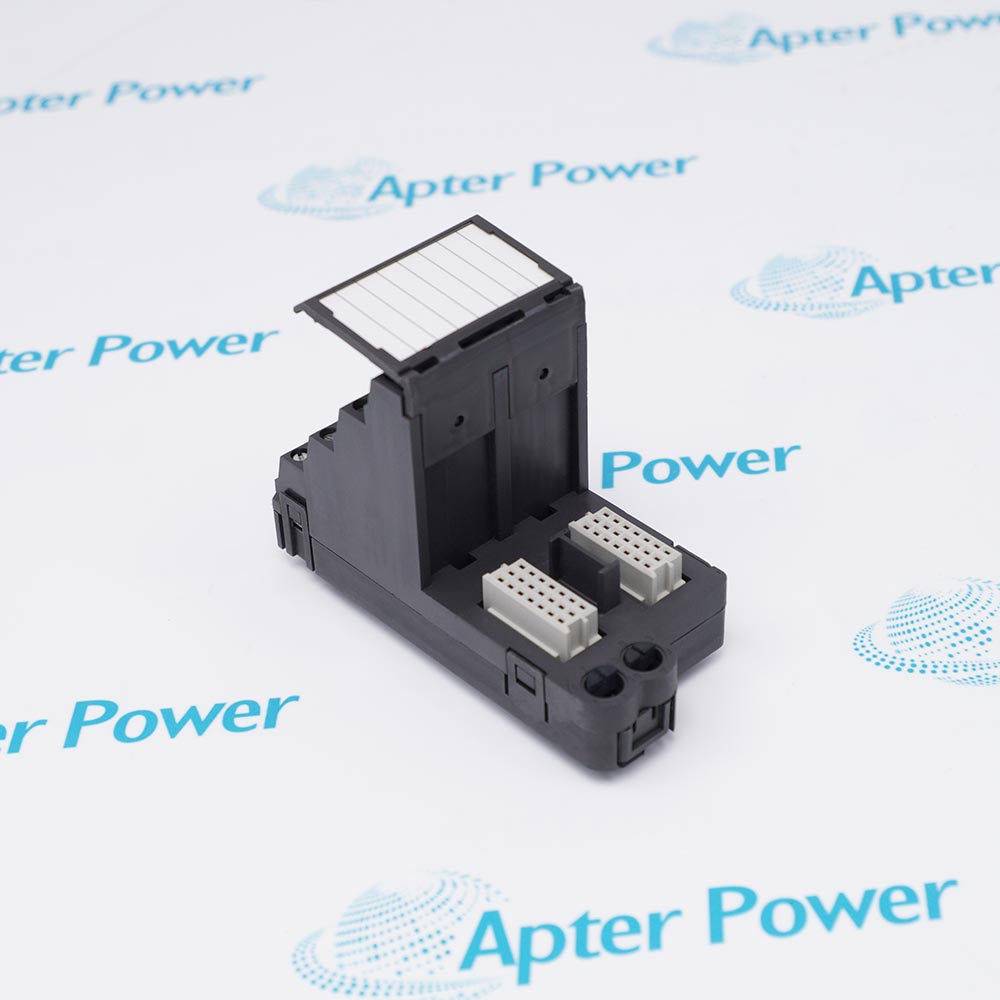

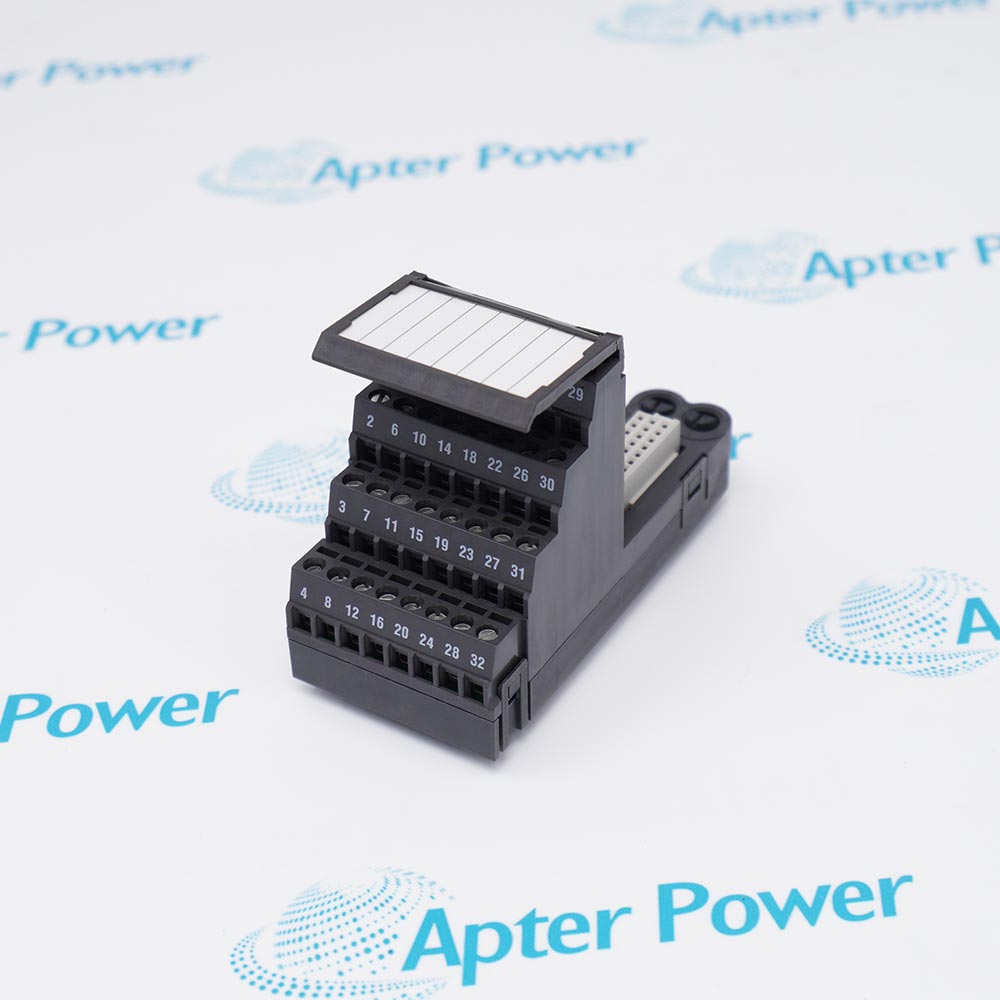

Emerson KJ4001X1-CJ1 12P1902X032 is a DeltaV 32-Channel Terminal Block. It terminates thirty-two DeltaV traditional-I/O field channels.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for KJ4001X1-CJ1 12P1902X032
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for KJ4001X1-CJ1 12P1902X032

  • Manufacturer:
    Emerson
  • Part Number:
    KJ4001X1-CJ1 12P1902X032
  • Product Family:
    DeltaV
  • Product Type:
    32-Channel Terminal Block
  • Stock:
    1
  • Base hardware:
    KJ4001X1-CJ1 32-channel terminal block
  • Catalog number:
    12P1902X032; verify on the supplied label
  • Terminal-block rating:
    30 V DC, maximum 1 A
  • Ambient range:
    0 to 60 deg C for the documented 2003 execution
  • Relative humidity:
    5 to 95%, noncondensing
  • Airborne contaminants:
    ISA-S71.04 G3
  • Protection:
    IP20
  • Shock:
    10 g half-sine, 11 ms
  • Hazardous-area marking:
    ATEX II 3 G, EEx nA IIC T4; Class I Division 2 groups A-D
  • Weight:
    0.2646 lbs (0.12 kg)
  • Estimated shipping dimensions:
    9 x 4.1 x 6.5 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Compatibility Installation & Integration Safety & Compliance

Features:

  • Terminates thirty-two DeltaV traditional-I/O field channels.
  • Uses rotary keying to prevent an incompatible I/O-card installation.
  • Carries the documented 30 V DC, 1 A maximum terminal-block rating.
The block provides thirty-two field-wiring positions for a compatible DeltaV traditional I/O assembly, creating a serviceable boundary between permanent plant wiring and the removable electronics.

Field signals enter through the terminal block and are passed to the matched I/O card through the keyed carrier connection. The terminal block does not execute control logic or alter the configured channel algorithm.

The Emerson sheet verifies the KJ4001X1-CJ1 base hardware. The complete 12P1902X032 catalog number must also match the item label, carrier, channel type and project drawing before replacement.

Availability is reviewed against the exact KJ4001X1-CJ1 12P1902X032 order identity and requested supply condition; manufacturer lifecycle status: Active / Available from OEM.
Verified resources for Emerson KJ4001X1-CJ1 12P1902X032:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Rotary keying is used to prevent an incompatible I/O card from being installed on the carrier. Correct key positions and carrier type are therefore part of the safety and signal-integrity check.
  • The assembly is used in DeltaV cabinets where high-density channel termination, orderly field wiring and replaceable I/O electronics are required.
  • Requires the complete 12P1902X032 label and carrier configuration to match.
  • Provides 32 field-wiring positions for compatible DeltaV traditional I/O.
  • Passes field signals through the keyed carrier without executing control logic.
  • Catalog and base-hardware identities must match the installed channel type.
  • Terminal block is rated for 30 V DC and 1 A maximum.
  • Carrier position and terminal mapping must follow the project drawing.
  • Complete catalog number must be verified on the supplied hardware label.
  • IP20 protection requires installation inside a suitable control enclosure.
  • Carries documented ATEX II 3 G and EEx nA IIC T4 markings.
  • The hazardous-area execution operates from 0 to 60 deg C.
Description
Emerson KJ4001X1-CJ1 12P1902X032 The block provides thirty-two field-wiring positions for a compatible DeltaV traditional I/O assembly, creating a serviceable boundary between permanent plant wiring and the removable electronics. Field signals enter through the terminal block and are passed to the matched I/O card through the keyed carrier connection. The terminal block does not execute control logic or alter the configured channel algorithm.

Rotary keying is used to prevent an incompatible I/O card from being installed on the carrier. Correct key positions and carrier type are therefore part of the safety and signal-integrity check. The assembly is used in DeltaV cabinets where high-density channel termination, orderly field wiring and replaceable I/O electronics are required.

The Emerson sheet verifies the KJ4001X1-CJ1 base hardware. The complete 12P1902X032 catalog number must also match the item label, carrier, channel type and project drawing before replacement.
Alternative Names
KJ4001X1-CJ1 12P1902X032 KJ4001X1 CJ1 12P1902X032 KJ4001X1CJ112P1902X032 KJ4001X1-CJ1-12P1902X032 Emerson KJ4001X1-CJ1 12P1902X032 Emerson KJ4001X1 CJ1 12P1902X032 Emerson KJ4001X1CJ112P1902X032 Emerson DeltaV 32-Channel Terminal Block
Technical notes
The Emerson KJ4001X1-CJ1 12P1902X032 replacement terminal block must agree with the DeltaV drawing for carrier position, channel type, and project terminal mapping.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How does Emerson KJ4001X1-CJ1 12P1902X032 separate permanent field wiring?
The block provides thirty-two field-wiring positions for a compatible DeltaV traditional I/O assembly, creating a serviceable boundary between permanent plant wiring and the removable electronics.
Why must catalog number 12P1902X032 match Emerson KJ4001X1-CJ1?
The manufacturer data specifies Catalog number as 12P1902X032; verify on the supplied label; the installed arrangement must match that exact value.
How are field signals routed through Emerson KJ4001X1-CJ1 12P1902X032?
Field signals enter through the terminal block and are passed to the matched I/O card through the keyed carrier connection. The terminal block does not execute control logic or alter the configured channel algorithm.
Which carrier and channel details must match Emerson KJ4001X1-CJ1 12P1902X032?
The Emerson sheet verifies the KJ4001X1-CJ1 base hardware. The complete 12P1902X032 catalog number must also match the item label, carrier, channel type and project drawing before replacement.
How should availability be verified for Emerson KJ4001X1-CJ1 12P1902X032?
The page records Active / Available from OEM. Apter Power reviews the exact order identity and condition without presenting this as an OEM delivery promise.
What DeltaV terminal-map evidence identifies Emerson KJ4001X1-CJ1 12P1902X032?
Submit the complete nameplate, Airborne contaminants (ISA-S71.04 G3), installed system evidence, condition, quantity and destination so the document and quotation match KJ4001X1-CJ1 12P1902X032.
