SLS1508 KJ2201X1-BA1

/ 4.9
1001 reviews | Need a Specific Revision?

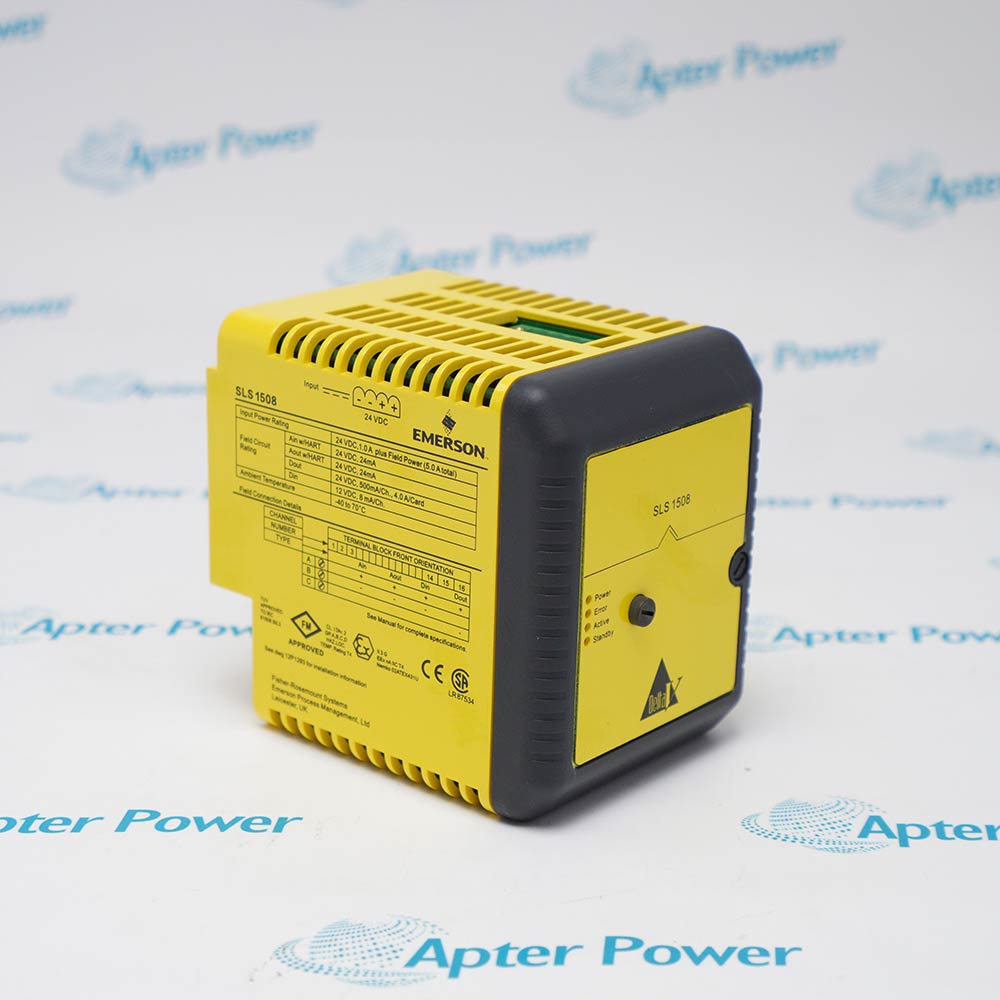

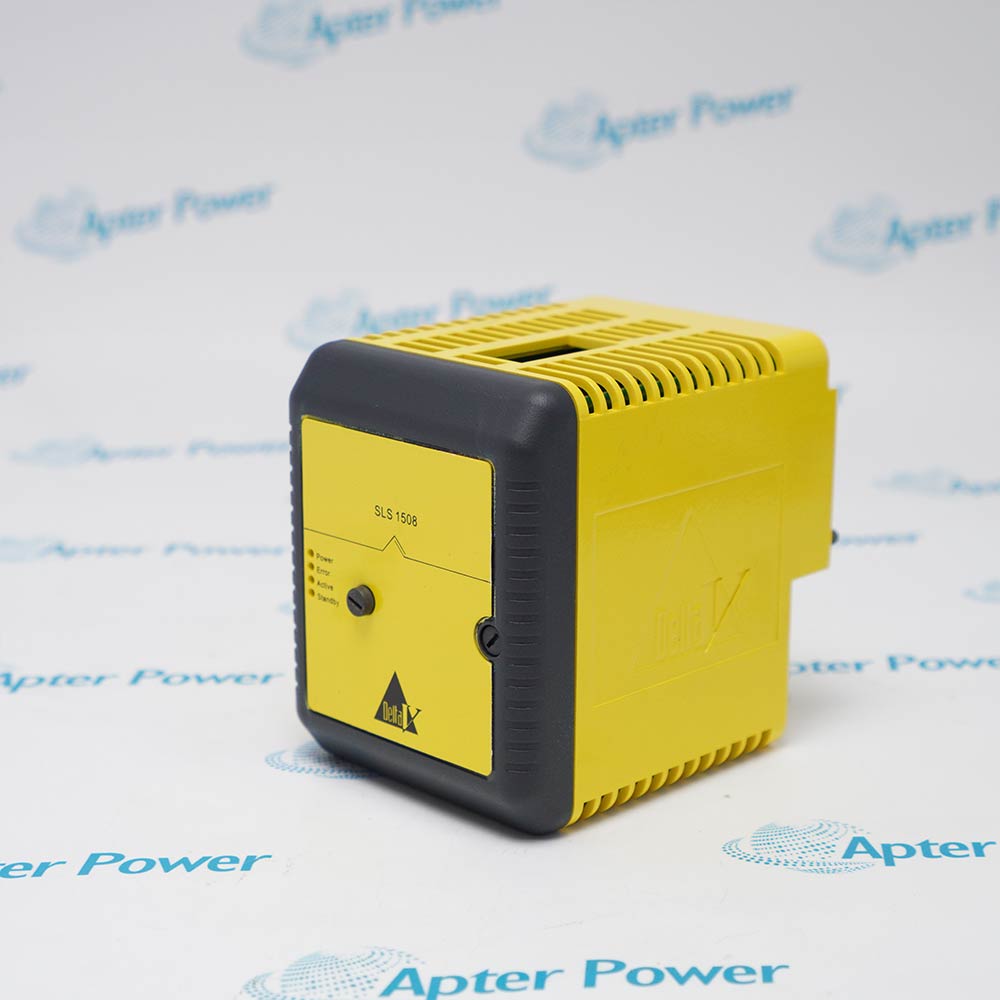

Emerson SLS1508 KJ2201X1-BA1 is a DeltaV SIS Logic Solver for safety instrumented functions.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for SLS1508 KJ2201X1-BA1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SLS1508 KJ2201X1-BA1

  • Manufacturer:
    Emerson
  • Part Number:
    SLS1508 KJ2201X1-BA1
  • Product Family:
    DeltaV
  • Product Type:
    SLS1508 Logic Solver
  • Stock:
    1
  • Supply:
    24 V DC ±20%
  • Logic-solver current:
    1.0 A plus field power
  • Maximum total current:
    5.0 A including field power
  • Maximum field power:
    4.0 A
  • Redundant-pair power:
    24 W; 2.0 A at 24 V DC plus field loads
  • Input isolation:
    Each input channel optically isolated from the system; 1500 V DC factory test
  • Ambient temperature:
    −40 to +70 °C
  • Relative humidity:
    5–95% noncondensing
  • Airborne contaminants:
    ISA-S71.04 Class G3
  • Shock:
    10 g half-sine wave for 11 ms
  • Vibration:
    1 mm peak-to-peak from 2–13.2 Hz; 0.7 g from 13.2–150 Hz
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Isolation Mounting Handling Application
  • The SLS1508 executes safety instrumented functions in the modular DeltaV SIS architecture
  • Simplex and redundant logic-solver arrangements use the documented yellow SIS terminal blocks
  • Peer-to-peer safety communication coordinates local and remote logic solvers through SISNet

SLS1508 KJ2201X1-BA1 is an Emerson logic solver designed for the DeltaV Safety Instrumented System platform.

It executes configured safety logic, connects documented local SIS I/O, and exchanges safety-rated information with compatible logic solvers through the DeltaV SIS architecture.

Before installation or replacement, verify the complete model and hardware codes, simplex or redundant design, yellow terminal blocks, carrier slots, 24 V DC supply, field power, SISNet design, project configuration, and safety validation.

Availability, condition, price, and shipping time for SLS1508 KJ2201X1-BA1 are confirmed during quotation.

Emerson SLS1508 KJ2201X1-BA1 SLS1508 Logic Solver Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Each input channel is optically isolated from the logic-solver system electronics
  • The documented isolation boundary is factory tested at 1500 V DC
  • Input channels do not provide channel-to-channel isolation
  • The logic solver mounts in the documented yellow DeltaV SIS terminal blocks
  • Simplex units use the supported odd-numbered carrier positions 1, 3, 5, or 7
  • A redundant logic-solver pair occupies four carrier slots in the documented arrangement
  • Remove field power before connecting or removing SLS1508 KJ2201X1-BA1
  • Do not remove or insert the logic solver with system power energized unless the area is known to be non-hazardous
  • The unit contains no user-serviceable parts, must not be disassembled, and does not require calibration
  • Process safety instrumented functions requiring configured shutdown logic
  • Cause-and-effect and interlock logic in DeltaV SIS projects
  • Peer-to-peer safety coordination between local and remote DeltaV SIS logic solvers
Description
SLS1508 KJ2201X1-BA1 is an Emerson DeltaV SIS Logic Solver for safety instrumented functions.

The unit executes configured safety logic, supports documented simplex or redundant architectures, connects local SIS I/O, and communicates with compatible logic solvers through SISNet.

Before installation or replacement, confirm the complete model and hardware codes, yellow SIS terminal blocks, carrier slots, 24 V DC and field-power capacity, SISNet design, project version, and validated safety configuration.
Alternative Names
SLS1508 KJ2201X1-BA1 KJ2201X1BA1 KJ2201X1 BA1 Emerson SLS1508 Emerson KJ2201X1-BA1 DeltaV SIS SLS1508 Logic Solver
Technical notes
SLS1508 KJ2201X1-BA1 requires the simplex or redundant architecture, yellow SIS terminal blocks, carrier slots, 24 V DC supply, field-power load, SISNet design, and validated project configuration to be verified before installation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can Emerson SLS1508 KJ2201X1-BA1 be configured as simplex or redundant?
Yes. Emerson documents both simplex and redundant SLS1508 architectures; the carrier-slot and terminal-block arrangement must match the project design.
How much field power can Emerson SLS1508 KJ2201X1-BA1 supply?
Emerson specifies 4.0 A maximum field power. The maximum total current is 5.0 A, including the 1.0 A logic-solver current and the connected field-power load.
Where is Emerson SLS1508 KJ2201X1-BA1 installed?
It mounts in the documented yellow DeltaV SIS terminal blocks. Supported simplex positions are the odd-numbered carrier slots 1, 3, 5, or 7.
Are the inputs of Emerson SLS1508 KJ2201X1-BA1 isolated?
Each input channel is optically isolated from the system and factory tested at 1500 V DC, but there is no channel-to-channel isolation.
What environment is specified for Emerson SLS1508 KJ2201X1-BA1?
The published limits are −40 to +70 °C, 5–95% noncondensing relative humidity, ISA-S71.04 Class G3, and the documented shock and vibration limits.
Does Emerson SLS1508 KJ2201X1-BA1 require a separate SISNet repeater?
Not for every local installation. A SISNet repeater is used when the project requires the documented redundant fiber network between physically dispersed logic solvers.
What should be checked before ordering Emerson SLS1508 KJ2201X1-BA1?
Confirm both identifiers, simplex or redundant configuration, yellow terminal blocks, carrier slots, 24 V DC and field-power capacity, SISNet topology, DeltaV SIS project version, and safety validation records.
