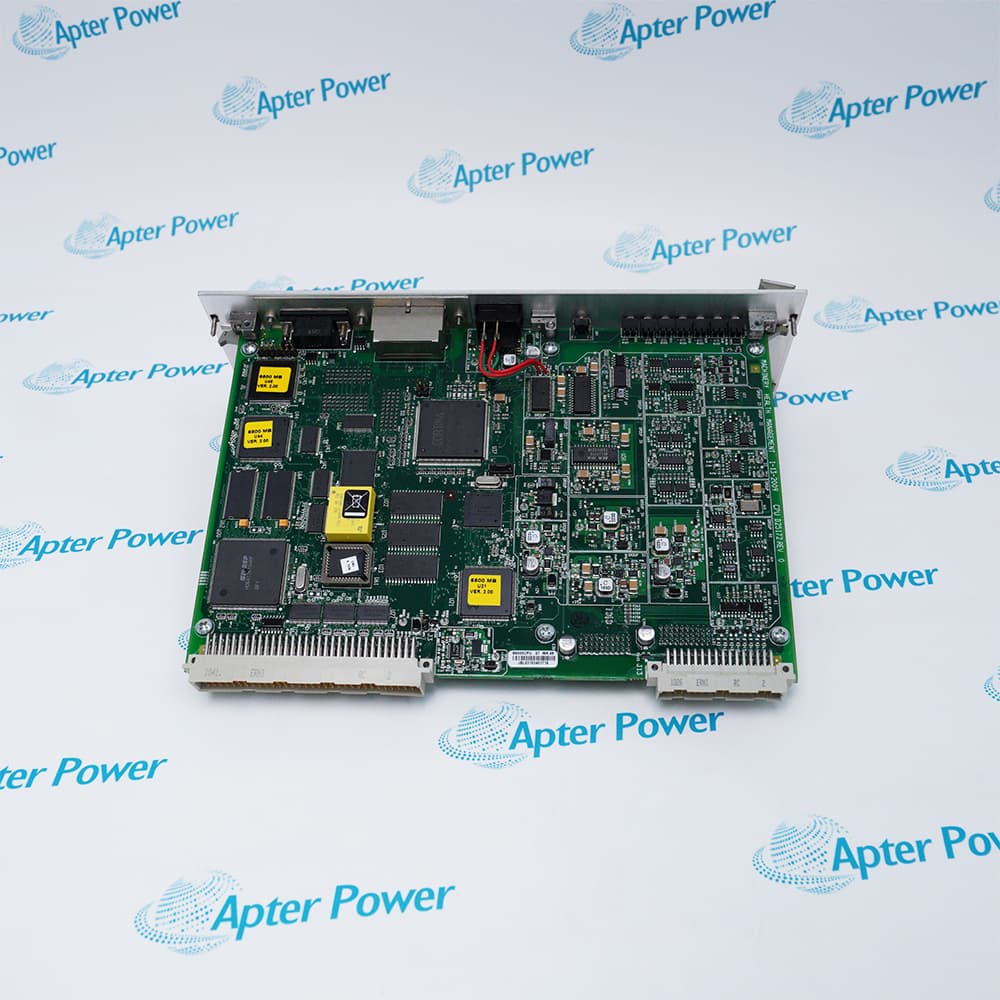

        A6560

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        The A6560 is a machinery health processor at the heart of the AMS 6500 system, featuring 32 MB SDRAM, 32 MB Flash, 10/100 BaseT Ethernet, and real-time overall vibration monitoring with deeper predictive analysis for rotating machinery.
        Get a quick price for A6560
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for A6560

        • Manufacturer:
          Emerson
        • Part Number:
          A6560
        • Product Family:
          AMS 6500 Machinery Health Monitor
        • Product Type:
          Machinery Health Processor
        • System Compatibility:
          AMS 6500 Machinery Health Monitor
        • Memory:
          32 MB SDRAM, 32 MB Flash
        • Network Communication:
          10/100 BaseT Ethernet (dual ports, HUB)
        • ADC Resolution:
          24 bit (2-channel simultaneous)
        • Dynamic Range:
          100 dB
        • Spectral Resolution:
          100 to 6400 lines
        • Analysis Bandwidth:
          10 Hz to 40 kHz
        • Frequency Accuracy:
          0.01% (crystal-based)
        • Overall Vibration Scan:
          12 channels RMS, DC per 400 ms
        • Amplitude Accuracy:
          1% at full span 30 Hz-40 kHz
        • Key Benefit:
          Solves the pain point of integrating real-time machine protection with predictive diagnostics in a single field-based platform—computes waveform, spectrum, and trending data locally to reduce central system load and enable faster fault detection.
        • Weight:
          0.42 kg
        • Estimated shipping dimensions:
          5x19x12.7cm
        • Tariff Code:
          8509900000
        • Country of origin:
          Germany
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Application Protection Functions Installation and Upgrades

        Features:

        • 24-bit ADC resolution with 100 dB dynamic range and simultaneous two-channel data acquisition enables precise measurement of subtle machine changes for early fault detection.
        • Event-based adaptive monitoring with configurable data collection and exception-based storage optimizes data management while ensuring critical events are captured.
        • Dual 10/100 BaseT Ethernet ports with built-in HUB support flexible network architectures including daisy-chaining for scalable system expansion.
        The A6560 sets a new standard for field-based predictive intelligence with its 24-bit ADC resolution and 100 dB dynamic range. By acquiring data simultaneously on two channels, it captures waveform and spectral information with exceptional fidelity, enabling early detection of developing faults such as bearing wear, unbalance, and misalignment. The onboard test generator verifies all sensor and tachometer channels, ensuring system integrity without external test equipment.

        The A6560 employs event-based adaptive monitoring that automatically adjusts to changing machine conditions and process states. Instead of overwhelming operators with continuous data streams, it intelligently triggers data collection based on predefined events—relay inputs, RPM thresholds, or vibration levels. Exception-based storage further optimizes data volume by saving only relevant information, reducing storage requirements and simplifying post-processing.

        With dual 10/100 BaseT Ethernet ports and an integrated HUB, the A6560 supports flexible network topologies including daisy-chaining, simplifying installation and reducing cabling costs. The rear RJ45 jacks connect to the plant network, while the front ports provide convenient local access for laptops or displays—ideal for commissioning and troubleshooting.

        The A6560 Emerson Machinery Health Processor may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

        Emerson A6560 Standard Accelerometer Interconnect Cable Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        Emerson A6560 Machinery Health Processor Specs

        General

        • Manufacturer Emerson
        • Model 3500/15 106M1079-01
        • Condition New Original ready stock
        • Product Family A6560T,A6510,A6510T
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Heavy Industrial Equipment: Widely used in steam turbines, gas turbines, compressors, water turbines, pumps, and fans.
        • Key Industries: Including oil and natural gas, power, chemical, pulp and paper, etc.
        • Transient Monitoring: The A6560-T model is specifically designed for transient process monitoring (such as start-up and shutdown processes) of turbomachinery.
        • Real-time Total Vibration Processing: Provides real-time monitoring of total vibration values ​​for quick machine status checks.
        • Predictive Diagnostic Analysis: Calculates waveforms, spectra, and analyzes parameters on-site, processing two channels simultaneously to assist in diagnosing equipment degradation.
        • Adaptive Monitoring: Features event-based adaptive monitoring, automatically adjusting monitoring strategies based on machine operating conditions (such as load changes).
        • Physical Installation: The A6560 is a 3U plug-in module that saves rack space. It is typically used in conjunction with the A6510 signal input module (one A6560 supports up to two A6510s).
        • Configuration and Management: Data can be seamlessly integrated into DeltaV or Ovation control systems.
        • System Upgrades:Legacy System Replacement: Emerson offers the AMS 6500 upgrade program, supporting the migration of legacy protection systems to modern platforms, leveraging existing cabling and control system integration.
        View as PDF
        Description
        The A6560 serves as the central predictive intelligence unit within the AMS 6500 Machinery Health Monitor, combining real-time overall vibration monitoring with deeper diagnostic analysis. It scans 12 channels of RMS and DC values every 400 milliseconds, providing a quick health check while simultaneously performing waveform, spectrum, and analysis computations two channels at a time.

        With its event-based adaptive monitoring, the A6560 adjusts to changing process conditions and machine states, delivering tailored insights directly from the field. Results are communicated to control systems or AMS Machinery Manager software via dual 10/100 BaseT Ethernet ports, which also support daisy-chain network architectures.

        The A6560 offers flexible data collection options, including event-based and time-based intervals, with exception-based storage to manage data volume efficiently. It supports analysis bandwidths from 10 Hz to 40 kHz with spectral resolutions from 100 to 6400 lines, and includes advanced averaging modes such as Normal, PeakVue®, and order tracking.

        This processor solves the pain point of integrating real-time machine protection with predictive diagnostics in a single field-based platform. By computing waveform, spectrum, and trending data locally, the A6560 reduces the load on central systems and enables faster response to developing faults.
        Alternative Names
        A6560T A6510 A6510T
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What is the primary function of the A6560?
        The A6560 serves as the machinery health processor in the AMS 6500 system, providing real-time overall vibration monitoring and predictive analysis to diagnose deteriorating machine conditions.
        What communication options does the A6560 offer?
        It features dual 10/100 BaseT Ethernet ports with a built-in HUB for daisy-chain networking, plus an RS-232 serial port and local HUB for laptop or display connection.
        How does the A6560 handle data storage and collection?
        Data collection is event-based and/or time-based with exception-based storage. The processor can be programmed to auto-archive data slices based on events such as high vibration or speed changes.
        What is the difference between the A6560 and A6560-T?
        The A6560-T includes all A6560 functionality plus a transient processor that continuously records time waveforms on all channels simultaneously, with over 100 hours of buffered data for turbomachinery analysis.
