A6500-UM

/ 4.9
1001 reviews | Need a Specific Revision?

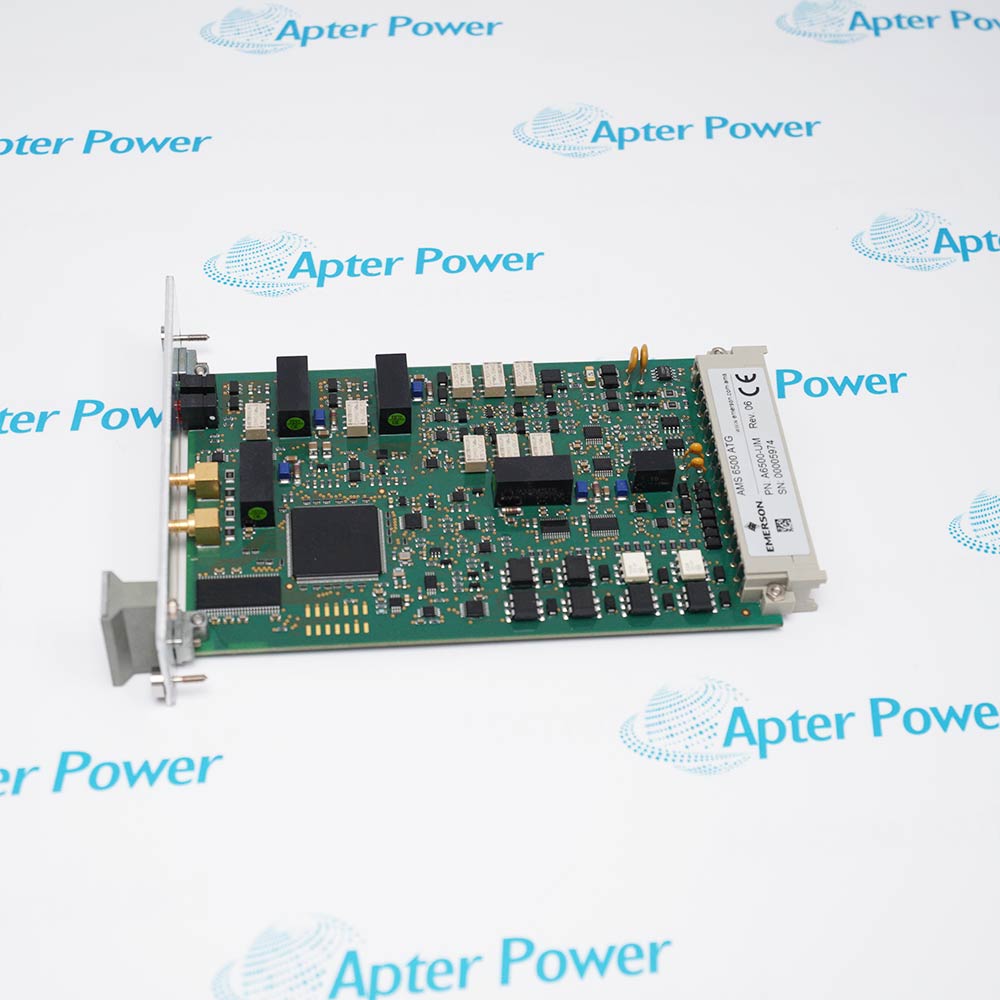

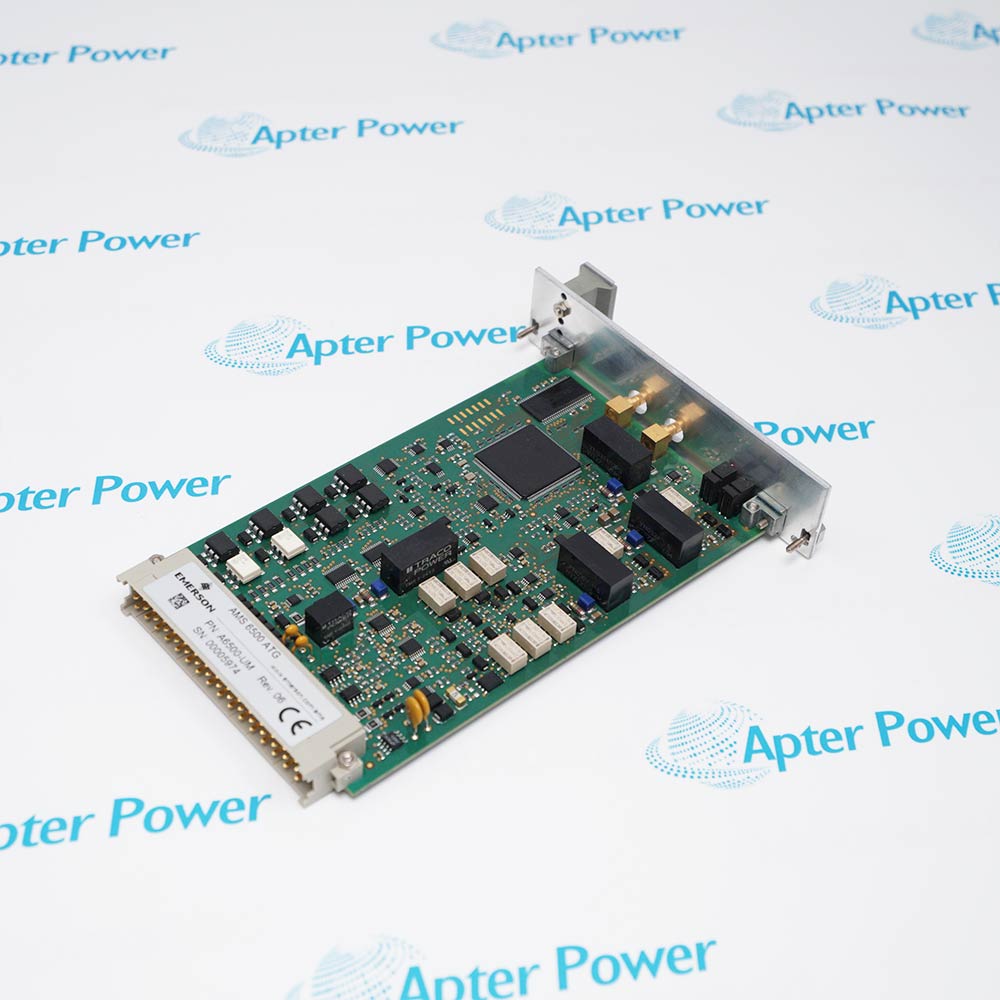

Emerson A6500-UM is a dual-channel universal measurement card for AMS 6500 ATG machinery protection racks.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for A6500-UM
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for A6500-UM

  • Manufacturer:
    Emerson
  • Part Number:
    A6500-UM
  • Product Family:
    Epro
  • Product Type:
    Universal Measurement Card
  • Stock:
    1
  • Measurement channels:
    2 sensor channels
  • Supported transducers:
    Eddy-current, piezoelectric, seismic, low-frequency, Hall, LVDT and dynamic-pressure interfaces
  • Digital inputs:
    5
  • Digital outputs:
    6
  • Analog outputs:
    2 x 0/4 to 20 mA
  • Internal communication:
    RS-485 to A6500-CC
  • External protocols:
    Modbus RTU and Modbus TCP through the communication card
  • Local service:
    USB through the communication card
  • Enclosure protection:
    IP20
  • Operating temperature with forced air:
    -20 to +70 deg C
  • Operating temperature without fan:
    -20 to +55 deg C
  • Storage temperature:
    -40 to +85 deg C
  • Relative humidity:
    5 to 95 percent, non-condensing
  • Maximum power:
    6 W
  • Form factor:
    3U, 6 HP
  • Rack interface:
    A6500-SR 3U protection rack
  • Eddy-current input range:
    -1 to -22 V, 0 to 18,750 Hz
  • Eddy-current sensor supply:
    -23.25 to -26 V, 35 mA, +/-1%
  • Piezoelectric input range:
    +1 to +23 V, 0 to 18,750 Hz
  • Piezoelectric sensor supply:
    0 to 8 mA, +/-3.5%
  • Seismic input range:
    -10 to +15 V, 0 to 2000 Hz
  • Low-frequency input range:
    -11 to +11 V, 0 to 1000 Hz
  • Hall/LVDT input range:
    +1 to +22 V; extended 0 to 30 V for speed
  • Digital-input low level:
    0 to 3 V
  • Digital-input high level:
    13 to 32 V or open
  • Key inputs:
    2 inputs, 0 to 2000 Hz
  • Analog-output load:
    Less than 500 ohm
  • Digital-output rating:
    6 solid-state outputs, 19 to 32 V DC, 100 mA
  • Digital-output response:
    Less than 5 ms
  • Pulse outputs:
    2 opto-coupled outputs, 19 to 32 V DC, 30 mA, 0 to 2000 Hz
  • Vibration test:
    IEC 60068-2-6
  • Shock:
    150 m/s2
  • Weight:
    0.2 kg
  • Estimated shipping dimensions:
    3 x 19 x 12.8 cm
  • Tariff Code:
    9031809090
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Sensor Inputs Rack Link Protection I/O Applications

Features:

  • Two independently configurable machinery-measurement channels.
  • Universal interfaces cover vibration, displacement, speed and pressure sensors.
  • Internal RS-485 communication links the card with A6500-CC.
Sensor supply, range and measurement behavior follow the selected channel mode.

Local digital, pulse and current outputs can pass configured states to protection or plant circuits.

Replacement review should include the transducer, rack slot and saved channel setup.

Apter Power supports Emerson A6500-UM Universal Measurement Card sourcing with quotations, technical documents and sensor-chain matching guidance.
Emerson A6500-UM Universal Measurement Card Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Each channel can use one documented eddy-current, piezoelectric, seismic, Hall, LVDT or pressure interface.
  • Sensor supply and input range change with the configured measurement mode.
  • Two key inputs support documented speed and phase-reference functions.
  • The installed transducer record should guide replacement configuration and scaling.
  • Internal RS-485 connects the card with A6500-CC.
  • Plant Modbus access is provided through the communication card rather than directly from A6500-UM.
  • USB service access is also handled through A6500-CC.
  • Rack addressing and host integration remain part of the installed AMS 6500 ATG configuration.
  • Five digital inputs accept external state and key-signal information.
  • Six solid-state outputs expose configured alarm or logic results.
  • Two current outputs provide 0/4-20 mA signals to compatible receiving equipment.
  • Output loading and alarm logic should follow the approved protection design.
  • Dual-channel shaft vibration and position monitoring.
  • Speed, keyphasor and low-frequency machinery measurements.
  • Dynamic-pressure and casing-vibration measurement channels.
  • Configured AMS 6500 ATG spare replacement with sensor and rack matching.
Description
Two independently configurable channels make A6500-UM a flexible measurement card for shaft, casing, speed and dynamic-pressure monitoring in AMS 6500 ATG racks.

When measured states must reach plant circuits, A6500-UM provides digital inputs, solid-state outputs, pulse outputs and two 0/4-20 mA channels alongside its sensor interfaces.

For replacement planning, Apter Power can match A6500-UM to the installed transducers, saved channel setup, rack slot and A6500-CC communication path.
Alternative Names
A6500 UM A6500UM Emerson A6500-UM Emerson A6500 UM A6500-UM Universal Measurement Card Emerson A6500-UM AMS 6500 ATG A6500-UM Catalog Number A6500 UM measurement card
Technical notes
A6500-UM accepts several sensor-interface types, but the selected input mode determines sensor supply, range and scaling. Apter Power can compare the installed transducer, saved channel setup and A6500-CC path before quotation, helping preserve the intended measurement and protection behavior.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can I reuse my saved channel setup with A6500-UM?
A saved setup can be reused when the replacement hardware and connected transducers match the original configuration. Apter Power can review your setup file or channel record.
Can A6500-UM mix two different measurement functions on one card?
The two channels are independently configurable within the supported sensor and measurement options, subject to the approved rack configuration.
How does A6500-UM exchange data with the plant network?
The card communicates internally with A6500-CC over RS-485; that communication card provides the documented Modbus and USB service paths.
What should I compare before replacing A6500-UM?
The replacement should match the installed rack slot, transducer type and supply, scaling, alarm logic and communication-card setup. Apter Power can review the saved configuration with you.
Can A6500-UM drive external status circuits directly?
Its documented solid-state, pulse and current outputs can expose configured results, provided field loading and logic match the approved design.
What information helps Apter Power quote A6500-UM accurately?
The rack and slot, connected transducer numbers, saved configuration, output assignments and required approvals help us check the exact card and measurement setup.
